Installation

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR

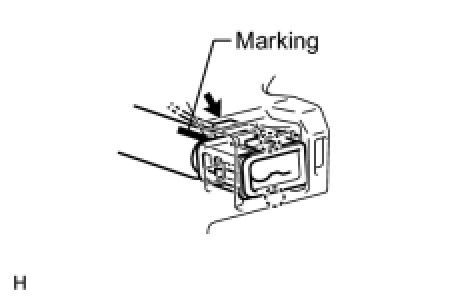

(a) Attach the claws to install the sensor.

(b) Connect the connector.

(c) Connect the duct.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
