Removal and Replacement

Front Air Conditioning Filter

Step 1. Set the air conditioning system to recirculated mode. The air conditioning filter case cannot be removed with the system in the outside air mode.

Step 2. Turn the "ENGINE START STOP" switch to OFF.

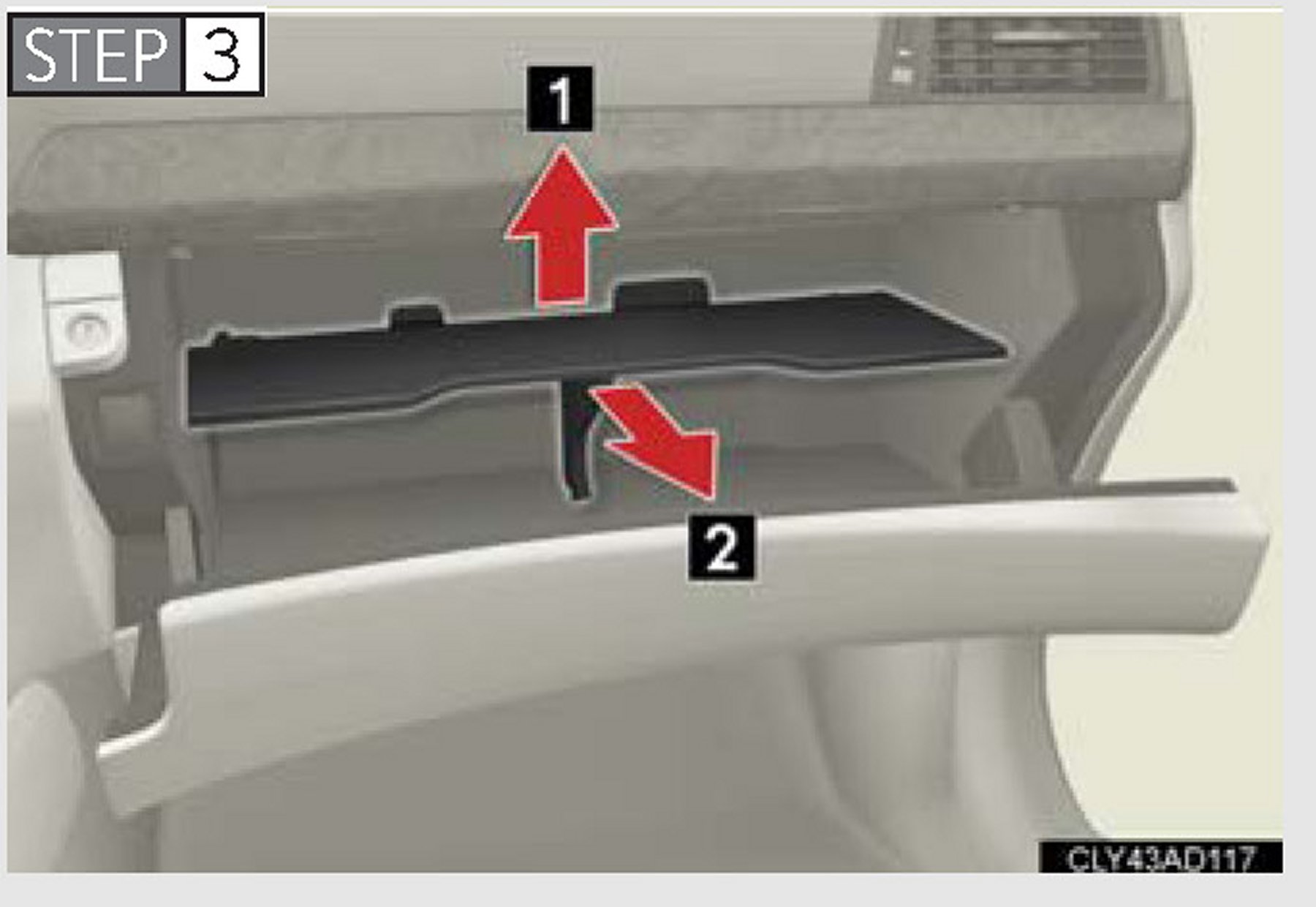

Step 3. Open the glove box. Lift and remove the partition.

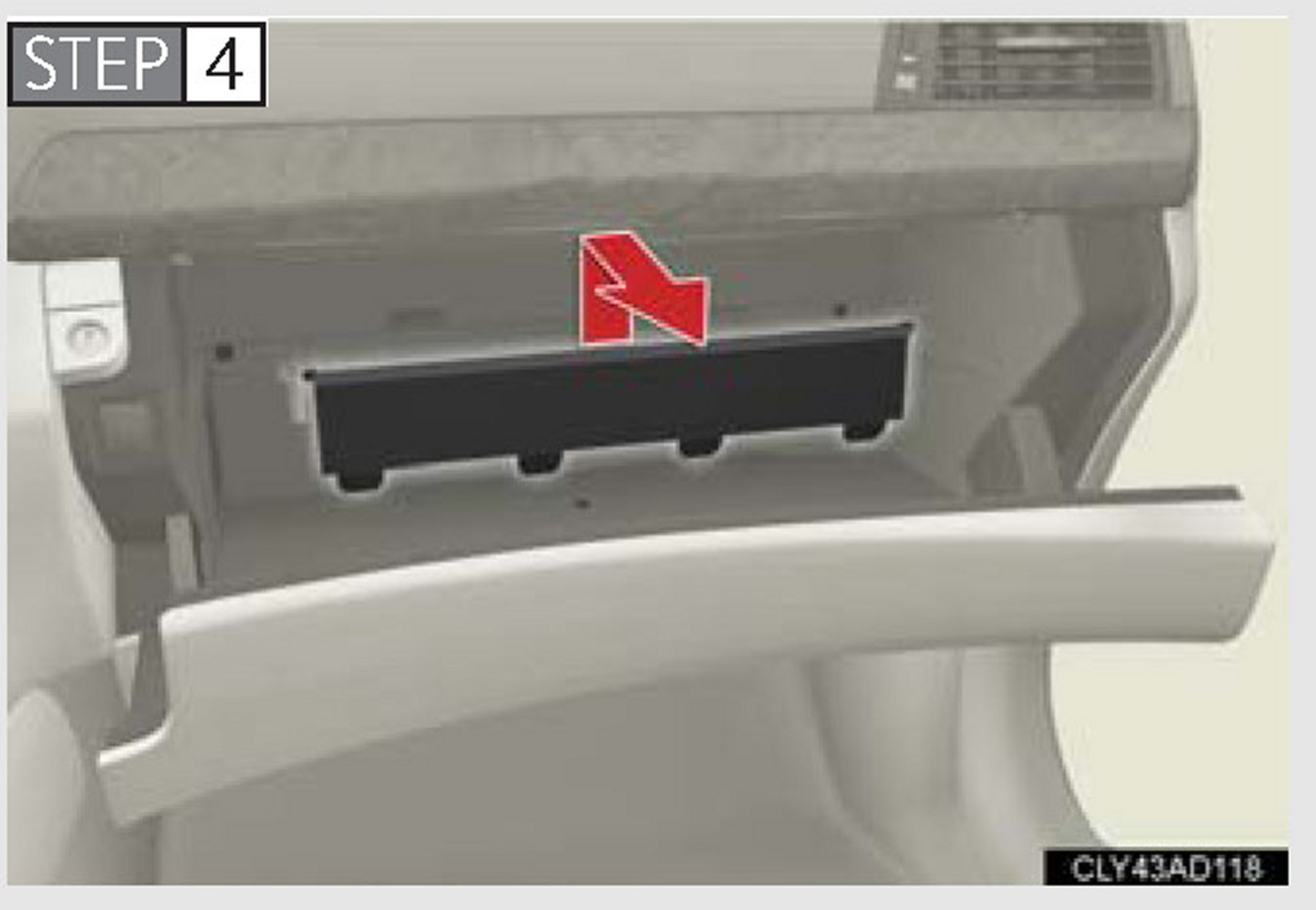

Step 4. Remove the filter cover.

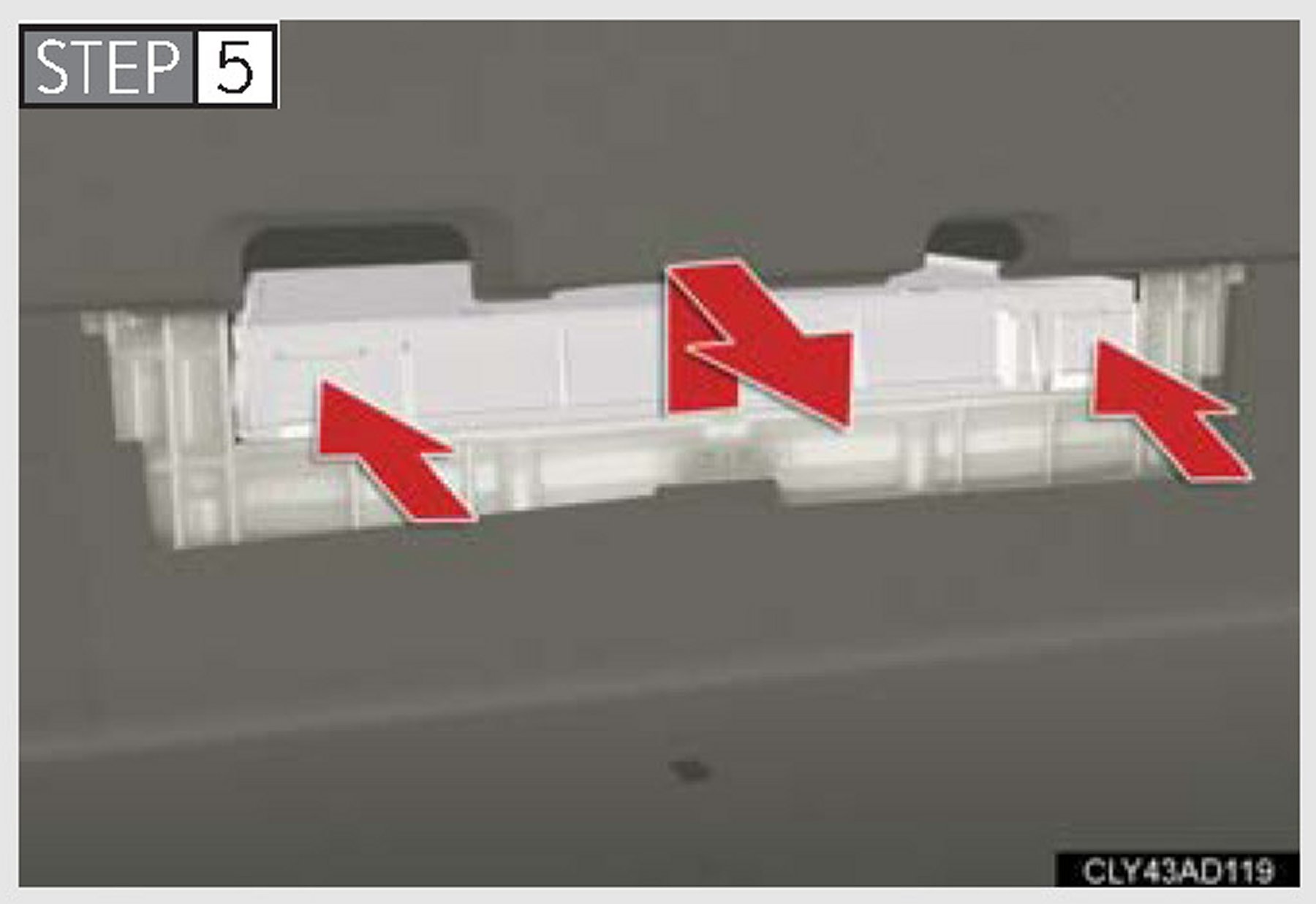

Step 5. Remove the filter case.

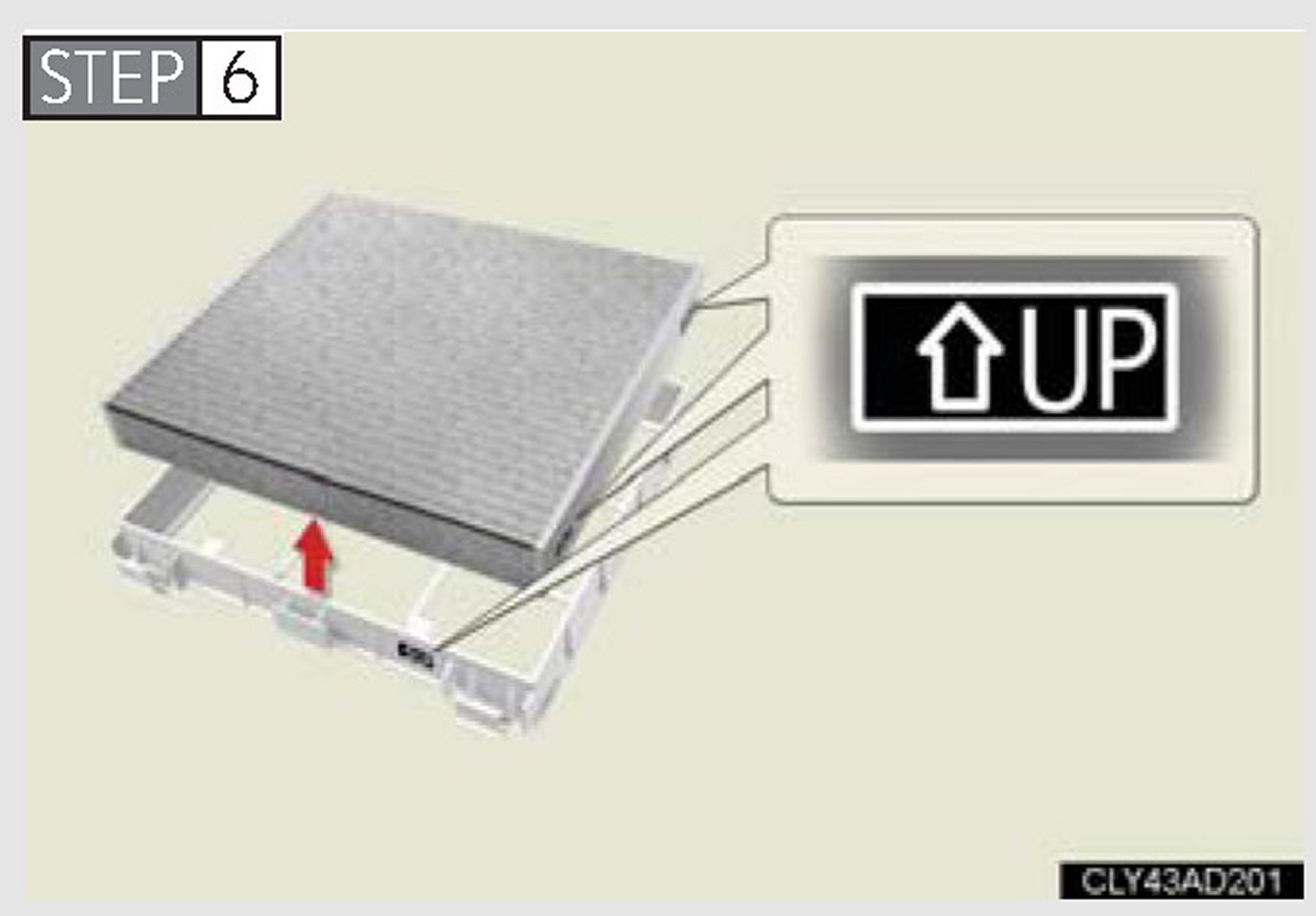

Step 6. Remove the air conditioning filter from the filter case and replace it with a new one. The "UP" marks shown on the filter and the filter case should be pointing up.


Step 7. Reset the air conditioning filter maintenance data.

Turn the "ENGINE START STOP" switch to "IGNITION ON" mode.
Press and hold OFF (on the air conditioning panel) for 4 seconds or more. A buzzer will sound to indicate that the maintenance data has been successfully reset.

Rear air conditioning filter (if equipped)

Step 1. Turn the "ENGINE START STOP" switch to OFF.

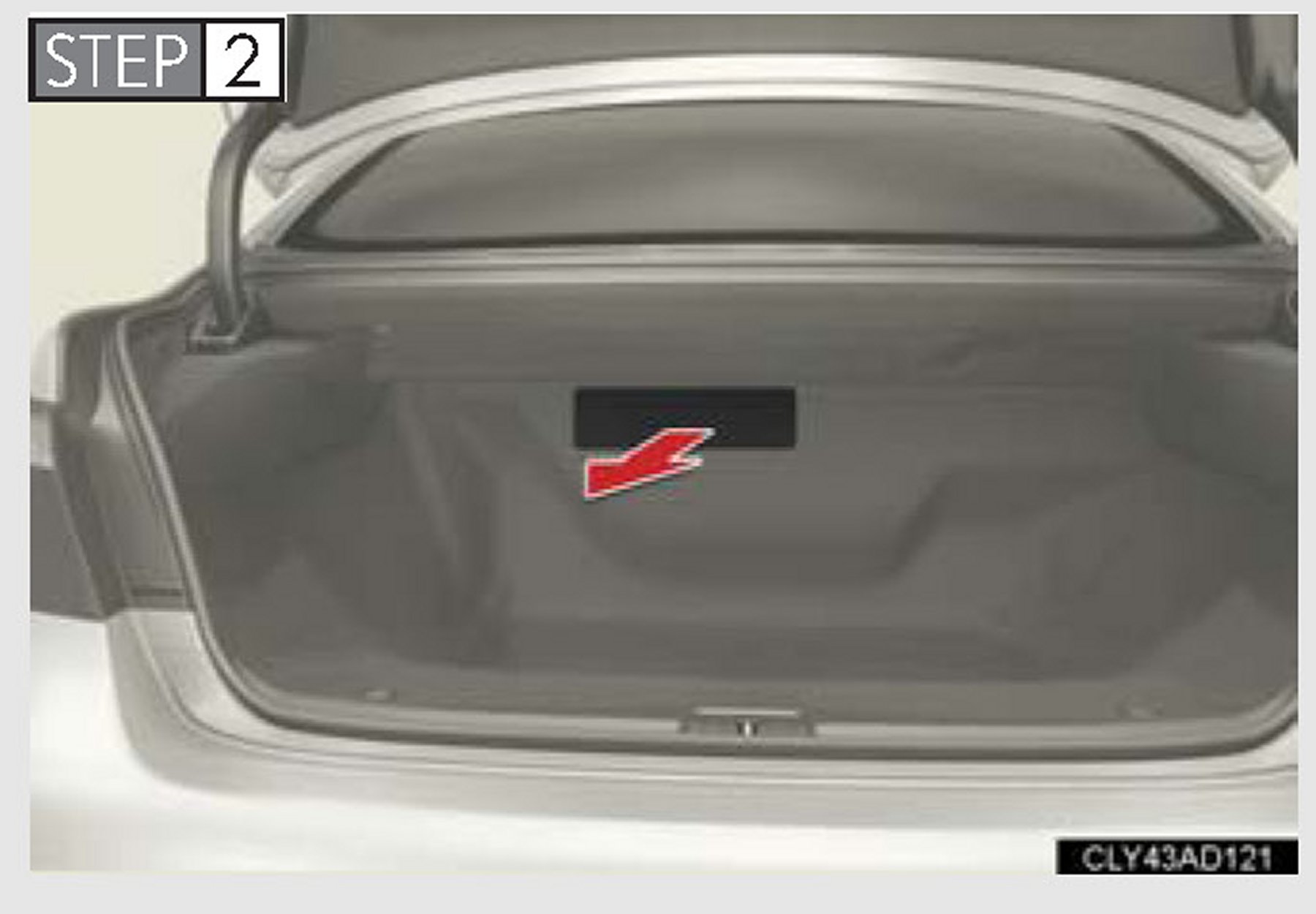

Step 2. Open the trunk lid. Remove the filter cover.

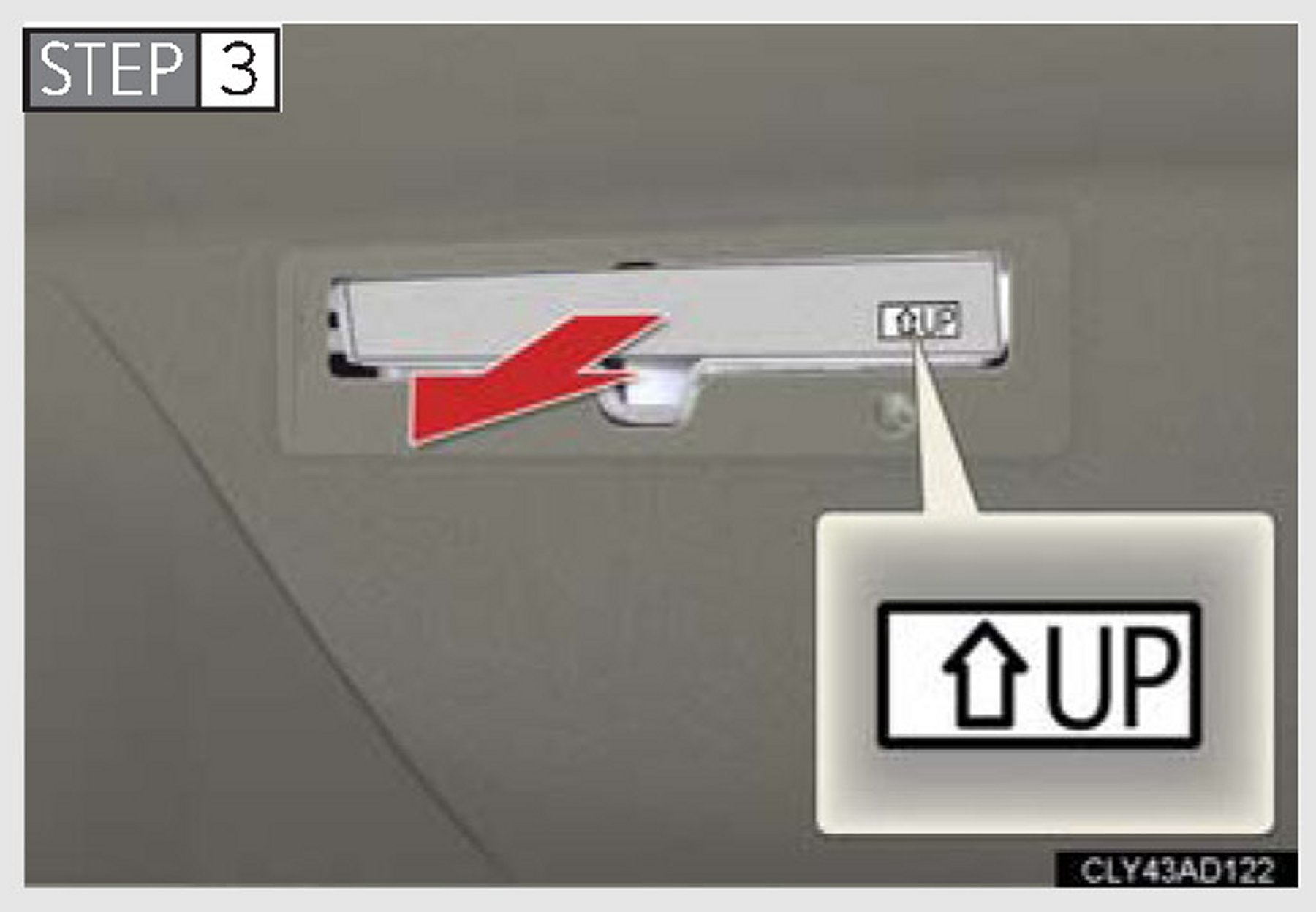

Step 3. Remove the air conditioning filter and replace it with a new. The "UP" marks shown on the filter should be pointing up.
