Replacement

1UR-FSE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REPLACEMENT

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

3. REMOVE NO. 1 AIR CLEANER INLET Removal

4. REMOVE INTAKE AIR CONNECTOR PIPE Removal

5. REMOVE V-RIBBED BELT Removal

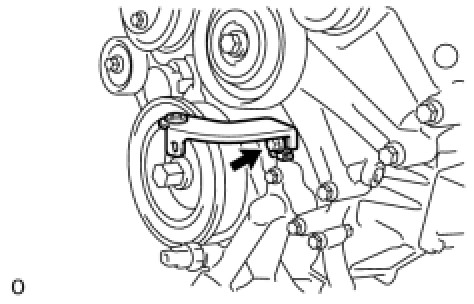

6. REMOVE RESONATOR BRACKET SUB-ASSEMBLY

(a) Remove the bolt and resonator bracket.





7. REMOVE CRANKSHAFT PULLEY [1][2]Removal

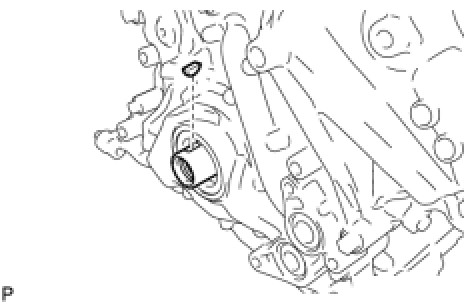

8. REMOVE CRANKSHAFT TIMING GEAR KEY

(a) Remove the crankshaft timing gear key from the crankshaft.

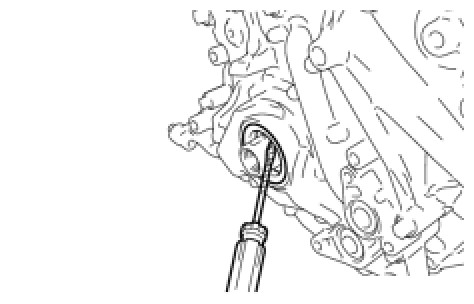

9. REMOVE TIMING CHAIN CASE OIL SEAL

(a) Remove the oil seal with a screwdriver.





HINT
Tape the screwdriver tip before use.

NOTICE:
Do not damage the surface of the oil seal press fit hole and crankshaft.

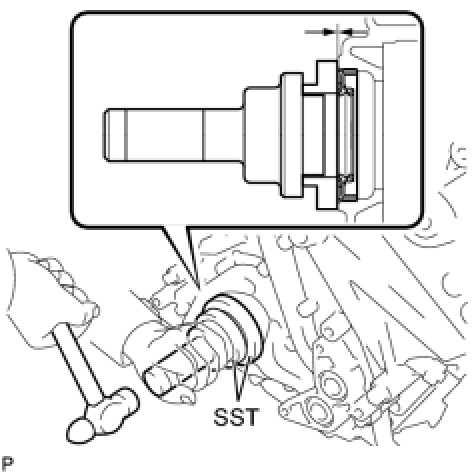

10. INSTALL TIMING CHAIN CASE OIL SEAL

(a) Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge.





SST : 09223-22010

SST : 09506-35010

NOTICE:
* Keep the lip free from foreign matter.
* Do not tap oil seal at an angle.
11. INSTALL CRANKSHAFT TIMING GEAR KEY

(a) Install the crankshaft timing gear key.





12. INSTALL CRANKSHAFT PULLEY [1][2]Installation

13. INSTALL RESONATOR BRACKET SUB-ASSEMBLY

(a) Install the resonator bracket with the bolt.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

14. INSTALL V-RIBBED BELT Installation

15. INSTALL INTAKE AIR CONNECTOR PIPE Installation

16. INSTALL NO. 1 AIR CLEANER INLET Installation

17. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

18. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
