Removal

1UR-FSE COOLING: COOLING FAN MOTOR (for AWD): REMOVAL

1. REMOVE RADIATOR ASSEMBLY

(a) Remove the radiator from the vehicle Removal.

2. REMOVE FAN SHROUD WITH FAN AND MOTOR

(a) Remove the 2 bolts.





(b) Detach the claw, and then remove the fan shroud with fan and motor.

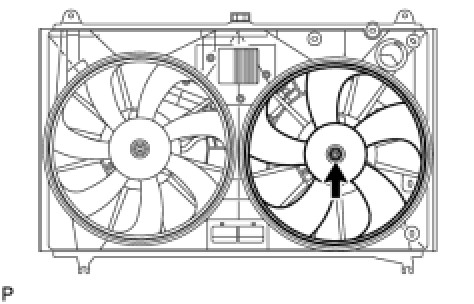

3. REMOVE FAN

(a) Remove the nut and fan.

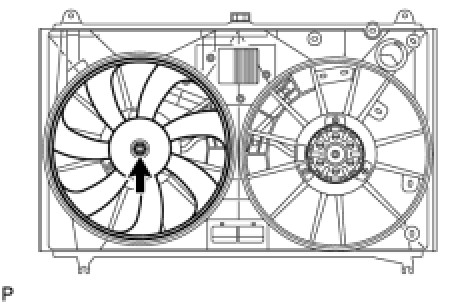

4. REMOVE NO. 2 FAN

(a) Remove the nut and fan.





5. REMOVE COOLING FAN MOTOR

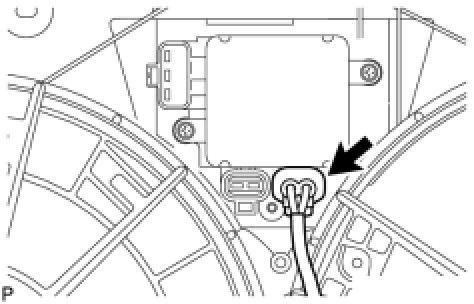

(a) Disconnect the connector.

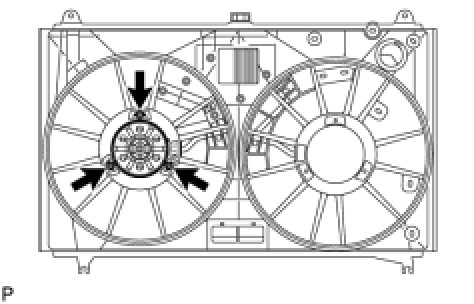

(b) Remove the 3 screws and motor.





6. REMOVE NO. 2 COOLING FAN MOTOR

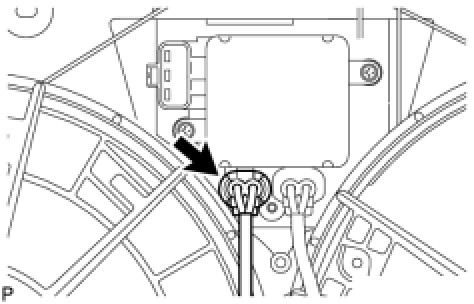

(a) Disconnect the connector.

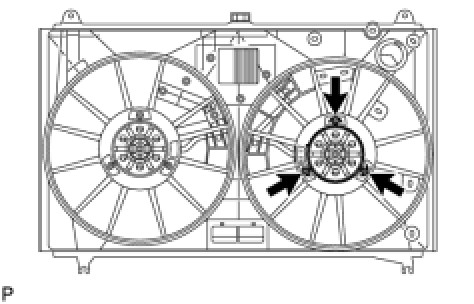

(b) Remove the 3 screws and motor.
