Disassembly

1UR-FSE COOLING: COOLING FAN MOTOR (for 2WD): DISASSEMBLY

1. REMOVE NO. 1 FAN

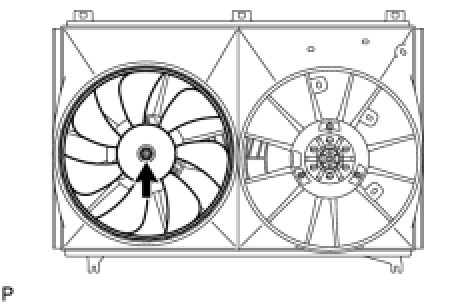

(a) Remove the nut and fan.

2. REMOVE NO. 2 FAN

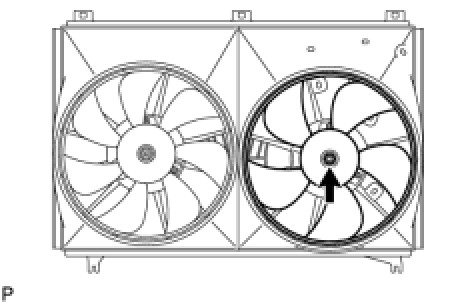

(a) Remove the nut and fan.

3. REMOVE NO. 1 COOLING FAN MOTOR

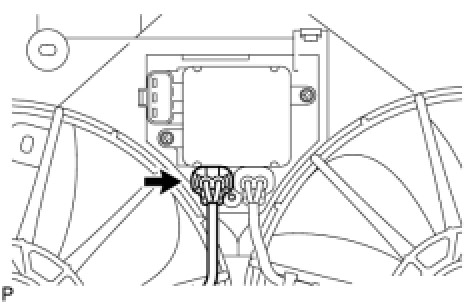

(a) Disconnect the connector.

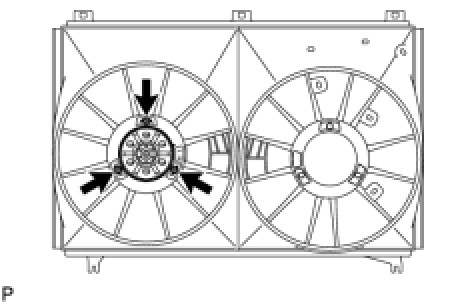

(b) Remove the 3 screws and motor.

4. REMOVE NO. 2 COOLING FAN MOTOR

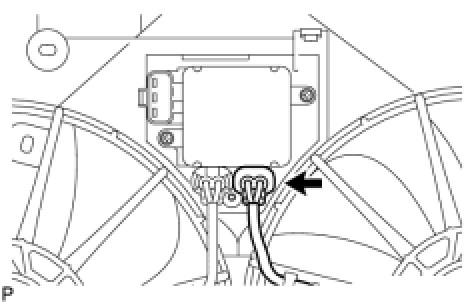

(a) Disconnect the connector.

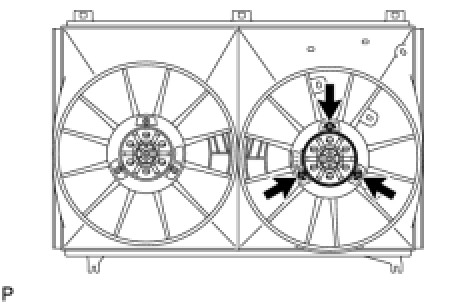

(b) Remove the 3 screws and motor.
