Wiper and Washer

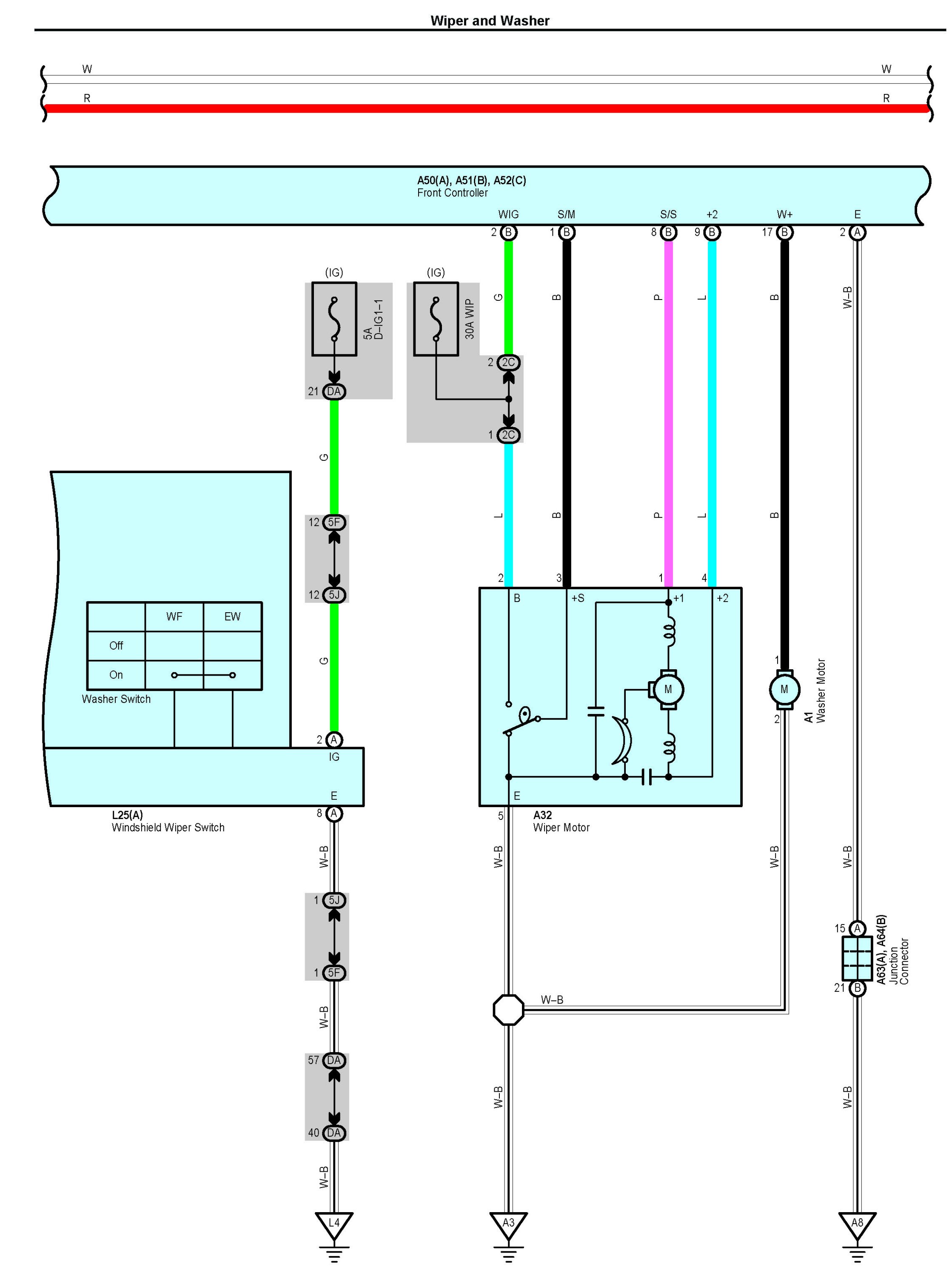

Wiper And Washer Part 1:

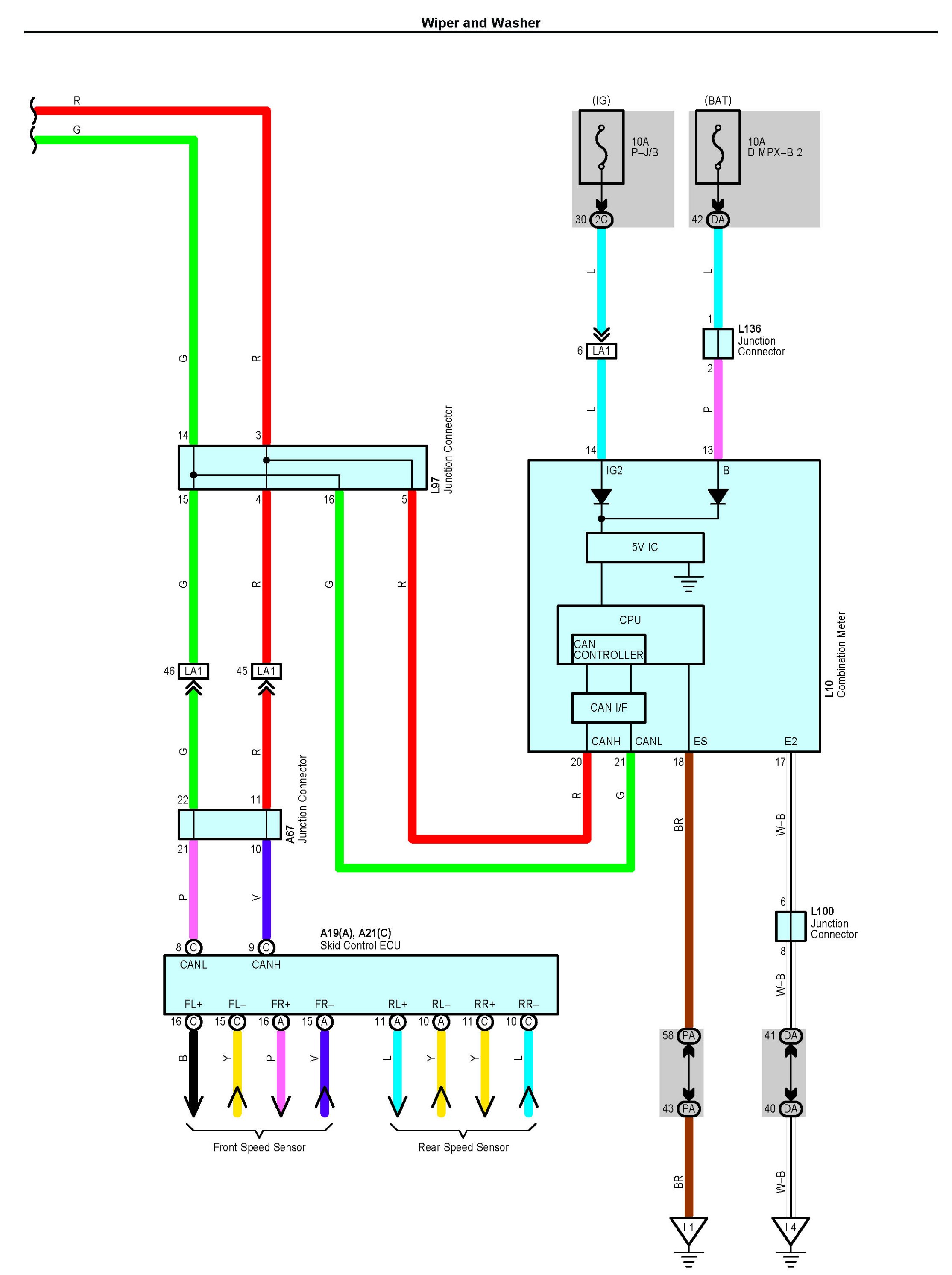

Wiper And Washer Part 2:

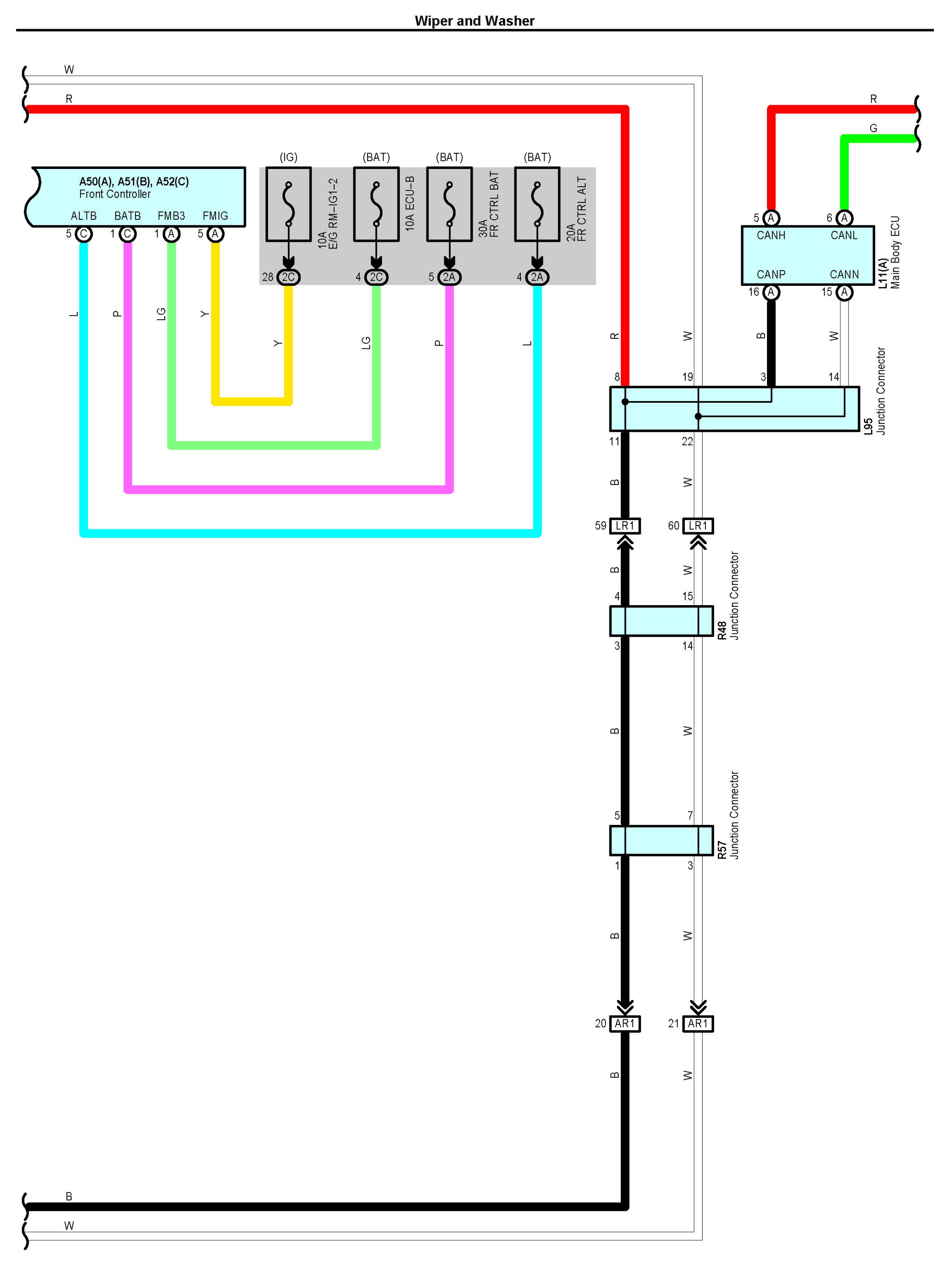

Wiper And Washer Part 3:

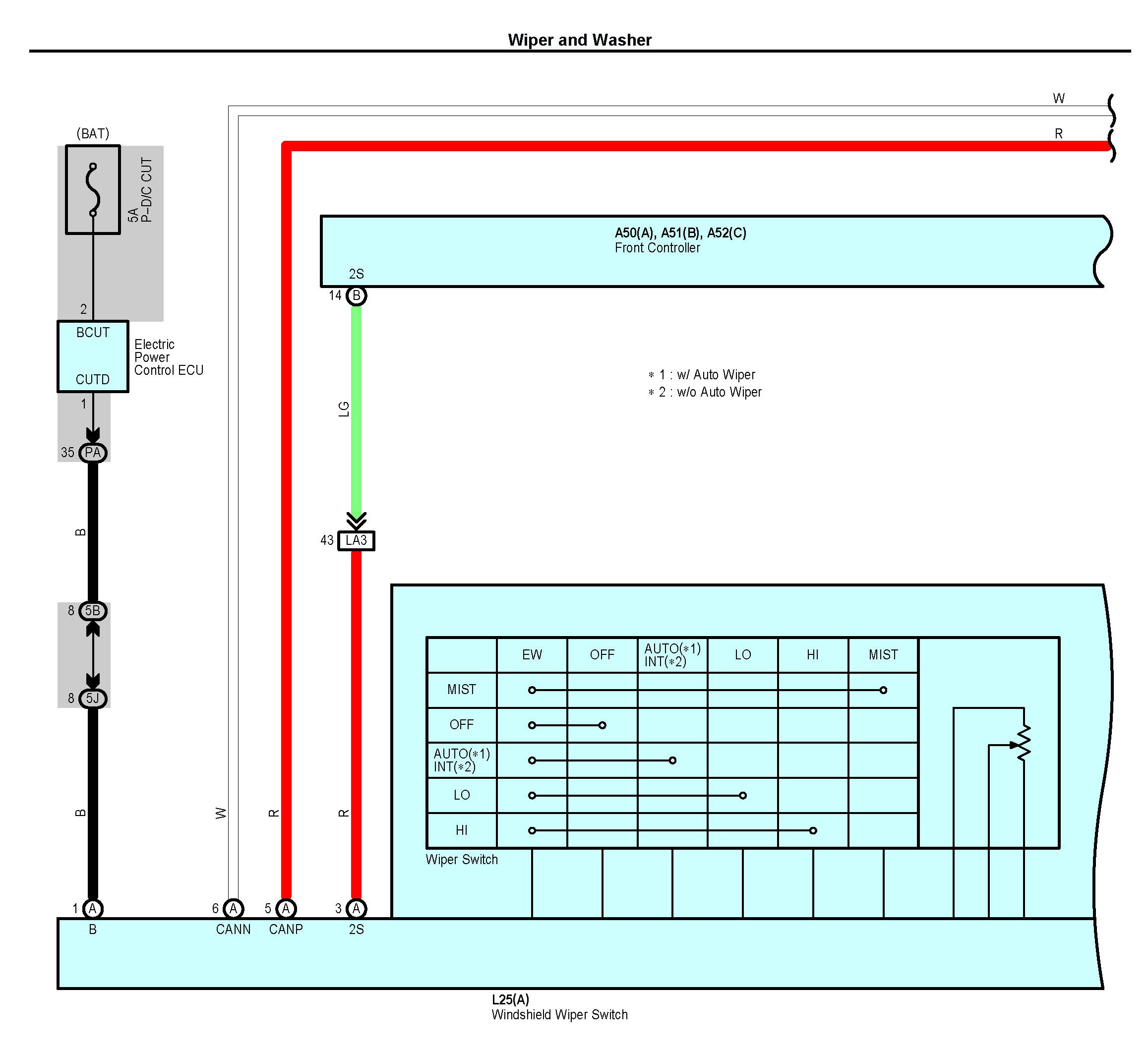

Wiper And Washer Part 4:

Wiper And Washer Part 5:

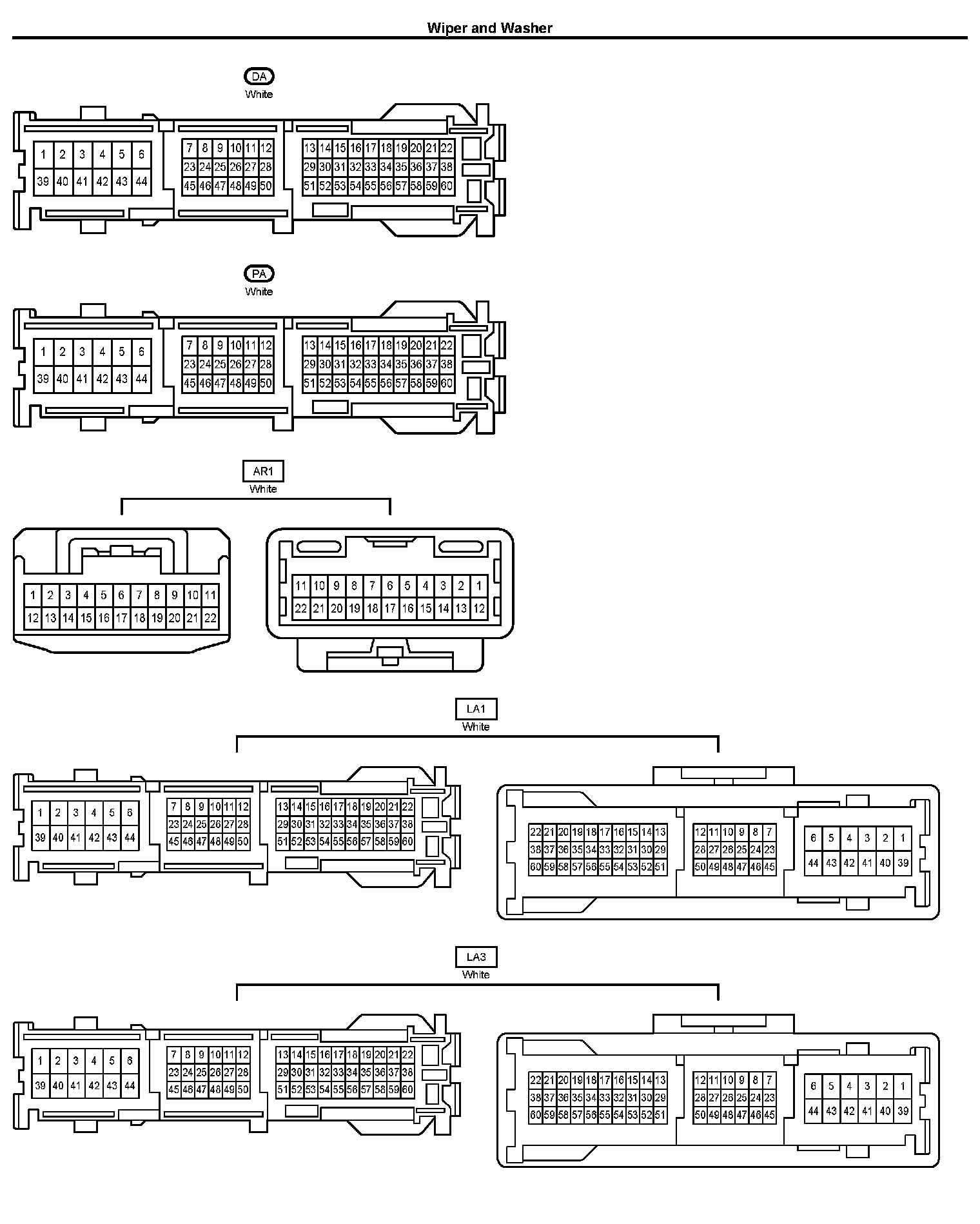

Connectors Part 1:

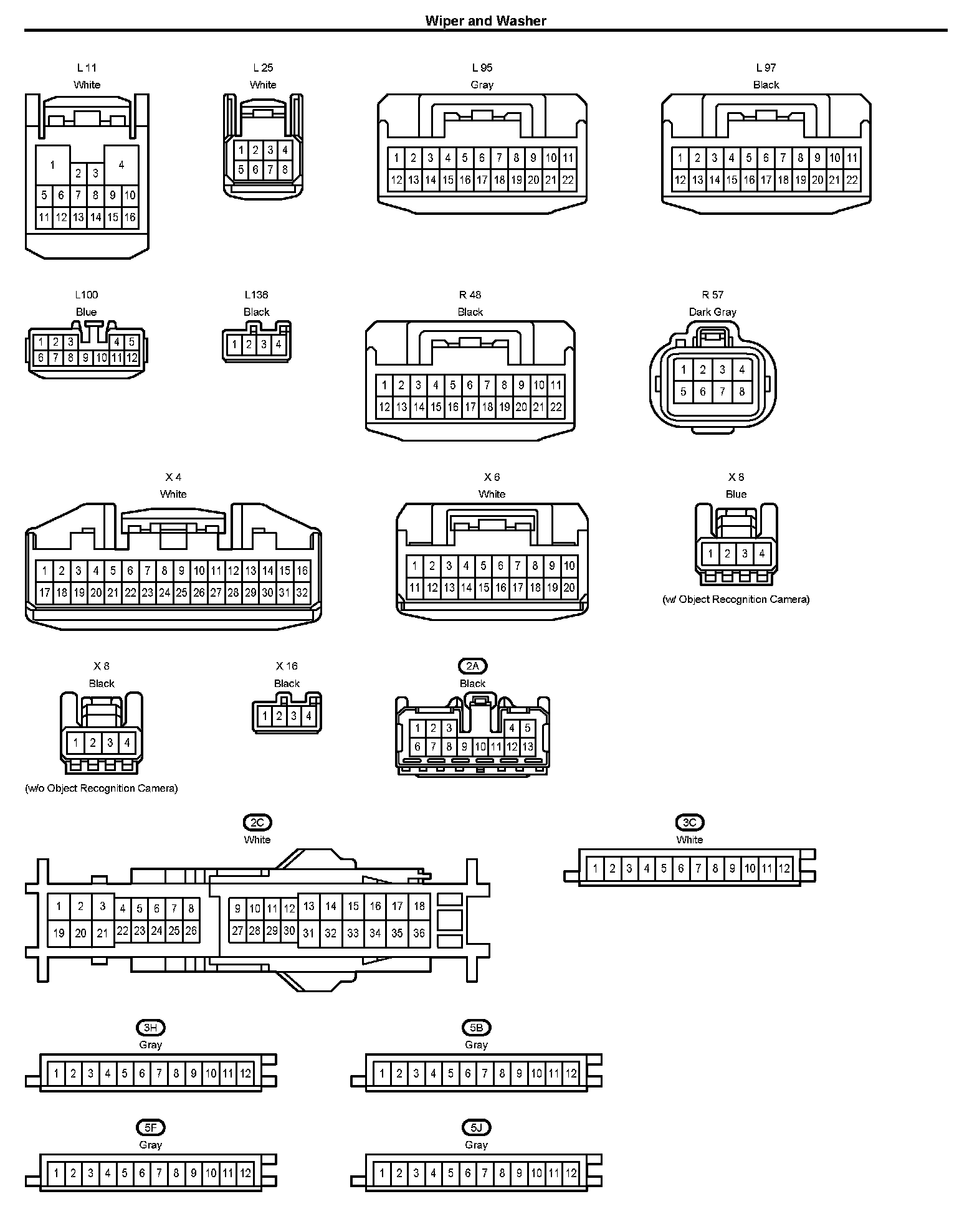

Connectors Part 2:

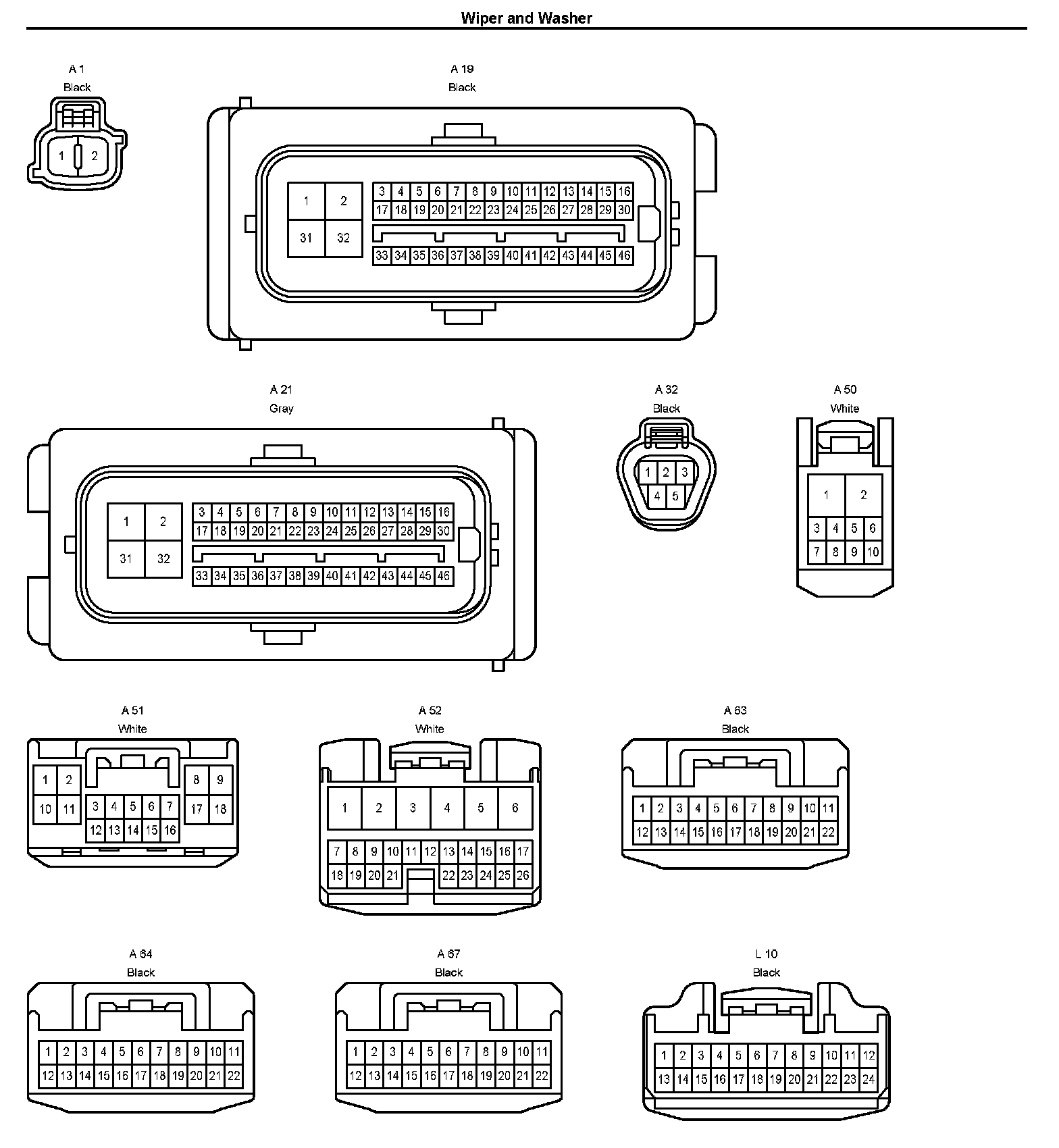

Connectors Part 3:

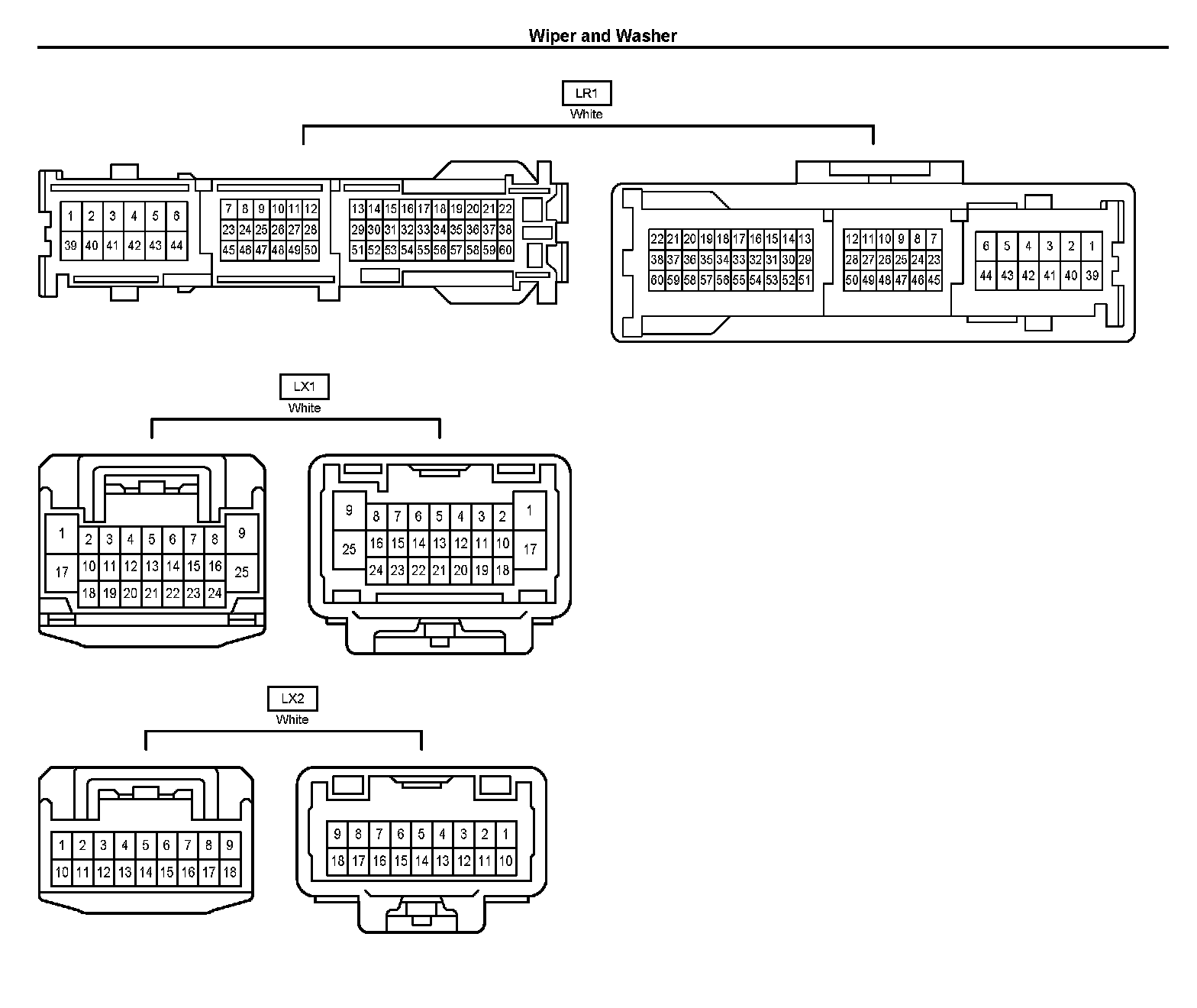

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
