Rear Seat Entertainment System [Console Type]

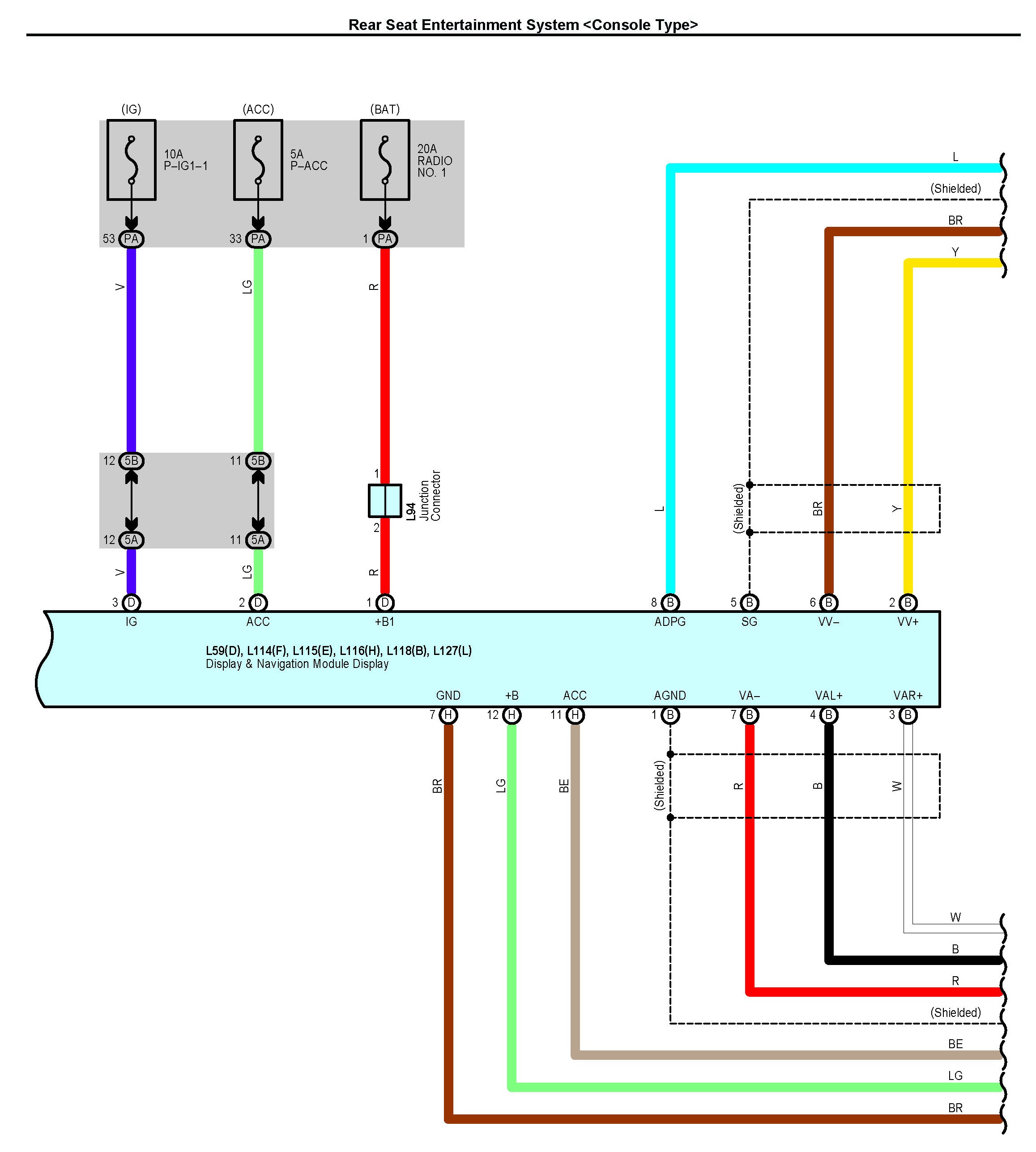

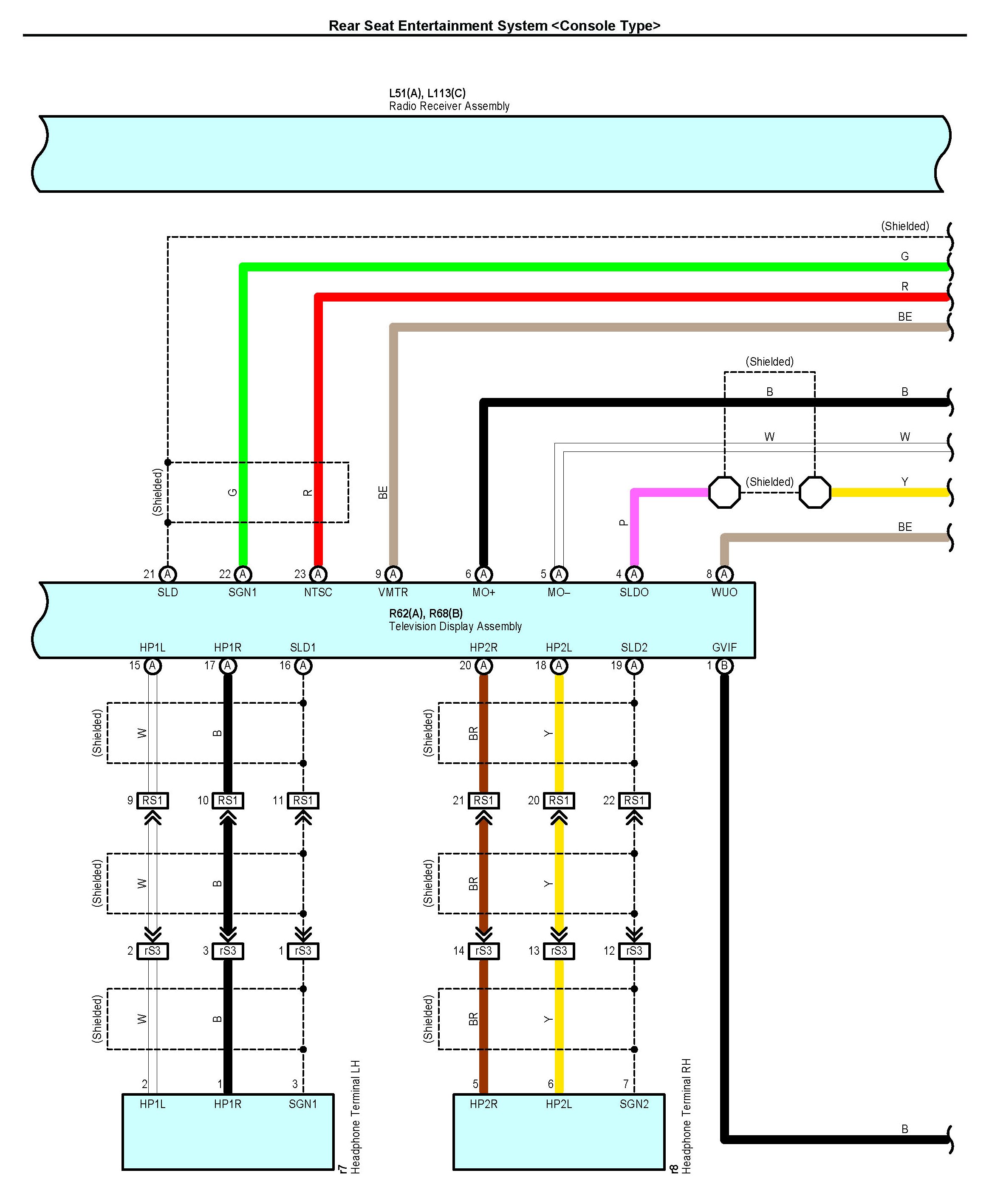

Rear Seat Entertainment System [Console Type] Part 1:

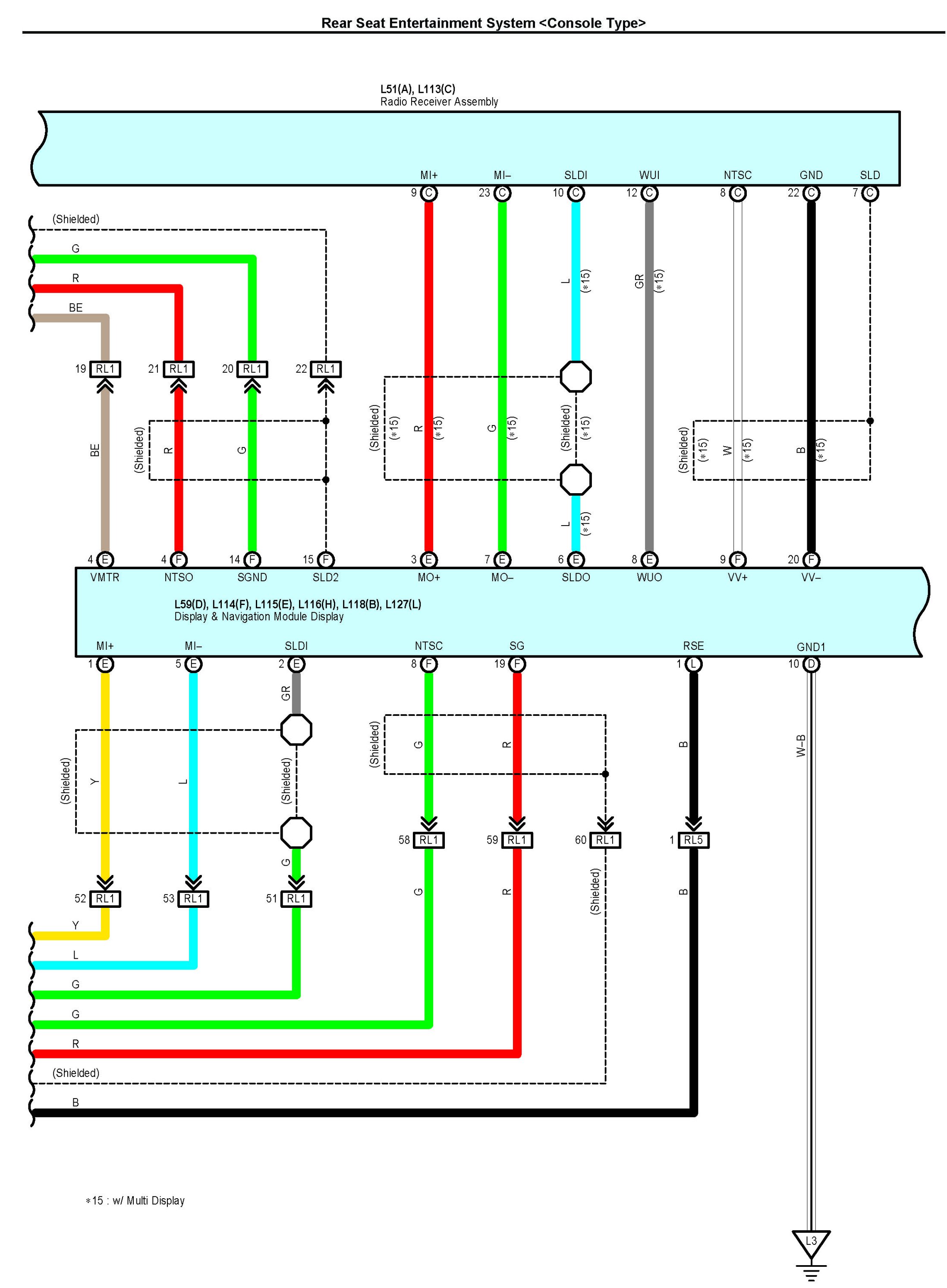

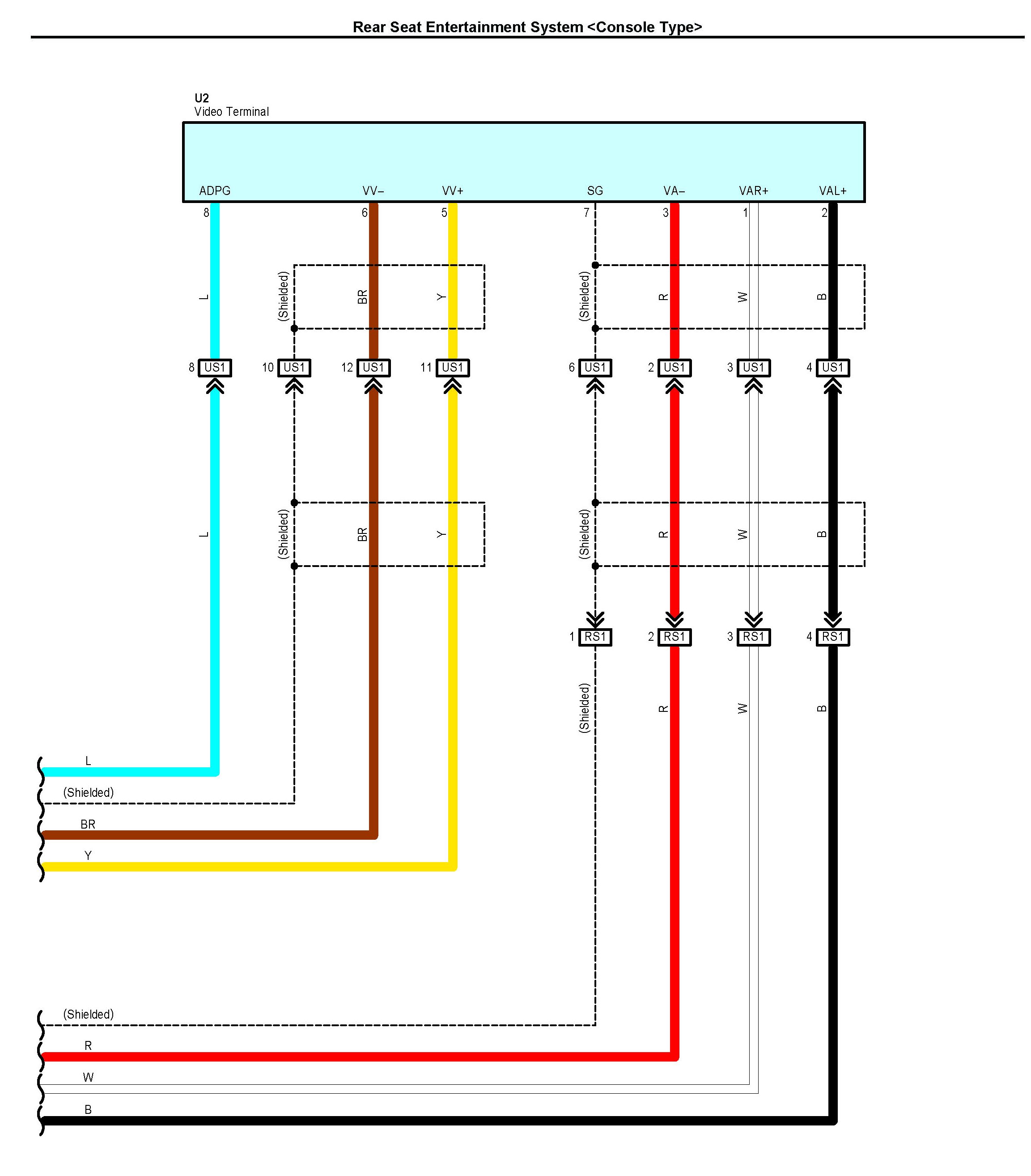

Rear Seat Entertainment System [Console Type] Part 2:

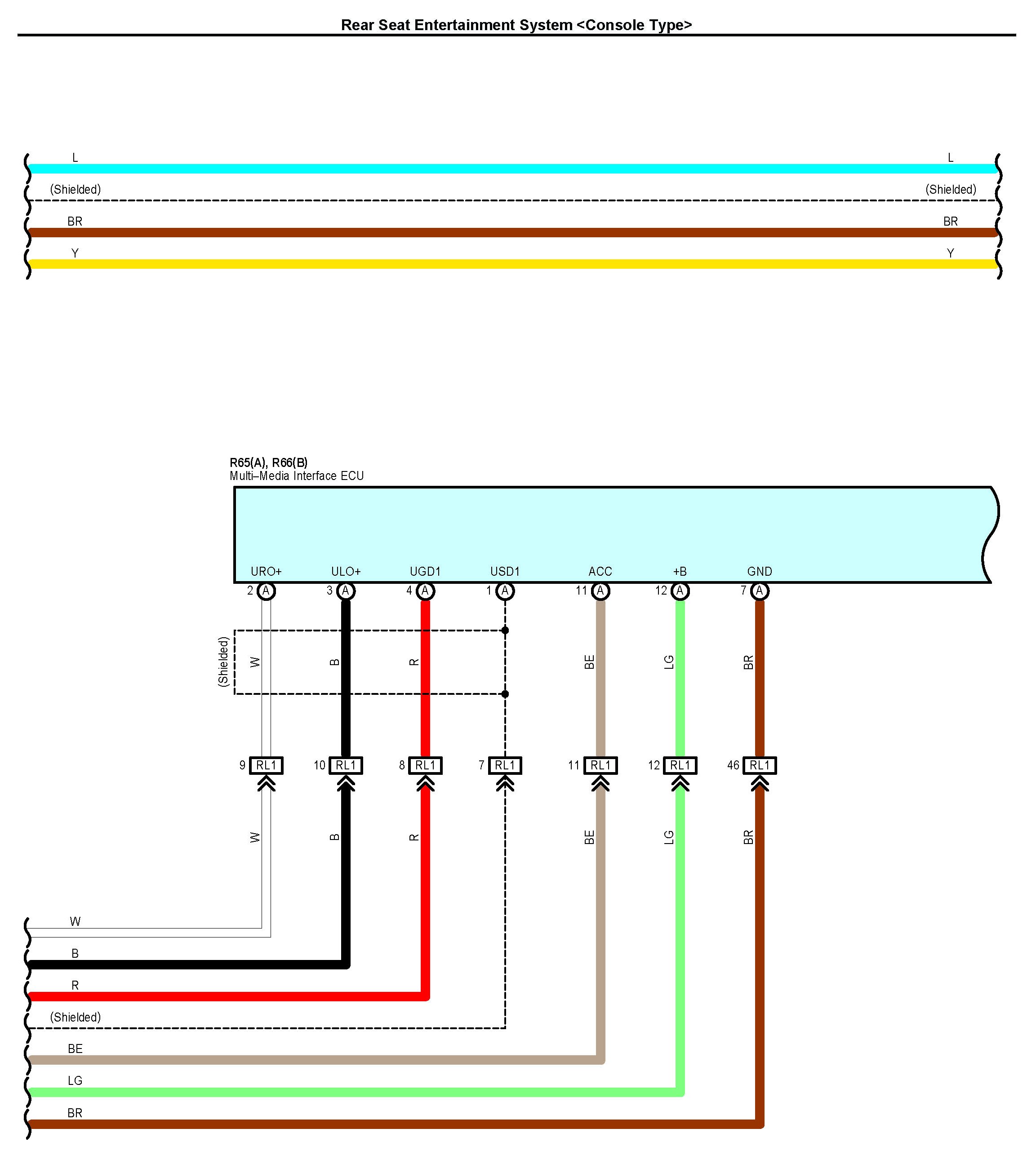

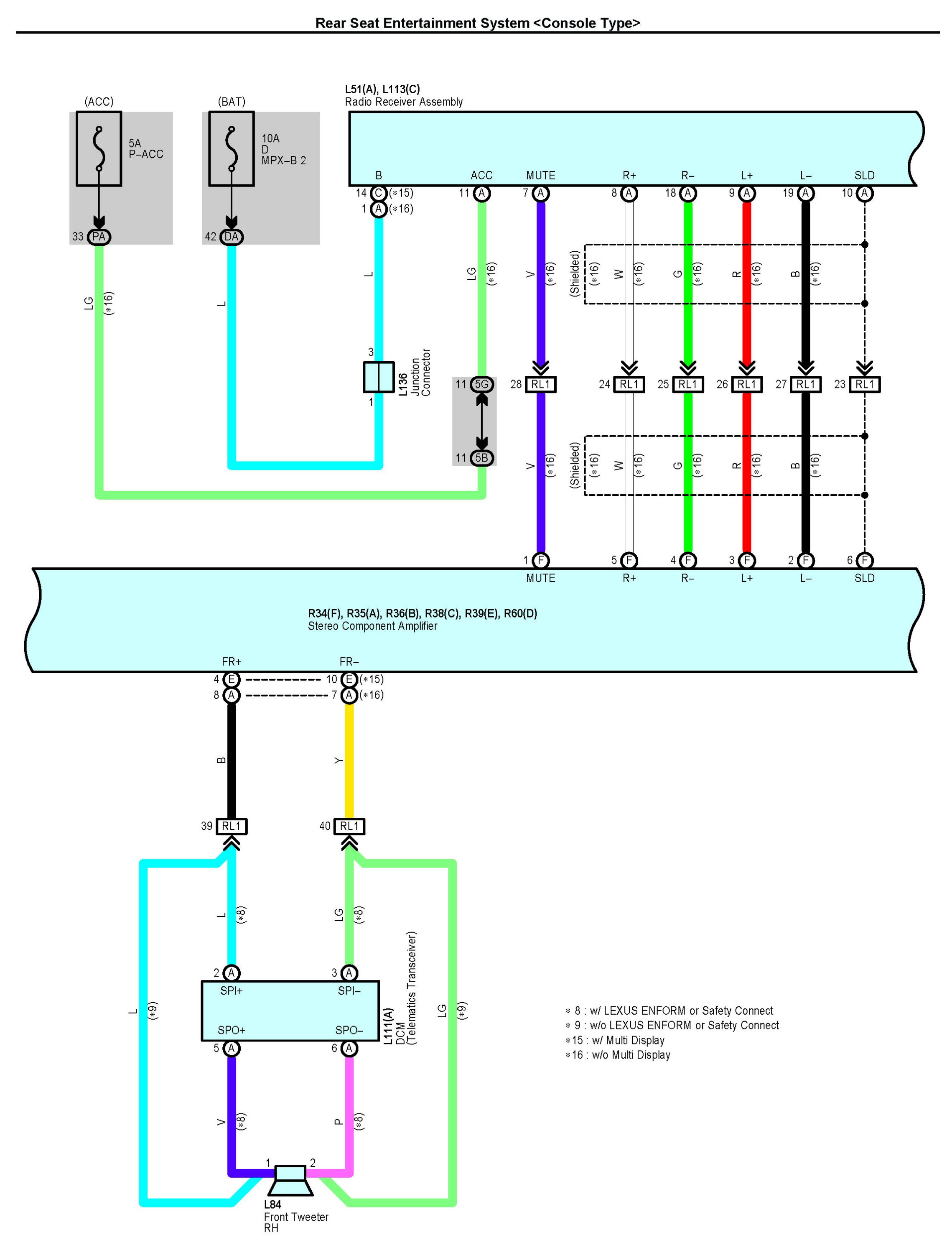

Rear Seat Entertainment System [Console Type] Part 3:

Rear Seat Entertainment System [Console Type] Part 4:

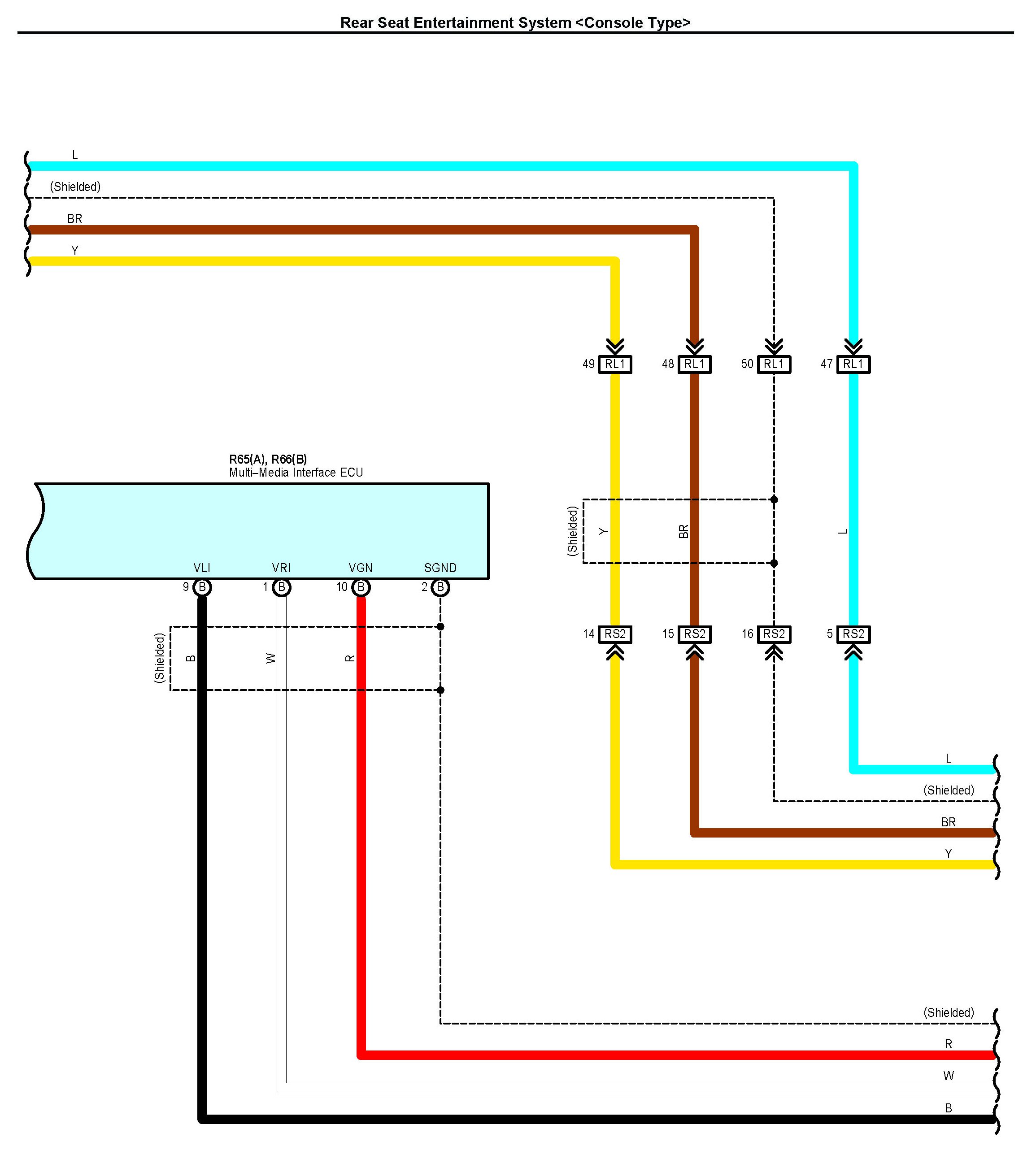

Rear Seat Entertainment System [Console Type] Part 5:

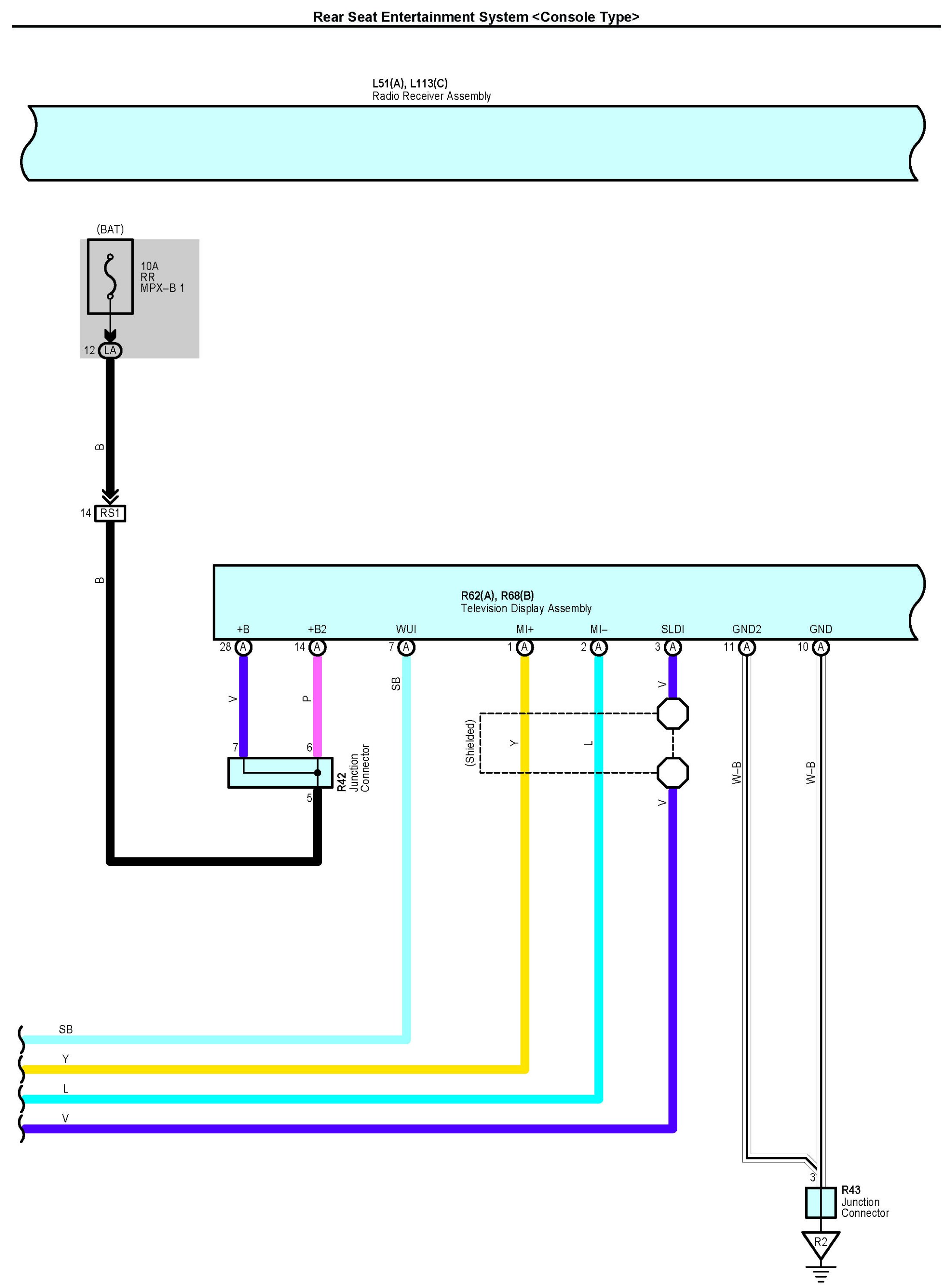

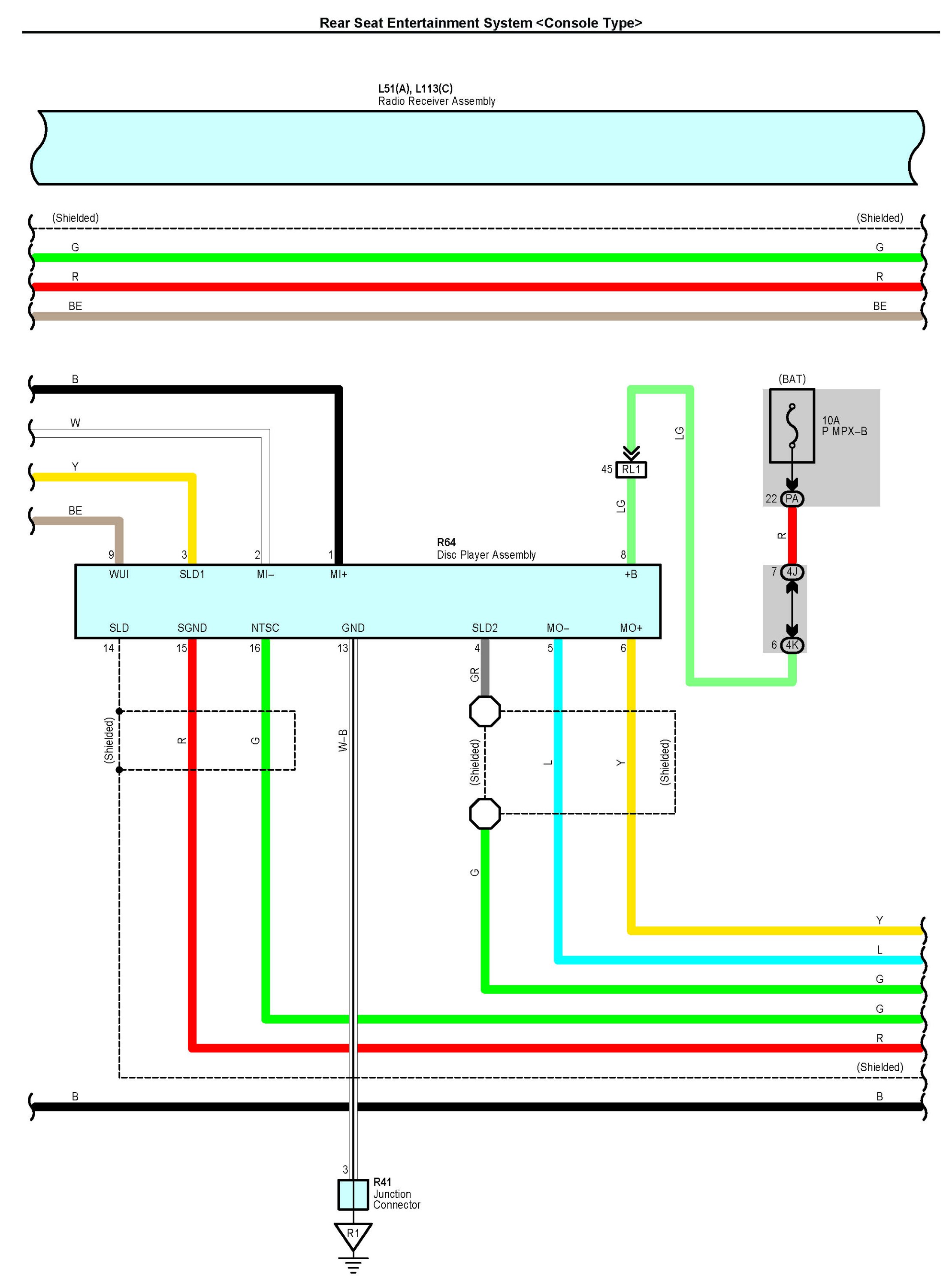

Rear Seat Entertainment System [Console Type] Part 6:

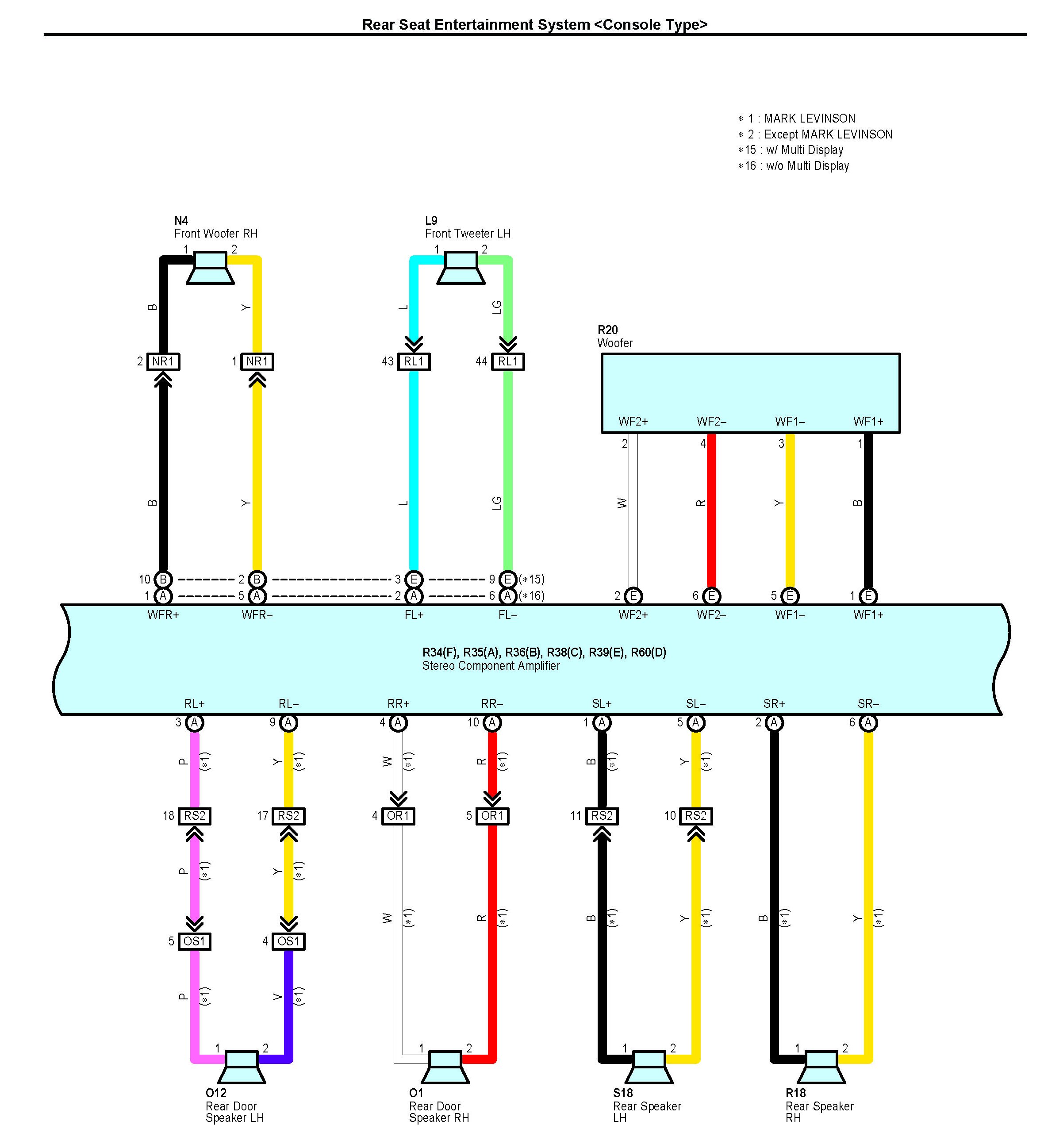

Rear Seat Entertainment System [Console Type] Part 7:

Rear Seat Entertainment System [Console Type] Part 8:

Rear Seat Entertainment System [Console Type] Part 9:

Rear Seat Entertainment System [Console Type] Part 10:

Rear Seat Entertainment System [Console Type] Part 11:

Rear Seat Entertainment System [Console Type] Part 12:

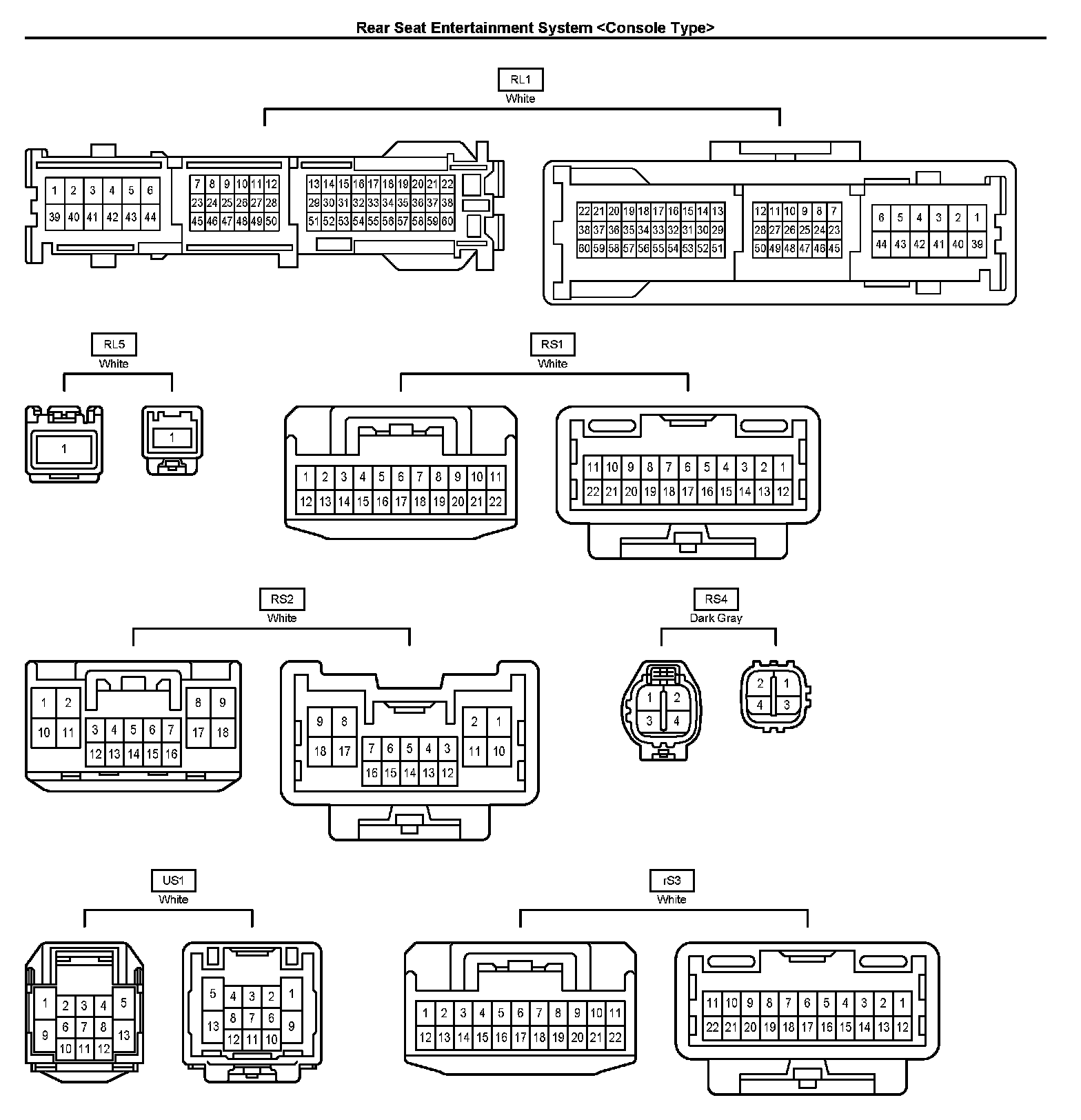

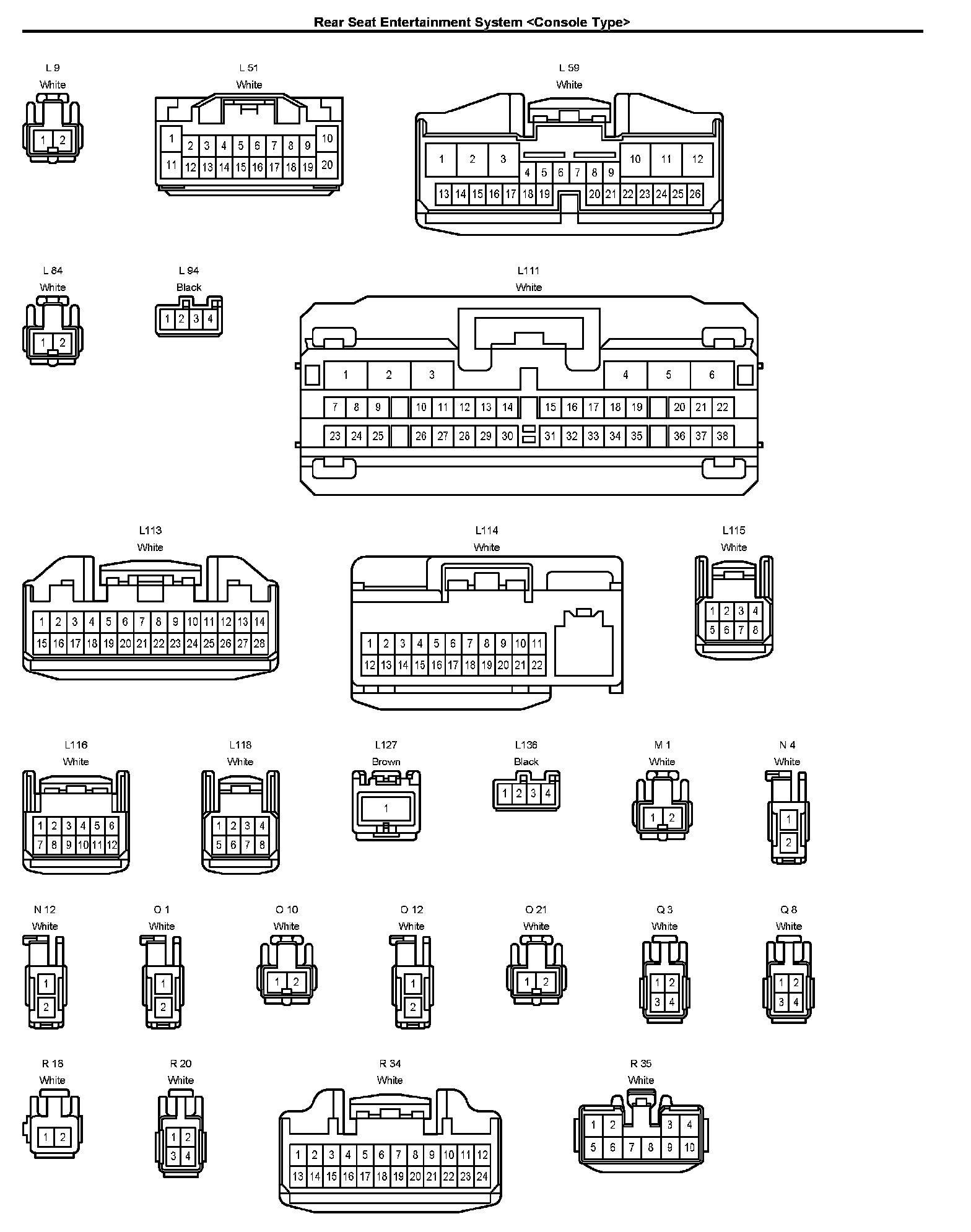

Connectors Part 1:

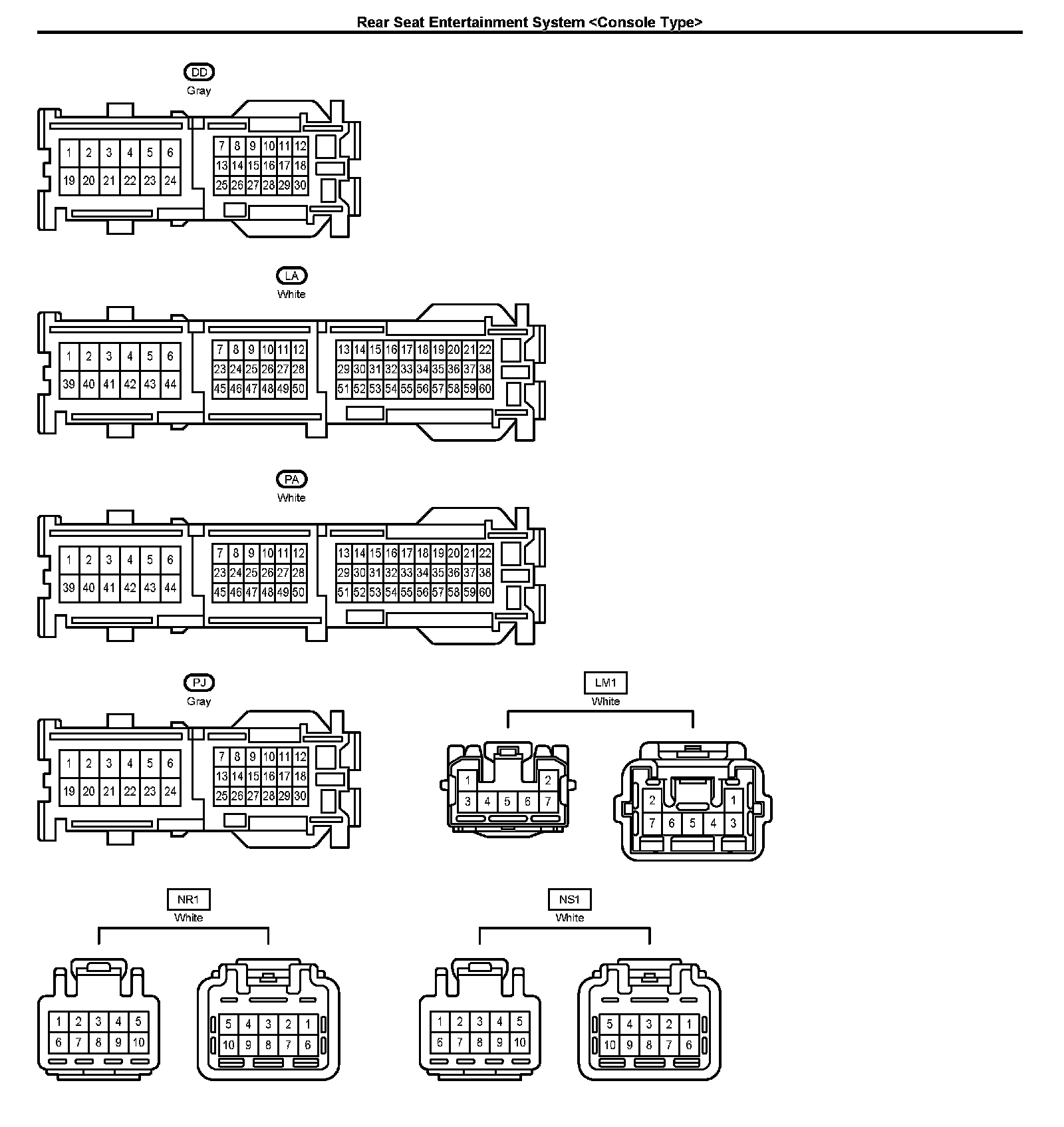

Connectors Part 2:

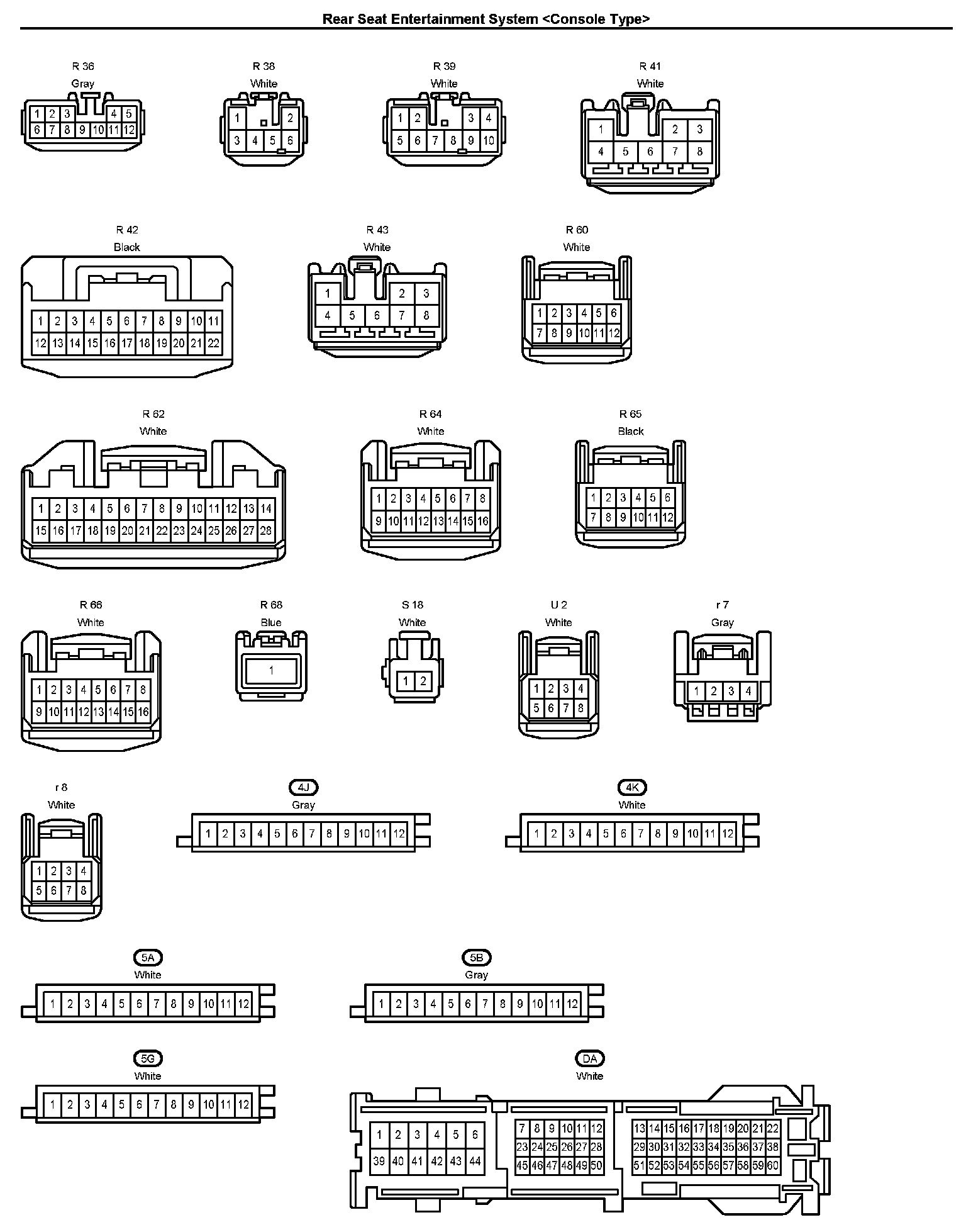

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
