Position of Parts In Seat [5-Seater w/ Power Seat]
Position of Parts In Seat [5-Seater w/ Power Seat]

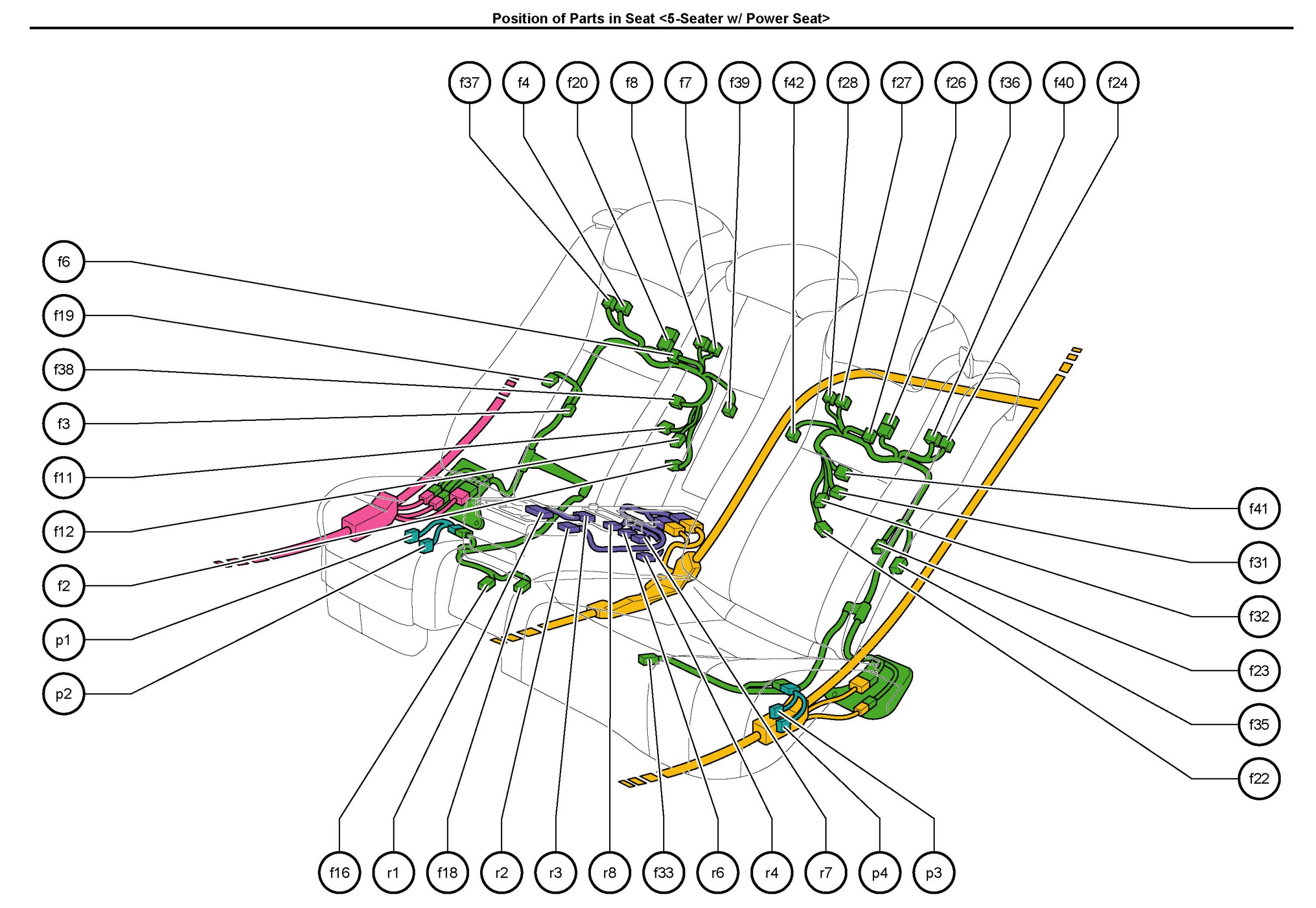

Position Of Parts In Seat [5-seater w/ Power Seat]:

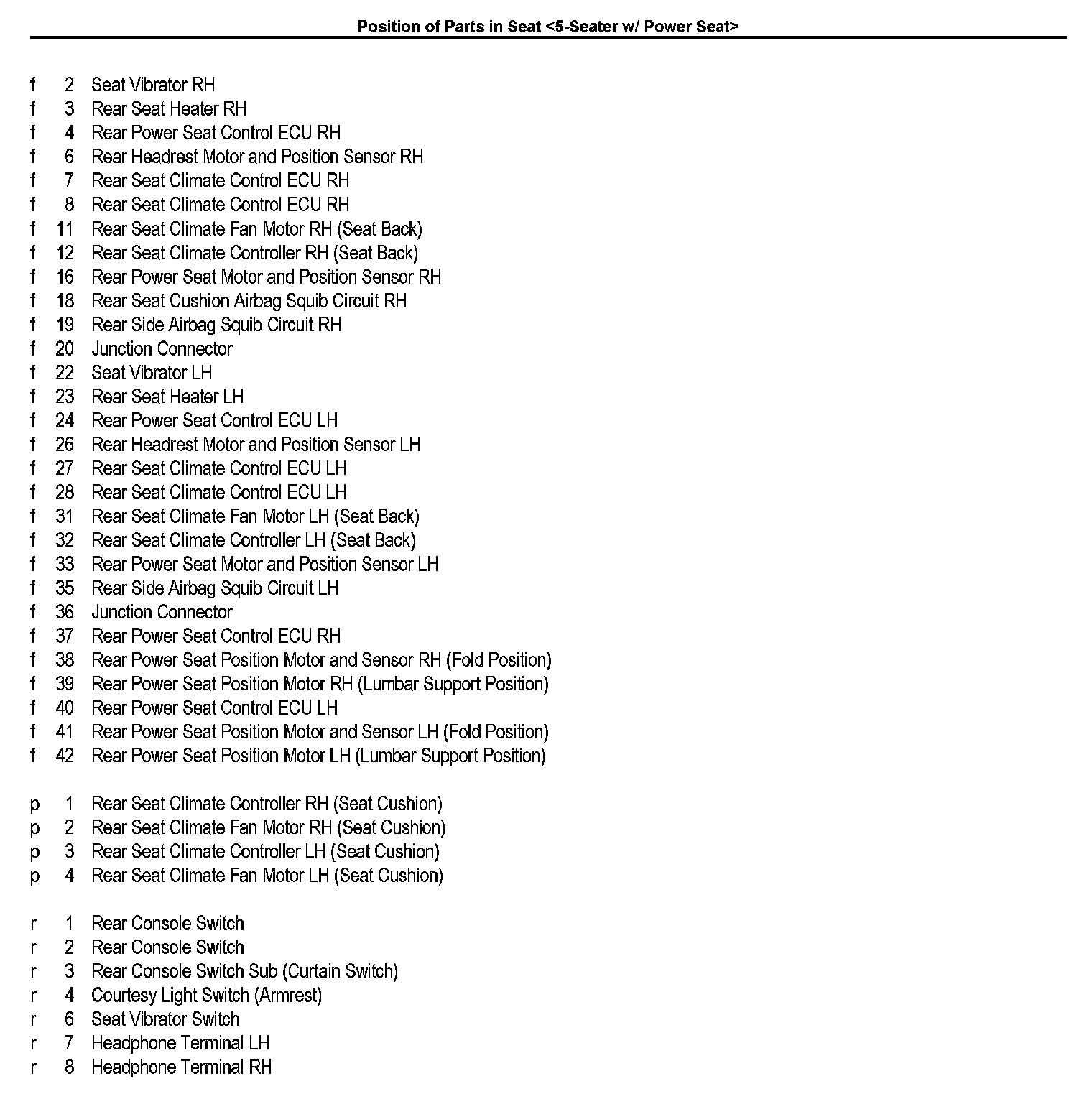

Legend:

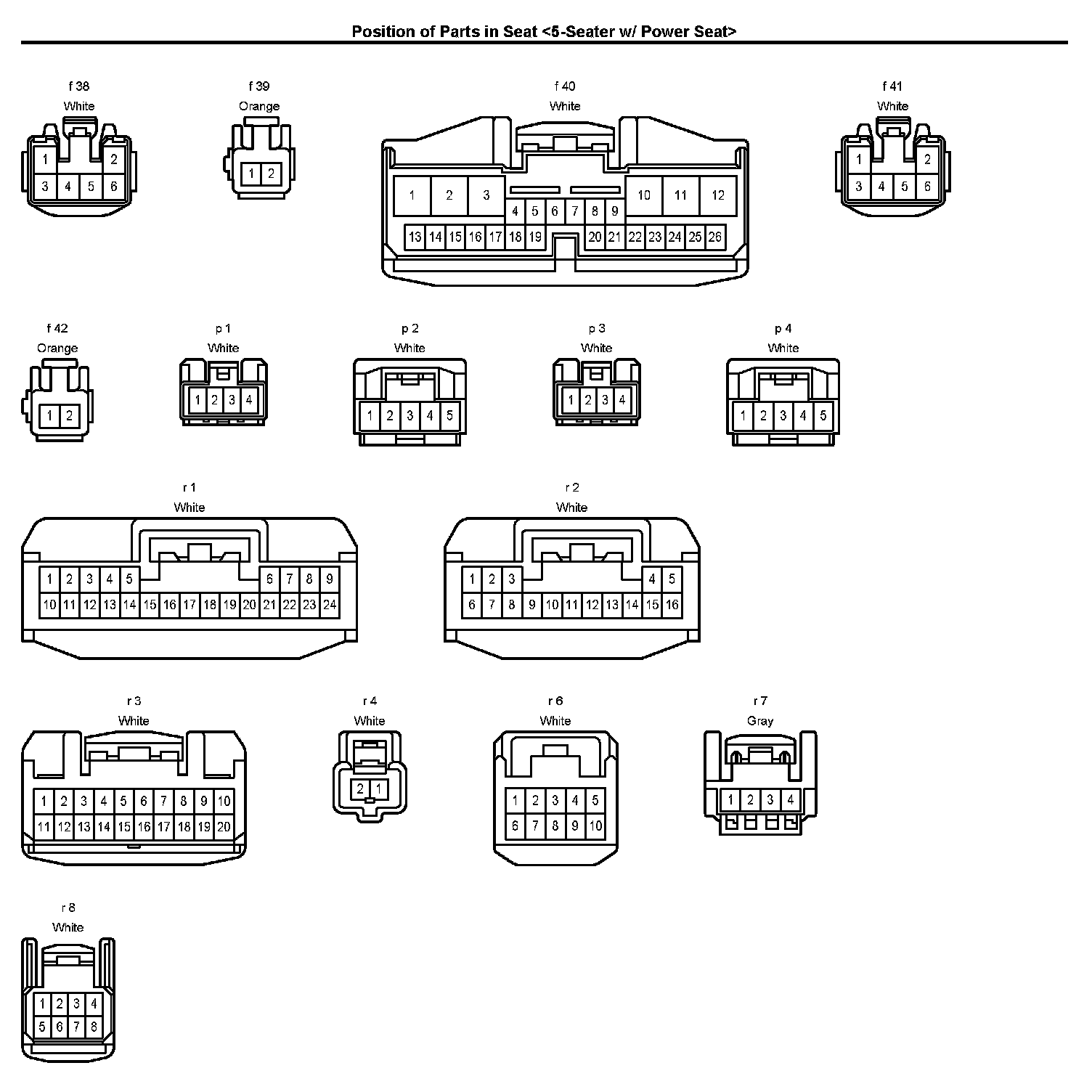

Connector Views:

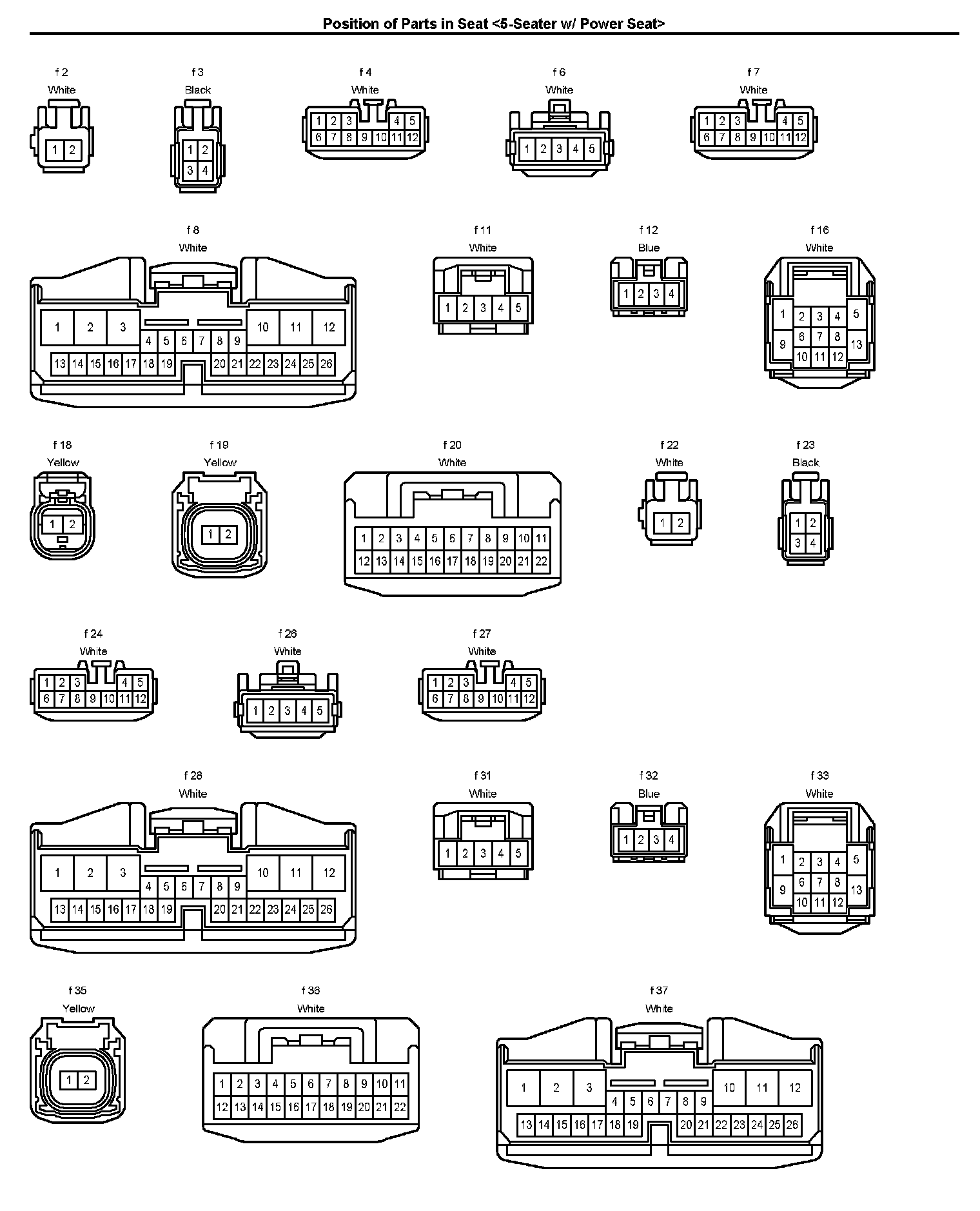

Connector Views:
