Position of Parts In Seat [4-Seater]
Position of Parts In Seat [4-Seater]

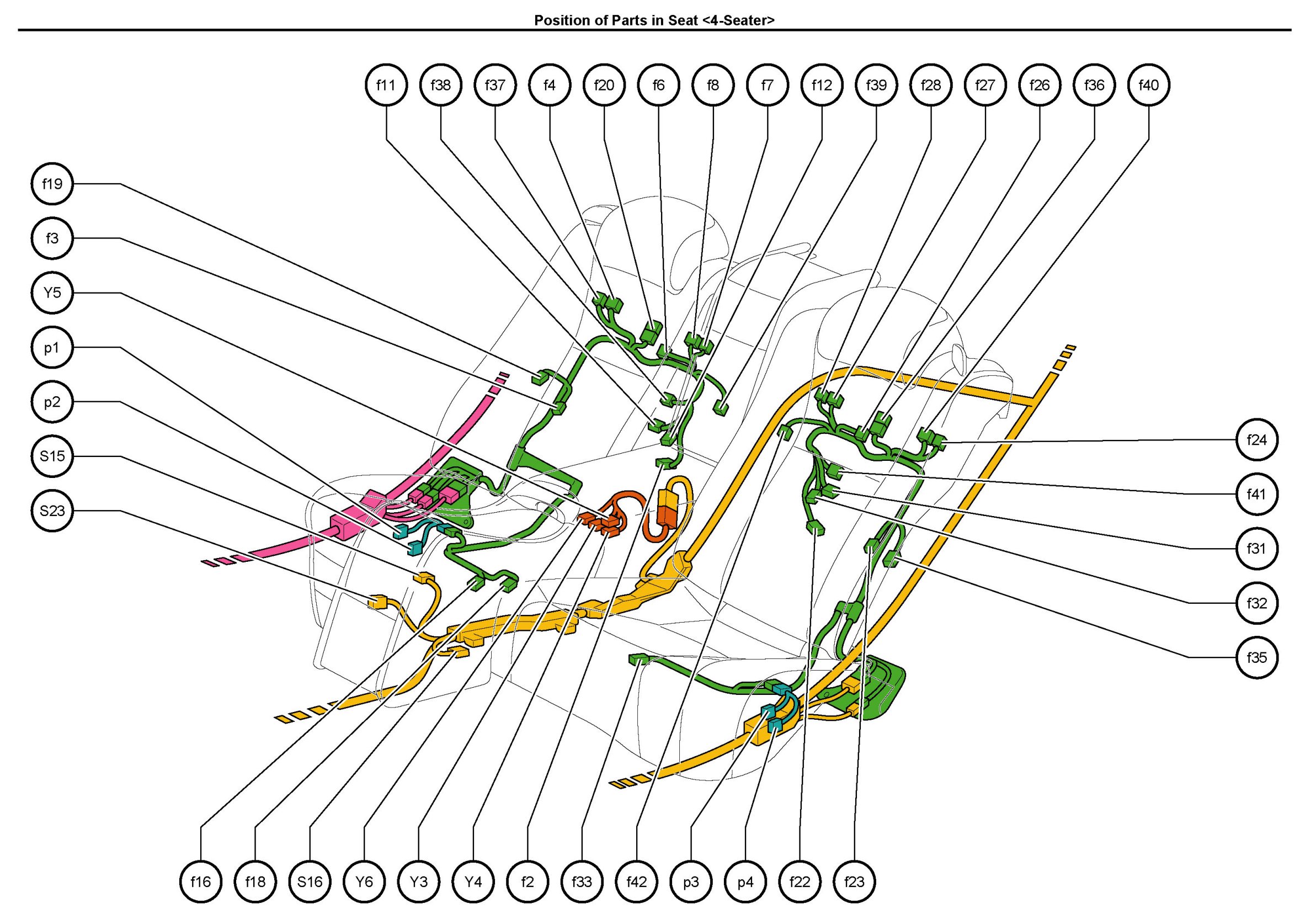

Position Of Parts In Seat [4-seater]:
Legend:

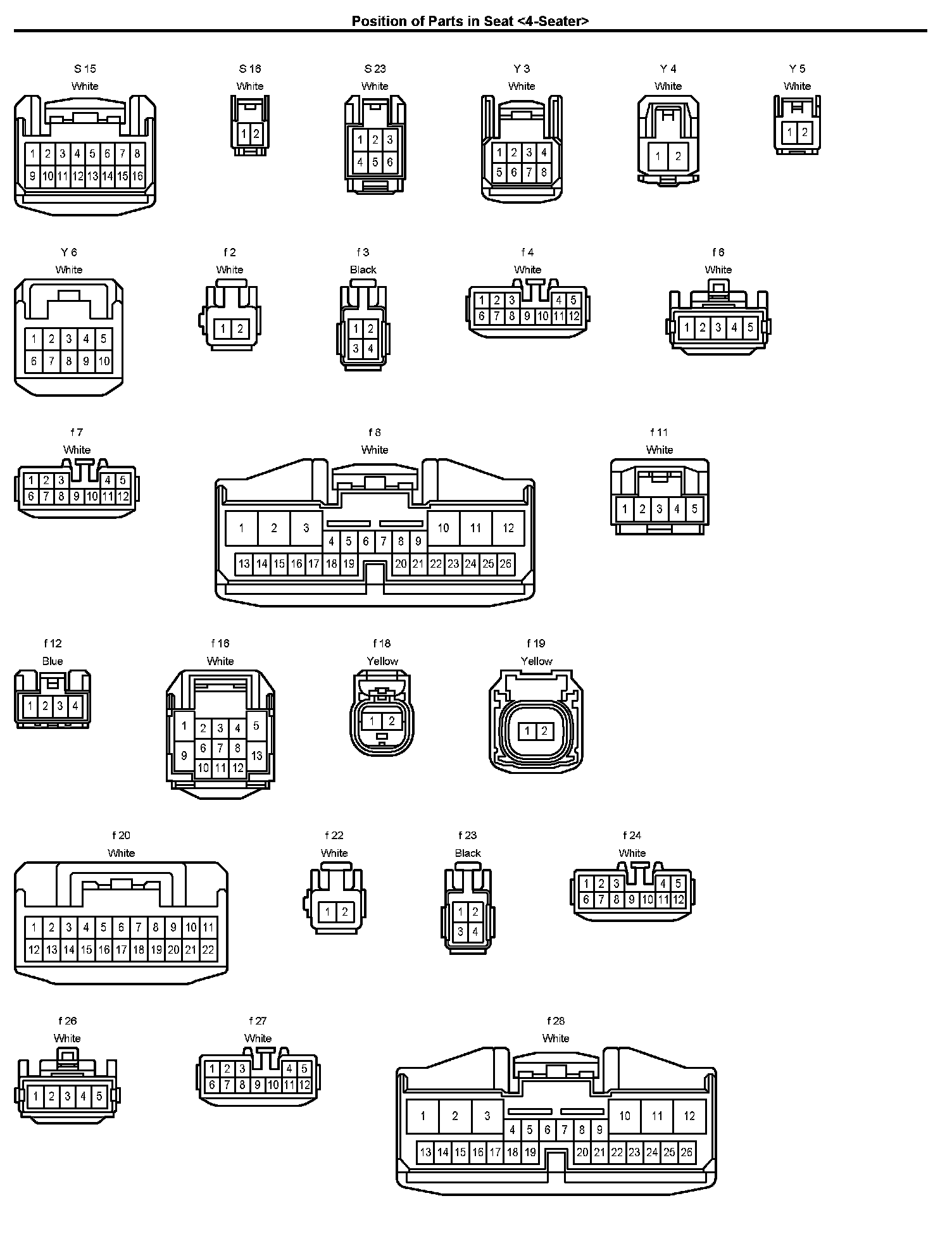

Connector Views:

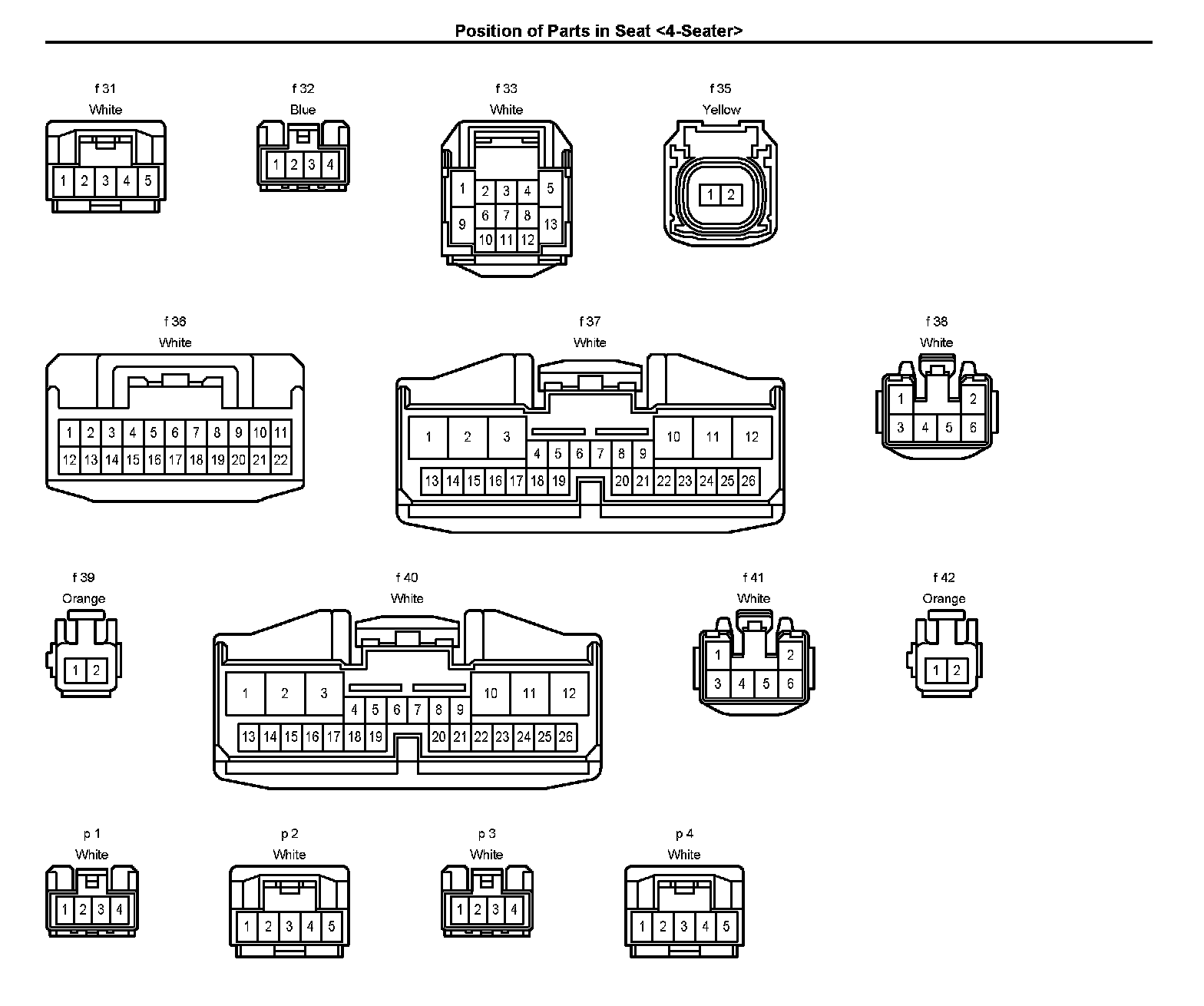

Connector Views:
