Brakes - Sport Package Brembo(R) Brake Squeal

L-SB-0008-12

February 3, 2012

Sport Package (Brembo(R)) Brake Squeal

Service Category
Brake

Section
Brake (front)

Market
USA

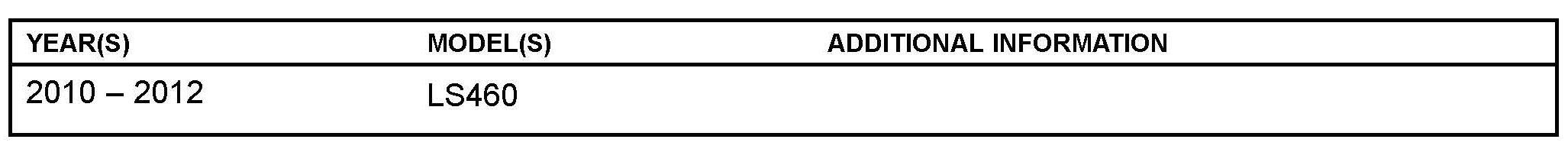

Applicability

Introduction

Some LS 460 Sport Package (Brembo brakes) vehicles may exhibit a squeal or squeak noise from the front of the vehicle when lightly applying the brakes at low vehicle speeds. A new front brake pad kit has been made available to address this condition.

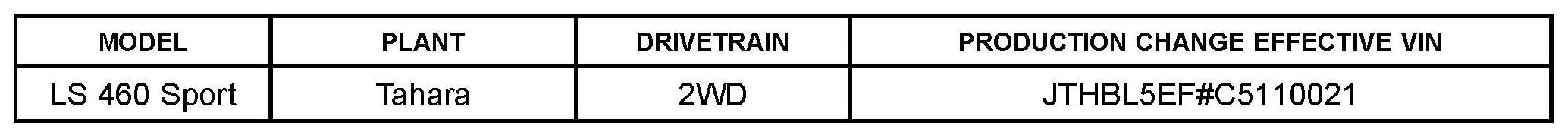

Production Change Information





This TSIB applies to vehicles produced BEFORE the Production Change Effective VIN shown.

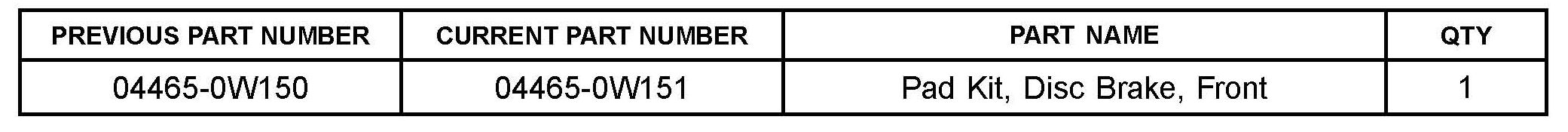

Parts Information

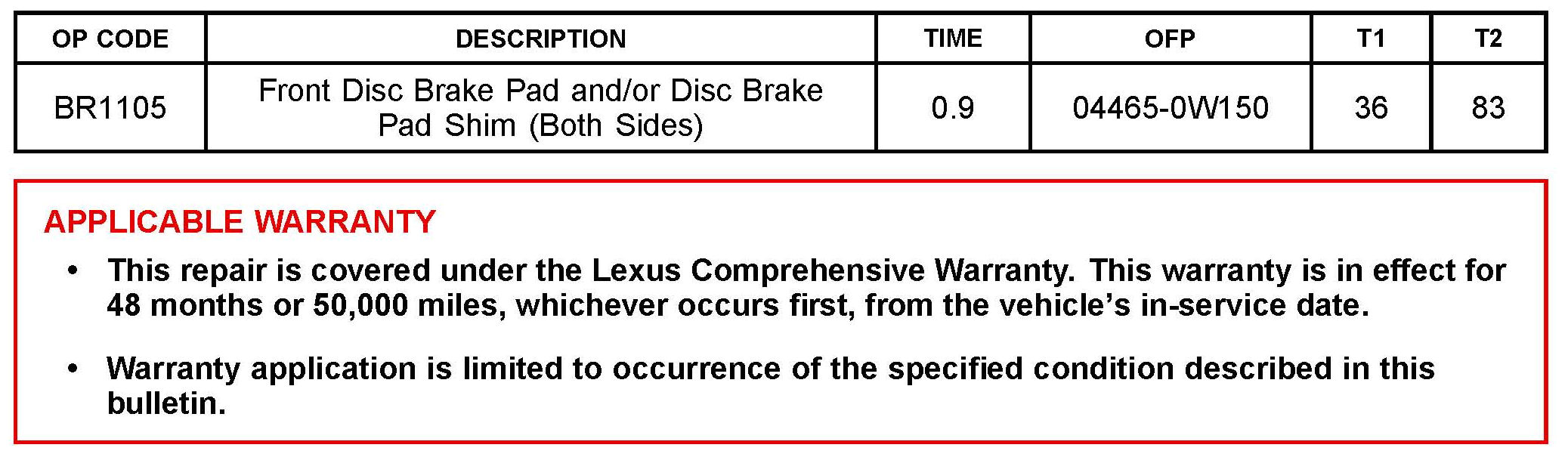

Warranty Information

Repair Procedure

1. Conduct a road test to verify the front brake squeal.

Did the front brake system exhibit a squeak or squeal noise?

^ NO - This TSIB does NOT apply. Refer to the Technical Information System (TIS) applicable model year Repair Manual for further diagnosis.

^ YES - This TSIB DOES apply. Proceed to step 2 for front brake pad replacement.

2. Remove and replace the front brake pads and anti-squeal shims with the updated parts.

NOTICE

When replacing front disc brake pads, do NOT separate anti-squeal shims from pads. The anti-squeal shims are bonded to the pad.

For complete removal procedures refer to TIS applicable model year LS 460 Repair Manual:

^ 2010 / 2011 / 2012 LS 460:
Brake - Brake (front) - "Brake: Front Brake (for 6-Pot Caliper): Removal"

For complete installation procedures refer to TIS applicable model year LS 460 Repair Manual:

^ 2010 / 2011 / 2012 LS 460:
Brake - Brake (front) - "Brake: Front Brake (for 6-Pot Caliper): Installation"

3. Road test the vehicle to confirm the front brake noise condition is NO longer present.
