Climate Control System Does Not Operate on Rear Right Side
SEAT: CLIMATE CONTROL SEAT SYSTEM: Climate Control System does not Operate on Rear Right Side
- Climate Control System does not Operate on Rear Right Side
DESCRIPTION
When the curtain switch assembly's* seat heater switch is operated, the rear power seat switch receives the signal. The rear power seat switch then sends the signal to the seat climate control ECU through LIN communication. The seat climate control ECU receives the signal and operates the air seat.
HINT
*: except 4-Passenger with Ottoman

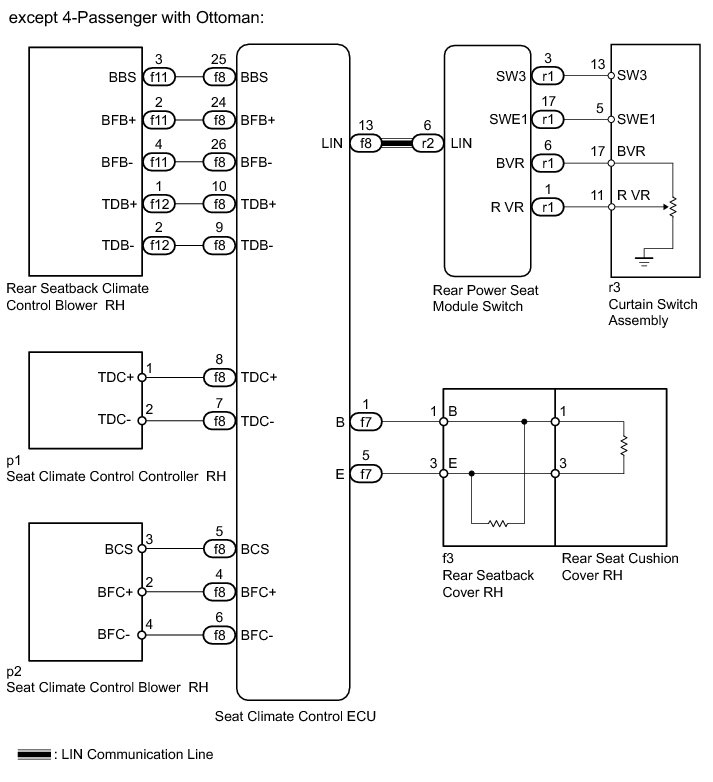

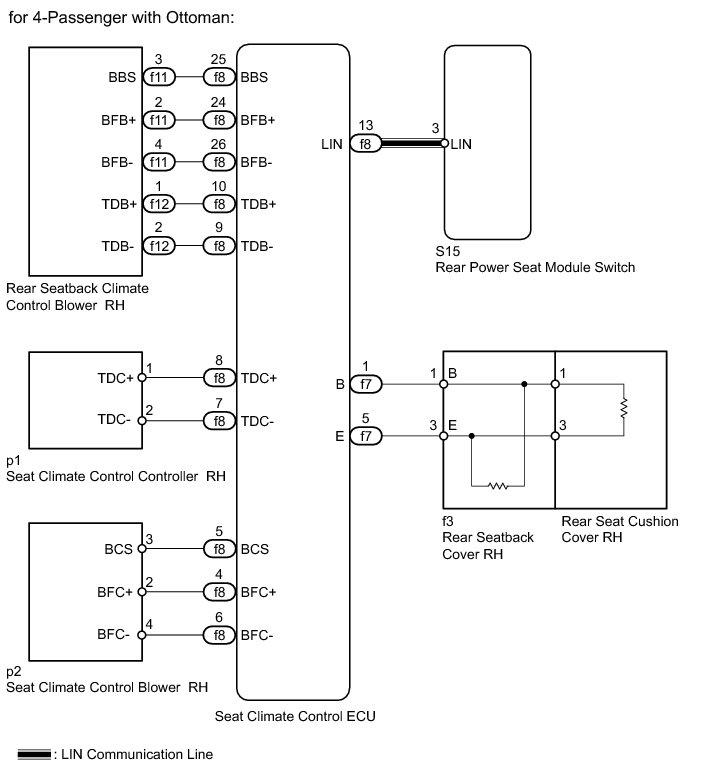

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE

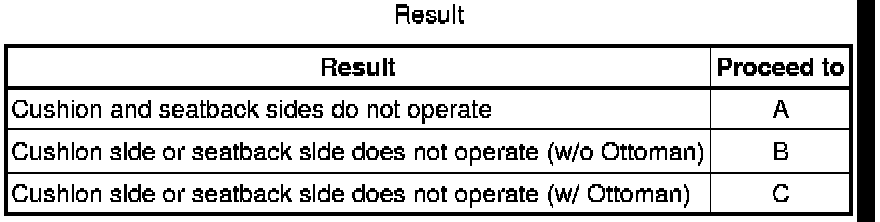

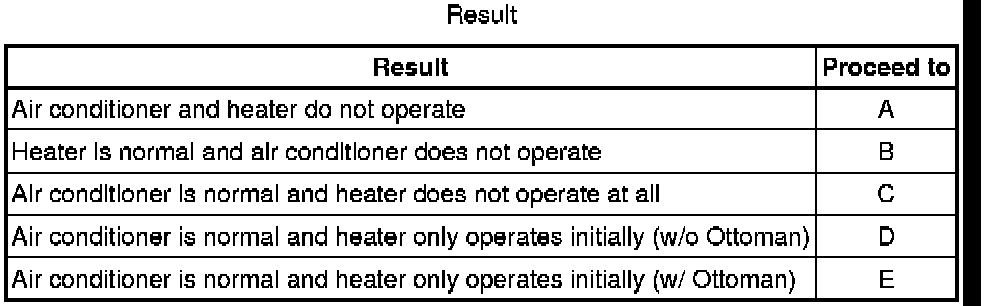

1. CONFIRM PROBLEM SYMPTOMS

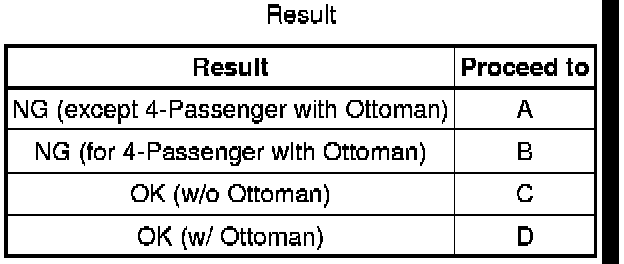

Result
E -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- CONFIRM TROUBLE AREAS
B -- CONFIRM TROUBLE AREAS
A -- Continue to next step.
2. CONFIRM TROUBLE AREAS
Result
C -- PERFORM ACTIVE TEST USING TECHSTREAM
B -- PERFORM ACTIVE TEST USING TECHSTREAM
A -- Continue to next step.
3. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.

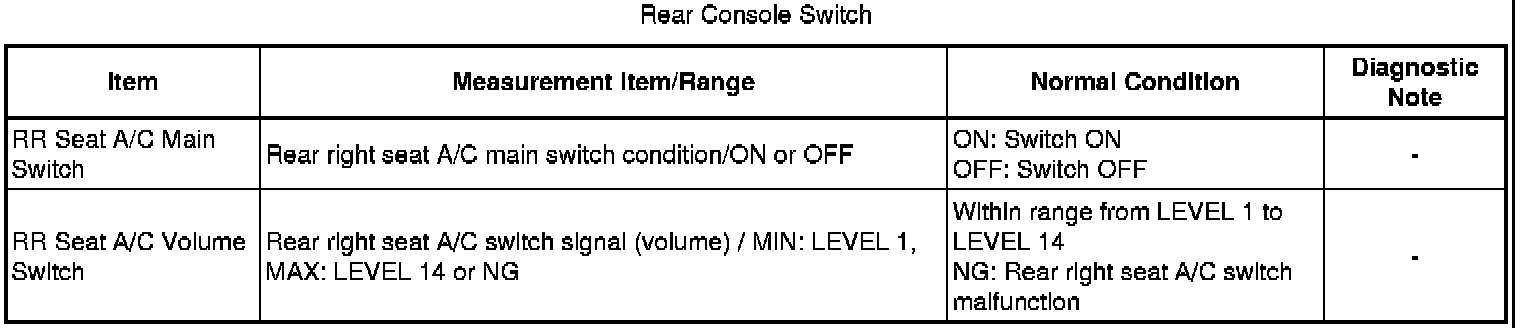

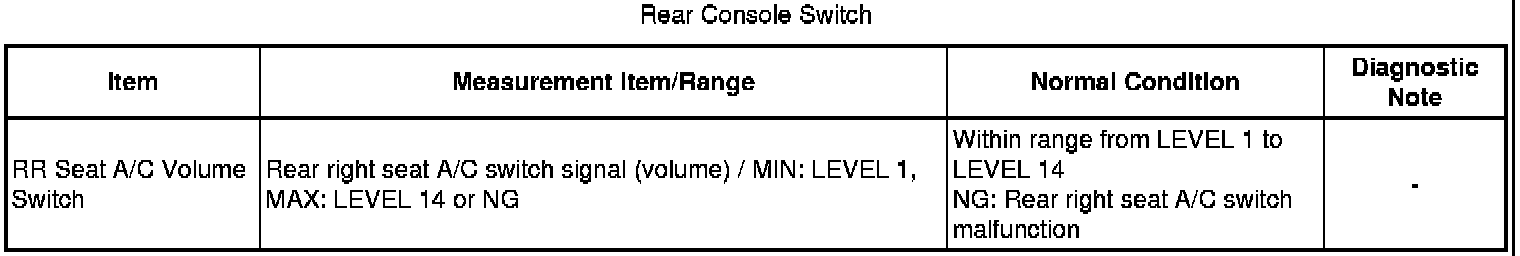

Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated
Result
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
A -- Continue to next step.
4. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 switch connector.

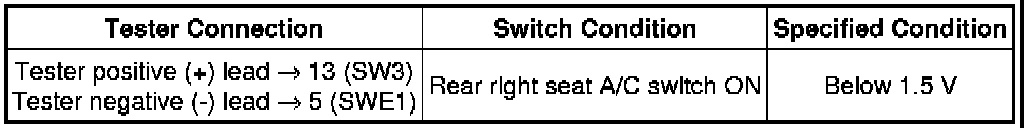

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
HINT
As the circuit has a diode, perform the measurement with the tester in diode mode.

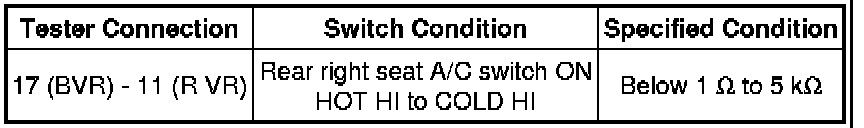

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.

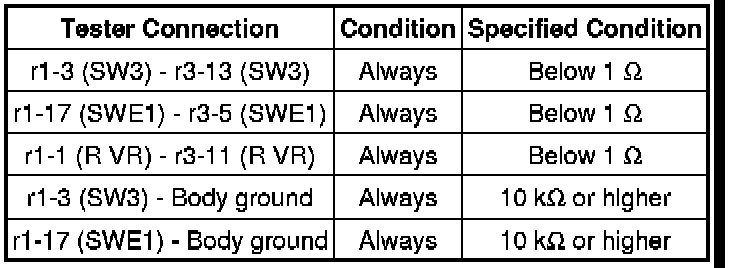

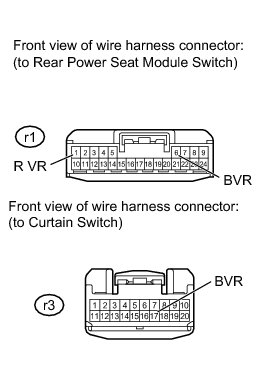

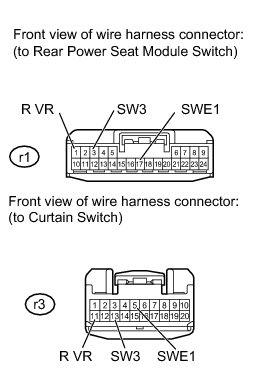

5. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

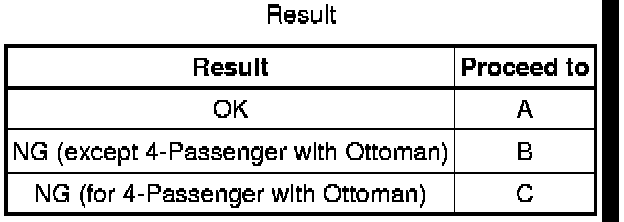

Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly

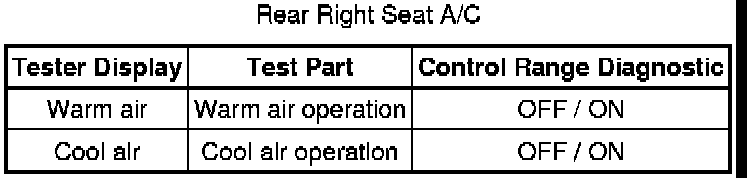

6. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the climate control seat function.
Rear Right Seat A/C
OK:
Warm / Cool air operates normally

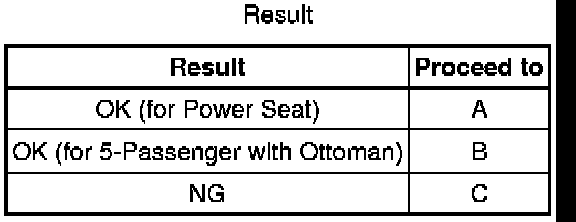

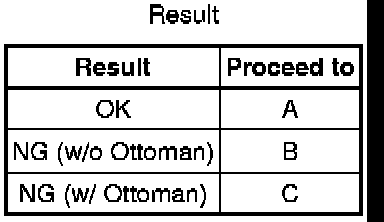

Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
7. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the blower motor function.

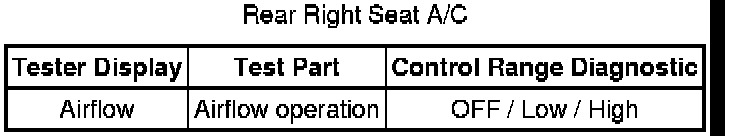

Rear Right Seat A/C
OK:
Blower motor operates normally
NG -- CHECK SEAT CLIMATE CONTROL ECU
OK -- Continue to next step.
8. CHECK SEAT CLIMATE CONTROL CONTROLLER RH
(a) Temporarily replace the seat climate control controller with a new or normally functioning one.
(b) Check the climate control seat function is normal.
OK:
Climate control seat function is normal

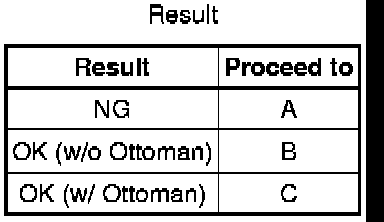

Result
C -- REPLACE SEAT CLIMATE CONTROL CONTROLLER RH Disassembly
B -- REPLACE SEAT CLIMATE CONTROL CONTROLLER RH Disassembly
A -- Continue to next step.

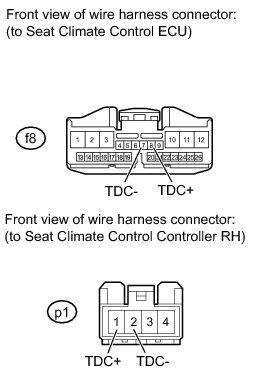

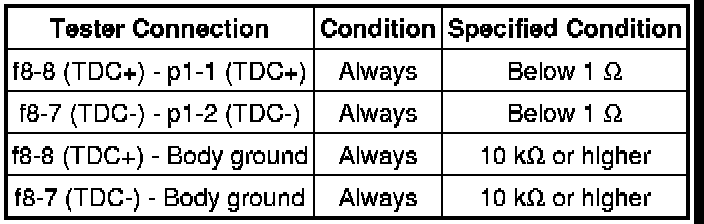

9. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - SEAT CLIMATE CONTROL CONTROLLER)
(a) Disconnect the f8 ECU connector.
(b) Disconnect the p1 controller connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

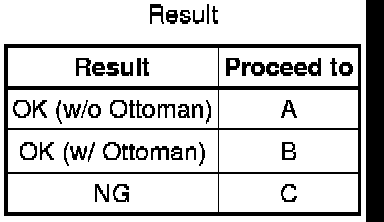

Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
10. CHECK SEAT CLIMATE CONTROL ECU
(a) Disconnect the p2 blower connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Result
C -- REPLACE SEAT CLIMATE CONTROL BLOWER RH Disassembly
B -- REPLACE SEAT CLIMATE CONTROL BLOWER RH Disassembly
A -- Continue to next step.

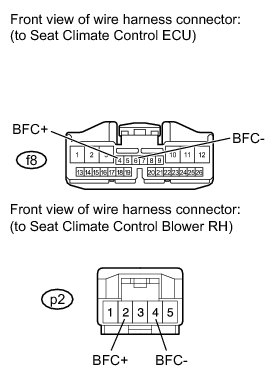

11. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - SEAT CLIMATE CONTROL BLOWER)
(a) Disconnect the f8 ECU connector.
(b) Disconnect the p2 blower connector.
(c) Measure the resistance according to the value(s) in the table below.

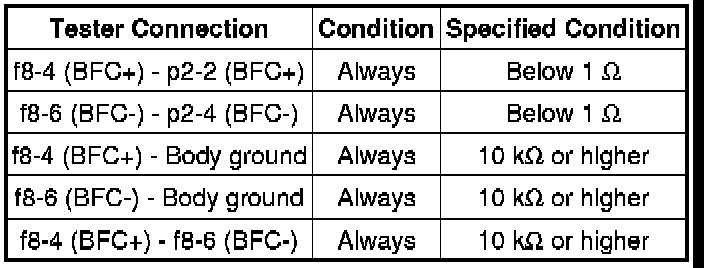

Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
12. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the climate control seat function.
Rear Right Seat A/C
OK:
Warm / Cool air operates normally
Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
13. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the blower motor function.
Rear Right Seat A/C
OK:
Blower motor operates normally
NG -- CHECK SEAT CLIMATE CONTROL ECU
OK -- Continue to next step.
14. CHECK REAR SEATBACK CLIMATE CONTROL BLOWER RH
(a) Temporarily replace the rear seatback climate control blower with a new or normally functioning one.
(b) Check the climate control seat function is normal.
OK:
Climate control seat function is normal
Result
C -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER RH Disassembly
B -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER RH Disassembly
A -- Continue to next step.

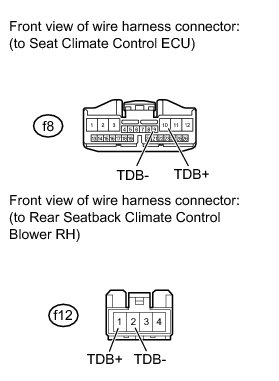

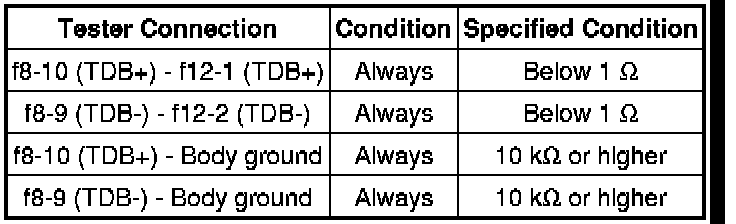

15. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK CLIMATE CONTROL BLOWER)
(a) Disconnect the f8 ECU connector.
(b) Disconnect the f12 blower connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
16. CHECK SEAT CLIMATE CONTROL ECU
(a) Disconnect the f11 blower connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Result
C -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER RH Disassembly
B -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER RH Disassembly
A -- Continue to next step.

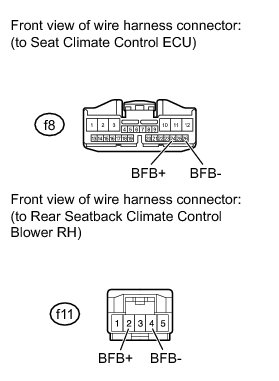

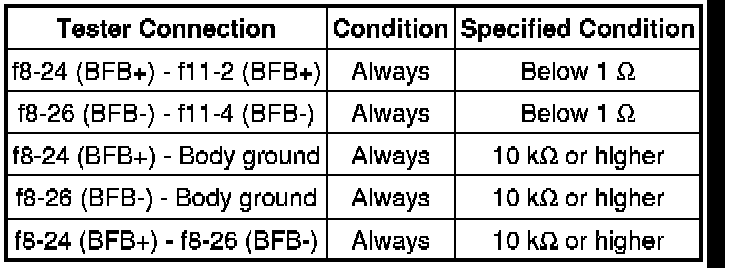

17. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK CLIMATE CONTROL BLOWER)
(a) Disconnect the f8 ECU connector.
(b) Disconnect the f11 blower connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly

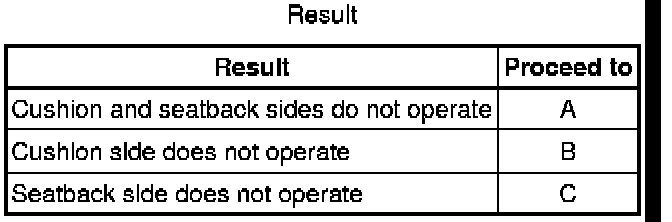

18. CONFIRM TROUBLE AREAS
Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
19. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.
Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated
Result
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
A -- Continue to next step.
20. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 switch connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.

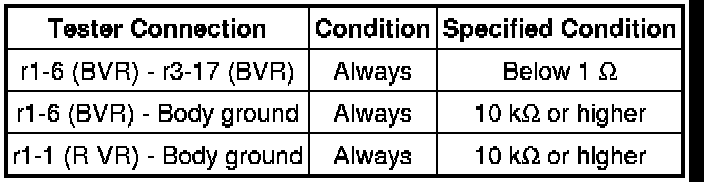

21. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly

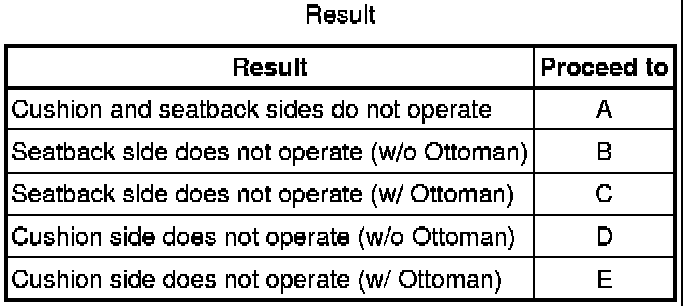

22. CONFIRM TROUBLE AREAS
Result
E -- REPLACE REAR SEAT CUSHION COVER RH Removal
D -- REPLACE REAR SEAT CUSHION COVER RH Removal
C -- REPLACE REAR SEATBACK COVER RH Removal
B -- REPLACE REAR SEATBACK COVER RH Removal
A -- Continue to next step.
23. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.
Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated
Result
C -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
B -- INSPECT CURTAIN SWITCH ASSEMBLY
A -- Continue to next step.

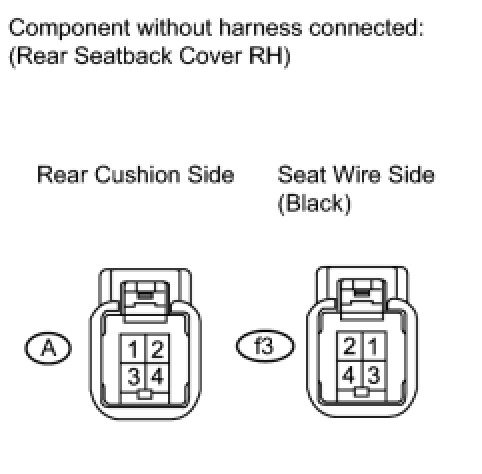

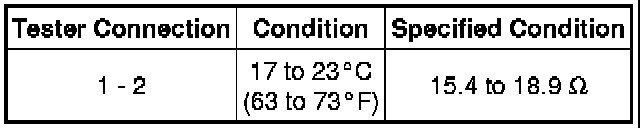

24. INSPECT REAR SEATBACK COVER RH
(a) Check the seatback heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seatback cover RH.
Result
C -- REPLACE REAR SEATBACK COVER RH Removal
B -- REPLACE REAR SEATBACK COVER RH Removal
A -- Continue to next step.

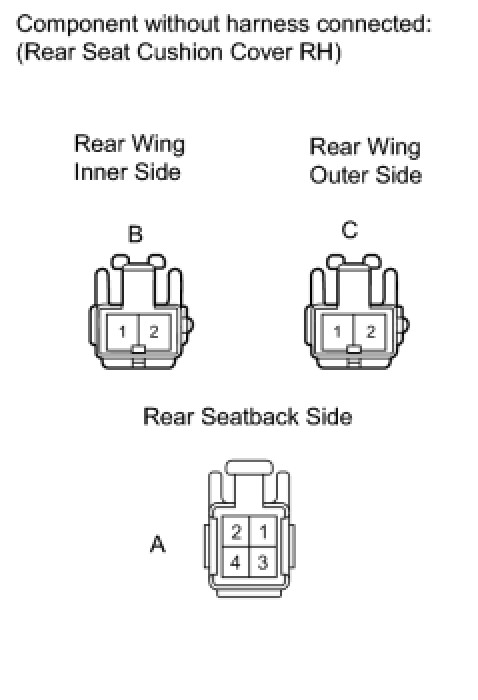

25. INSPECT REAR SEAT CUSHION COVER RH
(a) Check the rear seat cushion heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seat cushion cover RH.
(b) Check the rear wing heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seat cushion cover RH.
Result
C -- REPLACE REAR SEAT CUSHION COVER RH Removal
B -- REPLACE REAR SEAT CUSHION COVER RH Removal
A -- Continue to next step.

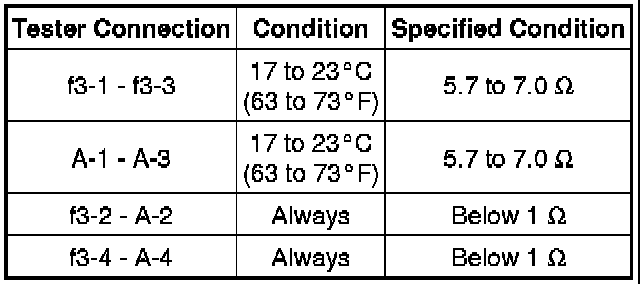

26. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK COVER RH)
(a) Disconnect the f7 ECU connector.
(b) Disconnect the f3 seatback cover connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
27. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 switch connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.
28. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
