Climate Control System Does Not Operate on Rear Left Side
SEAT: CLIMATE CONTROL SEAT SYSTEM: Climate Control System does not Operate on Rear Left Side
- Climate Control System does not Operate on Rear Left Side
DESCRIPTION
When the curtain switch assembly's* seat heater switch is operated, the rear power seat switch receives the signal. The rear power seat switch then sends the signal to the seat climate control ECU through LIN communication. The seat climate control ECU receives the signal and operates the air seat.
HINT
*: except 4-Passenger with Ottoman

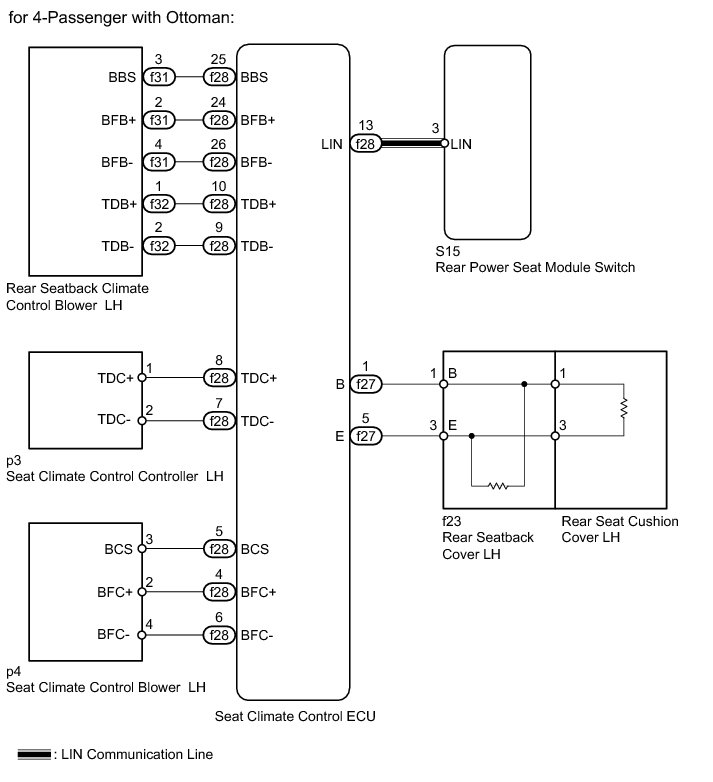

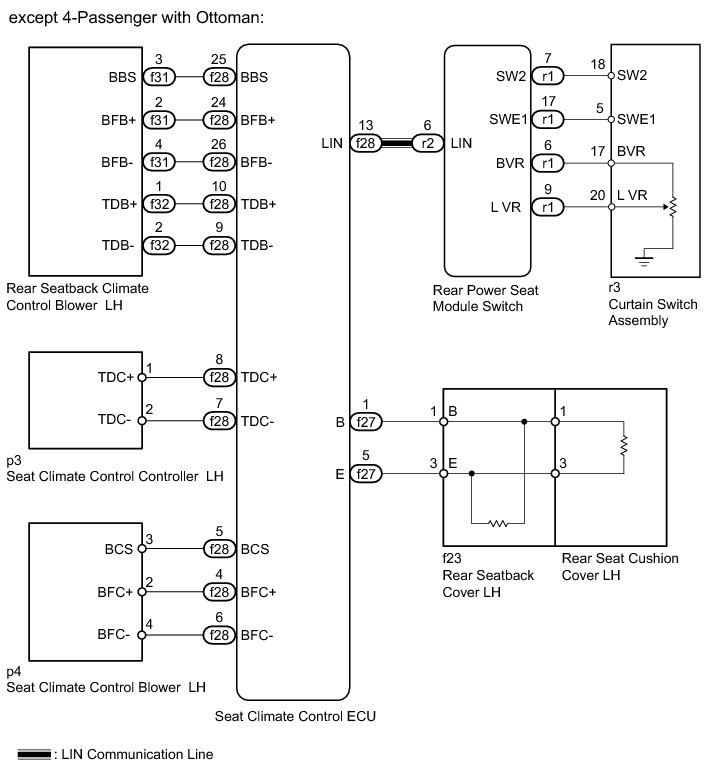

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE

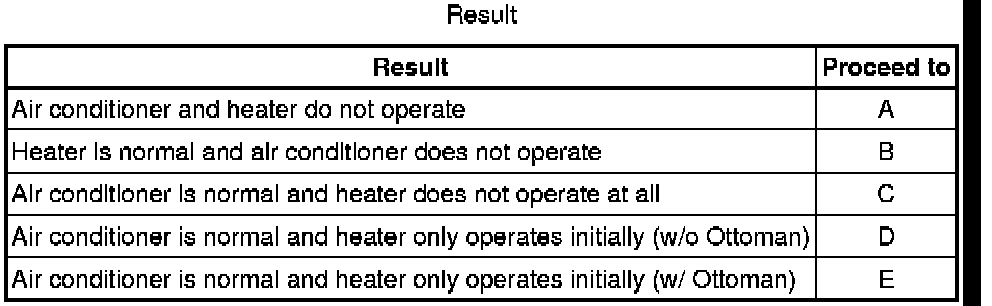

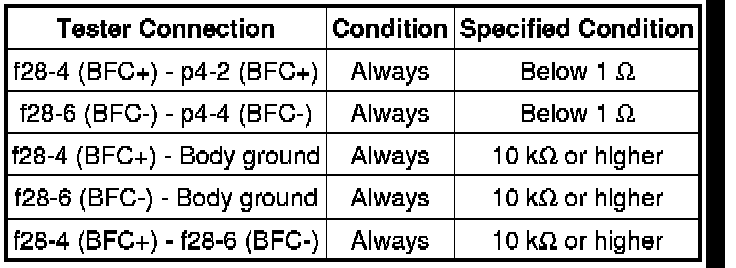

1. CONFIRM PROBLEM SYMPTOMS

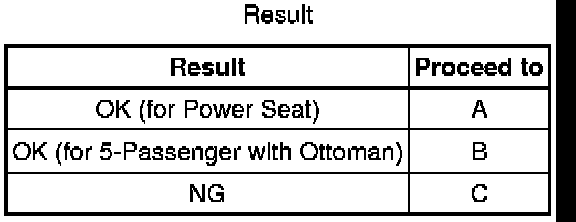

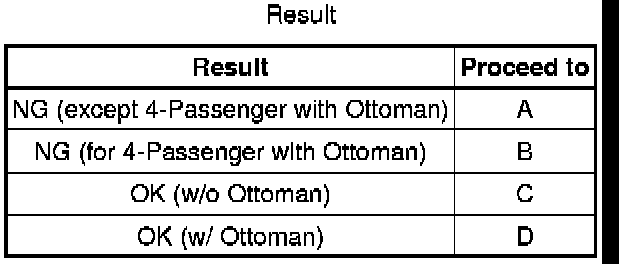

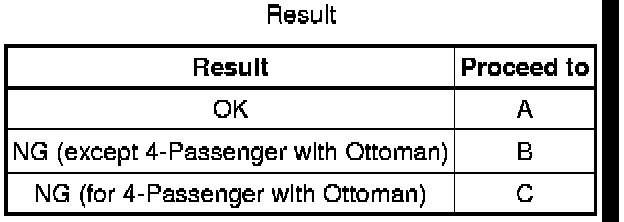

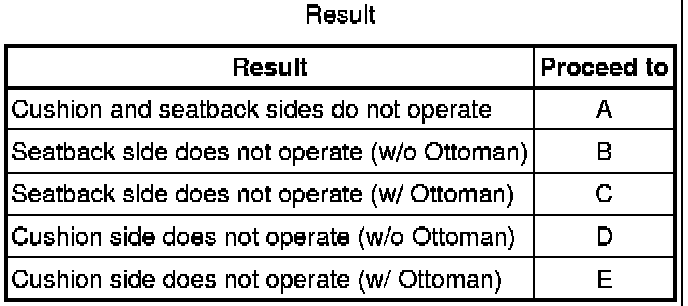

Result
E -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- CONFIRM TROUBLE AREAS
B -- CONFIRM TROUBLE AREAS
A -- Continue to next step.

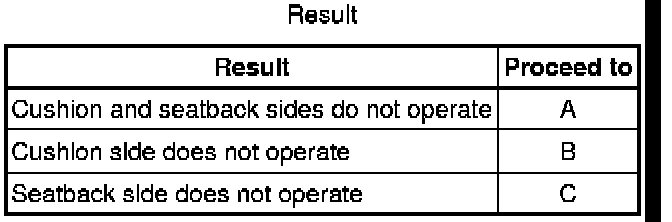

2. CONFIRM TROUBLE AREAS
Result
C -- PERFORM ACTIVE TEST USING TECHSTREAM
B -- PERFORM ACTIVE TEST USING TECHSTREAM
A -- Continue to next step.
3. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.

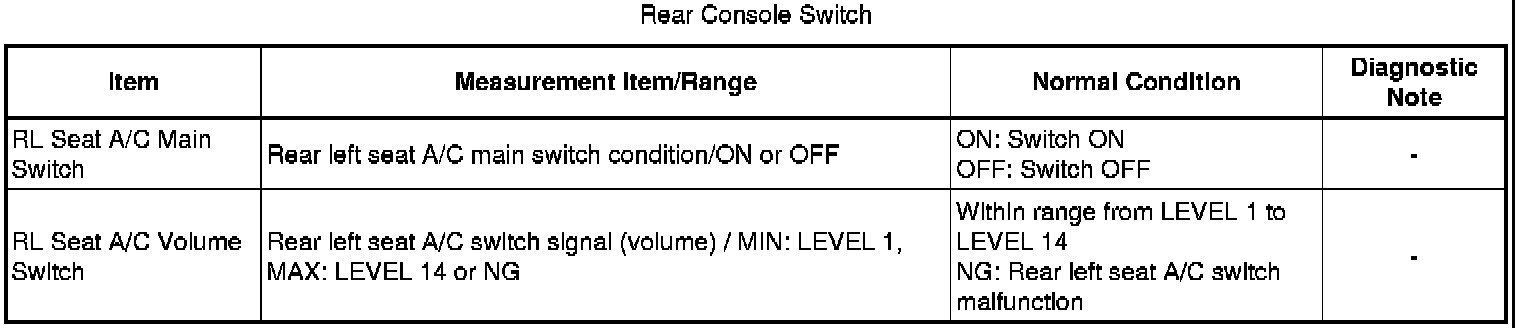

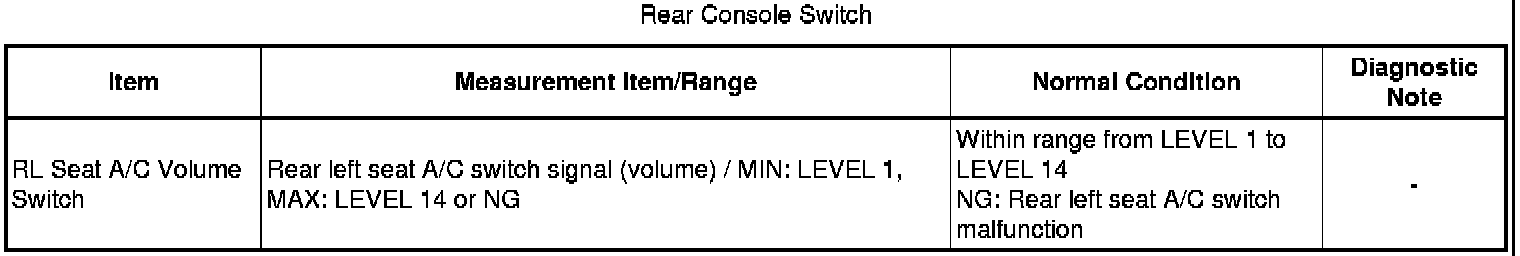

Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated

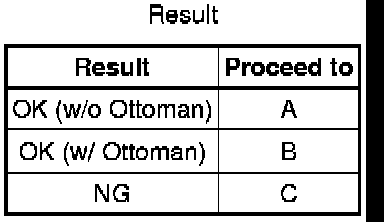

Result
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
A -- Continue to next step.

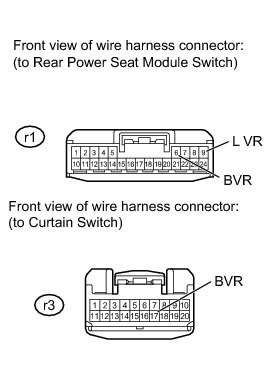

4. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 curtain switch connector.

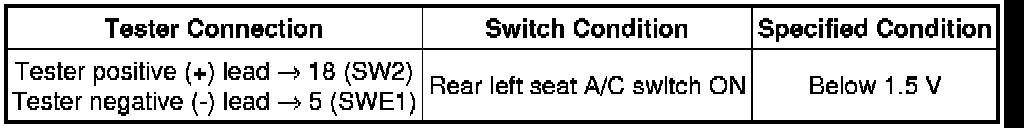

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
HINT
As the circuit has a diode, perform the measurement with the tester in diode mode.

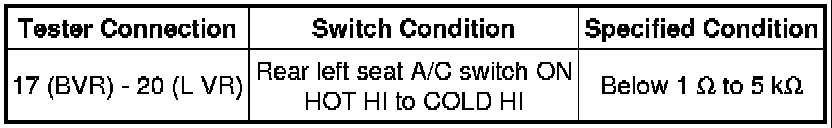

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.

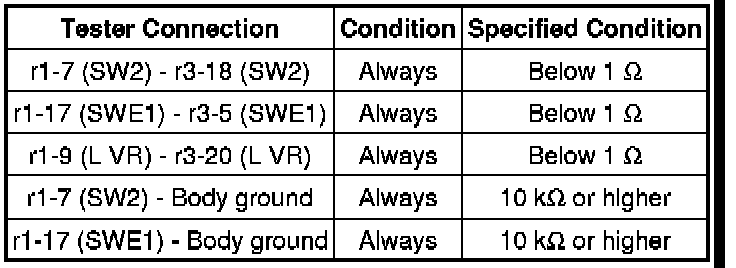

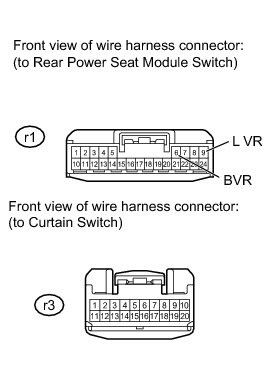

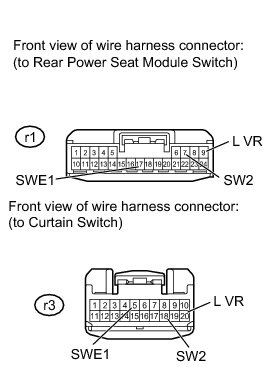

5. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.

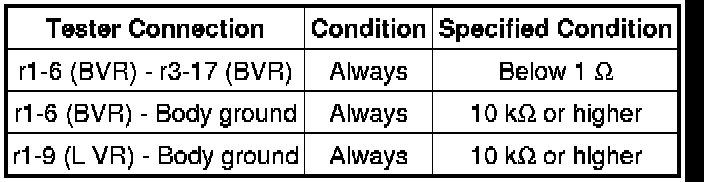

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:

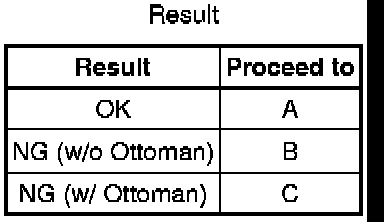

Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly

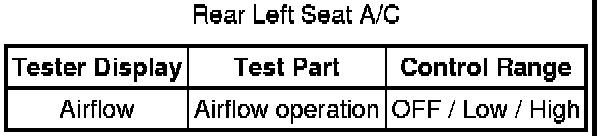

6. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the climate control seat function.

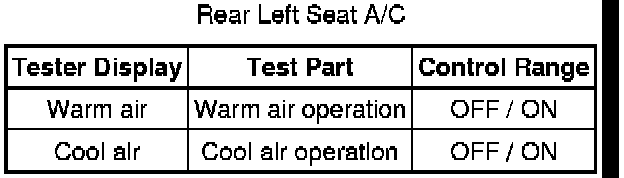

Rear Left Seat A/C
OK:
Warm / Cool air operates normally

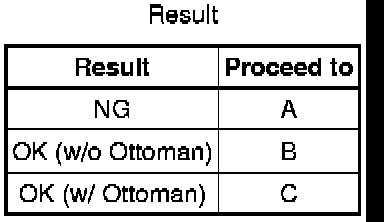

Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
7. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the blower motor function.
Rear Left Seat A/C
OK:
Blower motor operates normally
NG -- CHECK SEAT CLIMATE CONTROL ECU
OK -- Continue to next step.
8. CHECK SEAT CLIMATE CONTROL CONTROLLER LH
(a) Temporarily replace the seat climate control controller with a new or normally functioning one.
(b) Check the climate control seat function is normal.
OK:
Climate control seat function is normal
Result
C -- REPLACE SEAT CLIMATE CONTROL CONTROLLER LH Disassembly
B -- REPLACE SEAT CLIMATE CONTROL CONTROLLER LH Disassembly
A -- Continue to next step.

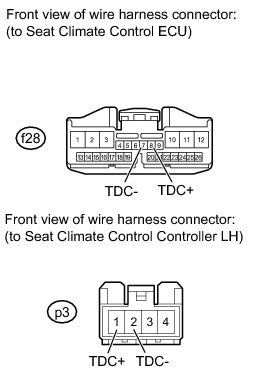

9. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - SEAT CLIMATE CONTROL CONTROLLER)
(a) Disconnect the f28 ECU connector.
(b) Disconnect the p3 controller connector.

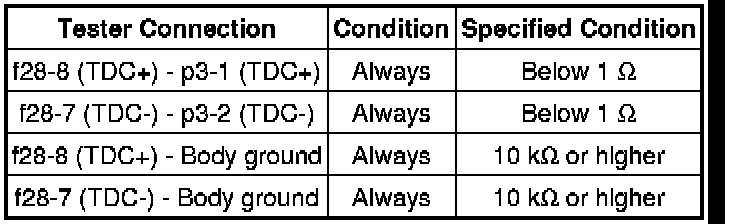

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
10. CHECK SEAT CLIMATE CONTROL ECU
(a) Disconnect the p4 blower connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Result
C -- REPLACE SEAT CLIMATE CONTROL BLOWER LH Disassembly
B -- REPLACE SEAT CLIMATE CONTROL BLOWER LH Disassembly
A -- Continue to next step.

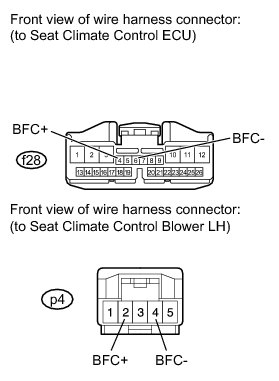

11. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - SEAT CLIMATE CONTROL BLOWER)
(a) Disconnect the f28 ECU connector.
(b) Disconnect the p4 blower connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
12. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the climate control seat function.
Rear Left Seat A/C
OK:
Warm / Cool air operates normally
Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
13. PERFORM ACTIVE TEST USING TECHSTREAM
(a) Select the Active Test, use the Techstream to generate a control command, and then check the blower motor function.
Rear Left Seat A/C
OK:
Blower motor operates normally
NG -- CHECK SEAT CLIMATE CONTROL ECU
OK -- Continue to next step.
14. CHECK REAR SEATBACK CLIMATE CONTROL BLOWER LH
(a) Temporarily replace the rear seatback climate control blower with a new or normally functioning one.
(b) Check the climate control seat function is normal.
OK:
Climate control seat function is normal
Result
C -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER LH Disassembly
B -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER LH Disassembly
A -- Continue to next step.

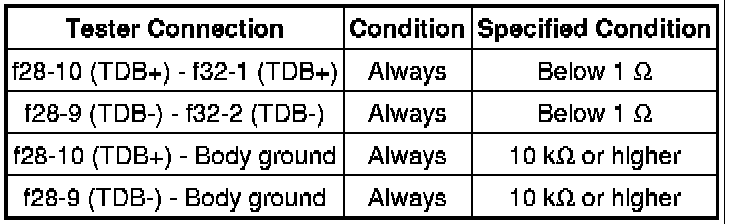

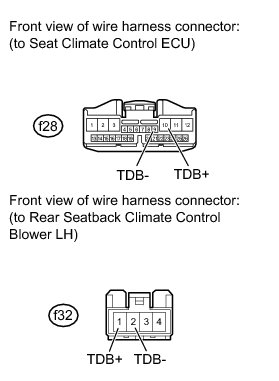

15. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK CLIMATE CONTROL BLOWER)
(a) Disconnect the f28 ECU connector.
(b) Disconnect the f32 blower connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly

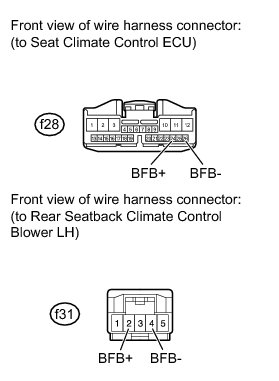

16. CHECK SEAT CLIMATE CONTROL ECU
(a) Disconnect the f31 blower connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
Result
C -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER LH Disassembly
B -- REPLACE REAR SEATBACK CLIMATE CONTROL BLOWER LH Disassembly
A -- Continue to next step.

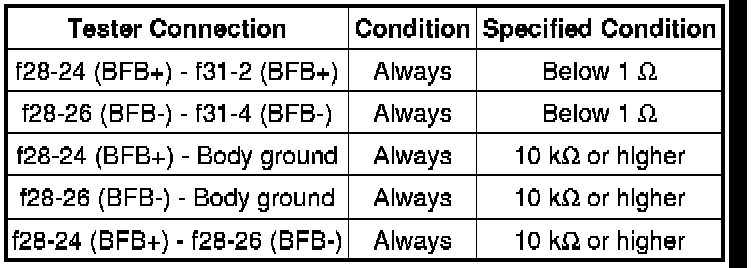

17. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK CLIMATE CONTROL BLOWER)
(a) Disconnect the f28 ECU connector.
(b) Disconnect the f31 blower connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
18. CONFIRM TROUBLE AREAS
Result
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- Continue to next step.
19. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.
Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated
Result
D -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
C -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
B -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
A -- Continue to next step.
20. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 curtain switch connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.
21. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
22. CONFIRM TROUBLE AREAS
Result
E -- REPLACE REAR SEAT CUSHION COVER LH Removal
D -- REPLACE REAR SEAT CUSHION COVER LH Removal
C -- REPLACE REAR SEATBACK COVER LH Removal
B -- REPLACE REAR SEATBACK COVER LH Removal
A -- Continue to next step.
23. READ VALUE USING TECHSTREAM (REAR POWER SEAT MODULE SWITCH)
(a) Check the Data List for proper functioning of the rear power seat module switch.
Rear Console Switch
OK:
Tester display changes normally when rear left seat A/C switch is operated
Result
C -- REPLACE REAR POWER SEAT MODULE SWITCH Removal
B -- INSPECT CURTAIN SWITCH ASSEMBLY
A -- Continue to next step.

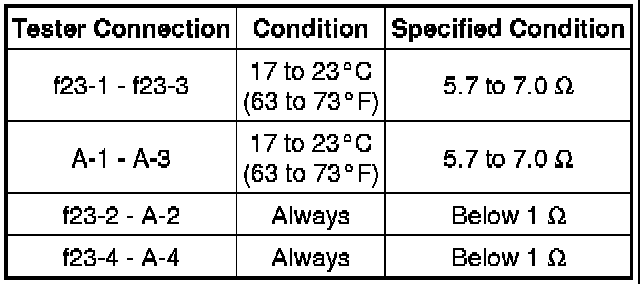

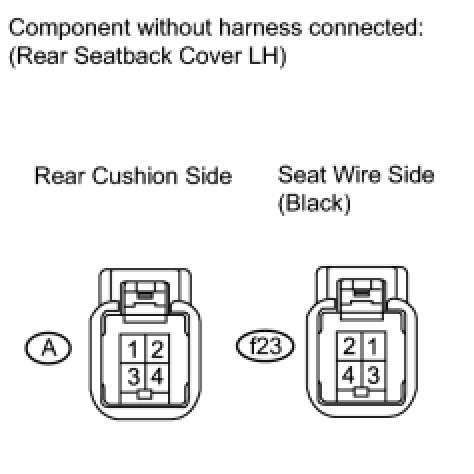

24. INSPECT REAR SEATBACK COVER LH
(a) Check the seatback heater.

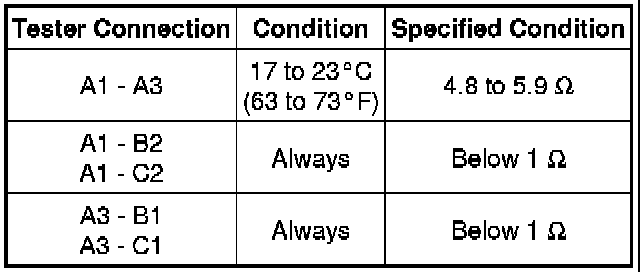

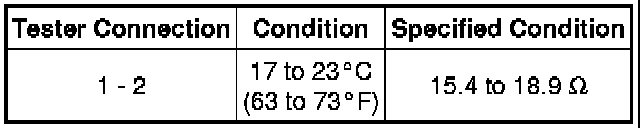

(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seatback cover LH.
Result
C -- REPLACE REAR SEATBACK COVER LH Removal
B -- REPLACE REAR SEATBACK COVER LH Removal
A -- Continue to next step.

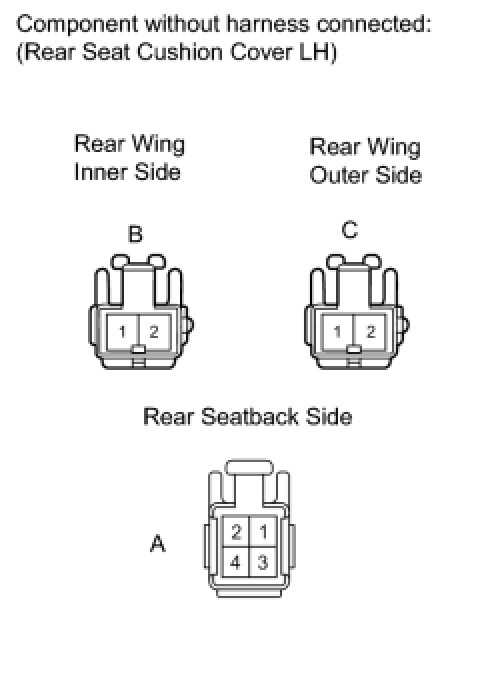

25. INSPECT REAR SEAT CUSHION COVER LH
(a) Check the rear seat cushion heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seat cushion cover LH.
(b) Check the rear wing heater.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:
If the result is not as specified, replace the rear seat cushion cover LH.
Result
C -- REPLACE REAR SEAT CUSHION COVER LH Removal
B -- REPLACE REAR SEAT CUSHION COVER LH Removal
A -- Continue to next step.

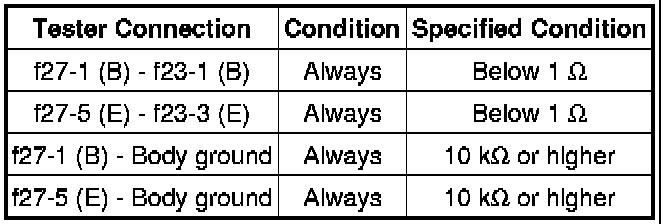

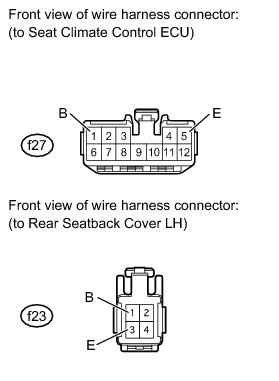

26. CHECK HARNESS AND CONNECTOR (SEAT CLIMATE CONTROL ECU - REAR SEATBACK COVER LH)
(a) Disconnect the f27 ECU connector.
(b) Disconnect the f23 seatback cover connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
A -- REPLACE SEAT CLIMATE CONTROL ECU Disassembly
27. INSPECT CURTAIN SWITCH ASSEMBLY
(a) Disconnect the r3 curtain switch connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
NG -- REPLACE CURTAIN SWITCH ASSEMBLY Disassembly
OK -- Continue to next step.
28. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - CURTAIN SWITCH)
(a) Disconnect the r1 power seat switch connector.
(b) Disconnect the r3 curtain switch connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:
Result
C -- REPAIR OR REPLACE HARNESS OR CONNECTOR
B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
A -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly
