Rear Power Seat Control System

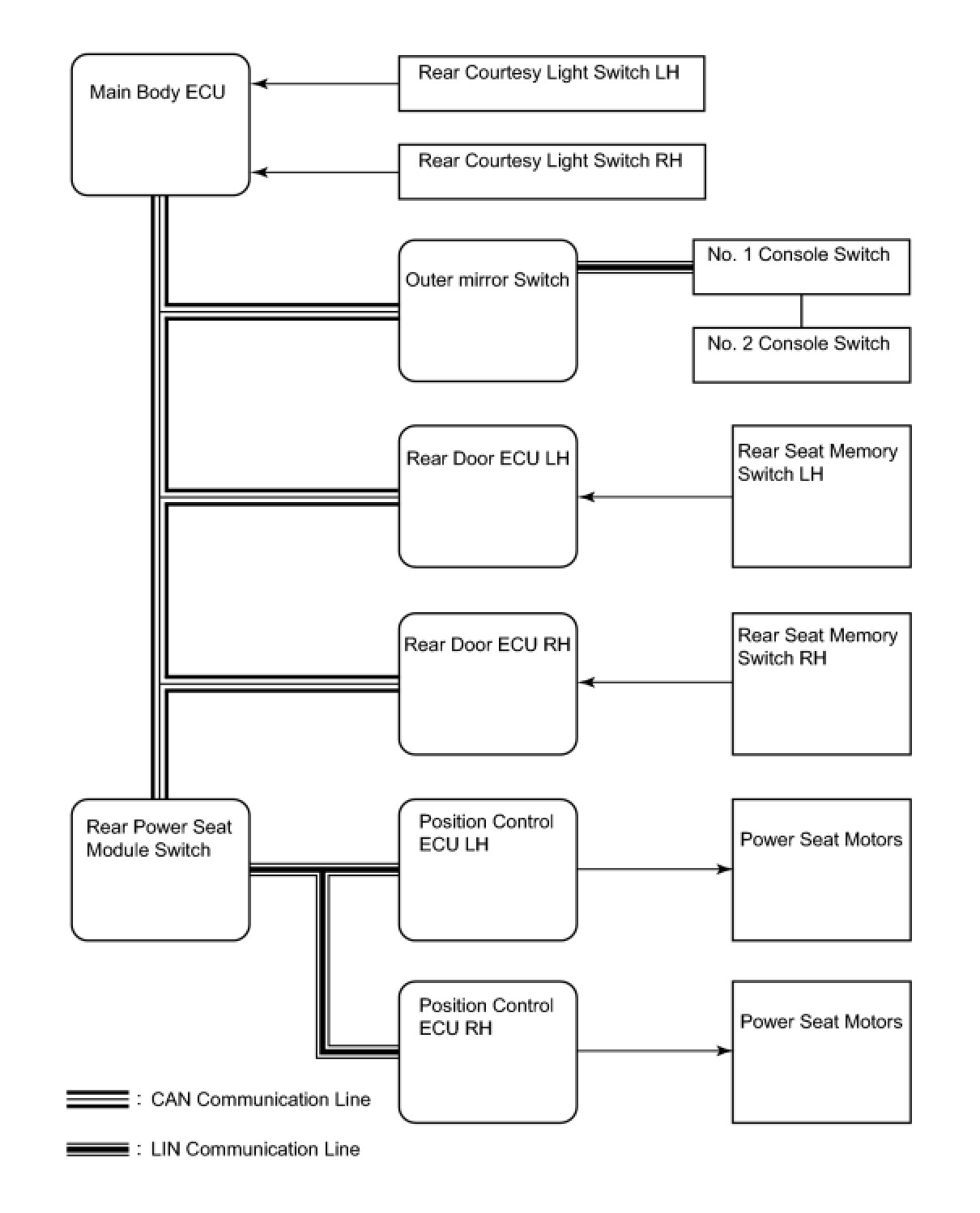

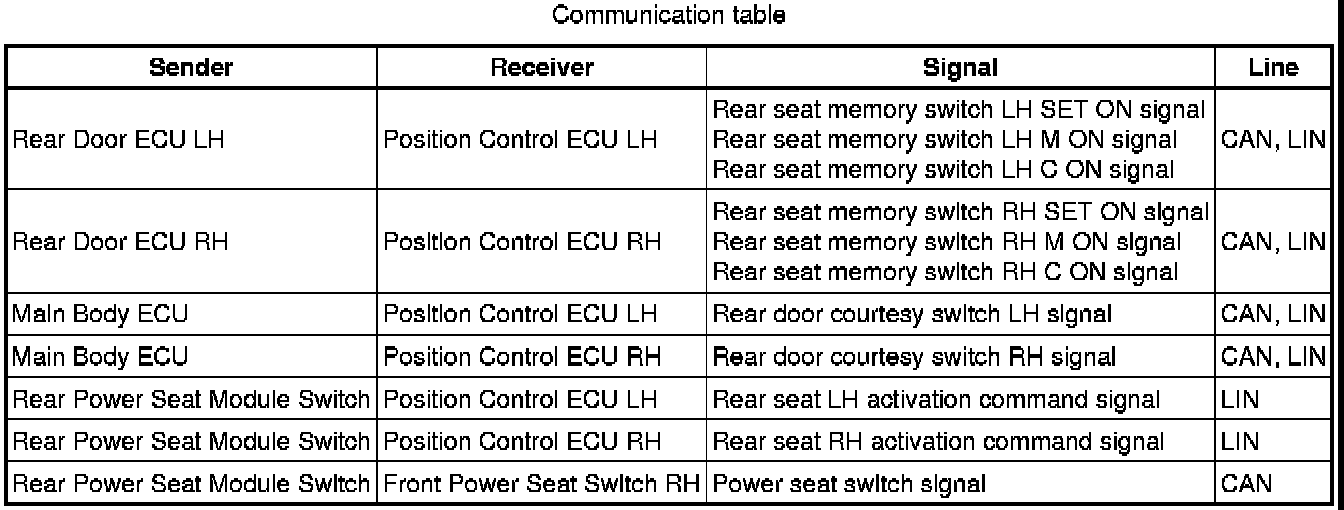

SEAT: REAR POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM














SYSTEM DESCRIPTION

1. REAR POWER SEAT CONTROL SYSTEM DESCRIPTION

* Power seats are standard equipment for the front seats and optional for the rear seats.

* For rear power seats, the position of the right and left seats can be adjusted independently.

* A memory system for the rear seats is optional.

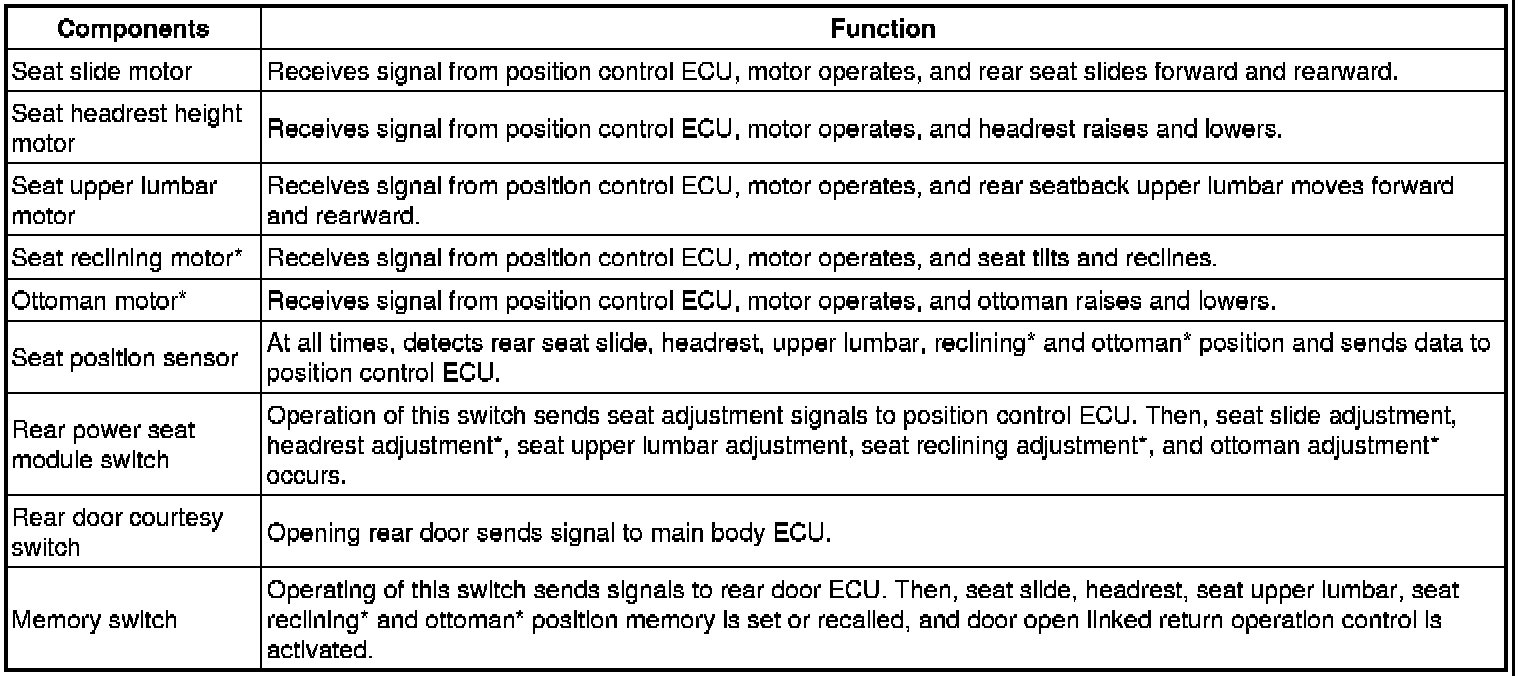

2. FUNCTION OF MAIN COMPONENT





HINT
*: w/ Ottoman

3. SYSTEM OPERATION

Each of rear power seat's memory adjustment and positions are shown in the chart below.





HINT
*: w/ Ottoman

* By operating the rear power seat reset switch, the position of the rear seat that has been adjusted can be returned to the factory setting.

* To improve the ease of entry/exit into the vehicle, the door open linked return operation is available. For this operation, when a rear door is opened, the rear seat adjacent to the opened door is moved to the rearmost position.

* At this time, the position control ECU checks the shift lever position, brake operation, engine switch position and vehicle speed. It then makes a judgment of the vehicle's status before activating motors to move the rear seat to rearmost position.

* The door open linked return operation can be enabled or disabled by operating the C switch in the rear seat memory switch.

* The right and left position control ECUs memorize seat positions for their own respective rear seat sides.
