Removal

EXTERIOR: NAME PLATE: REMOVAL

HINT
When removing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

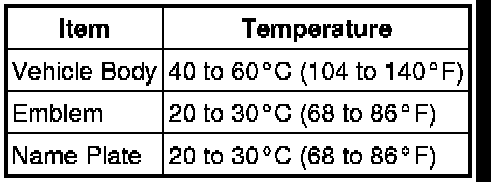

Standard:





NOTICE:
Do not heat the vehicle body, emblem or name plate excessively.

1. REMOVE SYMBOL EMBLEM

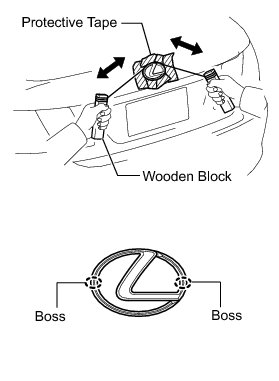

(a) Put protective tape around the symbol emblem.

(b) Insert a piano wire between the vehicle body and symbol emblem.

NOTICE:
Be careful of the boss positions.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the emblem to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the symbol emblem.

2. REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the No. 1 luggage compartment door name plate.

(b) Insert a piano wire between the vehicle body and No. 1 luggage compartment door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the No. 1 luggage compartment door name plate.

3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the No. 3 luggage compartment door name plate.

(b) Insert a piano wire between the vehicle body and No. 3 luggage compartment door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the No. 3 luggage compartment door name plate.

4. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE





(a) Put protective tape around the No. 2 luggage compartment door name plate.

(b) Insert a piano wire between the vehicle body and No. 2 luggage compartment door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the name plate to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the No. 2 luggage compartment door name plate.
