Audio Recorded to HDD Cannot Be Played

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): Audio Recorded to HDD cannot be Played
- Audio Recorded to HDD cannot be Played

INSPECTION PROCEDURE

HINT
The HDD cannot read when driving on a rough road because of vibration.

PROCEDURE

1. CHECK IF THERE IS ANY PROBLEM ON CD

(a) Check if a message indicating a skipping track is displayed in the CD track information list on the audio screen.

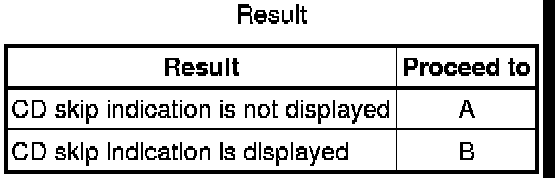

Result





B -- CD WAS FAULTY
A -- Continue to next step.

2. DELETE AND RE-RECORD TRACK WITH ERROR

(a) Delete the track that is indicated as skipping.

(b) Insert the CD and re-record the same track.

NEXT -- Continue to next step.

3. CHECK IF RE-RECORDED TRACK CAN BE PLAYED

(a) Check if the re-recorded track can be played.

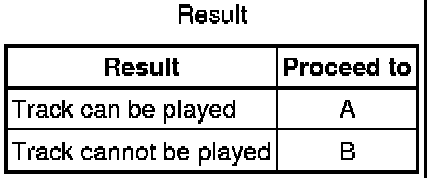

Result





B -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

A -- END
