Canada - Entertainment - XM Satellite Radio Activation
BulletinTSB2765
Issue Date
December 9, 2009
Title
XM(R) ACTIVATION CONFIRMATION DURING PDS
Component
GENERAL INFORMATION
Models
'10 LS460; LS600h
INTRODUCTION:
The 2010 model year LS460; LS600h vehicles equipped with a Navigation System are also equipped with factory installed XM Satellite Radio, including a 180 day free customer trial for each. As part of the PDS process, ensure that the XM Satellite Radio is activated and ready for use.

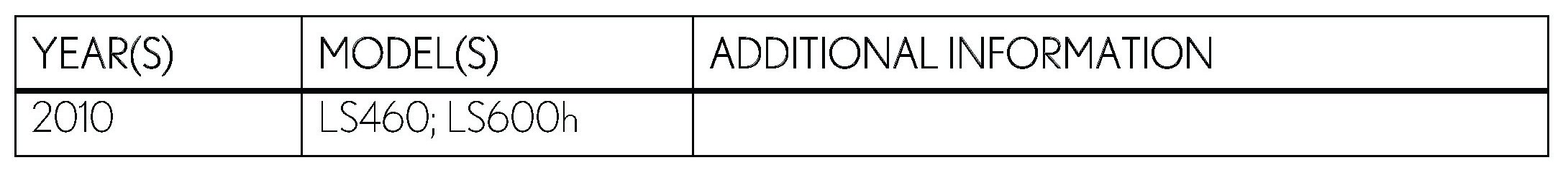

APPLICABILITY:

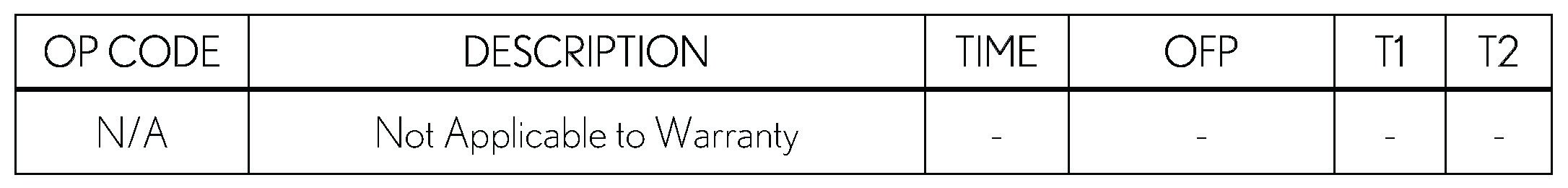

WARRANTY INFORMATION:
CONFIRMATION PROCEDURE
1. With the vehicle in clear line of sight to the sky, power ON the radio. (The vehicle does NOT have to be running, but the radio must be powered ON.)

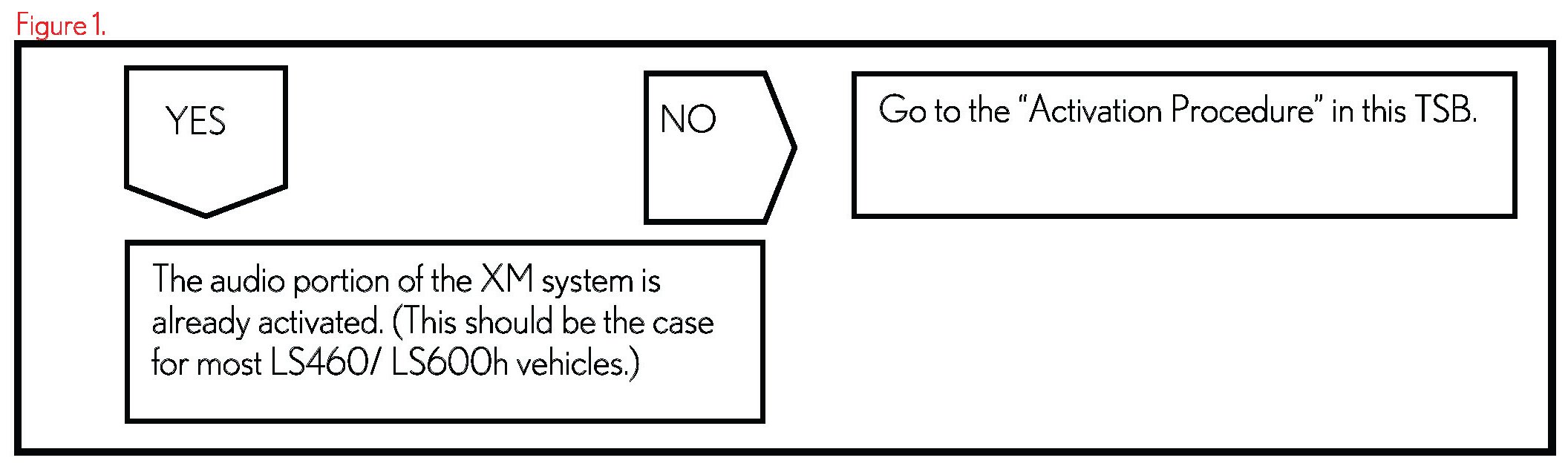

2. Press the "AM/SAT" button to switch the band to "SAT1". Are XM channels 7, 9, 152, and 175 displayed and audible?
ACTIVATION PROCEDURE:
1. With the vehicle in clear line of sight to the sky, power ON the radio (The vehicle does NOT have to be running, but the radio must be powered ON).
2. Press the "AM/SAT" button to switch the band to "SAT1" and turn to channel "0 (zero)".
3. Write down the 8-digit radio ID.
NOTE
Please check the radio ID code carefully. The letters "I", "o", "S", or "F" are NOT used in the radio ID.
4. Log on to http://refresh.xmradio.ca and follow the activation instructions OR call 1-877-438-9677 and follow the voice activated prompts for dealer demo activation.
The activation signal is sent to the vehicle immediately and will continue to be sent for up to 2 hours. The vehicle may need to remain ON for up to 30 minutes to receive the XM activation signal.
5. After 30 minutes, return to the "Confirmation Procedure" in this TSIB to ensure activation is complete and repeat steps 1 - 4 above, if necessary.
