Rear Door Speaker (For Long Body)

AUDIO / VISUAL: REAR DOOR SPEAKER (for Long Body): INSPECTION

1. INSPECT REAR NO. 1 SPEAKER ASSEMBLY

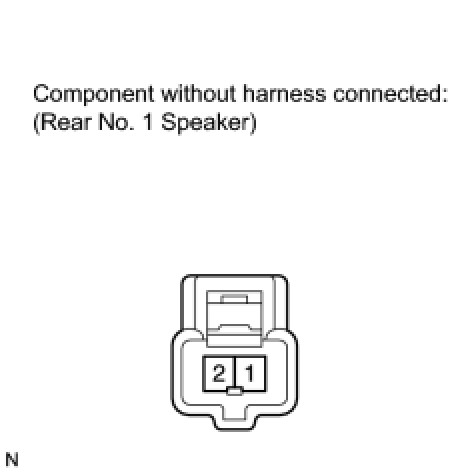

(a) Measure the resistance according to the value(s) in the table below.

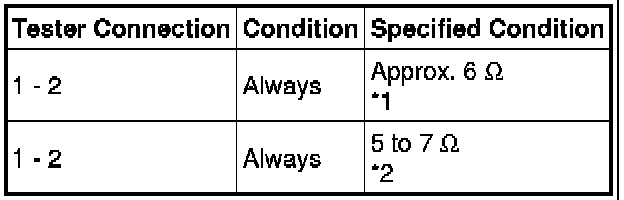

Standard resistance:





HINT
* *1: for Standard models.
* *2: for 19 speakers models.
(b) If the result is not as specified, replace the speaker assembly.

2. INSPECT REAR NO. 2 SPEAKER ASSEMBLY





(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(b) If the result is not as specified, replace the speaker assembly.

3. INSPECT REAR NO. 3 SPEAKER ASSEMBLY

(a) Check that the malfunction disappears when the speaker is replaced with a normal one.

OK:

Malfunction disappears.

HINT
* Connect all the connectors to the rear No. 3 speakers.
* When there is a possibility that either the right or left rear speaker is defective, inspect by interchanging the right one with the left one.
* Perform the inspection above on both LH and RH sides.
