Removal

AUDIO / VISUAL: FRONT DOOR SPEAKER: REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.
1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

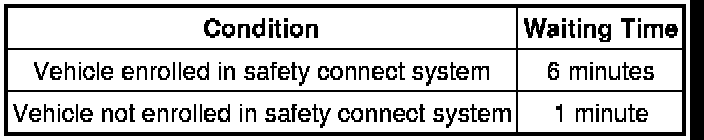

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
3. REMOVE DOOR INSIDE HANDLE BEZEL Removal

4. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY Removal

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Removal

6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

(a) Disconnect the speaker connector.

(b) Remove the 4 screws and speaker.

NOTICE:
Do not touch the cone part of the speaker.
