Installation

CELLULAR COMMUNICATION: TELEPHONE AND GPS ANTENNA: INSTALLATION

1. INSTALL TELEPHONE AND GPS ANTENNA





(a) Attach the 2 claws to install the telephone antenna.

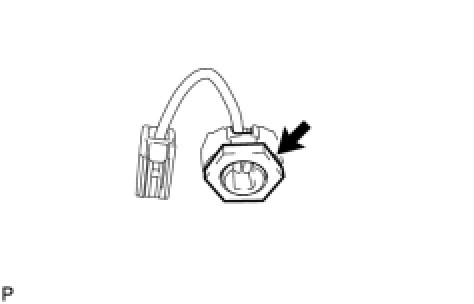

(b) Install the antenna nut.





Torque : 4.5 Nm (46 kgf-cm, 40 in-lbf)

(c) Connect the 2 connectors.





(d) Attach the 2 claws to install the protector.









(e) Attach the 4 claws to install the 2 antenna cord connectors.

2. INSTALL ROOF HEADLINING ASSEMBLY

(a) for Standard Body:

Install the roof headlining Installation.

(b) for Long Body:

Install the roof headlining Removal.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

4. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
