Garage Door Opener Transmitter: Description and Operation

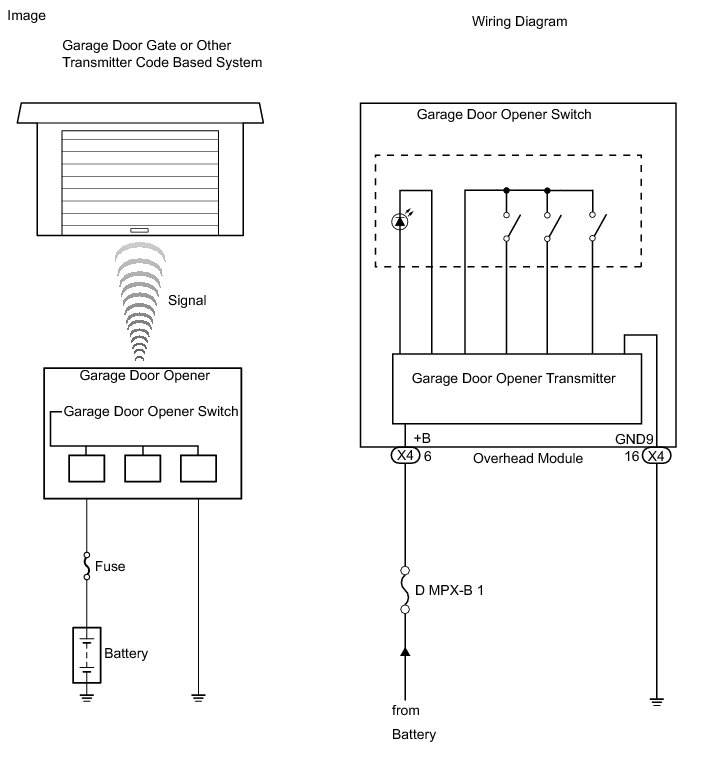

GARAGE DOOR OPENER: GARAGE DOOR OPENER SYSTEM: SYSTEM DIAGRAM









SYSTEM DESCRIPTION

1. DESCRIPTION

(a) A maximum of 3 kinds of transmitter code based systems (example: garage doors, gates and entry gates) can be registered with the vehicle's garage door opener. After registration, the vehicle's garage door opener can mimic the signal of the transmitter systems and the original transmitters of each transmitter system are not needed.
