Removal

AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

6. REMOVE NO. 3 BOX PANEL Removal

7. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY Removal

8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

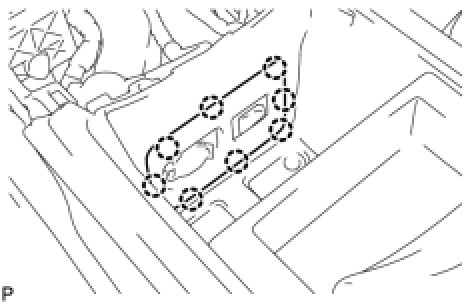

9. REMOVE LOWER CONSOLE BOX POCKET





(a) Disconnect the connector.

(b) Detach the 8 claws and remove the lower console box pocket.

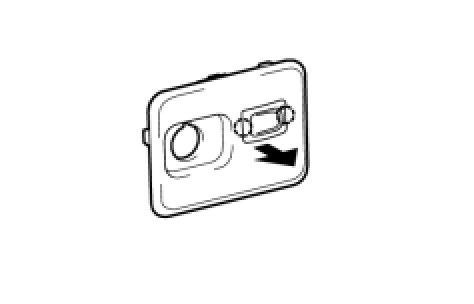

10. REMOVE STEREO JACK ADAPTER ASSEMBLY

(a) Detach the 2 claws and remove the adapter.





11. REMOVE LOWER CONSOLE BOX POCKET (for 4-Passenger with Ottoman)





(a) Disconnect the connector.

(b) Detach the 8 claws and remove the lower console box pocket.

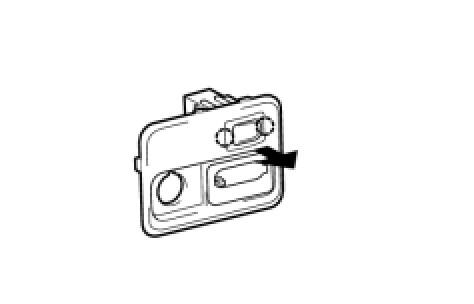

12. REMOVE STEREO JACK ADAPTER ASSEMBLY (for 4-Passenger with Ottoman)

(a) Detach the 2 claws and remove the adapter.





13. REMOVE REAR CENTER SEAT CUSHION ASSEMBLY (for 5-Passenger with Ottoman) Removal

14. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for 5-Passenger with Ottoman) Removal

15. REMOVE REAR SEAT ARMREST HOLE COVER (for 5-Passenger with Ottoman) Disassembly

16. REMOVE CENTER SEATBACK FRAME SUB-ASSEMBLY (for 5-Passenger with Ottoman) Disassembly

17. REMOVE REAR NO. 1 SEAT CENTER ARMREST PANEL (for 5-Passenger with Ottoman) Disassembly

18. REMOVE HEADPHONE TERMINAL (for 5-Passenger with Ottoman)

(a) Detach the 3 claws and remove the headphone terminal.





HINT
Use the same procedure for both headphone terminals.

19. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY (for 4-Passenger with Ottoman) Removal

20. REMOVE HEADPHONE TERMINAL (for 4-Passenger with Ottoman)

(a) Disconnect the 2 connectors.





(b) Detach the 2 clamps and 6 claws.

(c) Remove the headphone terminal.





(d) Remove the headphone terminal.
