Pinout Values and Diagnostic Parameters

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: TERMINALS OF ECU

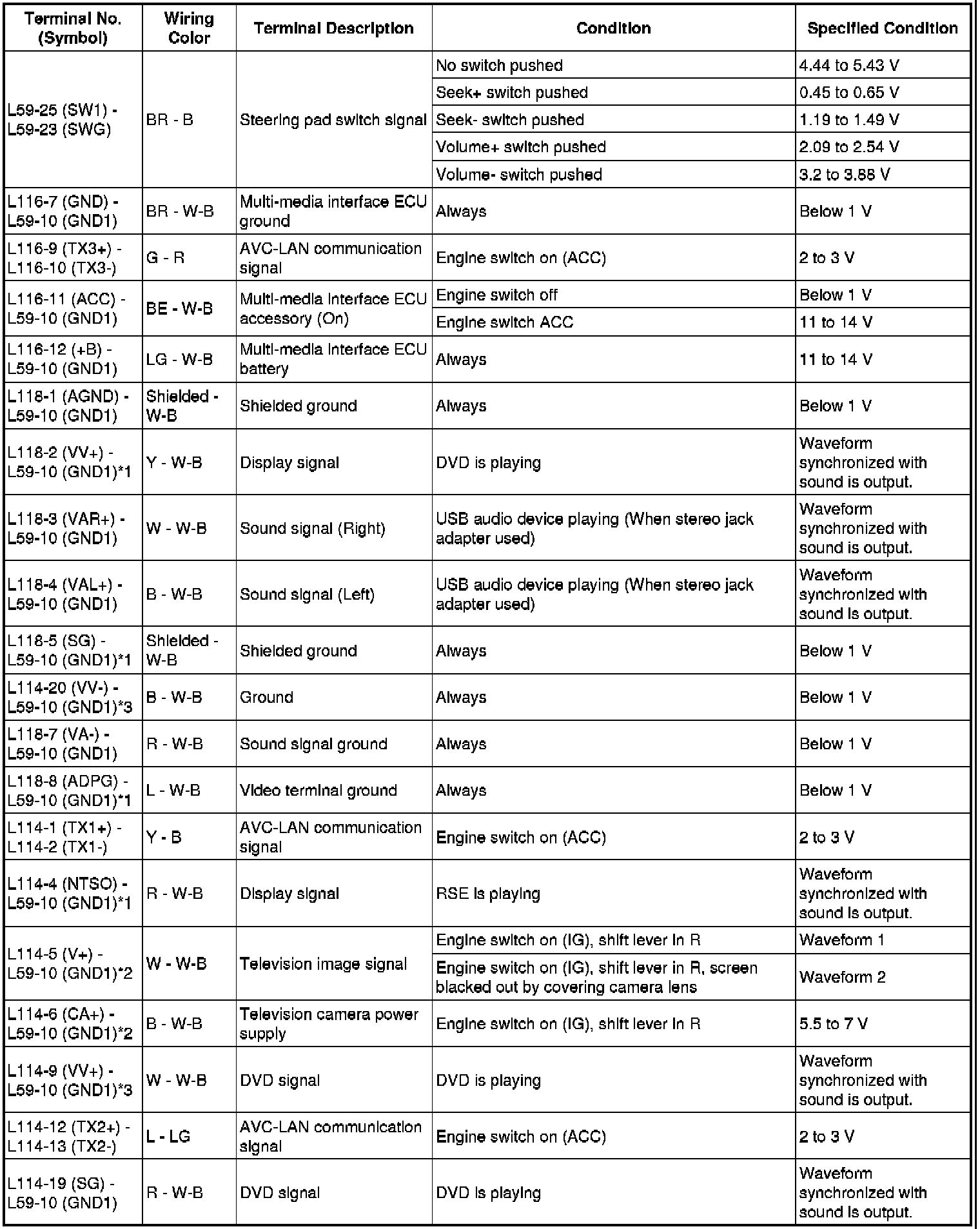

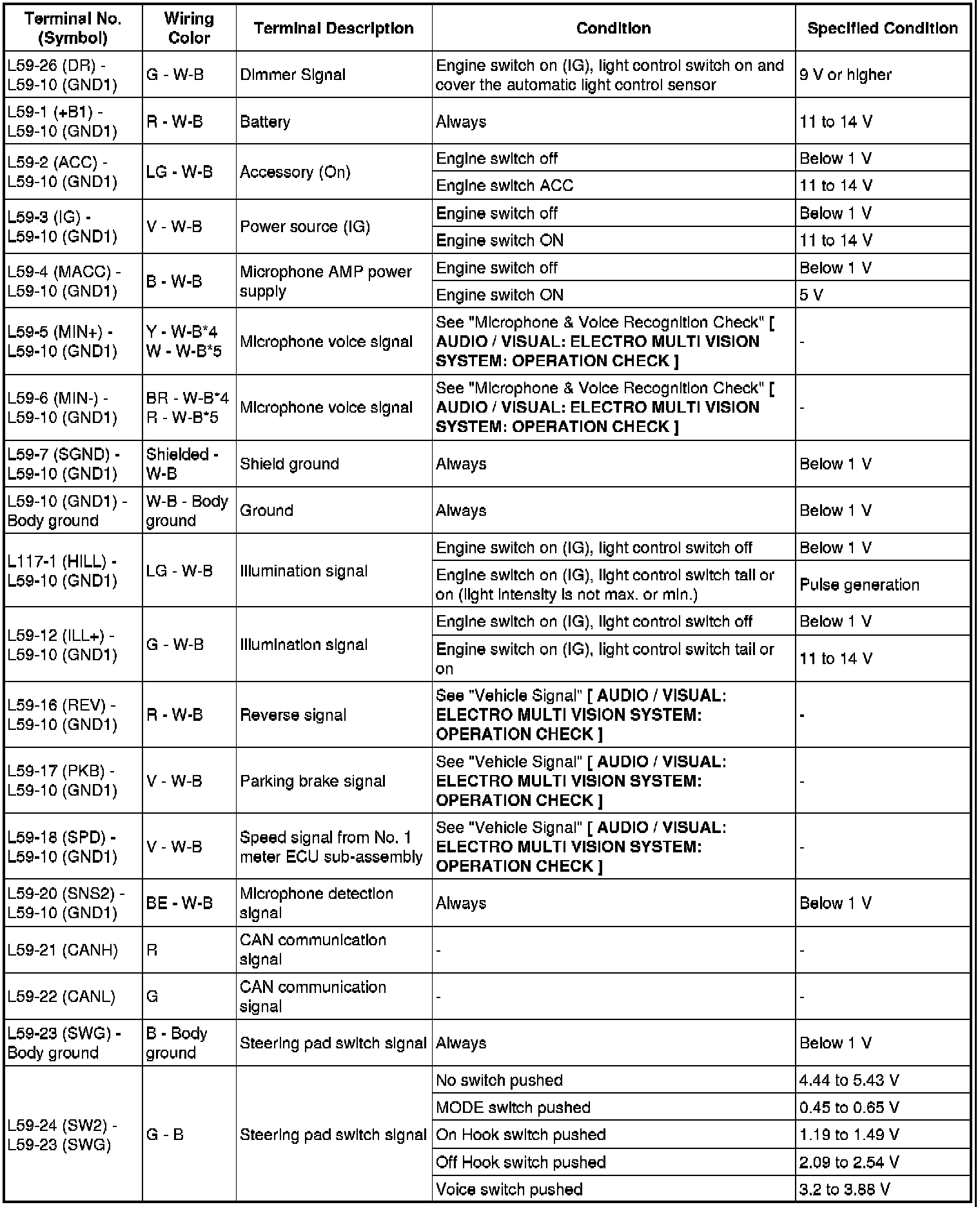

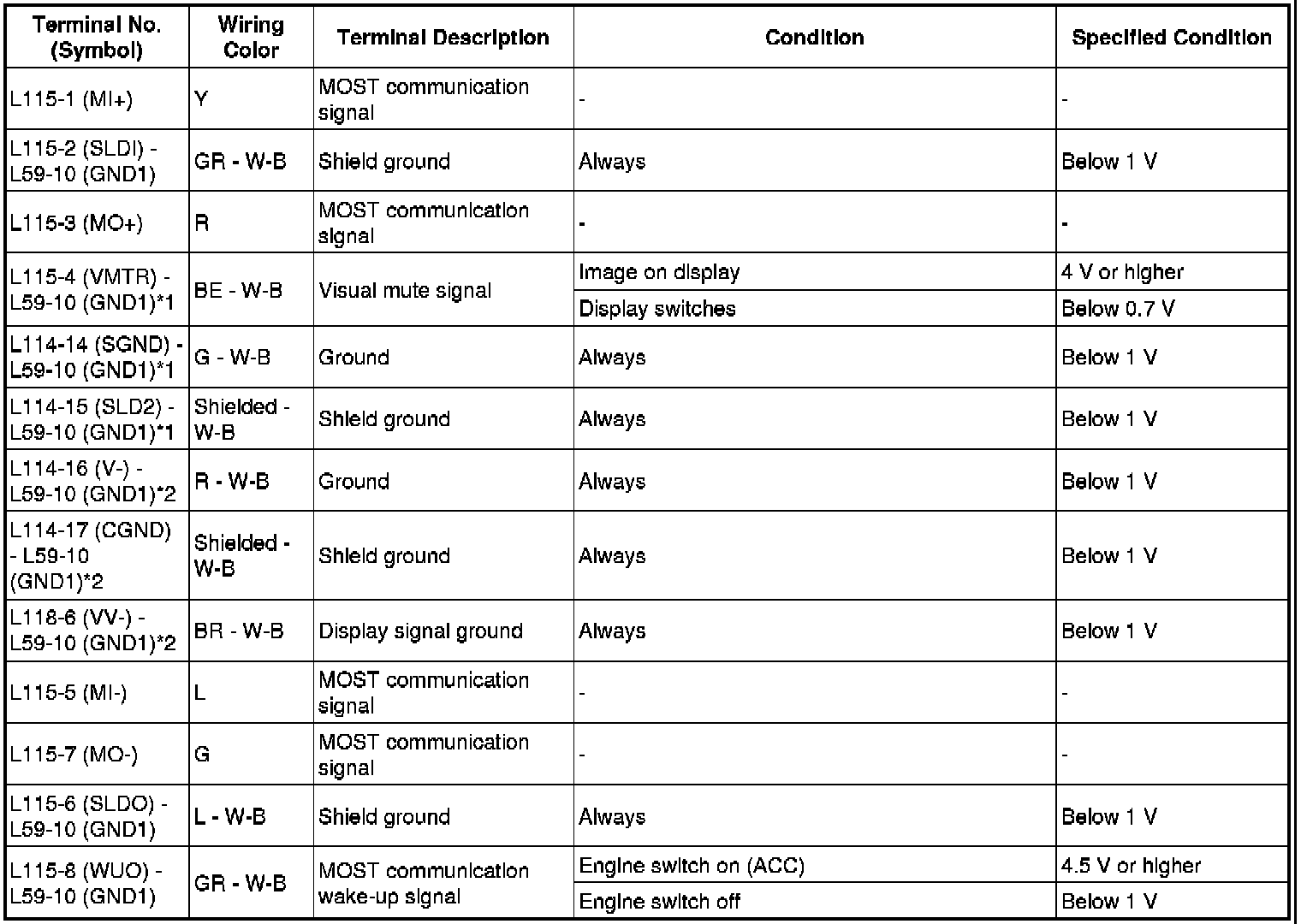

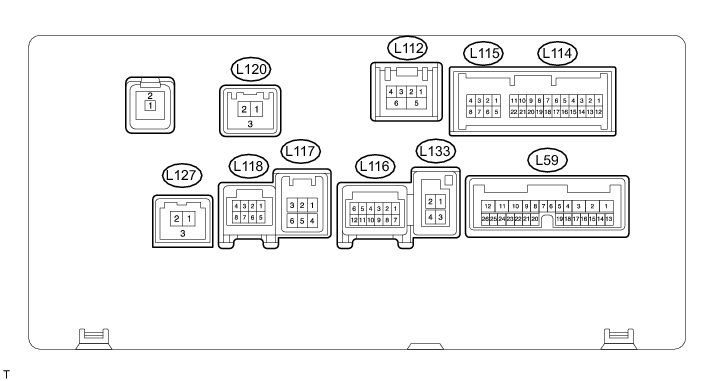

1. CHECK DISPLAY AND NAVIGATION MODULE DISPLAY

















* *1: w/ Rear Seat Entertainment System

* *2: w/o Advanced Parking Guidance System

* *3: DVD changer Models

* *4: w/ Manual (SOS) Switch

* *5: w/o Manual (SOS) Switch

* #: There is no wire color information.

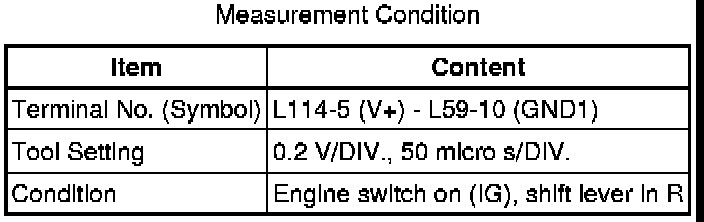

(a) Using an oscilloscope, check waveform 1.

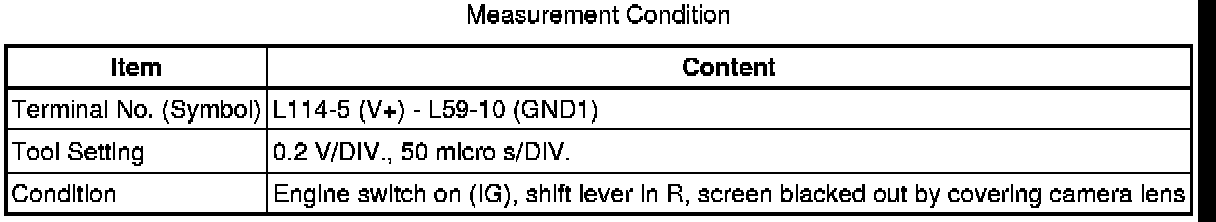

(b) Using an oscilloscope, check waveform 2.









2. CHECK RADIO RECEIVER ASSEMBLY Audio and Visual System (W/ Multi-Display)

3. CHECK MULTI-MEDIA INTERFACE ECU Audio and Visual System (W/ Multi-Display)

4. CHECK STEREO COMPONENT AMPLIFIER ASSEMBLY Audio and Visual System (W/ Multi-Display)

5. CHECK TELEVISION DISPLAY ASSEMBLY (w/ Rear Seat Entertainment System) Pinout Values and Diagnostic Parameters
