AA80F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0746: Pressure Control Solenoid "A" Performance (Shift Solenoid Valve SL1)
P0746 - Pressure Control Solenoid "A" Performance (Shift Solenoid Valve SL1)

Continued

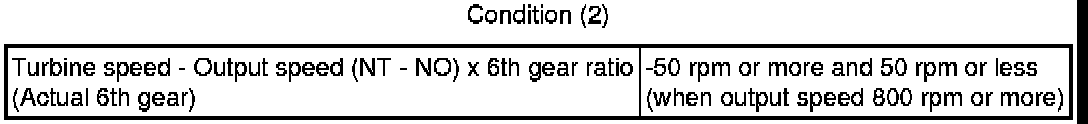

Condition (2)

ON malfunction (C)

- When either condition below is met: Condition (1) or (2)

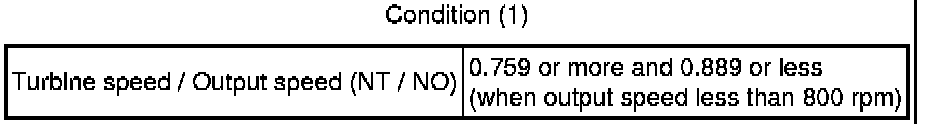

Condition (1)

Condition (2)

ON malfunction (D)

- When either condition below is met: Condition (1) or (2)

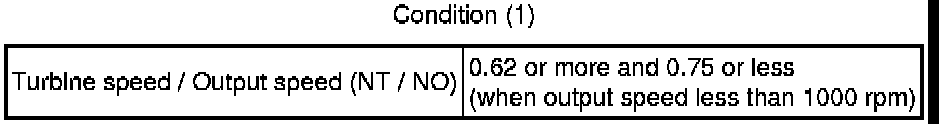

Condition (1)

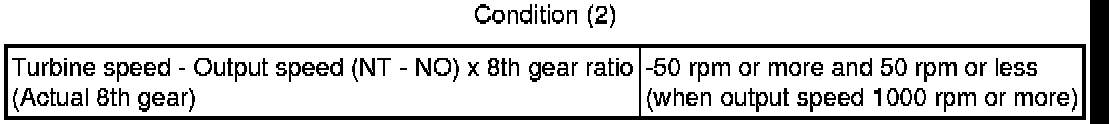

Condition (2)

INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs DTC Check / Clear.

PROCEDURE

1. CHECK DTC OUTPUT (IN ADDITION TO DTC P0746, P0873 AND P2714)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / ECT / Trouble Codes.

(e) Read the DTCs using the Techstream.

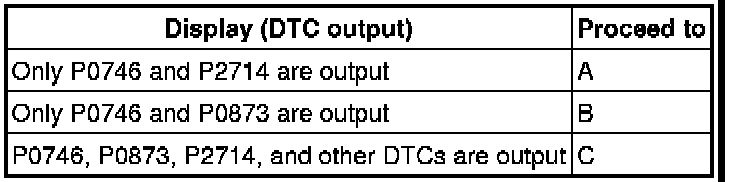

Result:

HINT
If any other codes besides P0746, P0873 and P2714 are output, perform troubleshooting for those DTCs first.

C -- GO TO DTC CHART Automatic Transmission System - AA80F

B -- GO TO DTC P0873 FLOWCHART P0873
A -- Continue to next step.

2. CLEAR DTC AND PERFORM RUNNING TEST

(a) Clear the DTCs DTC Check / Clear.

HINT
Write down the currently output DTCs before clearing them.

(b) Start the engine, drive at a low speed and perform the inspection.

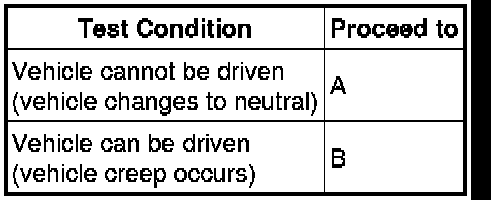

Result:

B -- INSPECT SHIFT SOLENOID VALVE SLT
A -- Continue to next step.

3. INSPECT SHIFT SOLENOID VALVE SL1

(a) Remove shift solenoid valve SL1 Disassembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(c) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

NG -- REPLACE SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.

5. INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Check the transmission valve body assembly Disassembly.

OK:

There are no foreign objects on any valve.

NG -- REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY Removal
OK -- Continue to next step.

6. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY

(a) Check the torque converter clutch assembly AA80F Automatic Transmission.

OK:

The torque converter clutch operates normally.

NG -- REPLACE TORQUE CONVERTER CLUTCH ASSEMBLY Removal

OK -- REPAIR OR REPLACE AUTOMATIC W/TRANSFER TRANSMISSION ASSEMBLY Removal
