Engine Control System Malfunction - Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1201/51: Engine Control System Malfunction
C1201/51 - Engine Control System Malfunction

DESCRIPTION

The skid control ECU is connected to the ECM via CAN communication. When the signals from the engine are input normally, the fail-safe is canceled and the DTC is not stored.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR SFI SYSTEM

(a) Clear the DTC (SFI system) DTC Check / Clear.

(b) Check the DTC (SFI system) DTC Check / Clear.

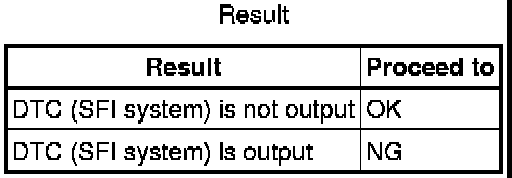

Result





NG -- GO TO SFI SYSTEM How to Proceed with Troubleshooting

OK -- END
