EPS Control System Malfunction - Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1304/27: EPS Control System Malfunction
C1304/27 - EPS Control System Malfunction

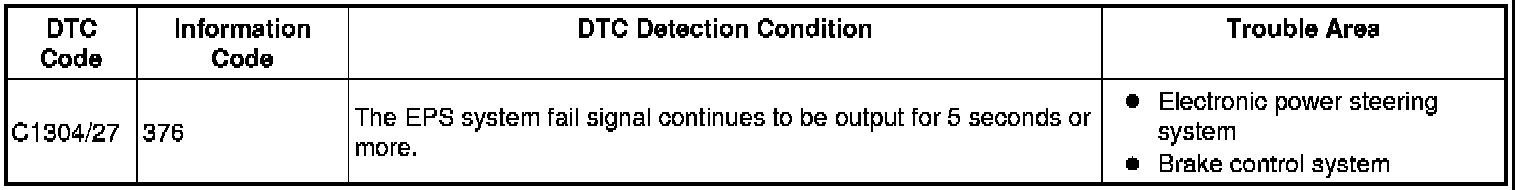

DESCRIPTION

The skid control ECU communicates with the power steering ECU via CAN communication.

If a malfunction in the electronic power steering (EPS) control system is detected, cooperative control of the steering is prohibited by the fail-safe function.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR ELECTRONIC POWER STEERING SYSTEM

(a) Clear the DTC Power Steering System.

(b) Check the DTC Power Steering System.

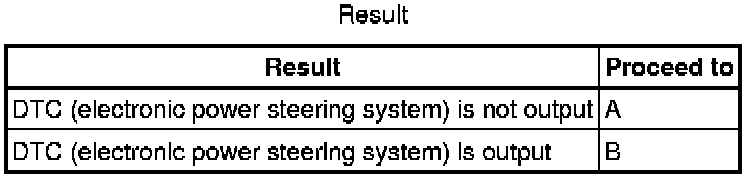

Result





B -- GO TO ELECTRONIC POWER STEERING SYSTEM How To Proceed With Troubleshooting

A -- END
