Variable Gear Ratio Steering System





STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

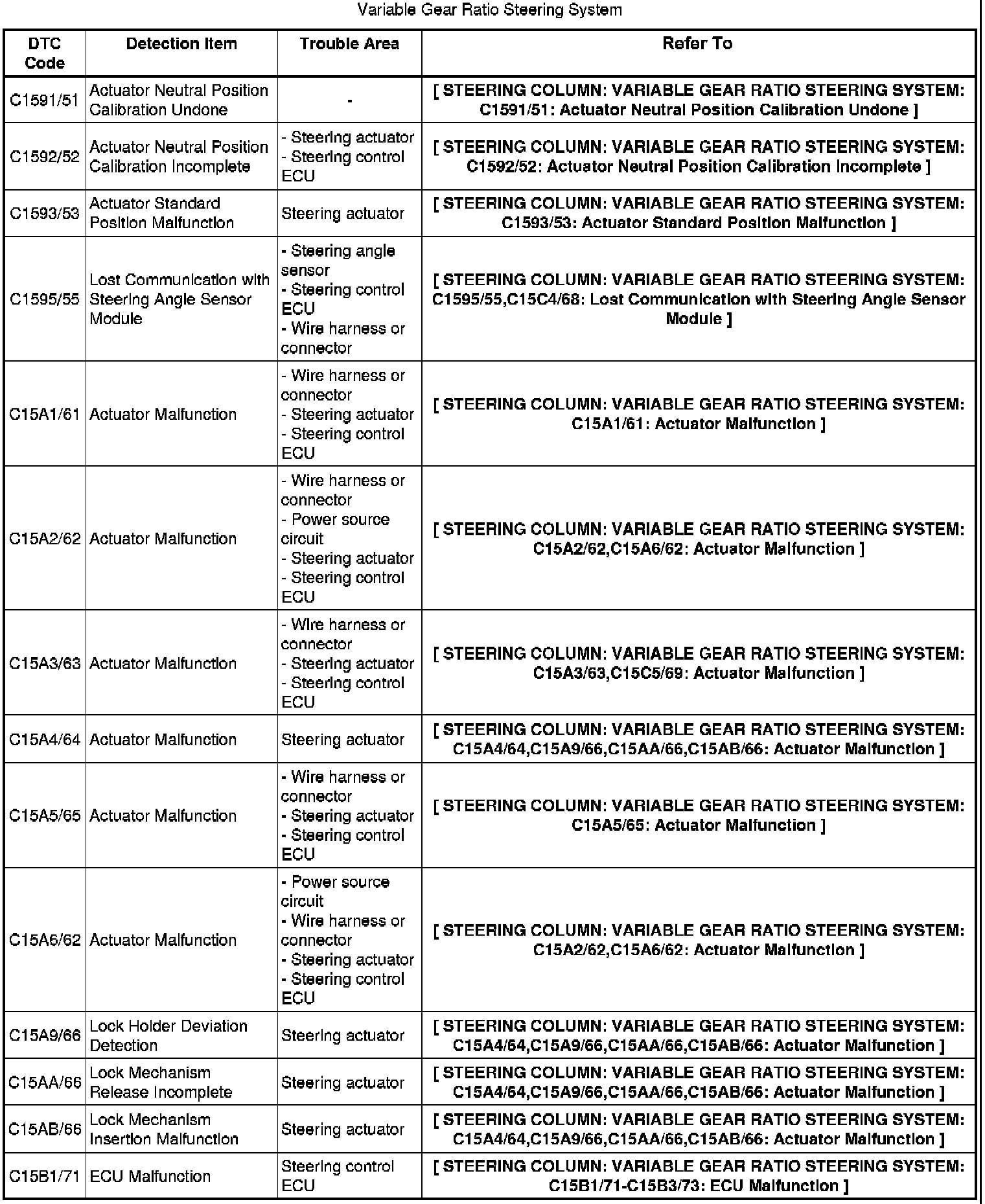

C1591/51 - C15B1/71:

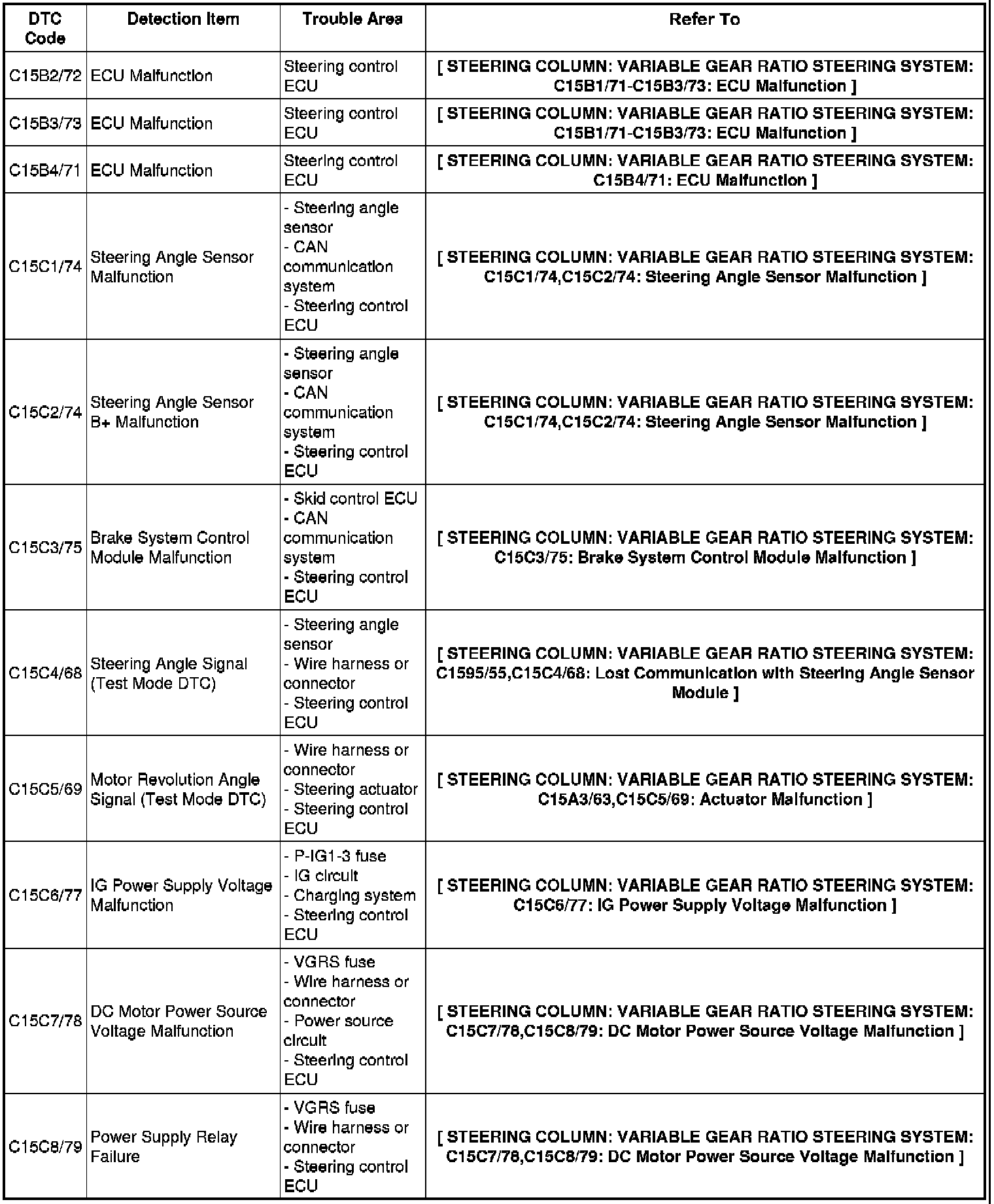

C15B2/72 - C15C8/79:

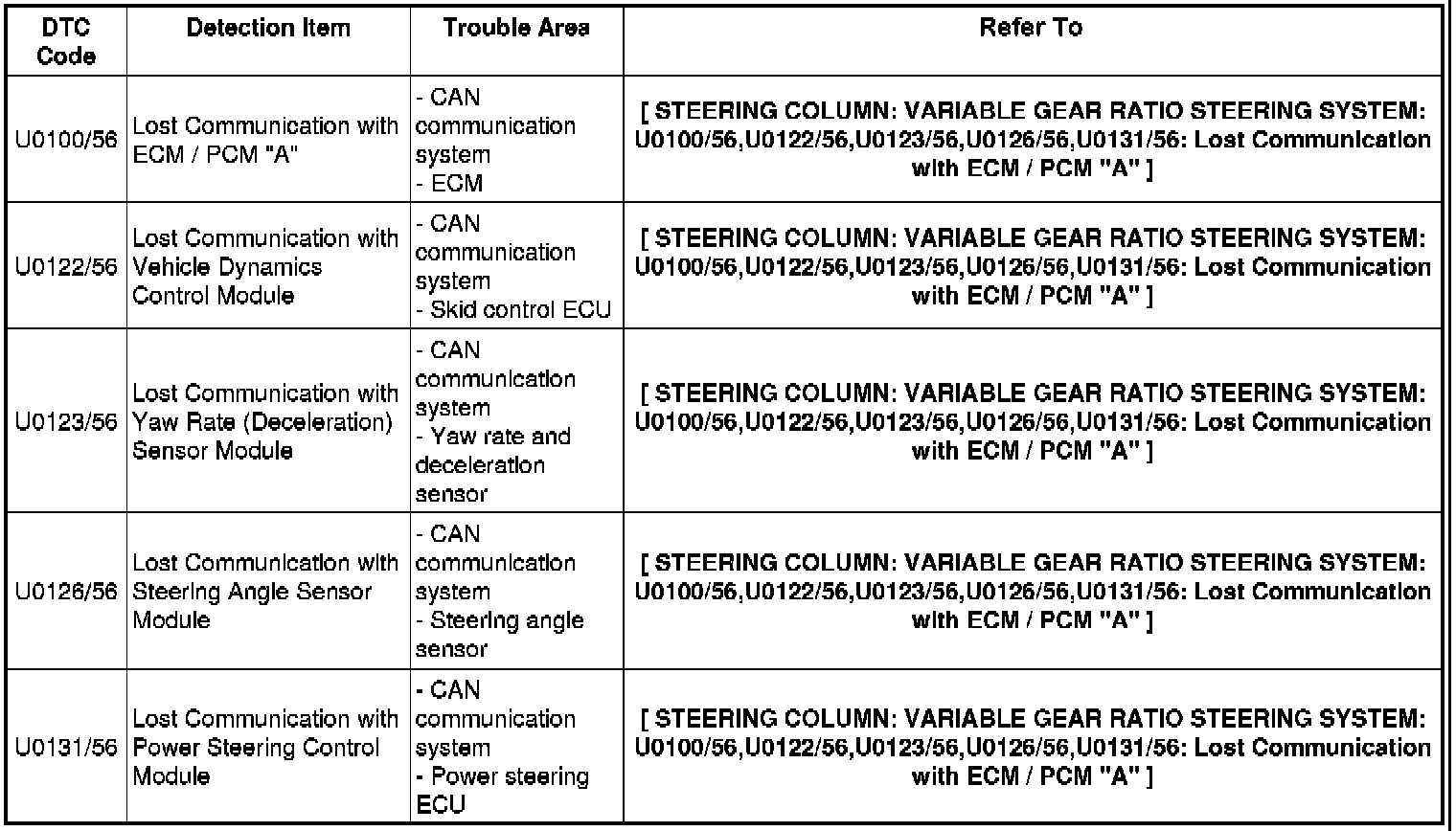

U0100/56 - U0131/56:
