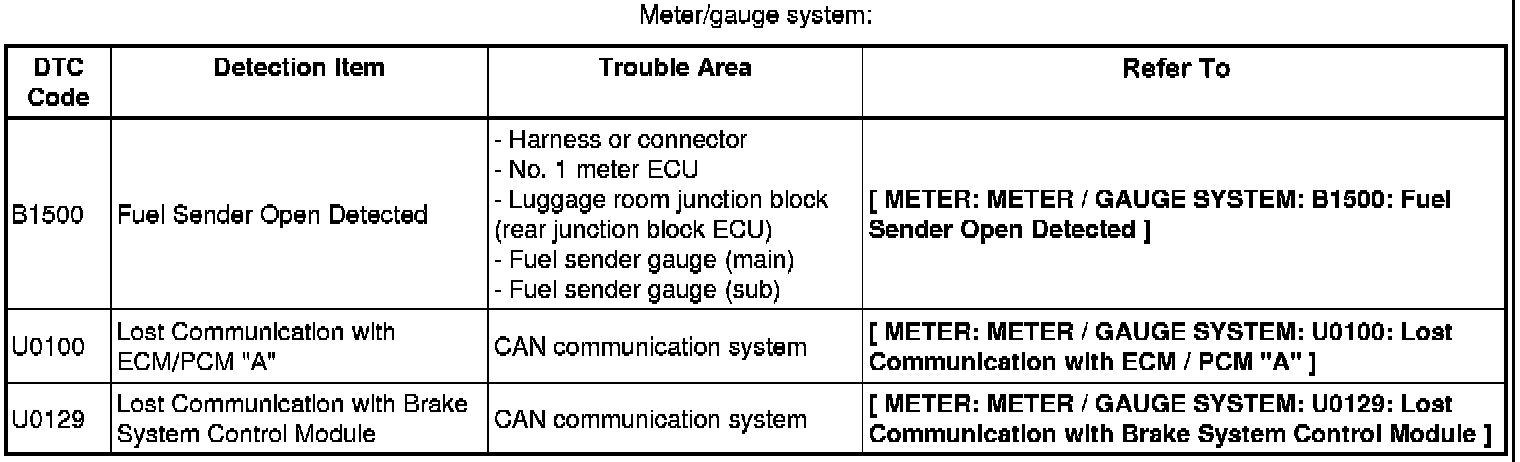

METER: METER / GAUGE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble coded is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.
B1500 / U0100 - U0129:
