Intuitive Parking Assist System
PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

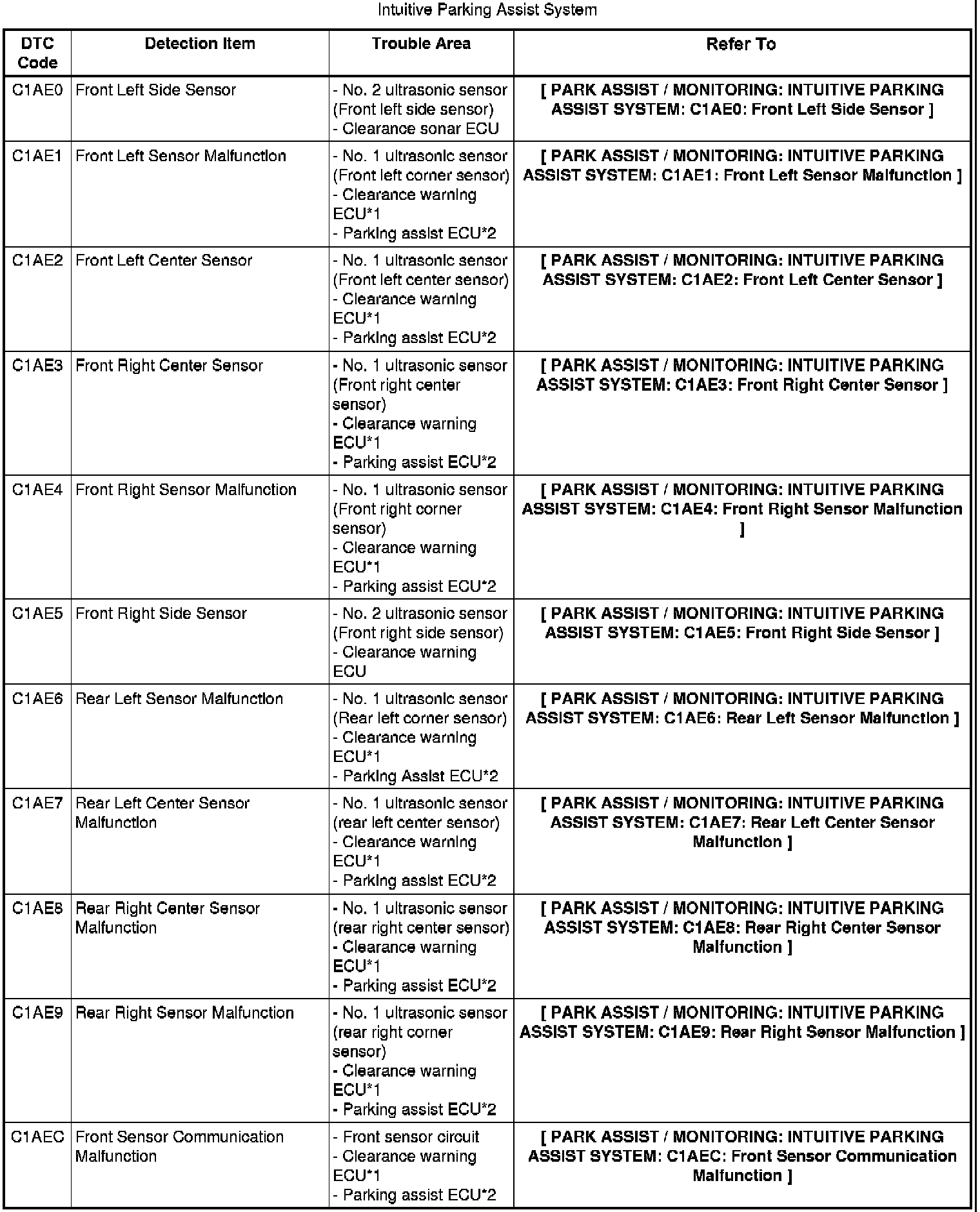

C1AE0 - C1AEC:

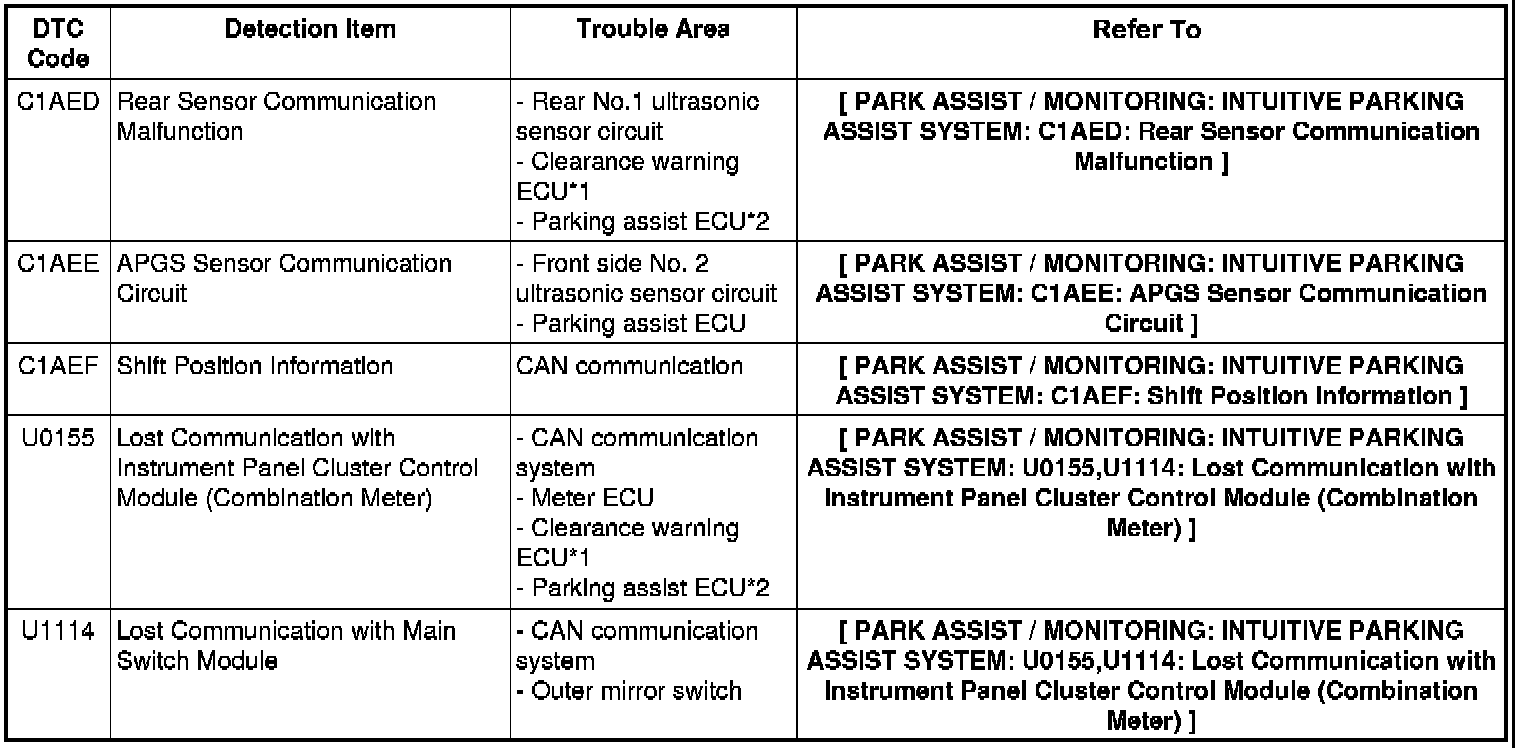

C1AED - C1AEF / U0155 - U1114:
HINT
*1: w/o Advanced parking guidance system
*2: w/ Advanced parking guidance system
