Electric Power Control System

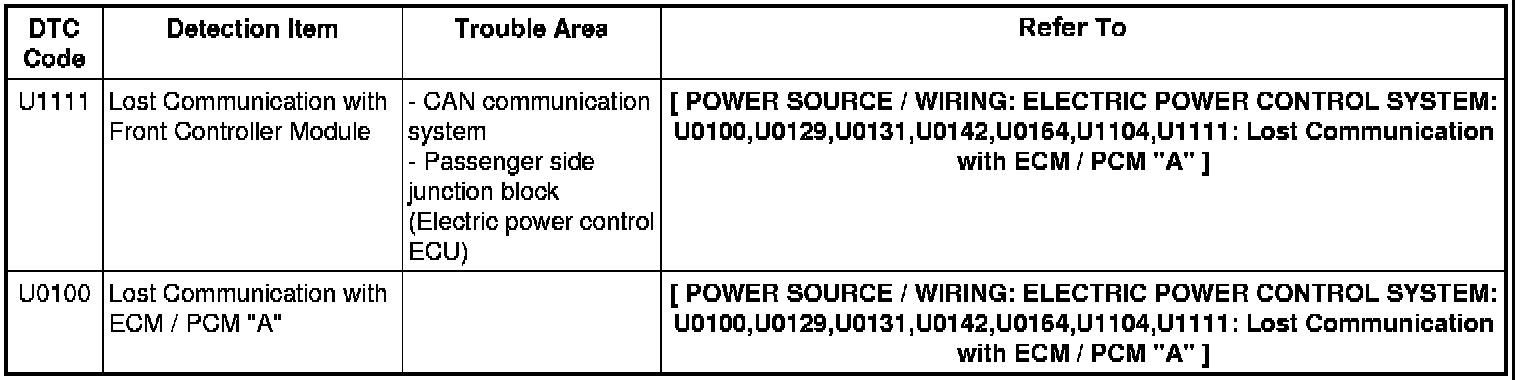

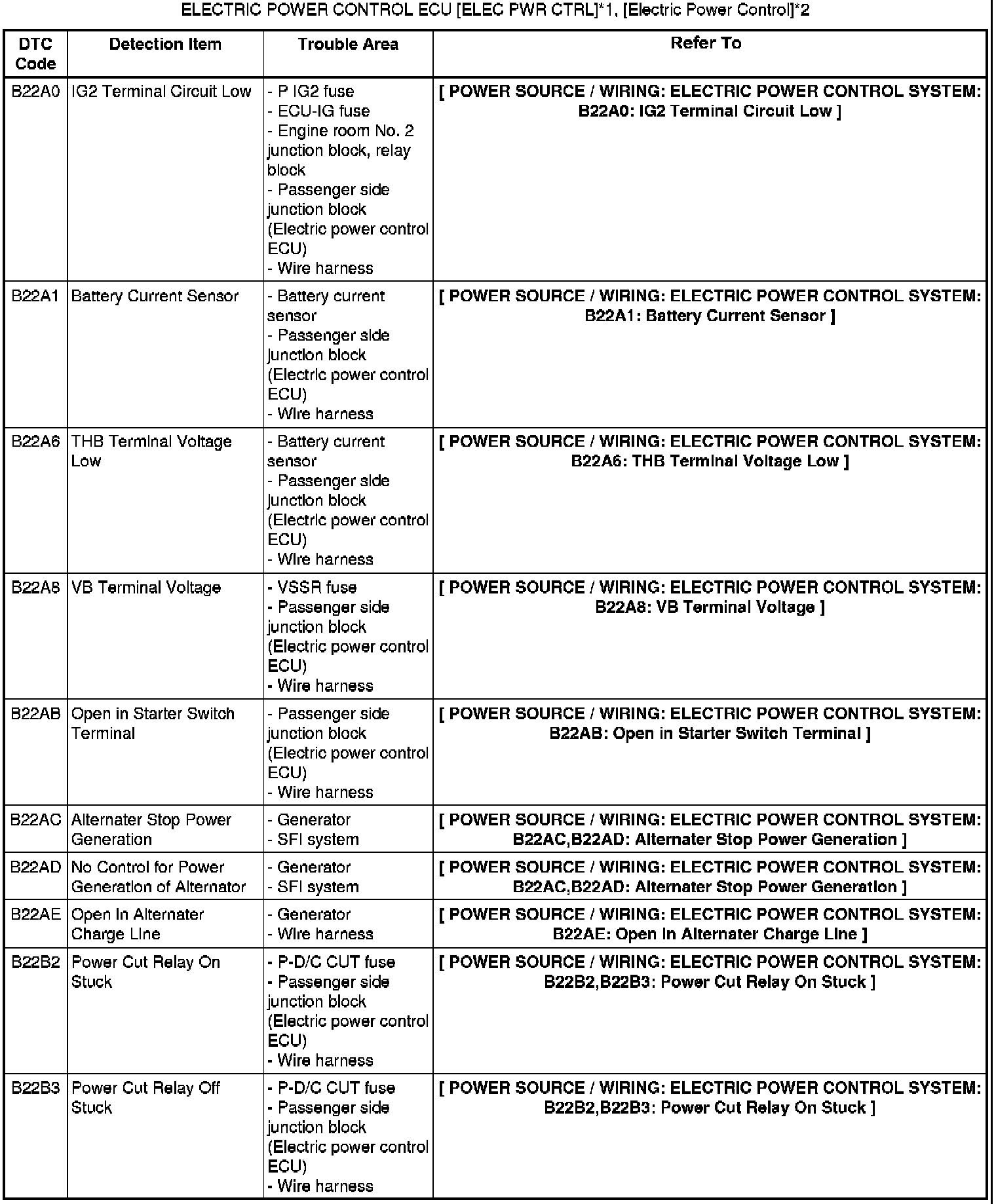

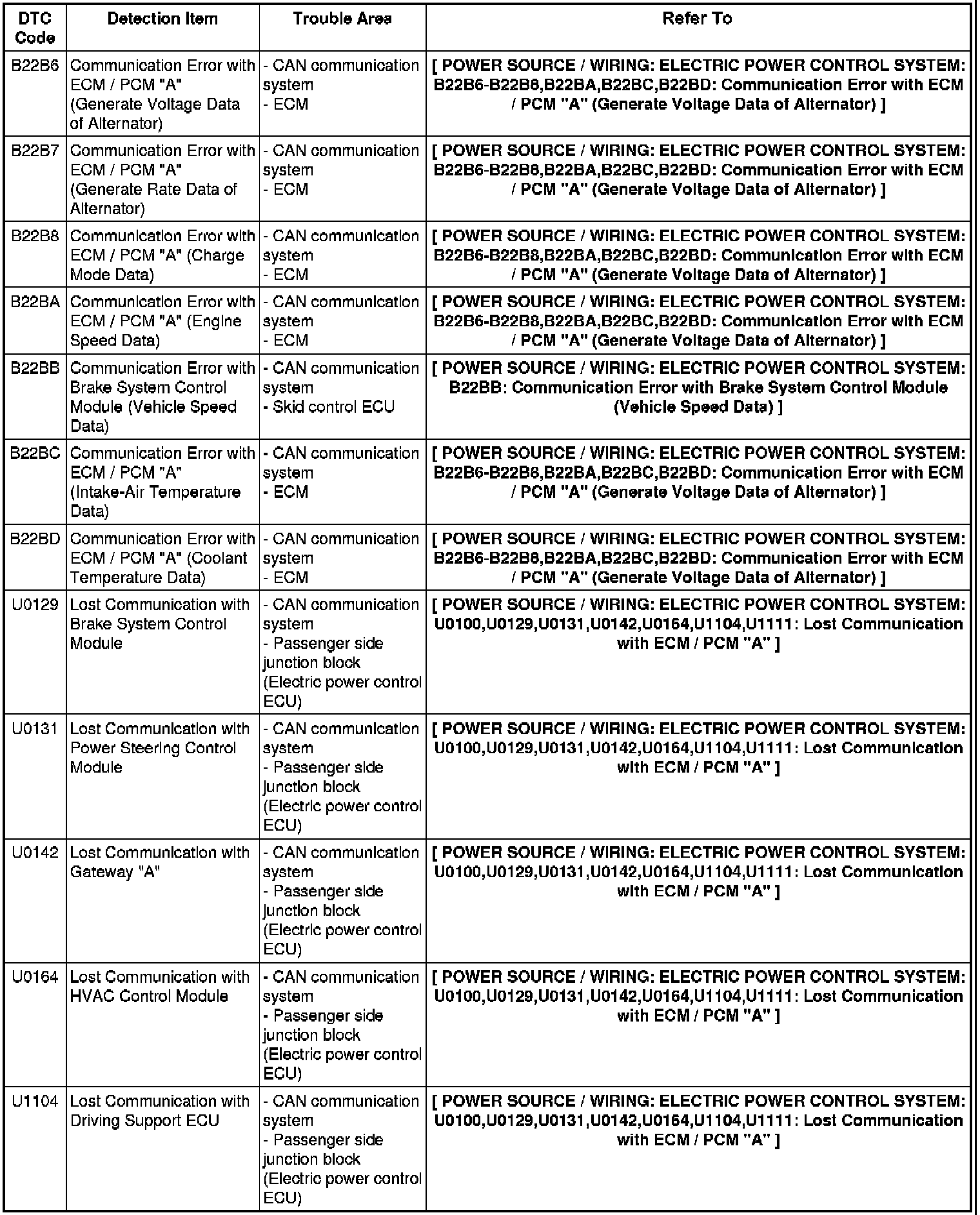

POWER SOURCE / WIRING: ELECTRIC POWER CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
* If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.
* Inspect the fuses and relays related to this system before inspecting the trouble areas below.
