Home >> Lexus >> 2010 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Electric Parking Brake System

Electric Parking Brake System





PARKING BRAKE: ELECTRIC PARKING BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

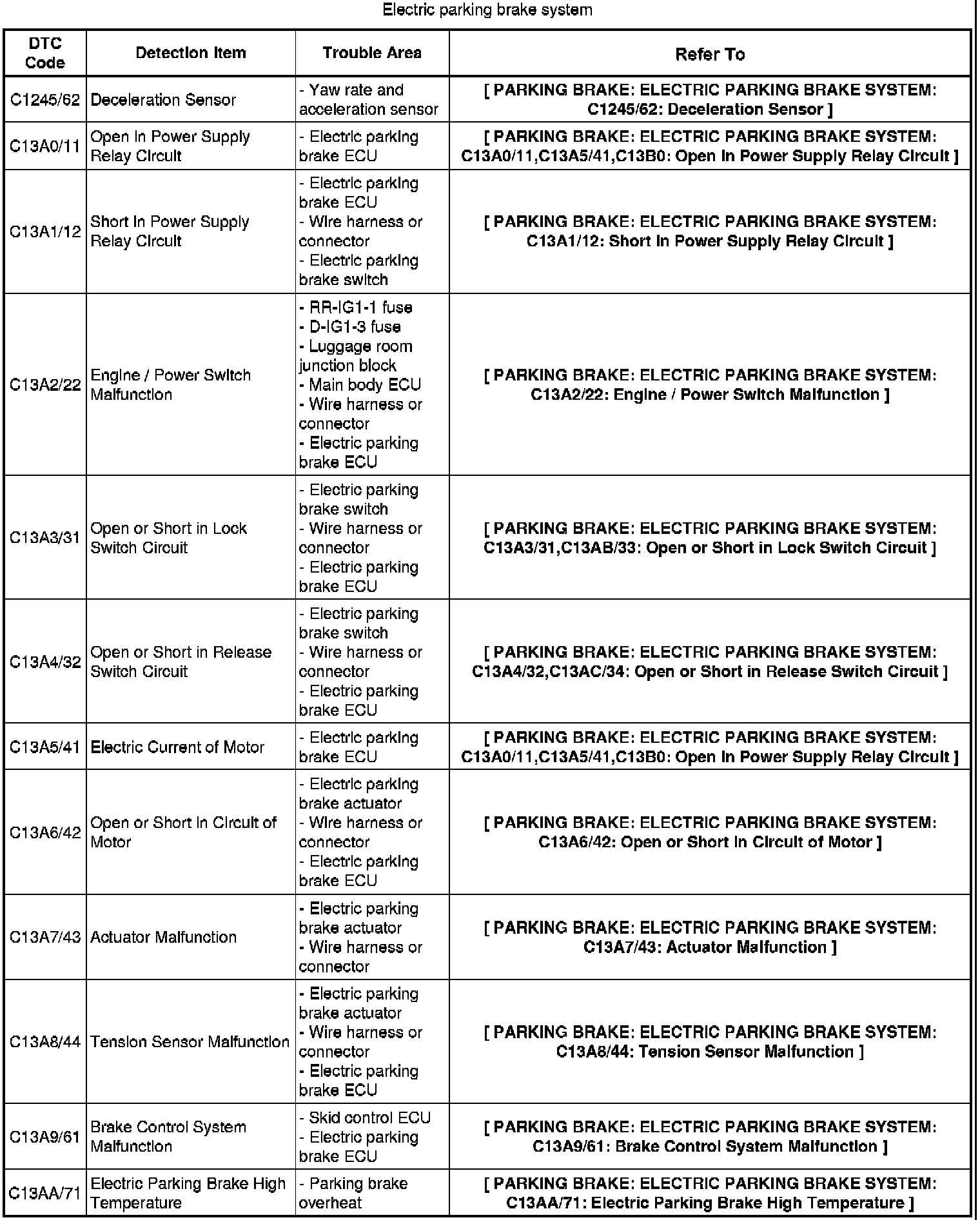

C1245/62 - C13AA/71:

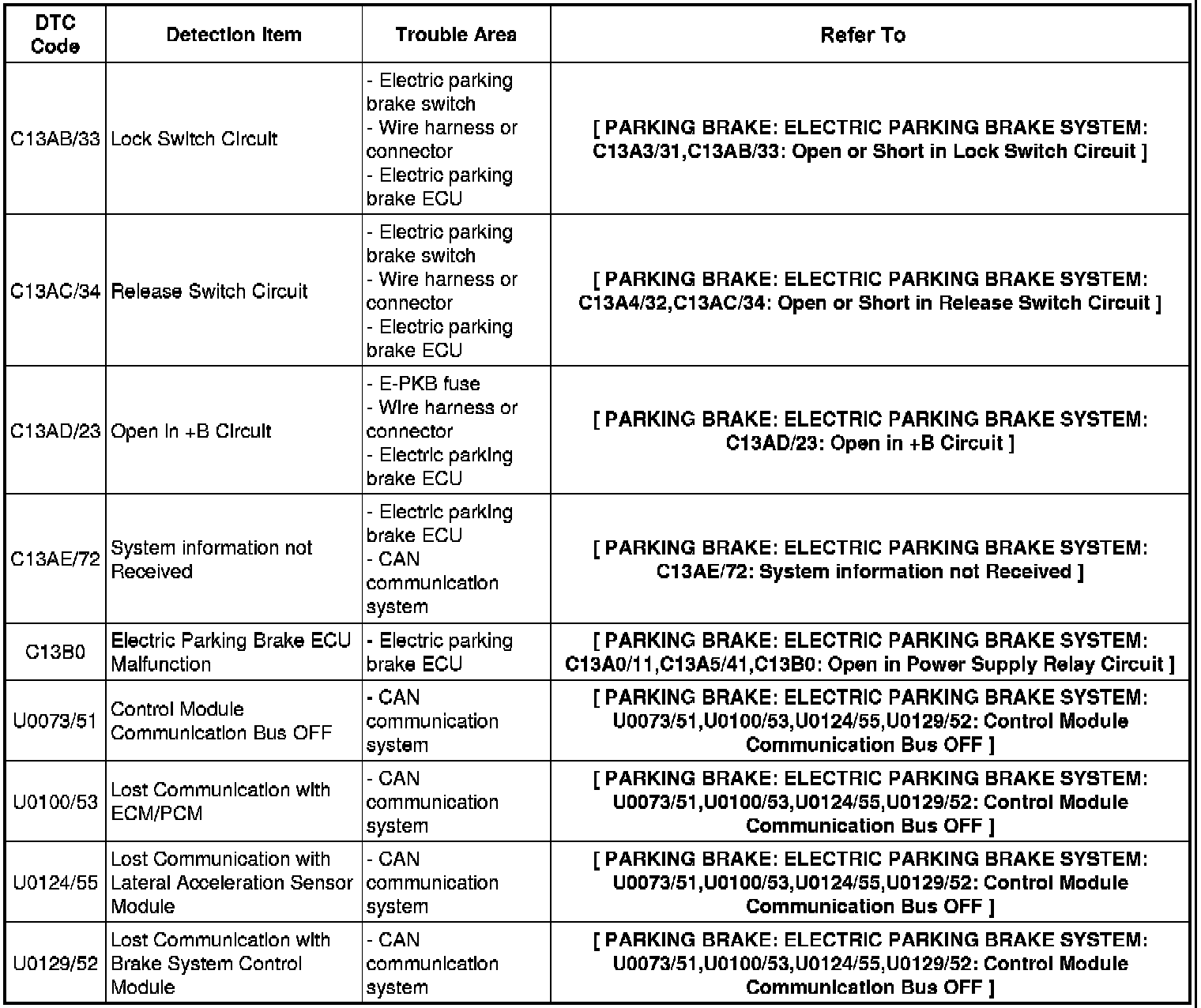

C13AB/33 - C13B0 / U0100/53 - U0129/52:
