Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

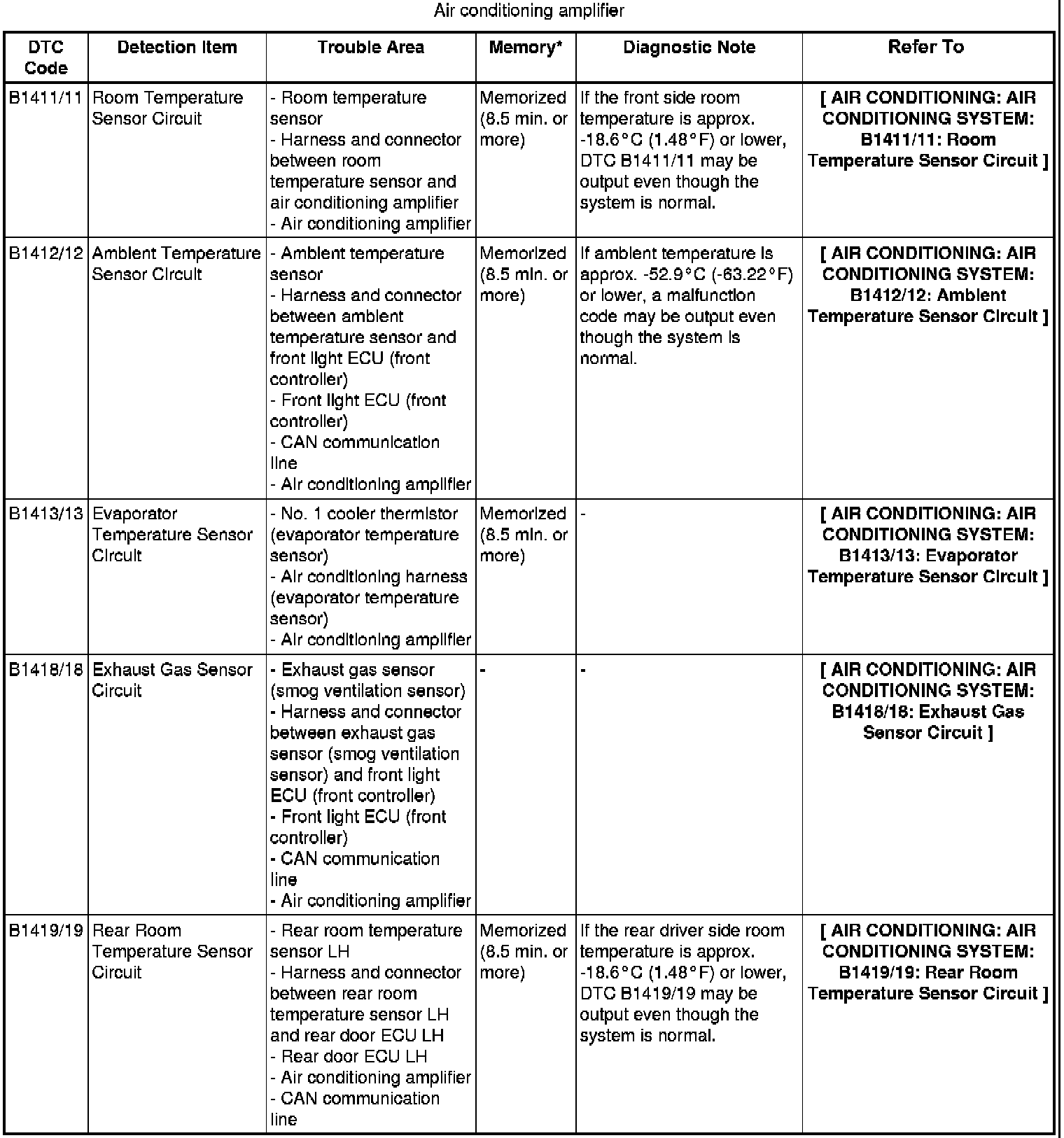

B1411/11 - B1419/19:

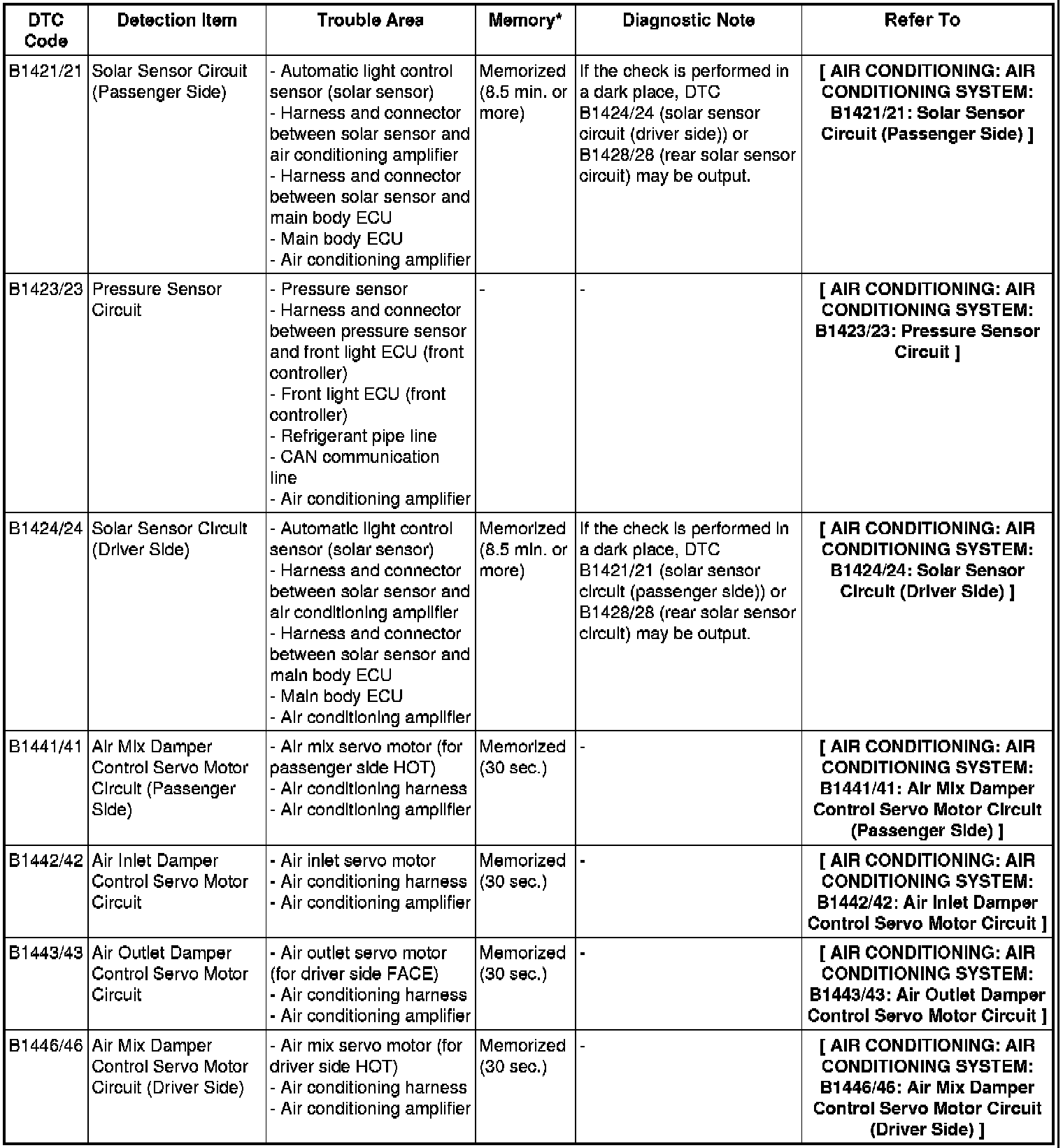

B1421/21 - B1446/46:

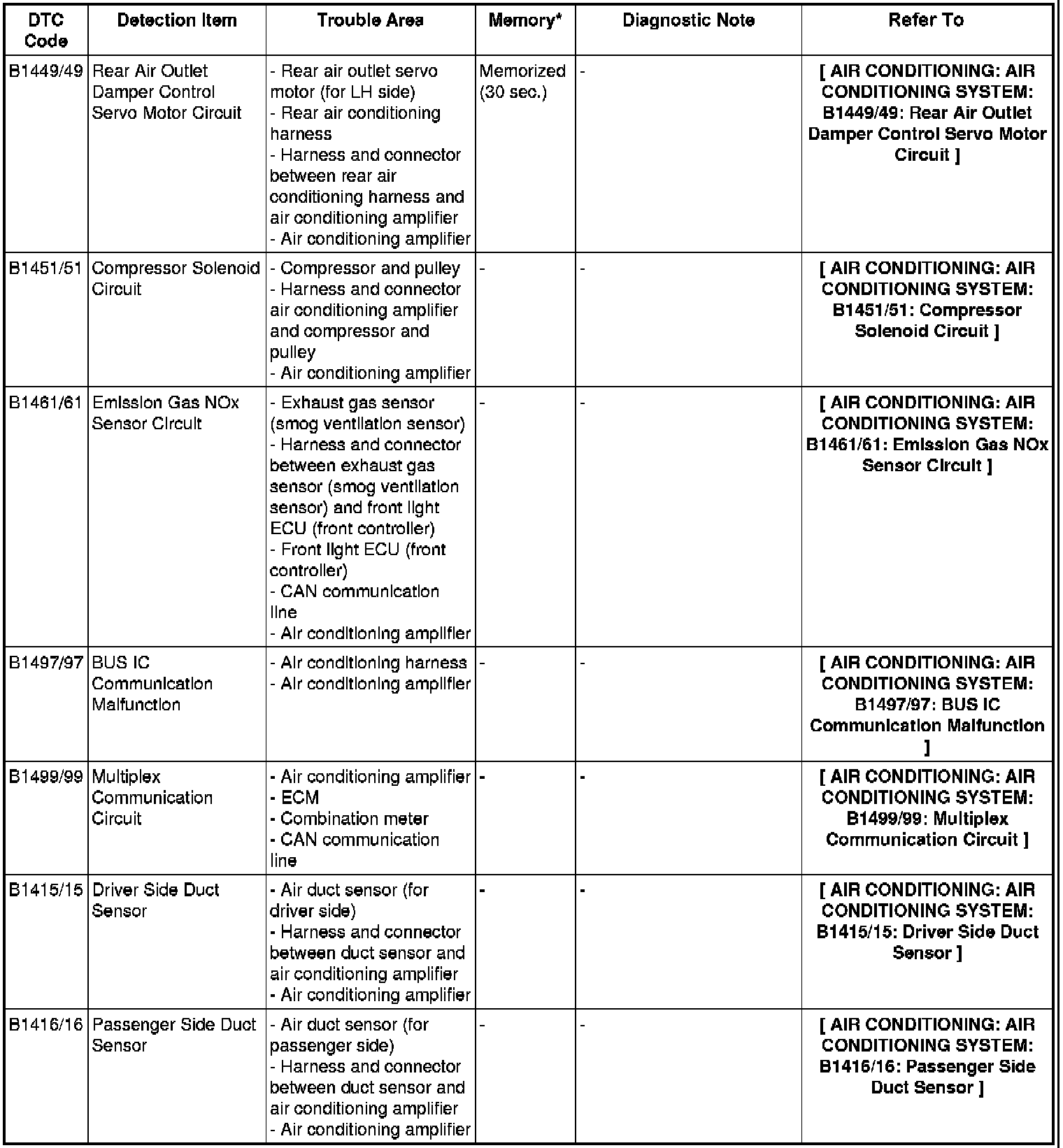

B1449/49 - B1416/16:

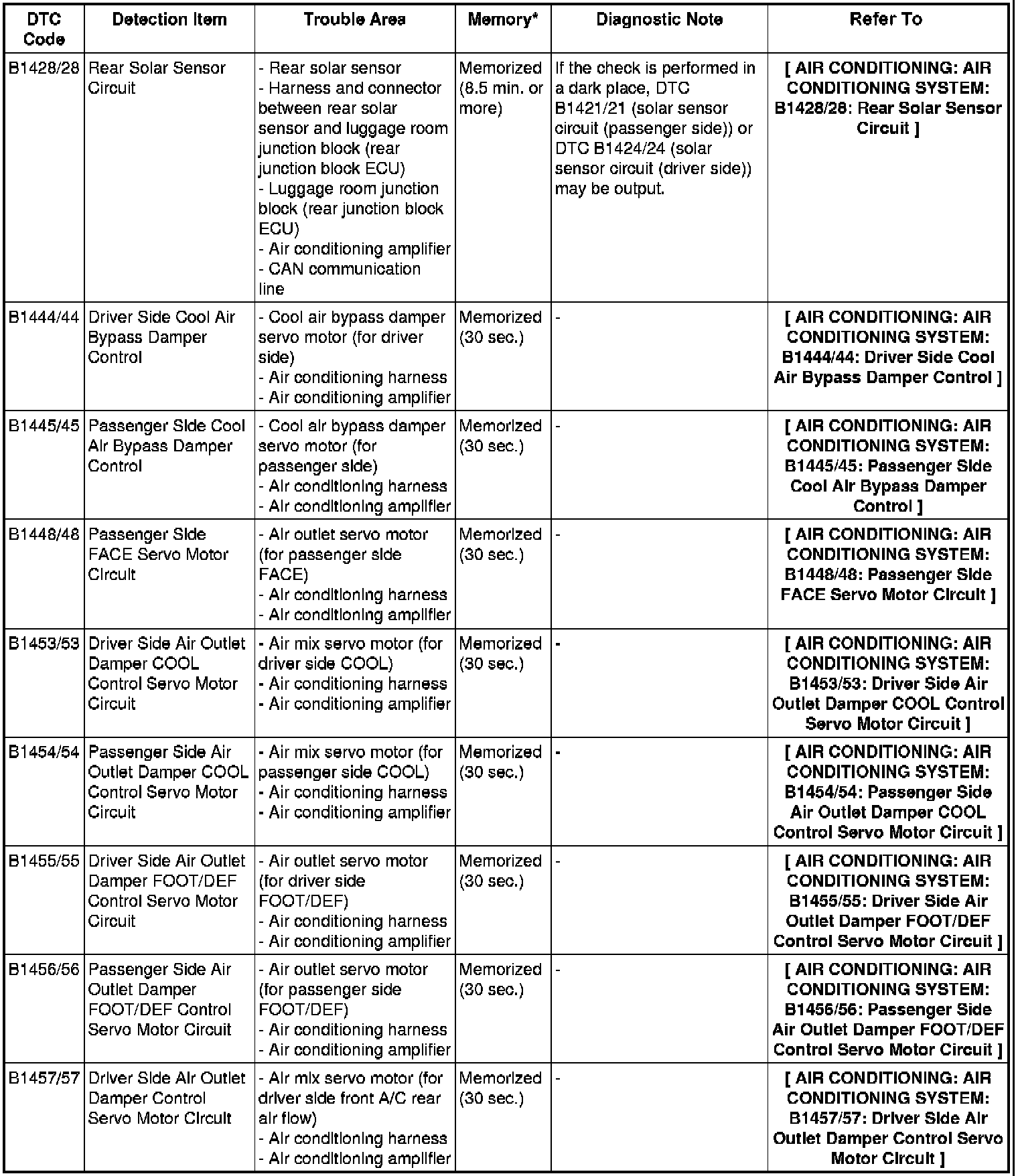

B1428/28 - B1457/57:

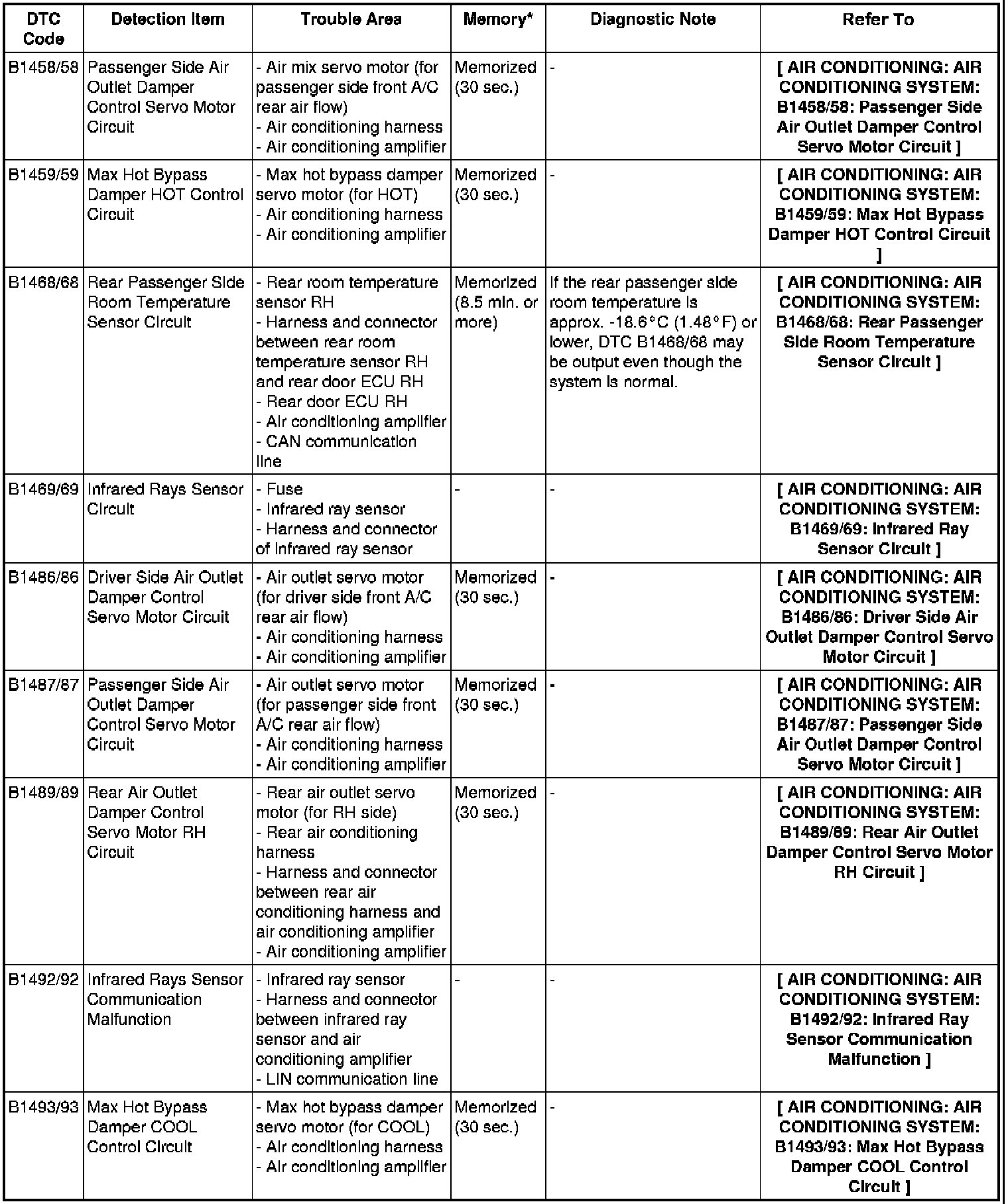

B1458/58 - B1493/93:

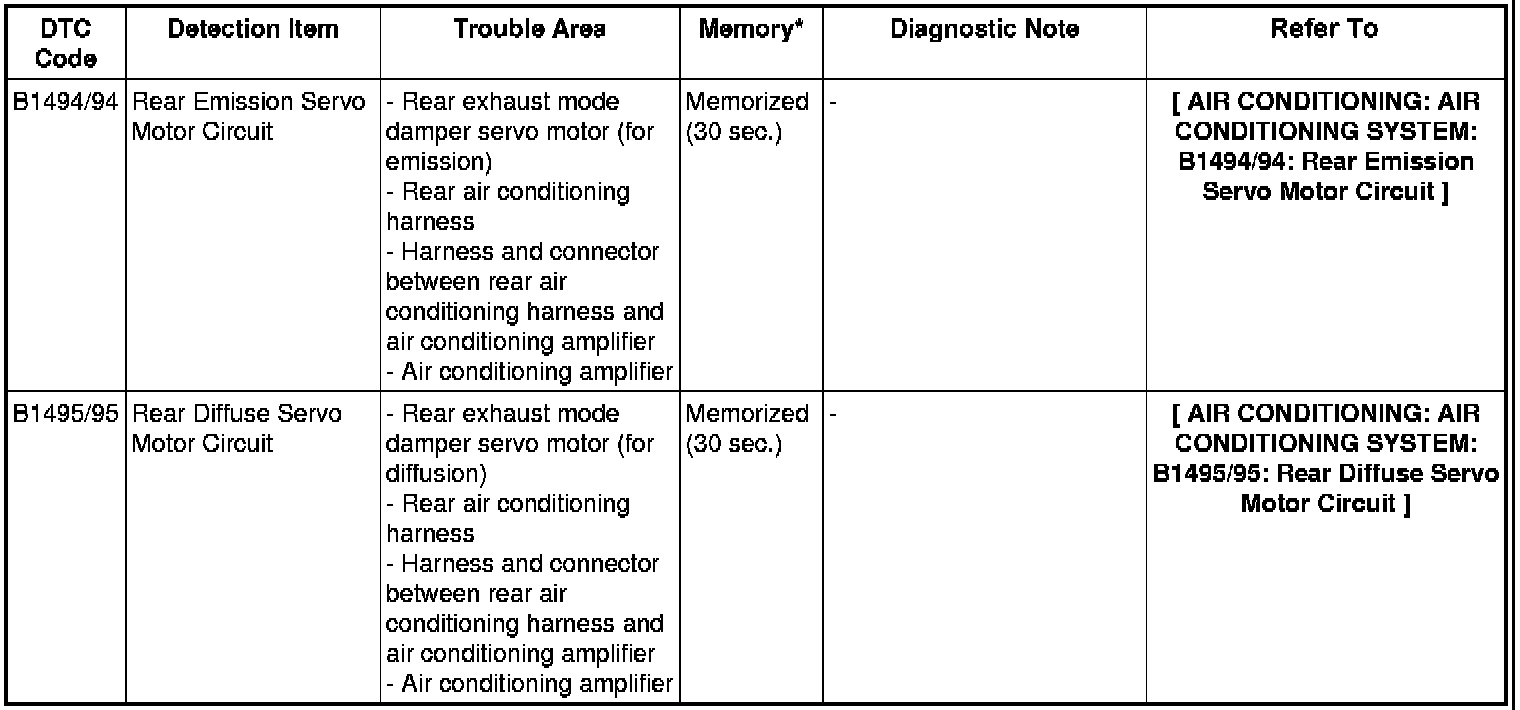

B1494/94 - B1495/95:

HINT
*: The air conditioning amplifier memorizes the DTC of the respective malfunction that has occurred for the period of the time indicated in the brackets.
