Pre-Collision (W/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): C1A40: ENG / EHV Device
C1A40 - ENG / EHV Device

DESCRIPTION

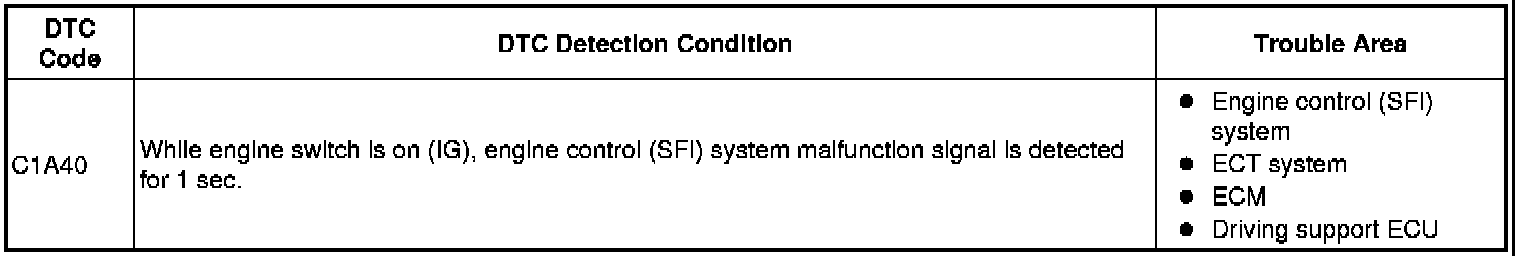

When the driving support ECU receives an engine control (SFI) system or ECT system malfunctioning signal from the ECM via the CAN communication line, DTC C1A40 is output.

When DTC C1A40 is detected, the engine control system or ECT system DTC will also be detected.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (ENGINE CONTROL SYSTEM)

(a) Enter the following menus: Powertrain / Engine / Trouble Code.

(b) Check for DTCs.

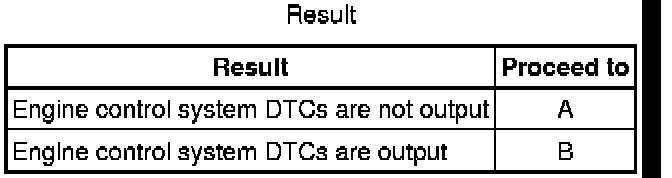

Result





B -- GO TO SFI SYSTEM How to Proceed with Troubleshooting
A -- Continue to next step.

2. CHECK FOR DTC (ECT SYSTEM)

(a) Enter the following menus: Powertrain / ECT / Trouble Code.

(b) Check for DTCs.

OK:

ECT system DTCs is not output.

NG -- GO TO AUTOMATIC TRANSMISSION SYSTEM How to Proceed With Troubleshooting

OK -- REPLACE DRIVING SUPPORT ECU Removal
