Audio and Visual (W/ Multi-Display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): B15AC: Rear Console Malfunction
B15AC - Rear Console Malfunction

DESCRIPTION

This DTC is stored when a malfunction occurs in the stereo component amplifier assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTC Audio and Visual System (w/ Multi-Display).

(b) Check for DTC and check if the same trouble occurs again.

OK:

No DTC is output.

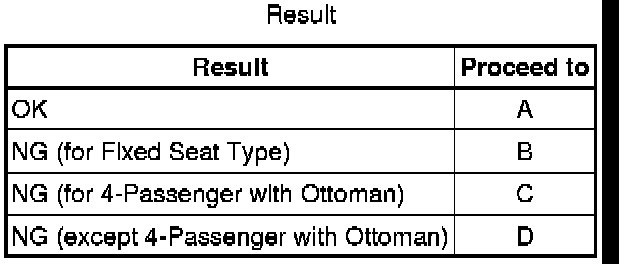

Result





D -- REPLACE REAR POWER SEAT SWITCH Removal

C -- REPLACE REAR POWER SEAT SWITCH Removal

B -- REPLACE REAR POWER SEAT SWITCH Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
