Removal

POWER OUTLETS (INT): CENTER POWER OUTLET SOCKET: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Removal

3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Removal

5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal

6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

8. REMOVE FRONT ASH RECEPTACLE ASSEMBLY Removal

9. REMOVE REAR ASH RECEPTACLE ASSEMBLY Removal

10. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

11. REMOVE CONSOLE BOX Removal

12. REMOVE POWER OUTLET SOCKET ASSEMBLY

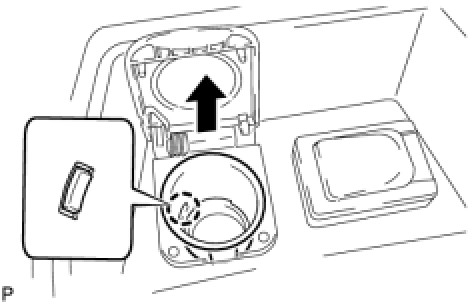

(a) Disengage the claw to remove the power outlet socket assembly.





13. REMOVE POWER POINT SOCKET COVER

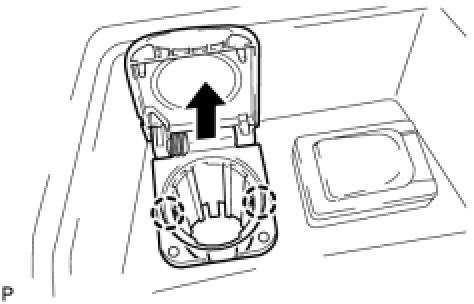

(a) Disengage the 2 claws to remove the power point socket cover.
