Electrical Diagrams

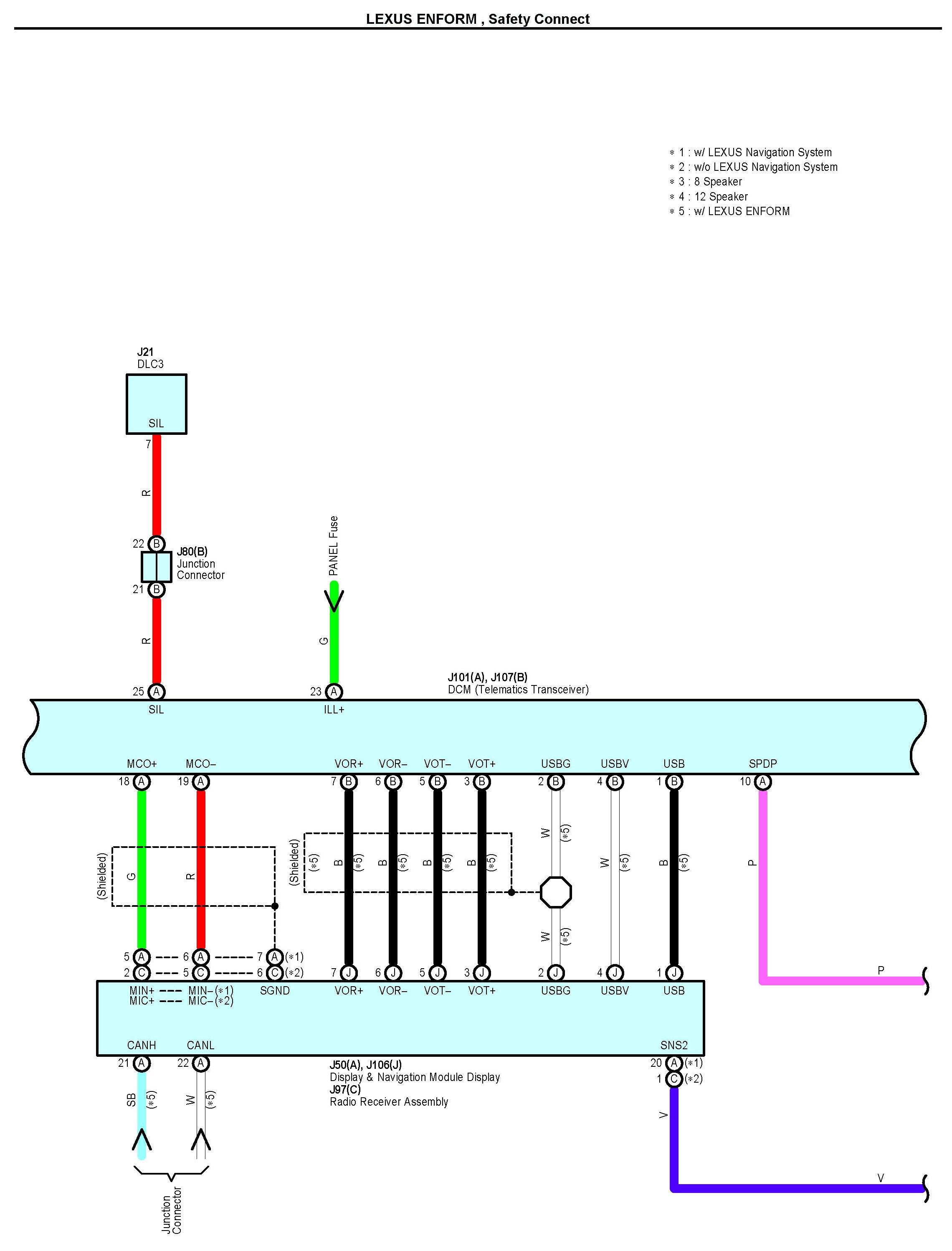

Lexus Enform, Safety Connect Part 1:

Lexus Enform, Safety Connect Part 2:

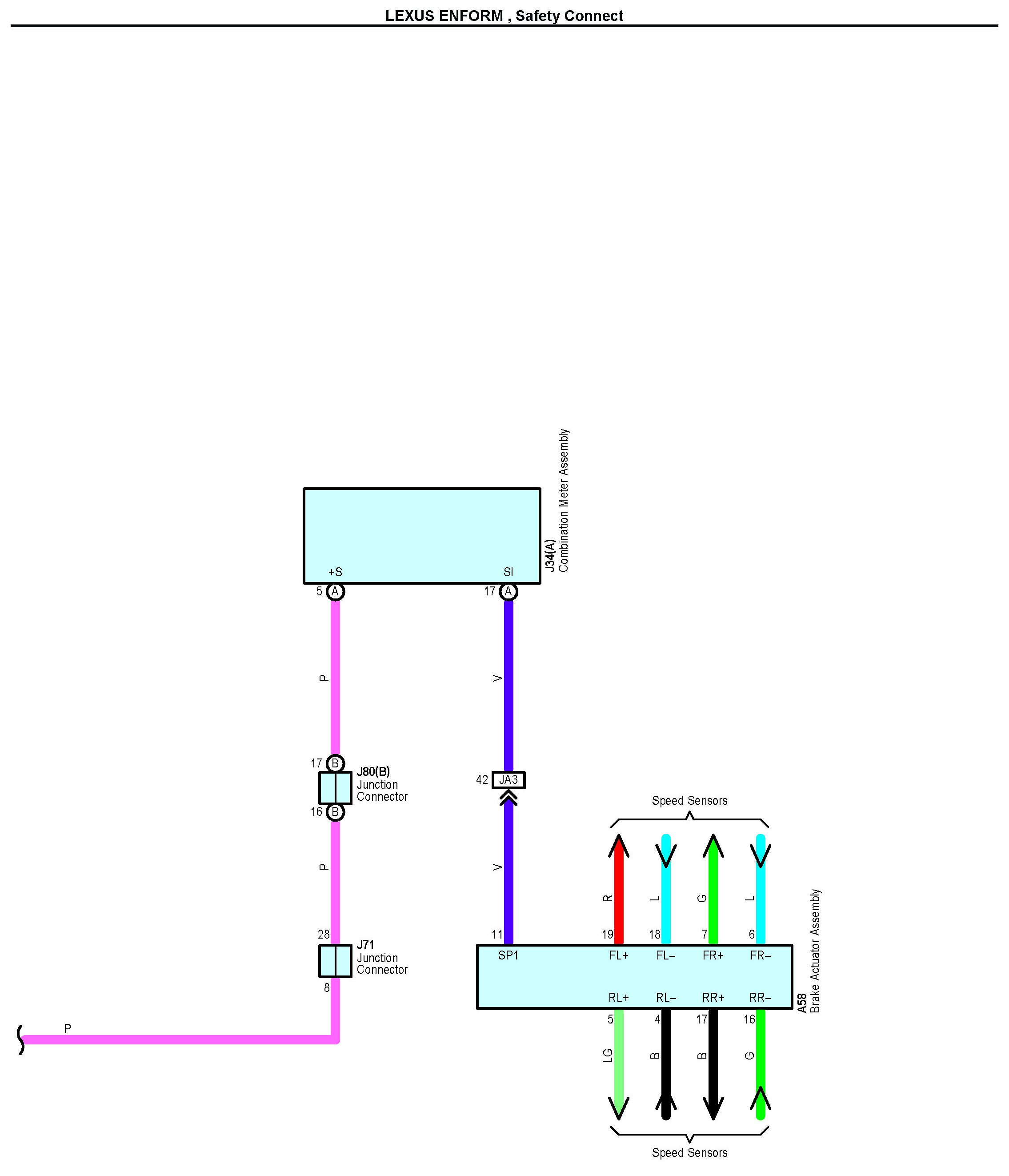

Lexus Enform, Safety Connect Part 3:

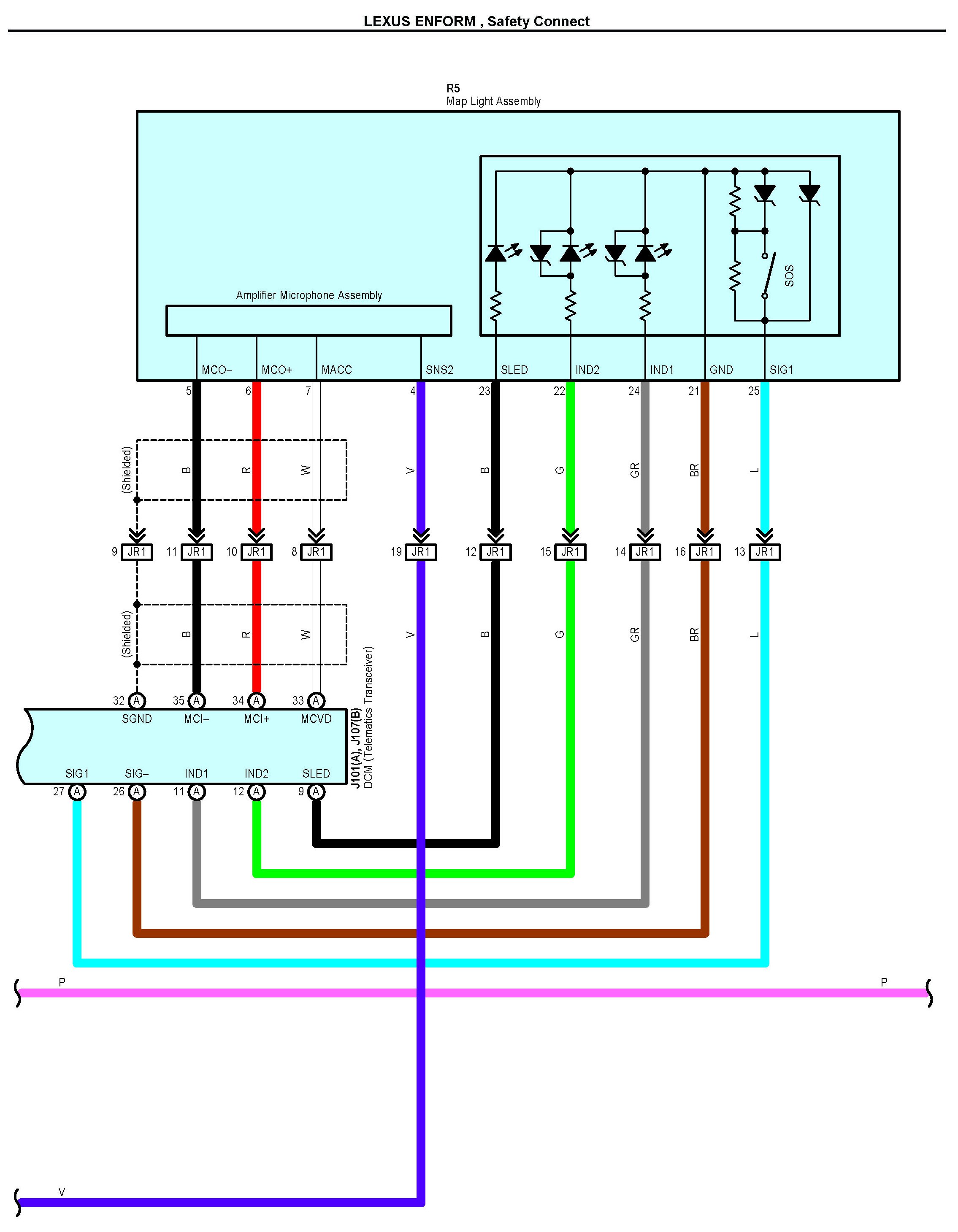

Lexus Enform, Safety Connect Part 4:

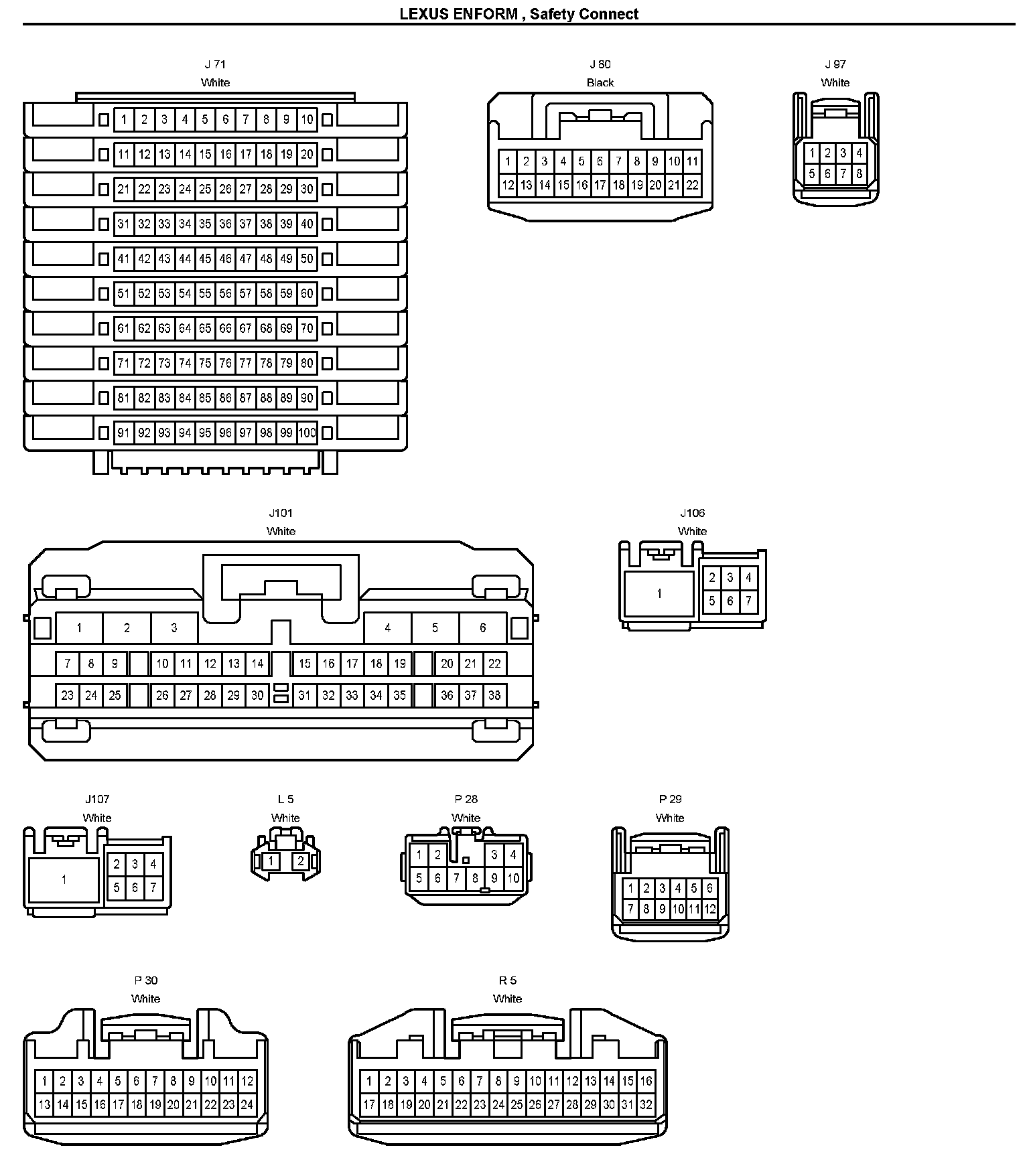

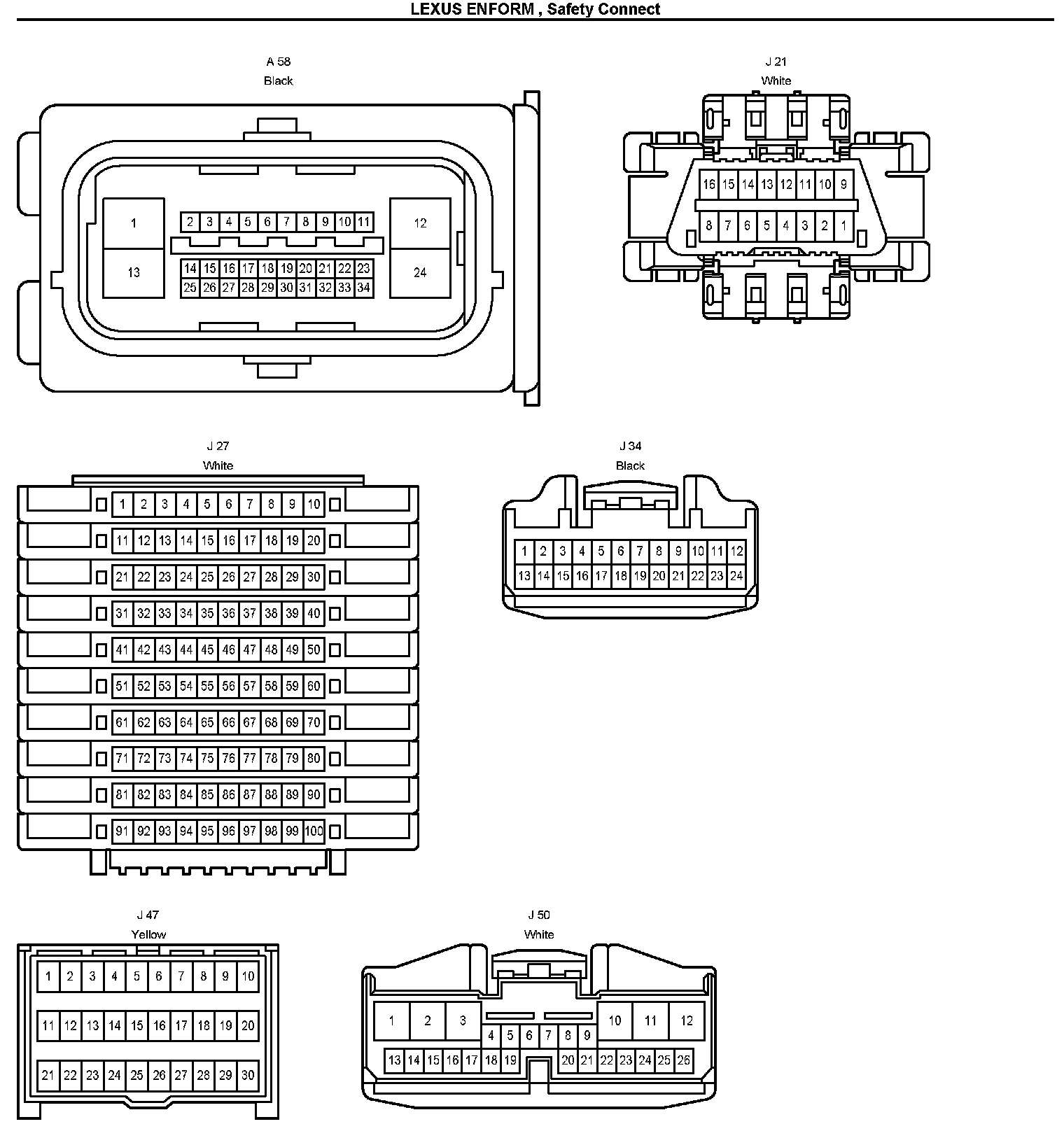

Connectors Part 1:

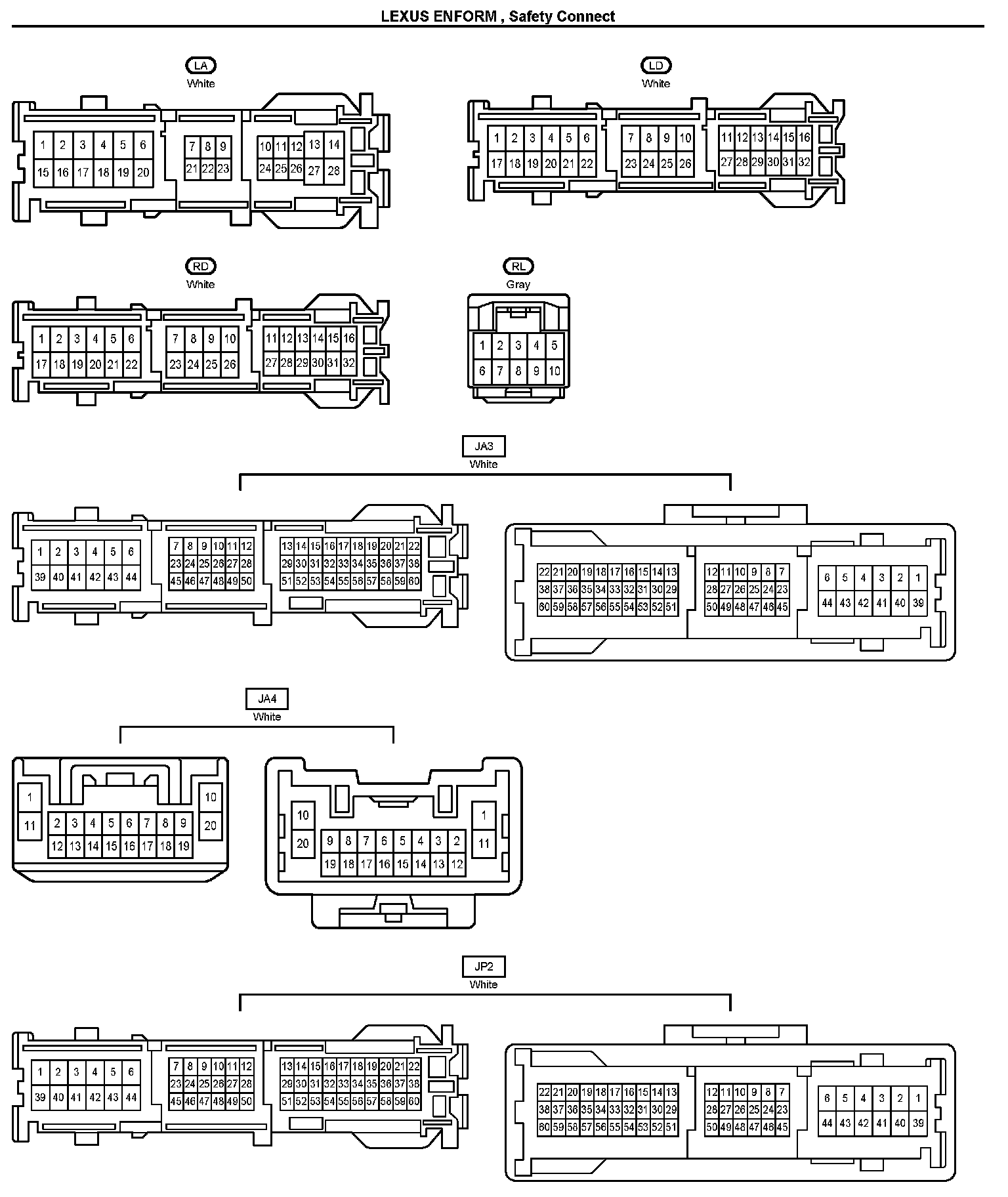

Connectors Part 2:

Connectors Part 3:

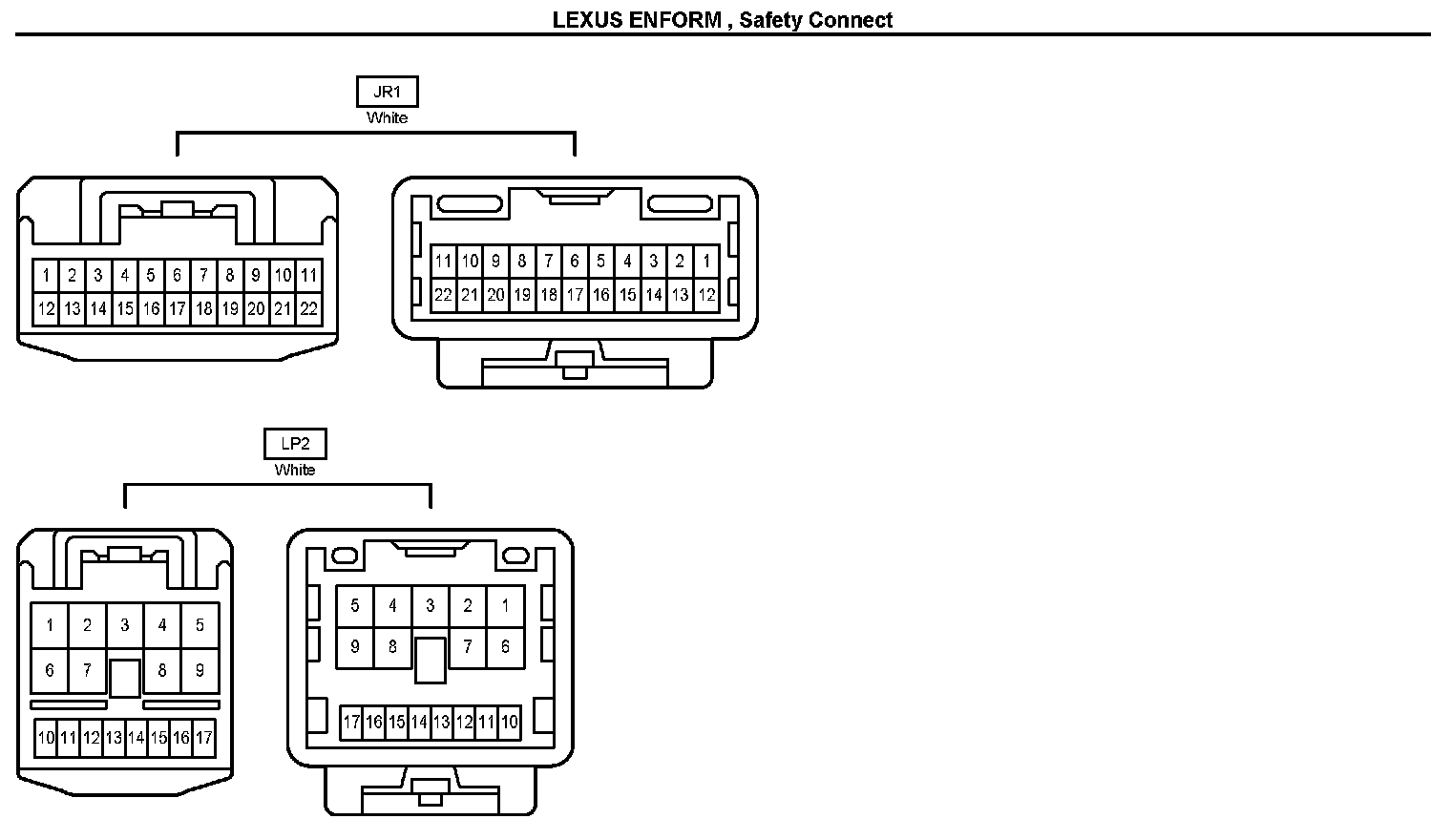

Connectors Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
