Transmission Position Sensor/Switch: Testing and Inspection

A760E AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSPECTION

1. INSPECT SHIFT PADDLE SWITCH

(a) Measure the resistance between each terminal when the paddle shift is moved to each position.

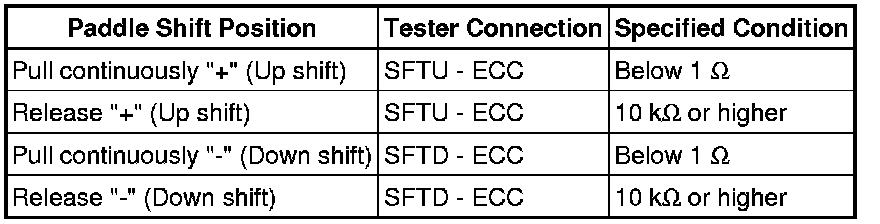

Standard resistance:

(b) If the resistance value is not as specified, replace the shift paddle switch.
