SFI System

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a DTC is displayed, check the trouble area for the DTC listed in the table below. For details of each DTC.

*: MIL flashes when a catalyst damaged misfire is detected.

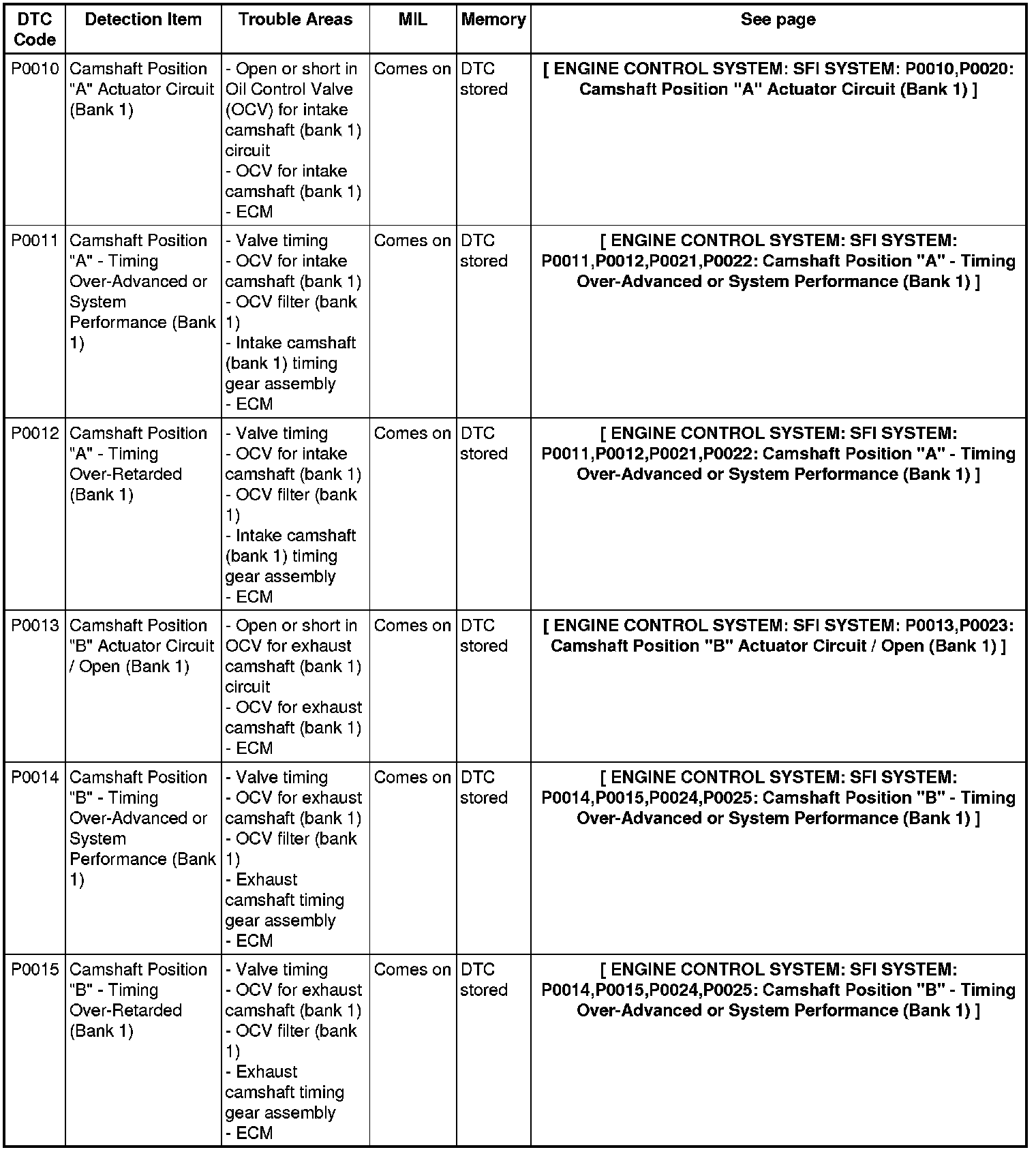

P0010 - P0015:

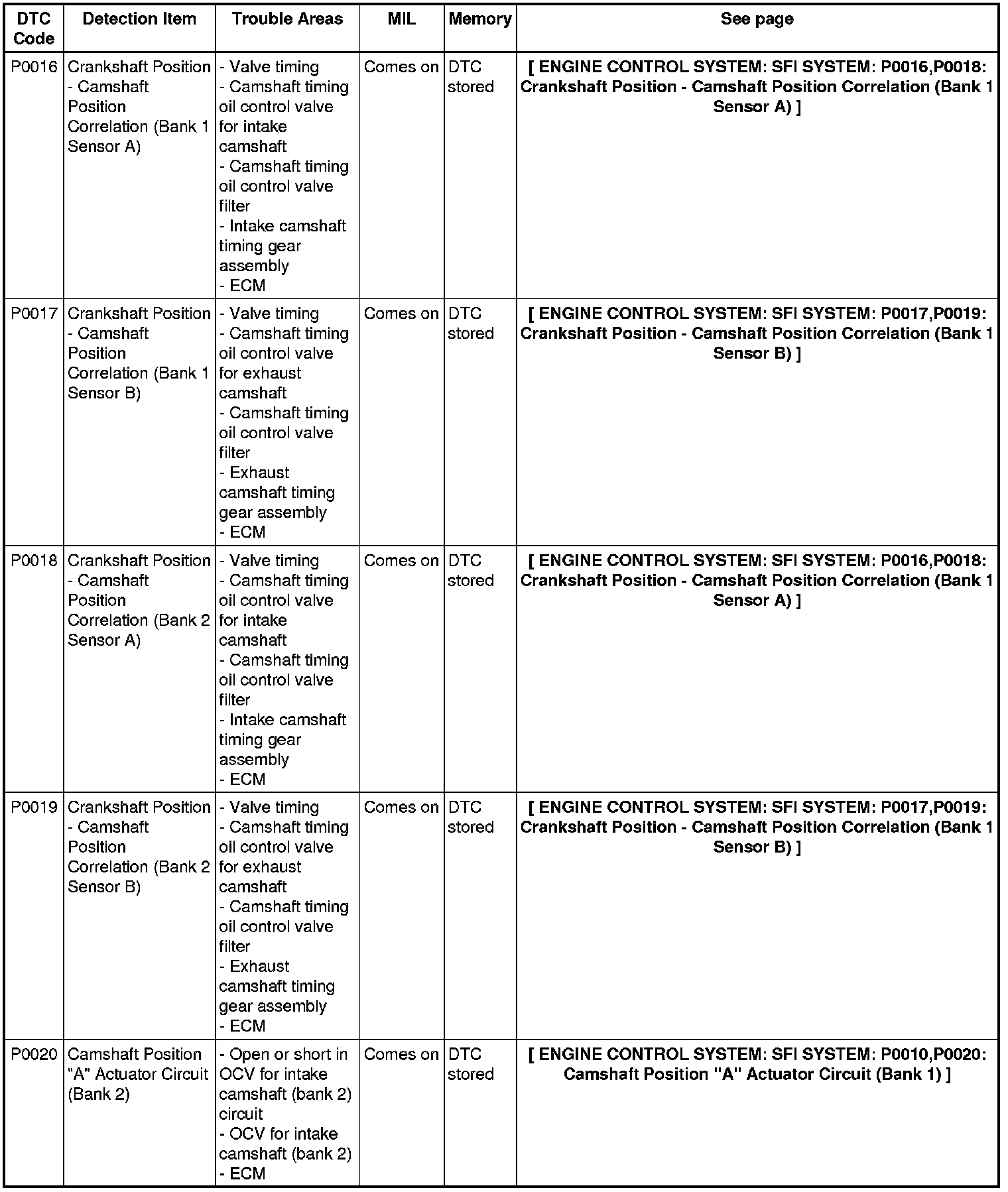

P0016 - P0020:

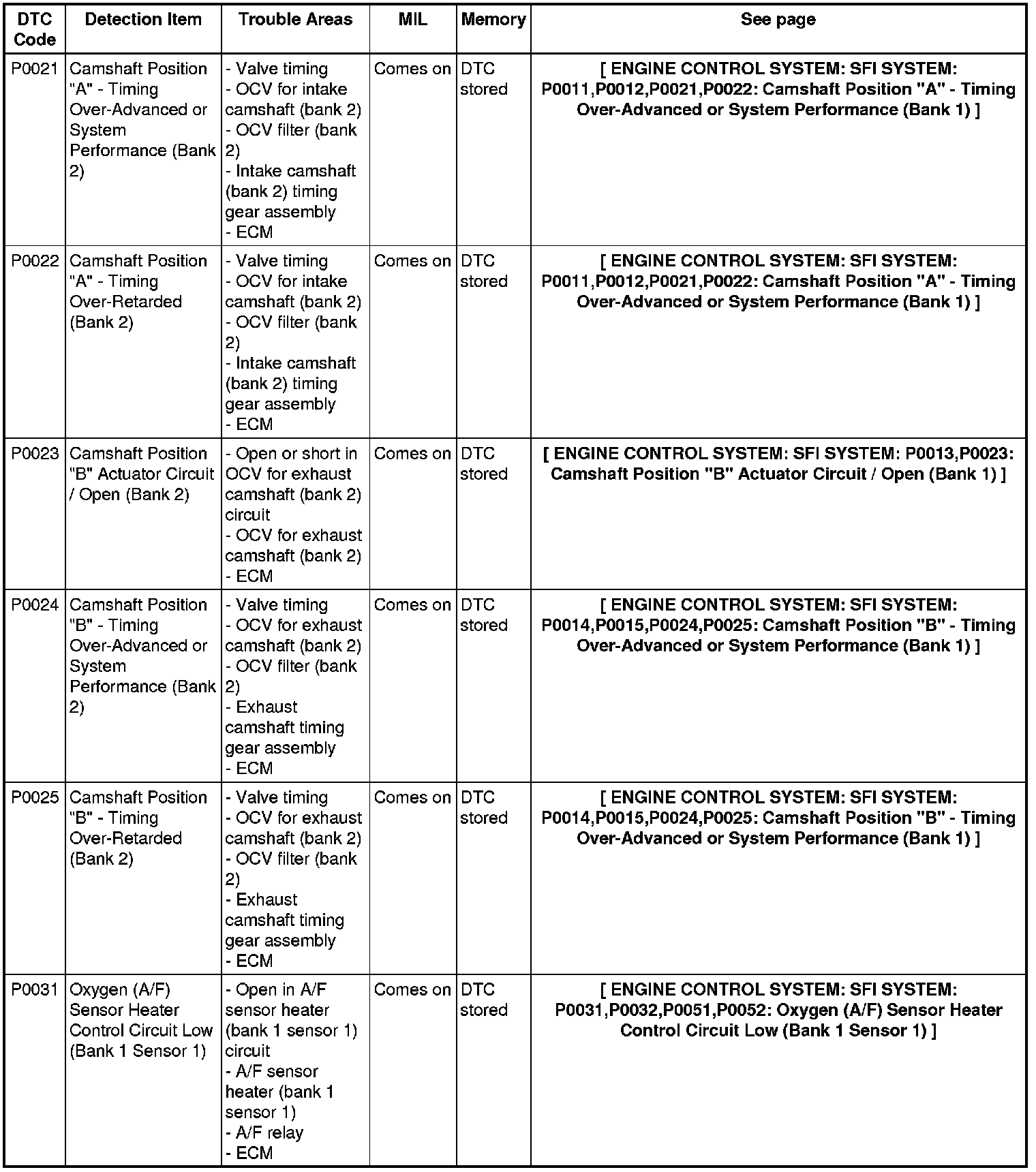

P0021 - P0031:

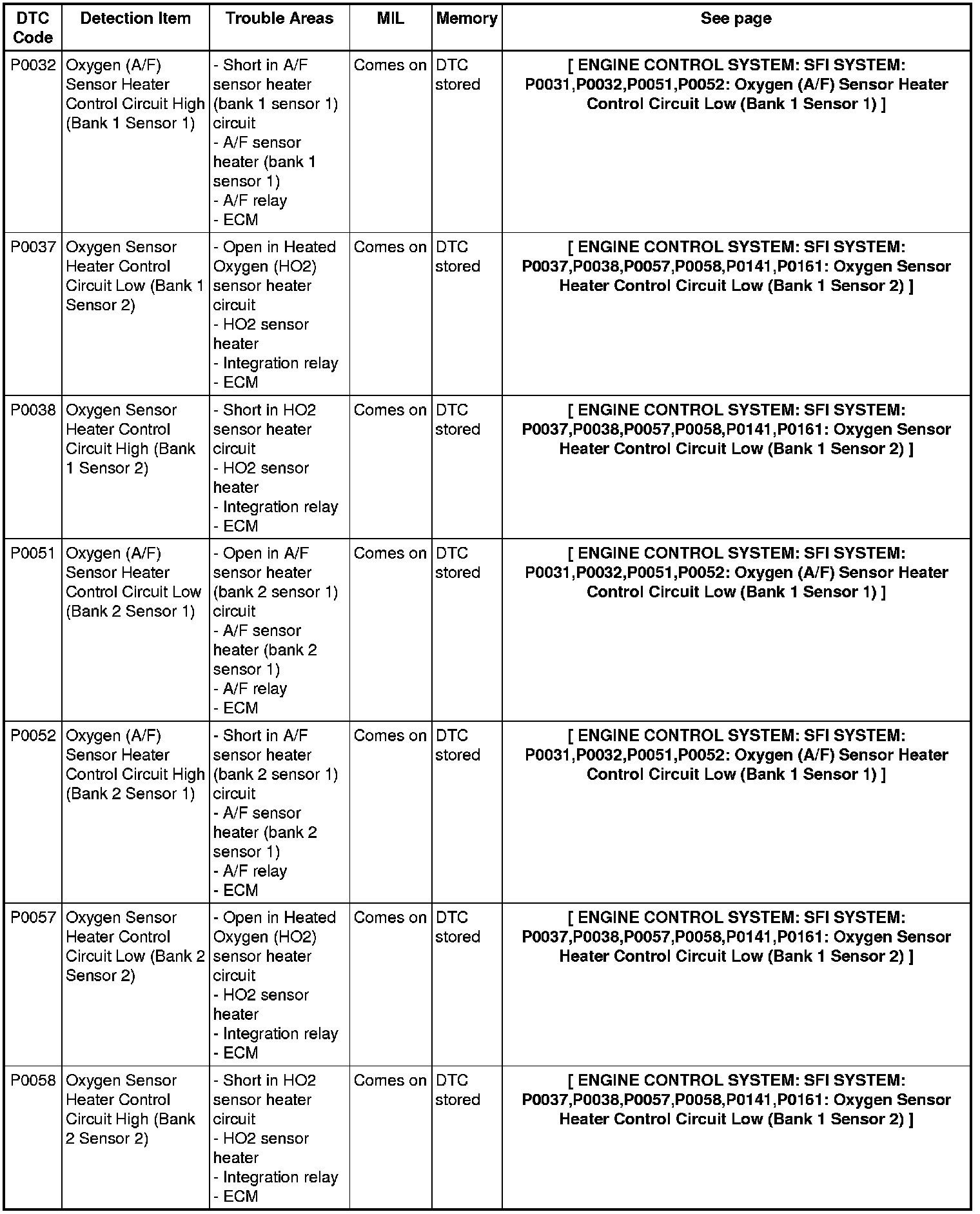

P0032 - P0058:

P0087 - P0113:

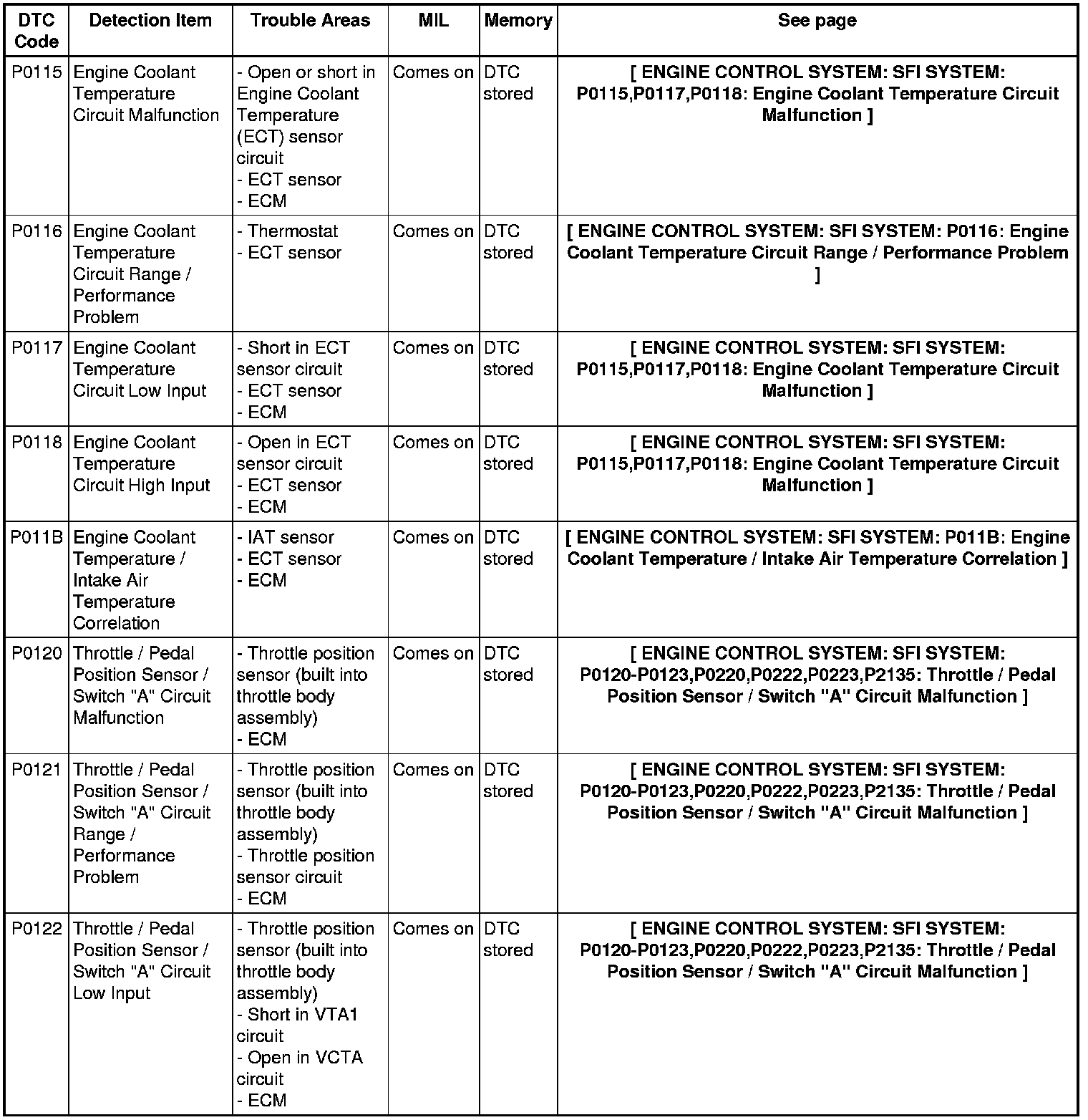

P0115 - P0122:

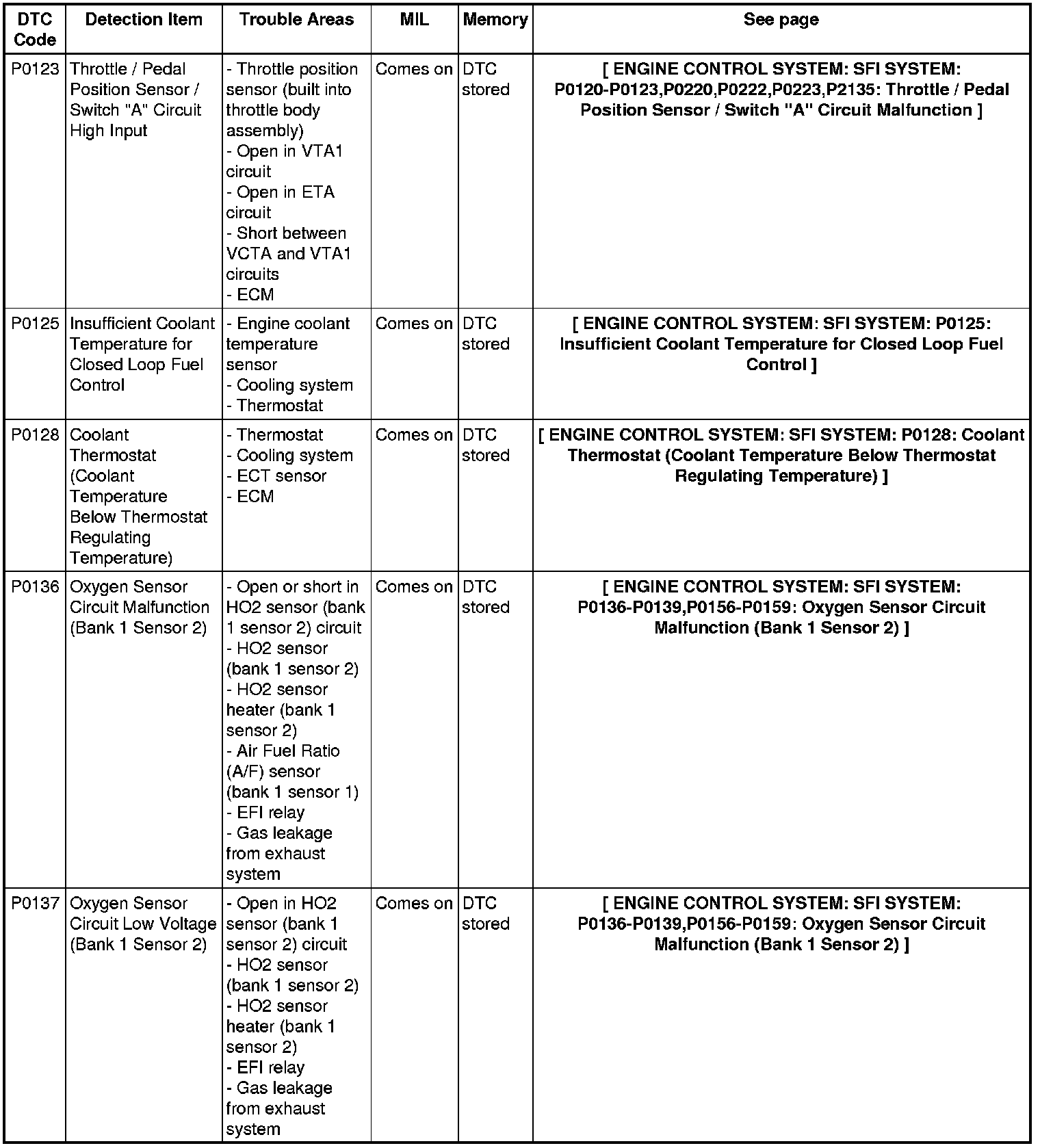

P0123 - P0137:

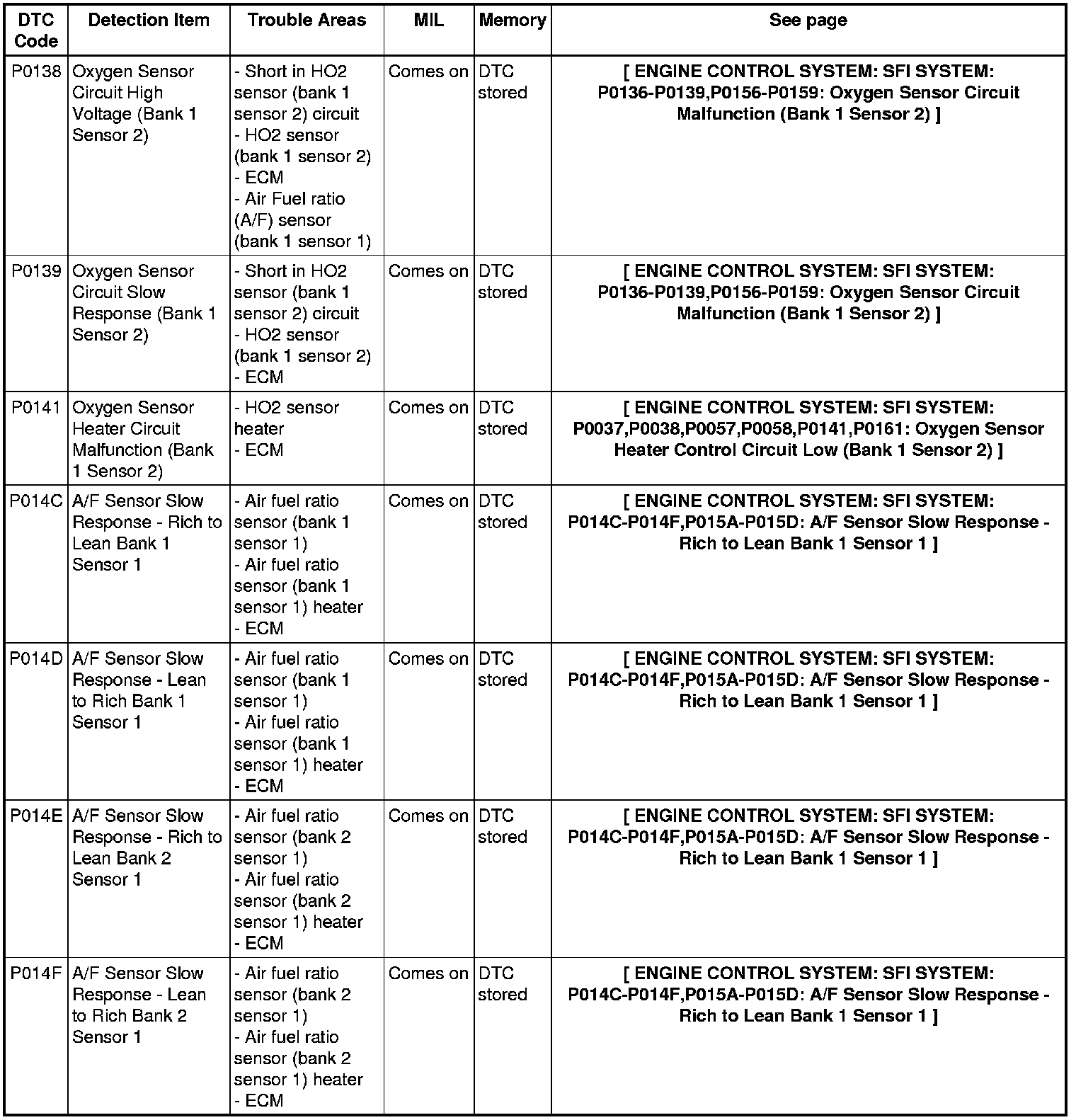

P0138 - P014F:

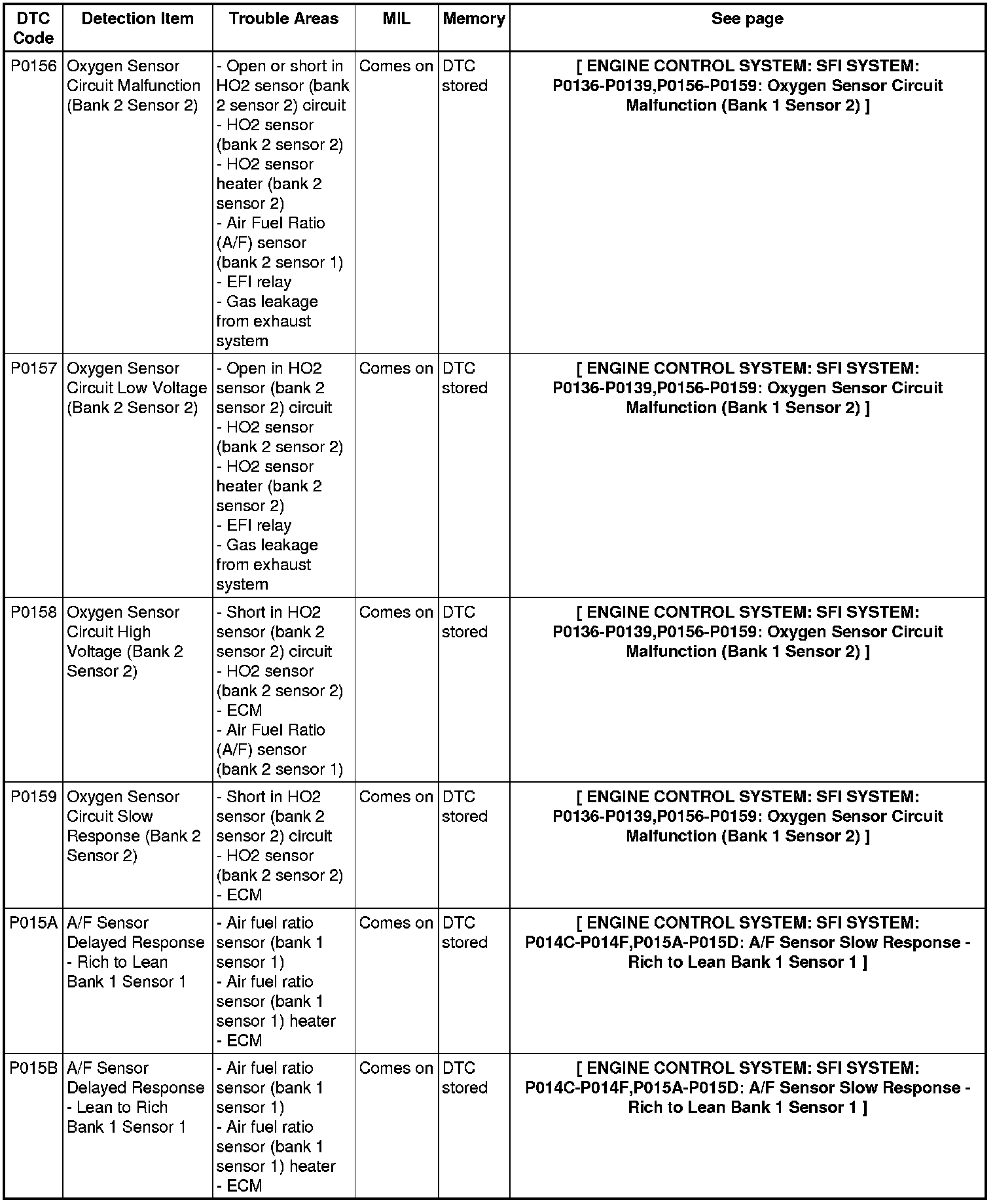

P0156 - P015B:

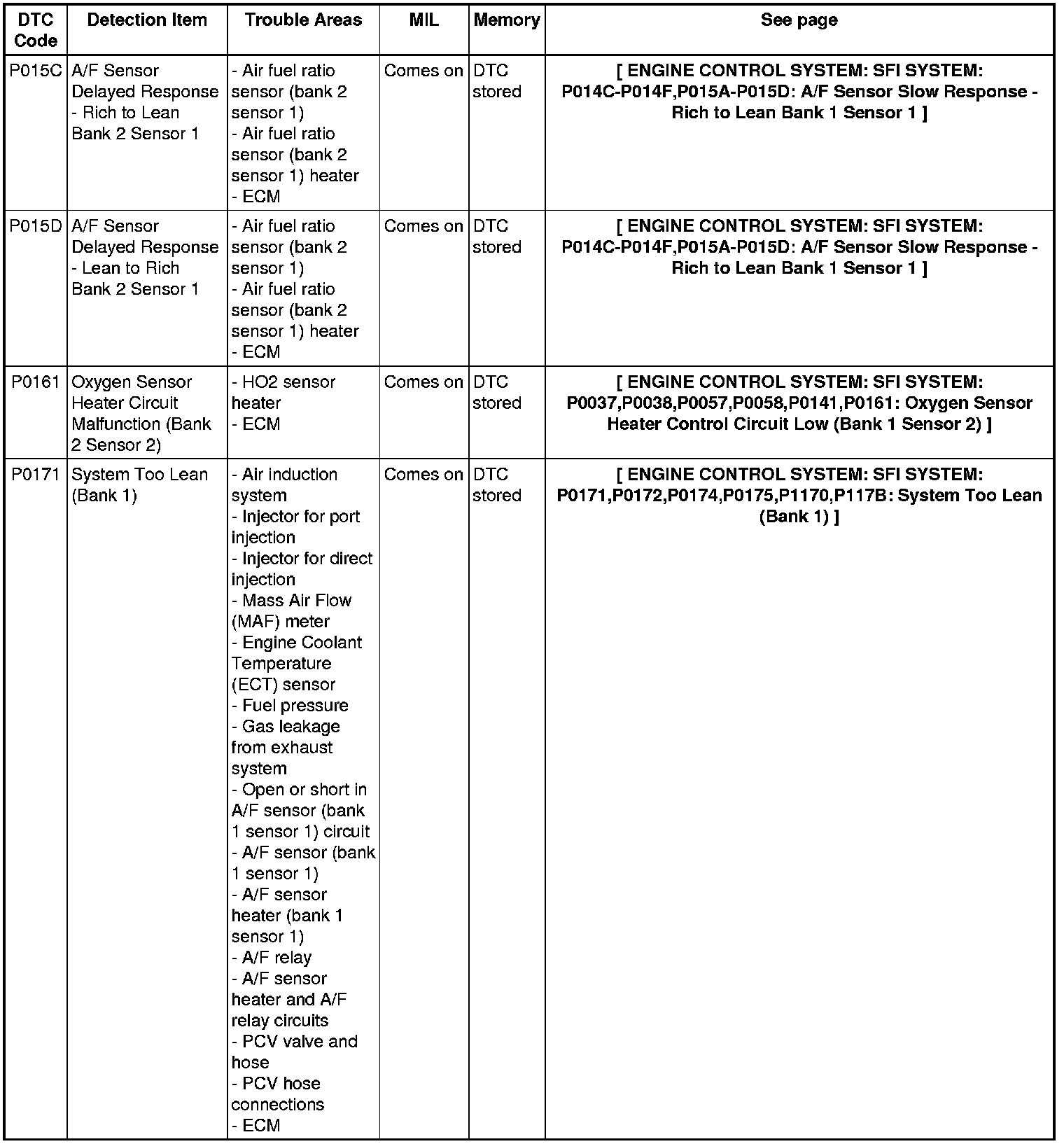

P015C - P0171:

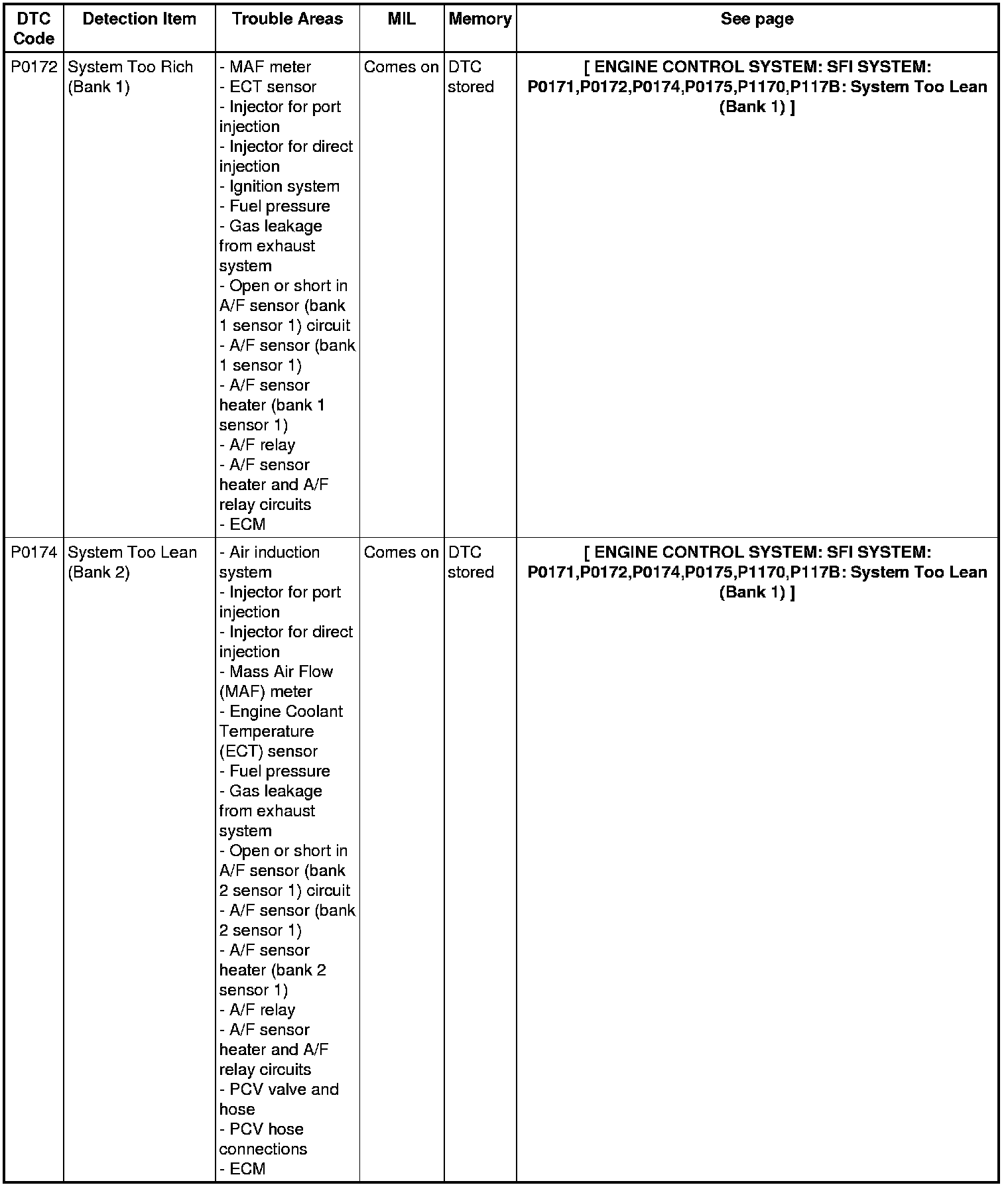

P0172 - P0174:

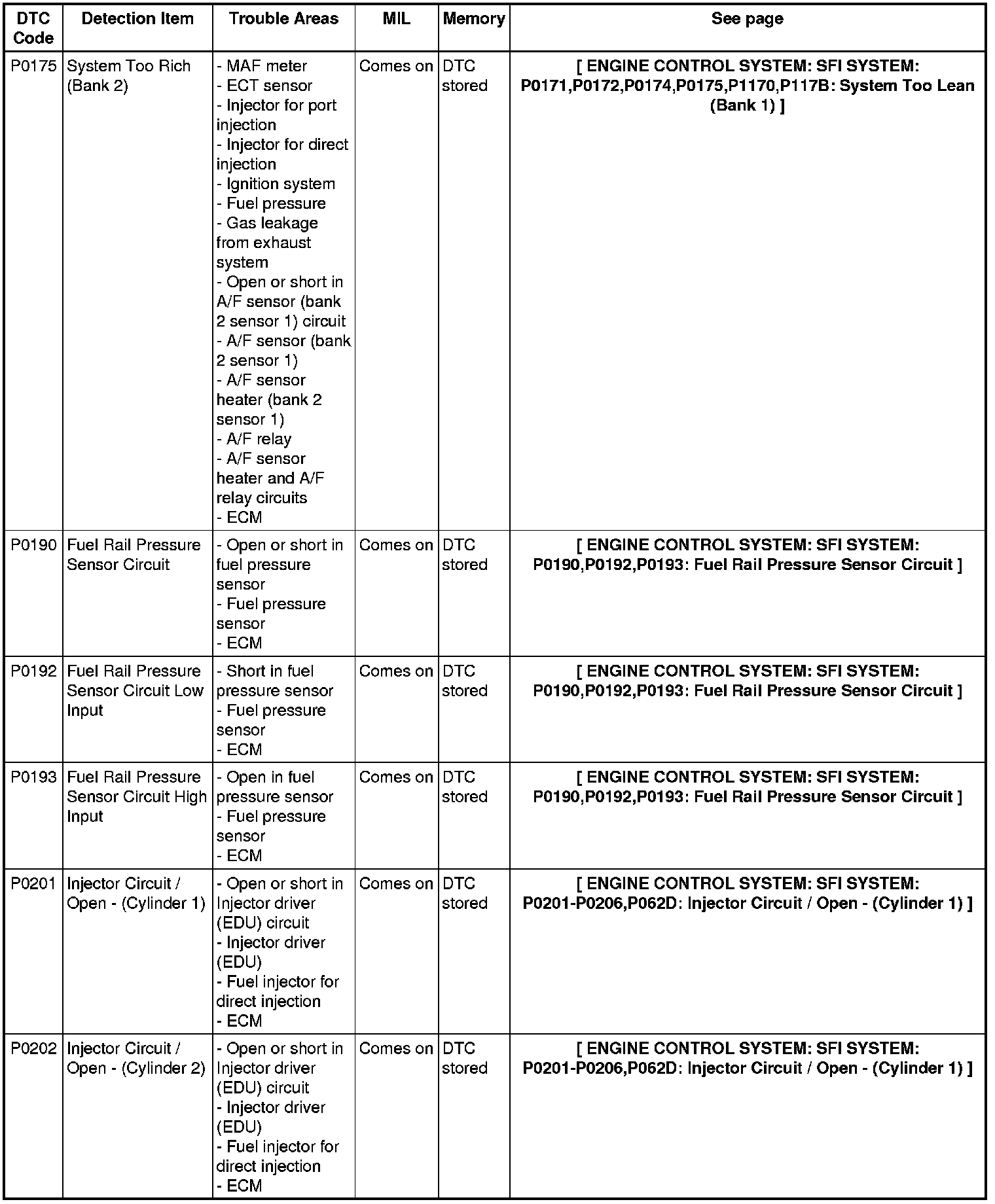

P0175 - P0202:

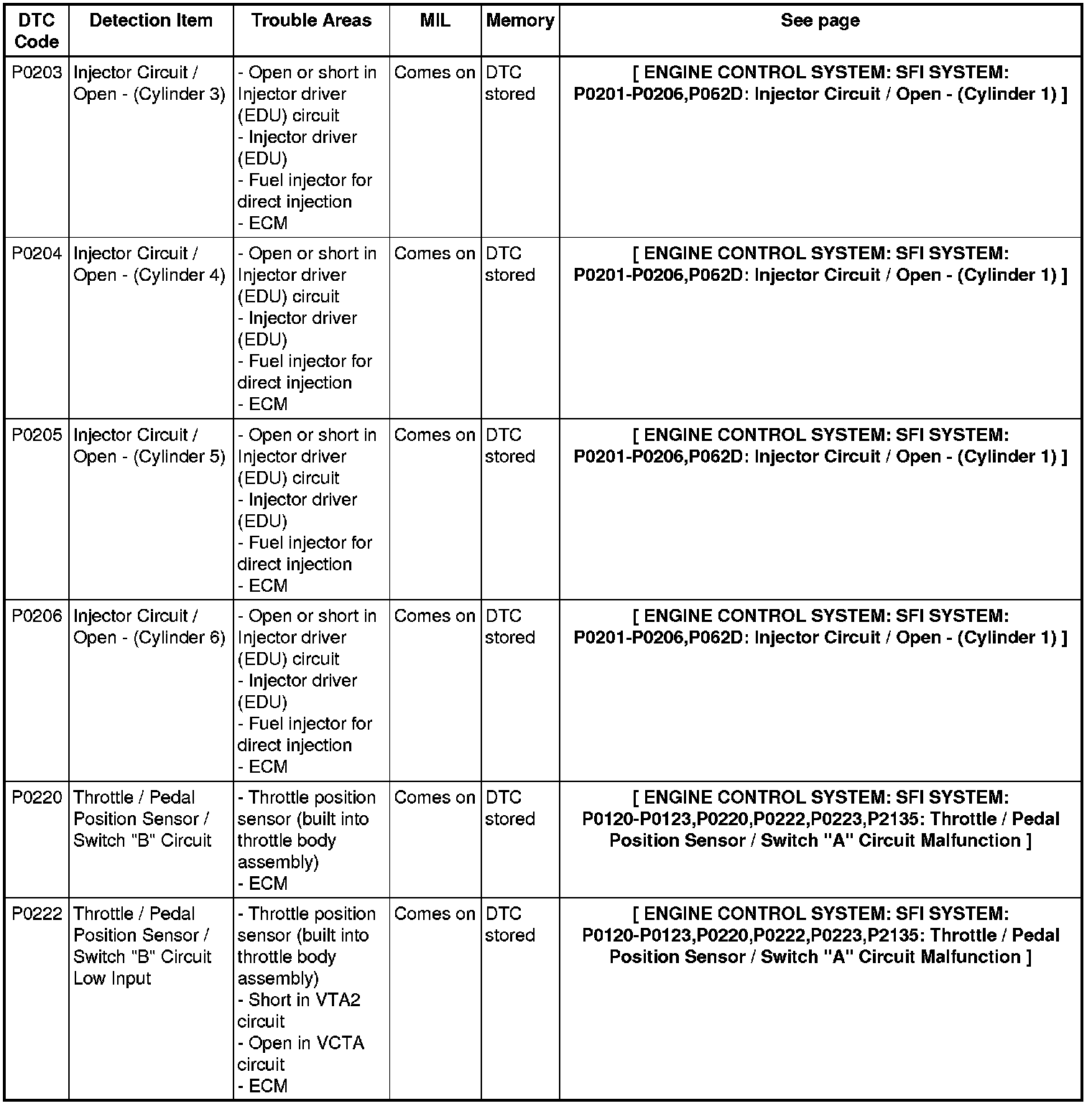

P0203 - P0222:

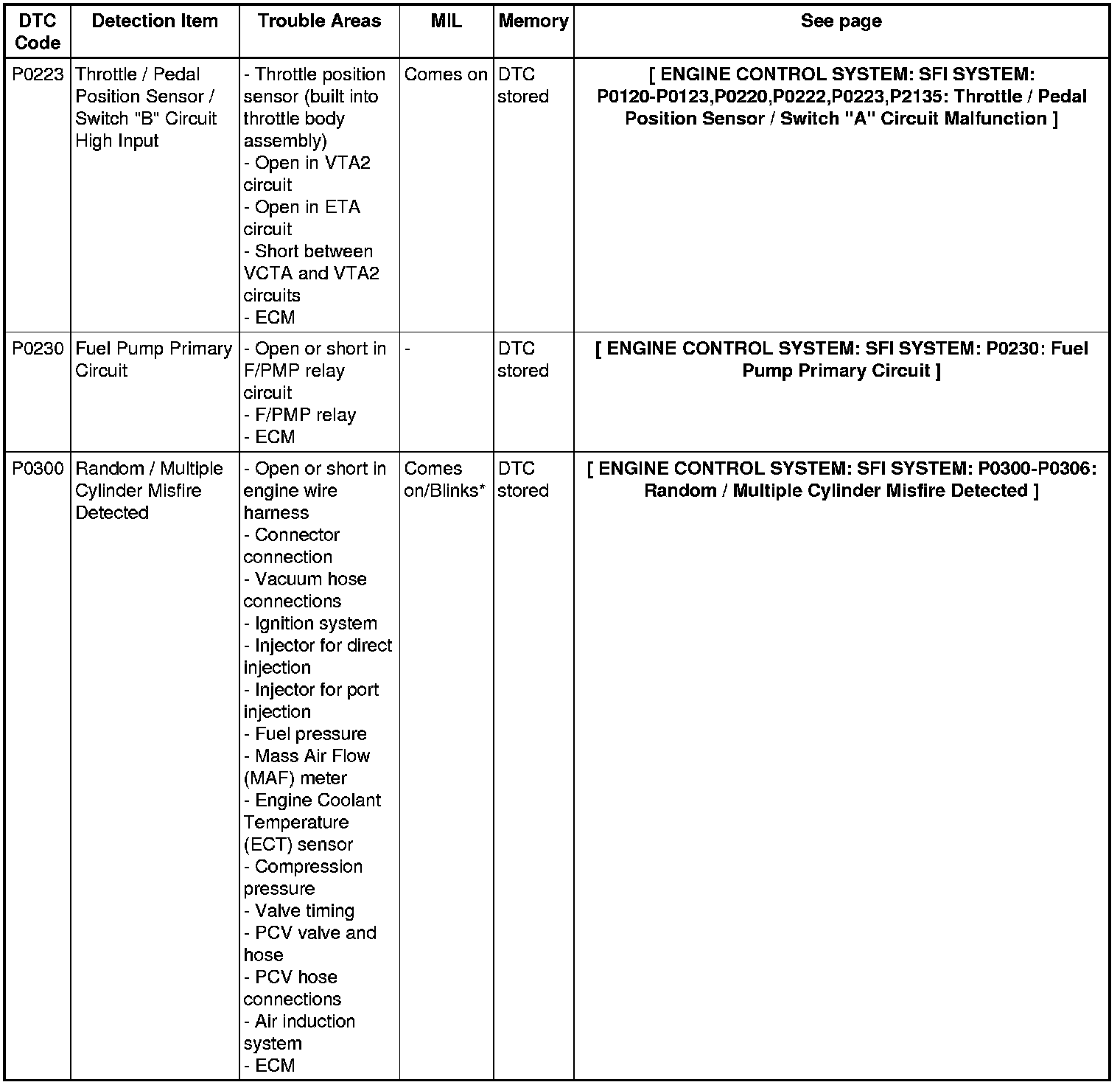

P0223 - P0300:

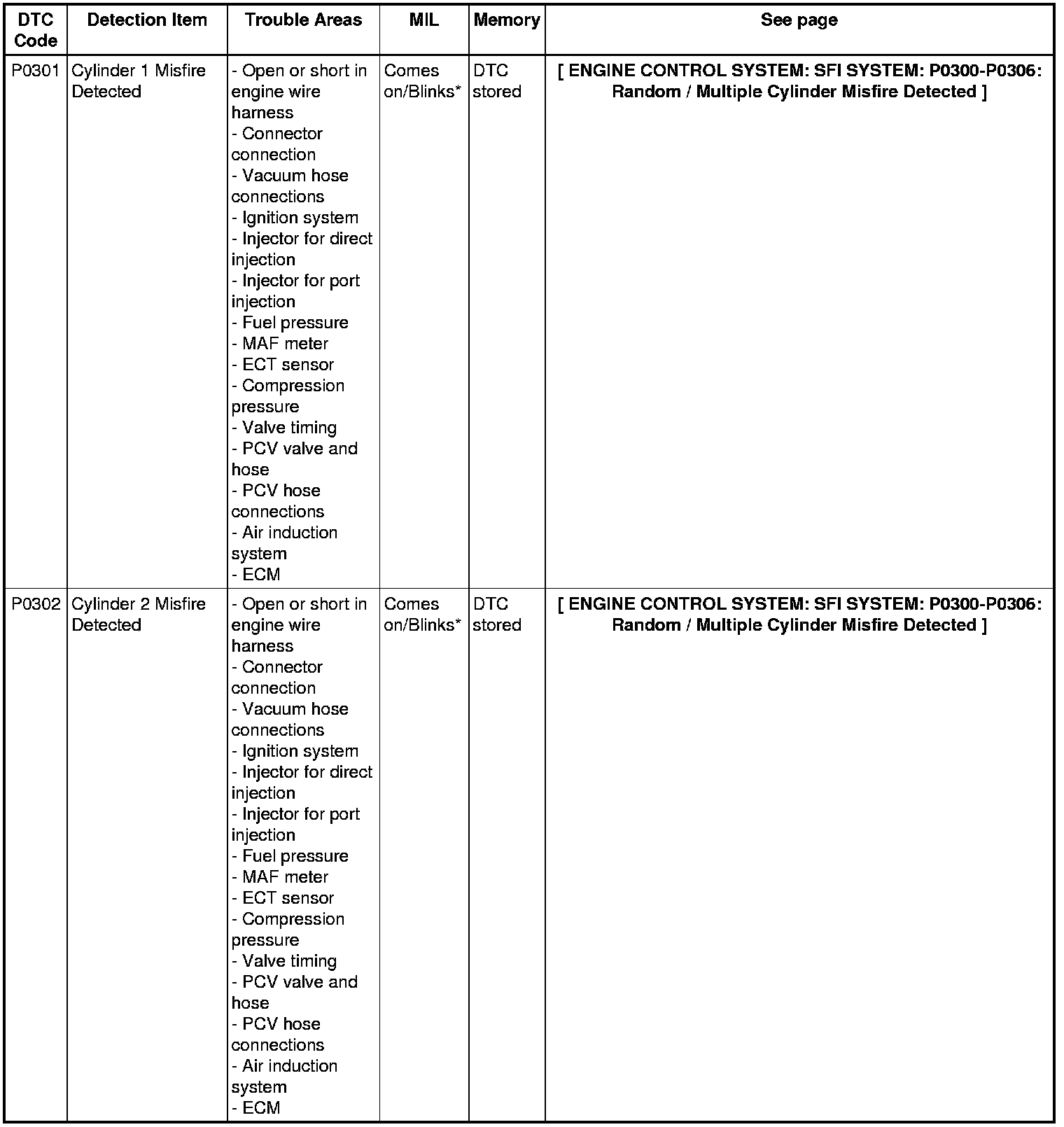

P0301 - P0302:

P0303 - P0304:

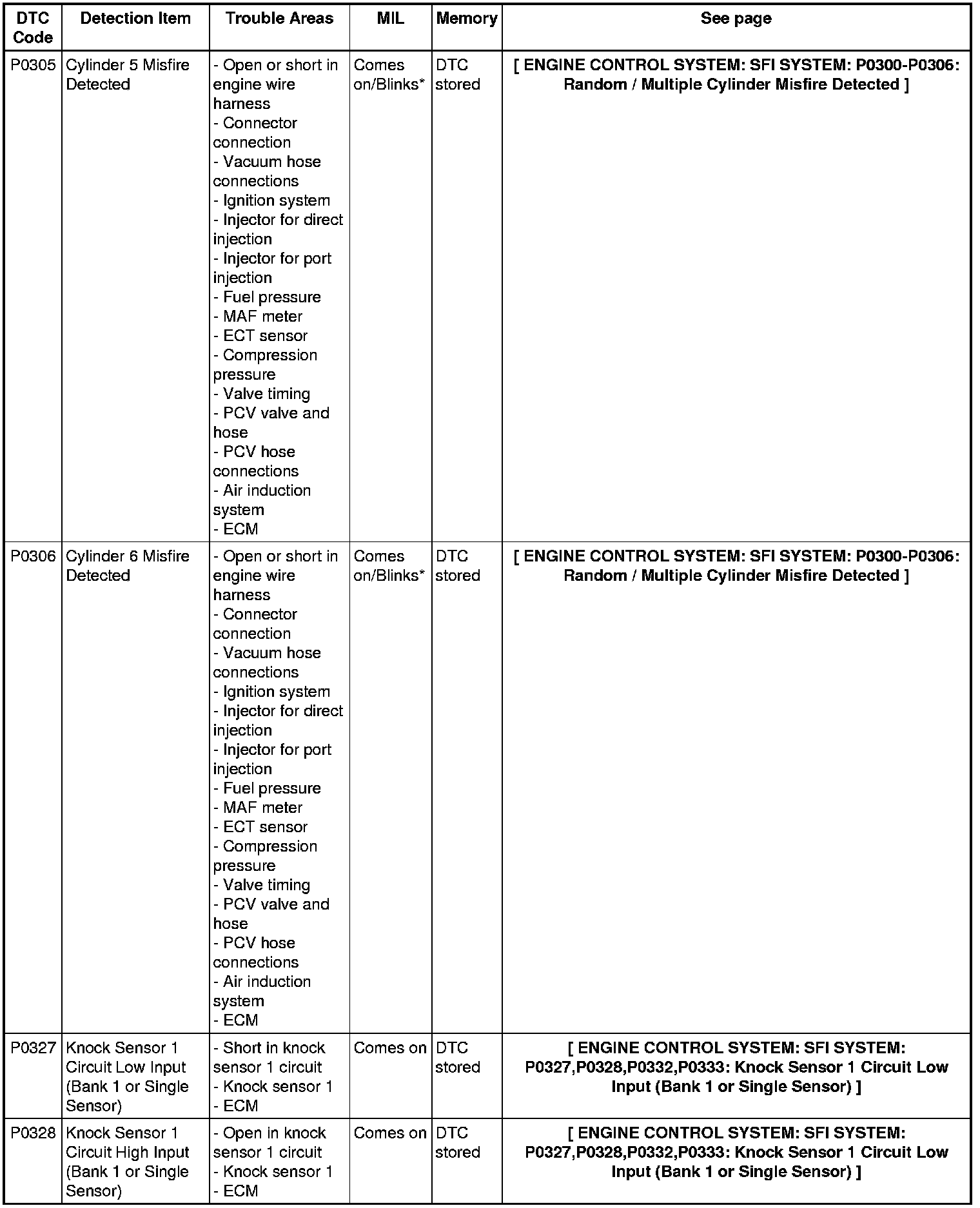

P0305 - P0328:

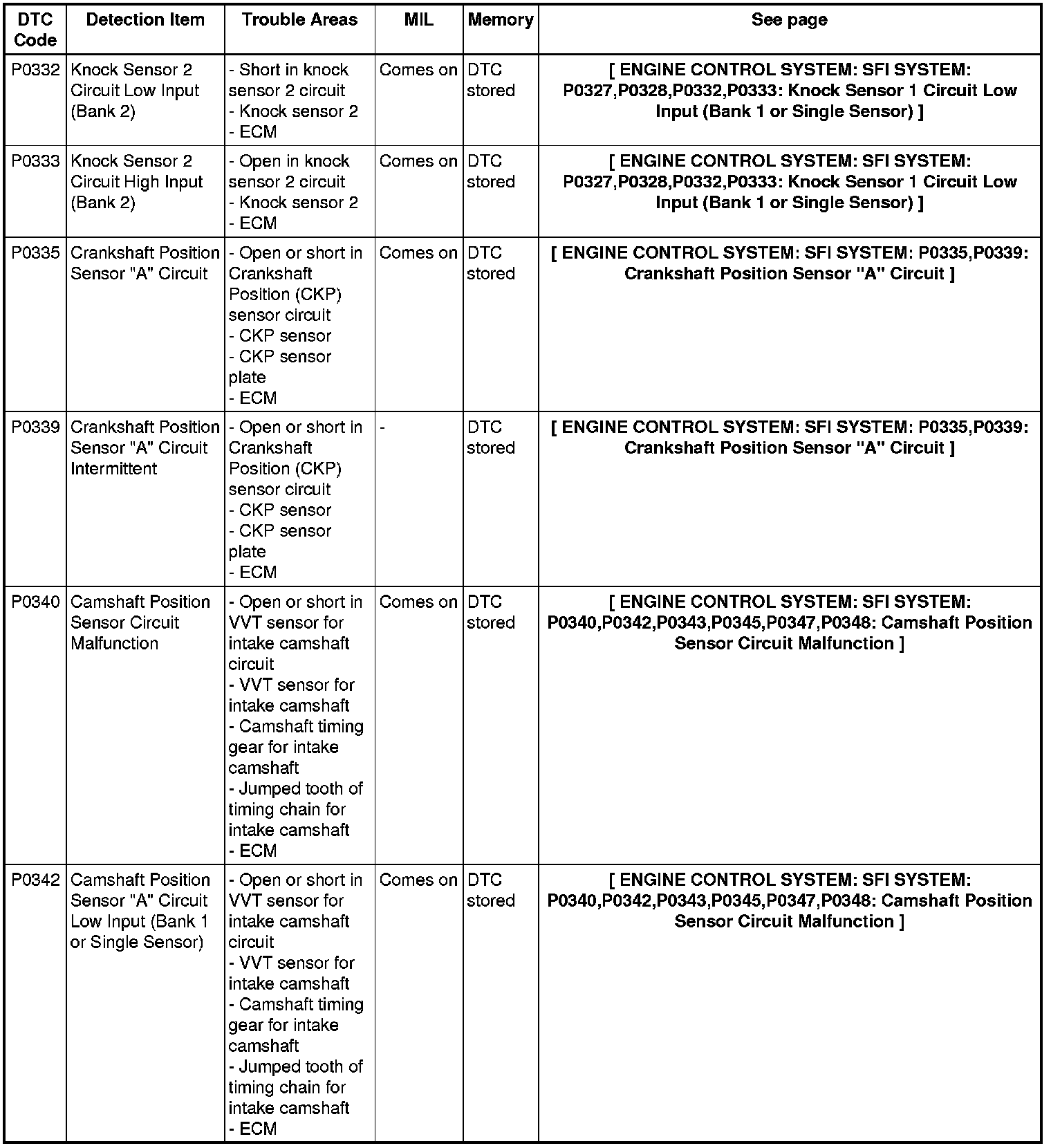

P0332 - P0342:

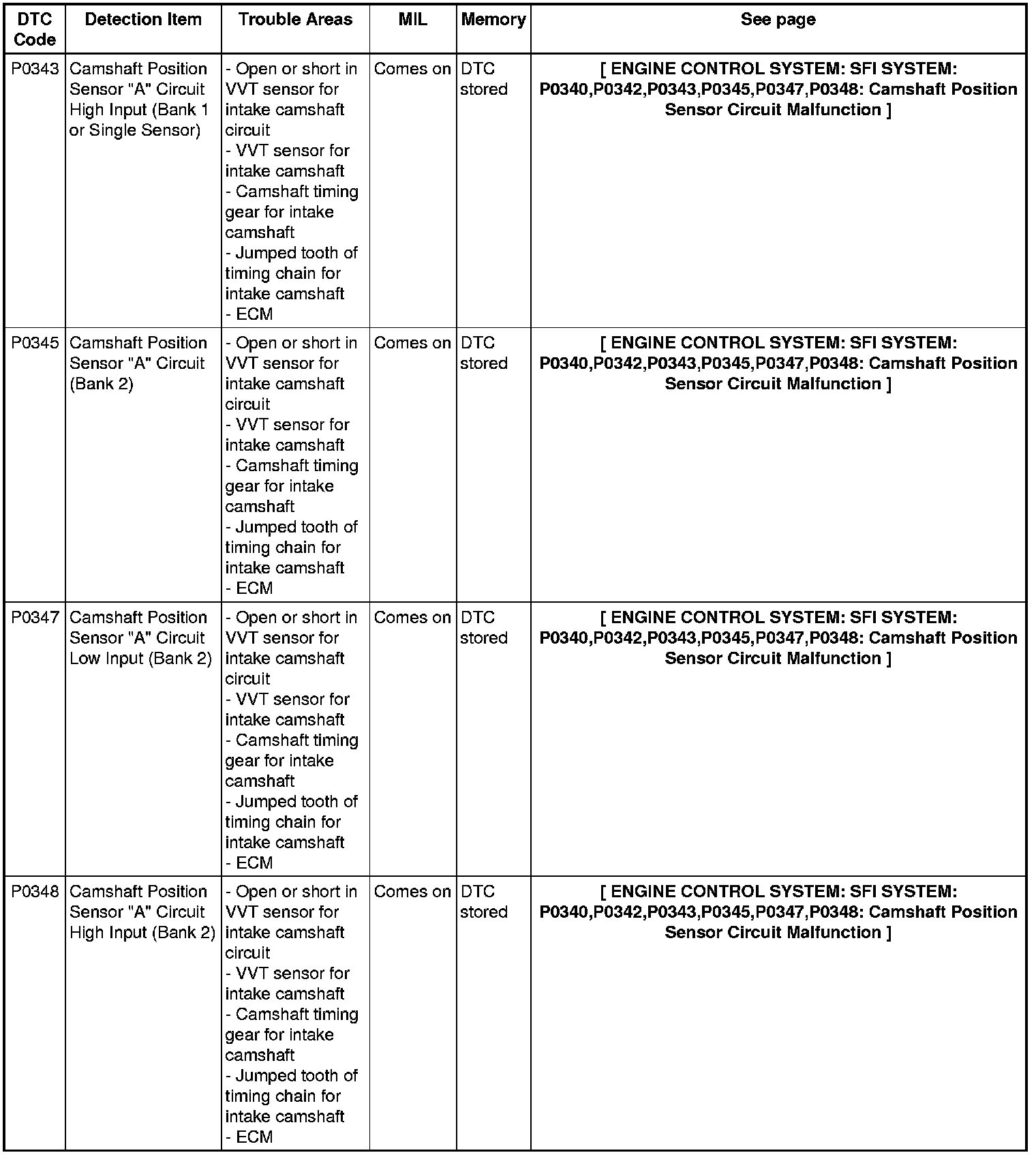

P0343 - P0348:

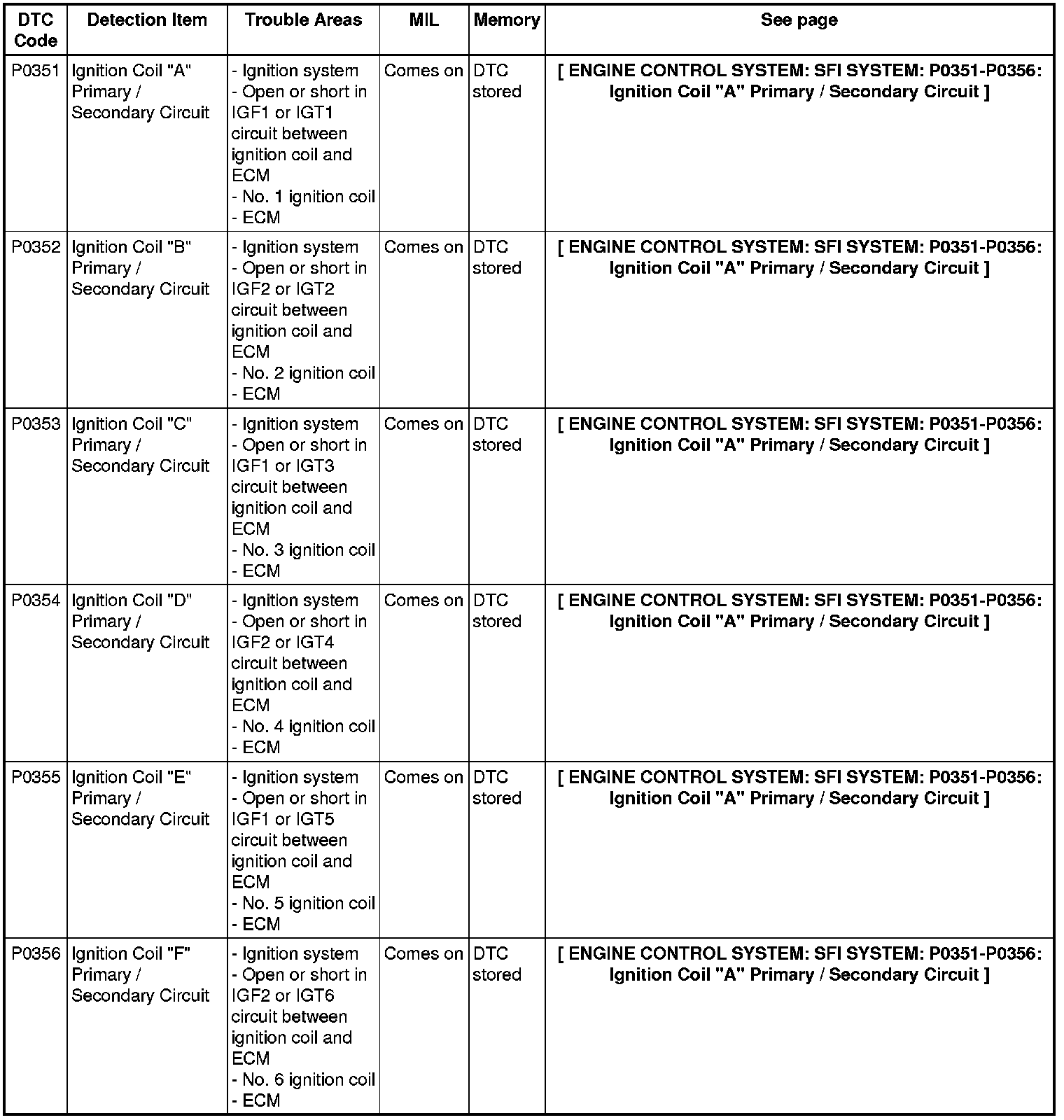

P0351 - P0356:

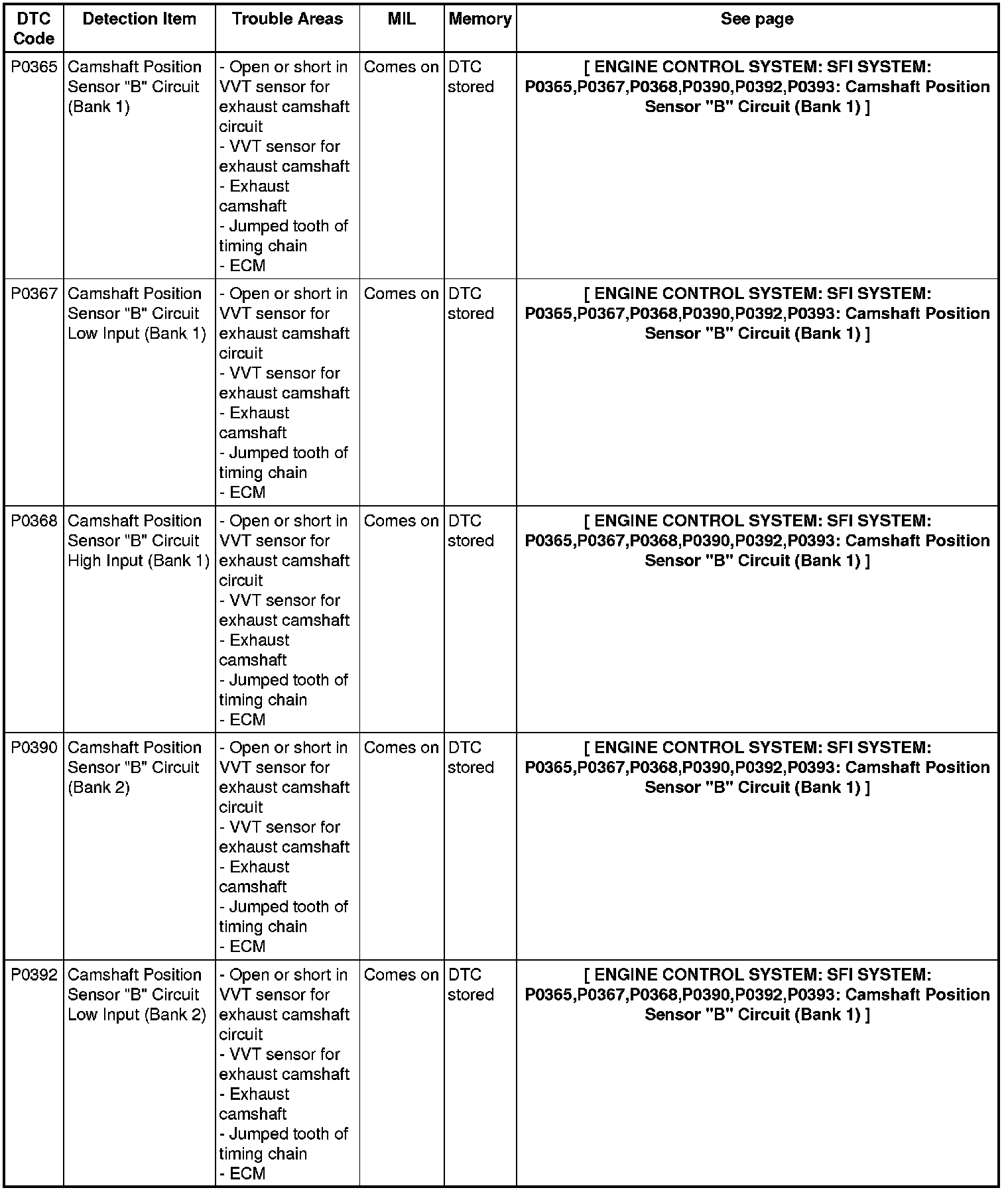

P0365 - P0392:

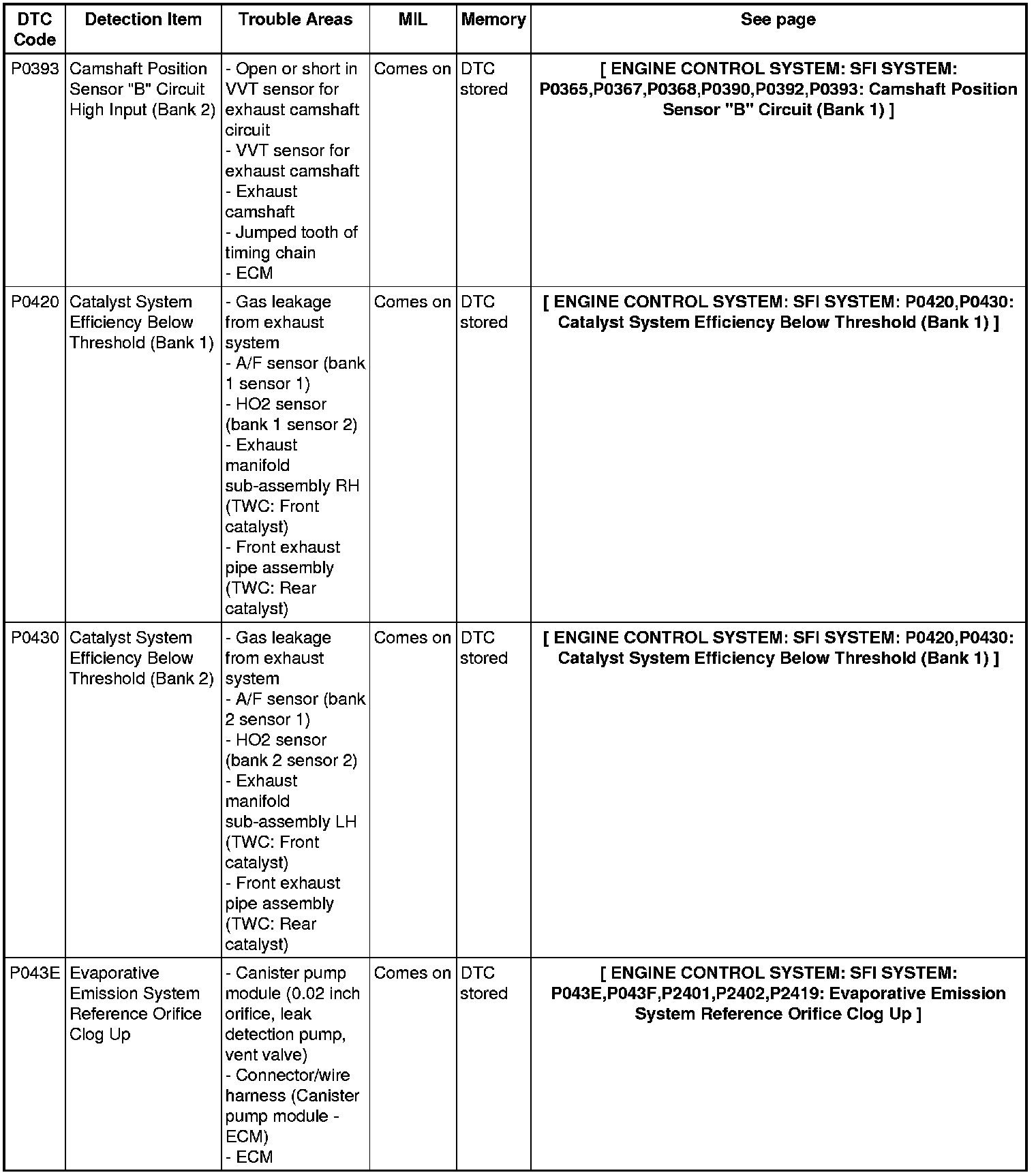

P0393 - P043E:

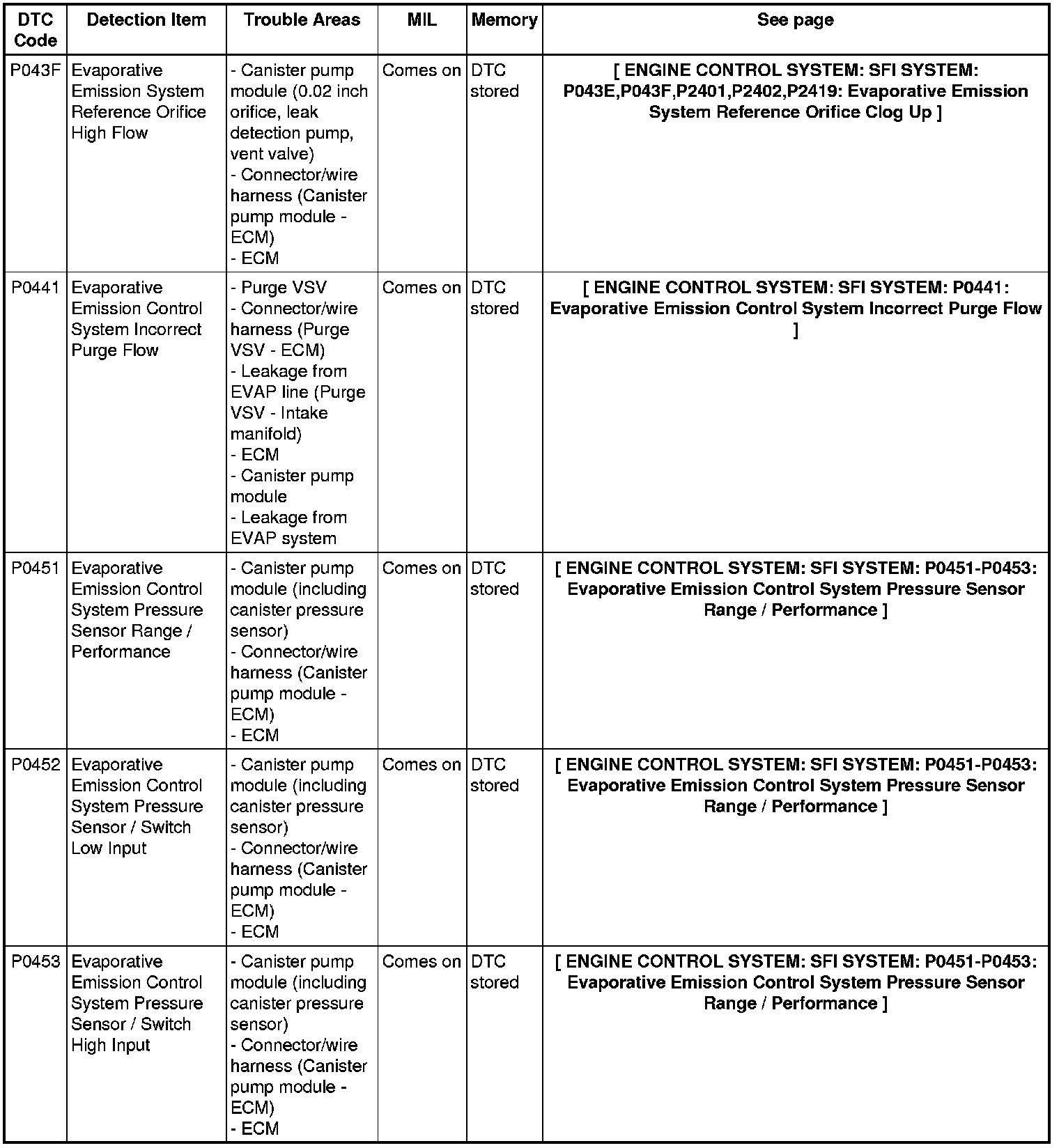

P043F - P0453:

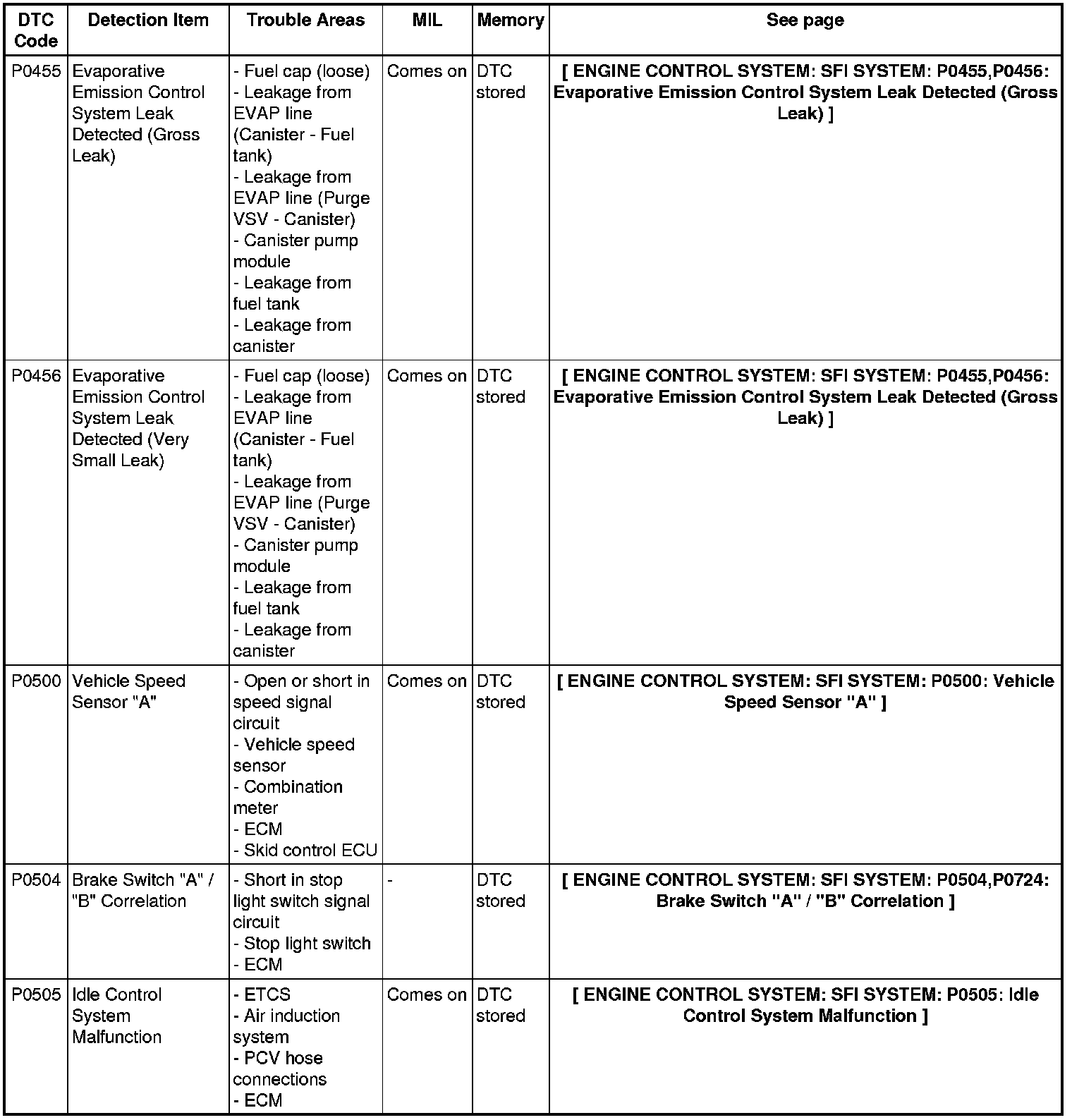

P0455 - P0505:

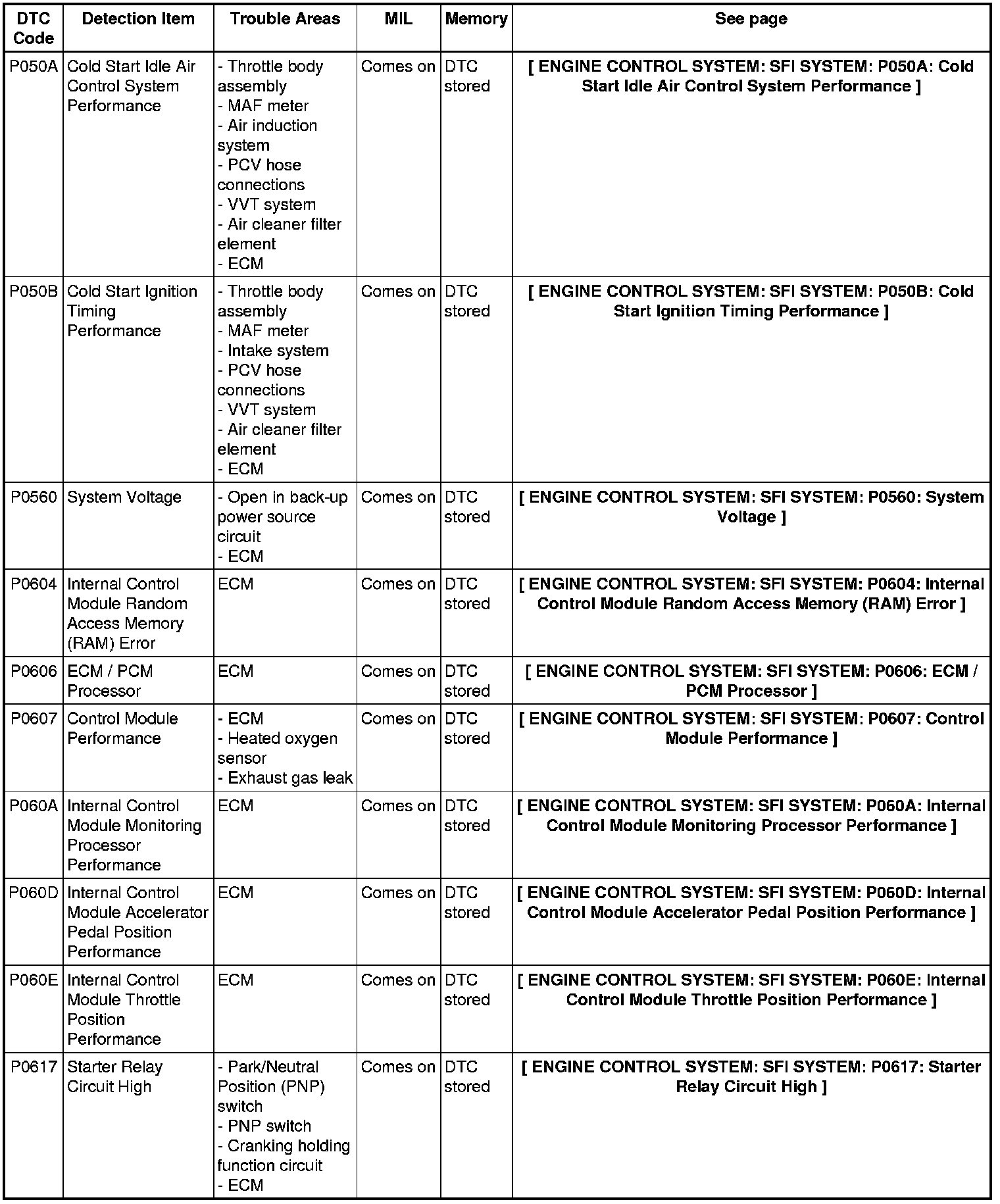

P050A - P0617:

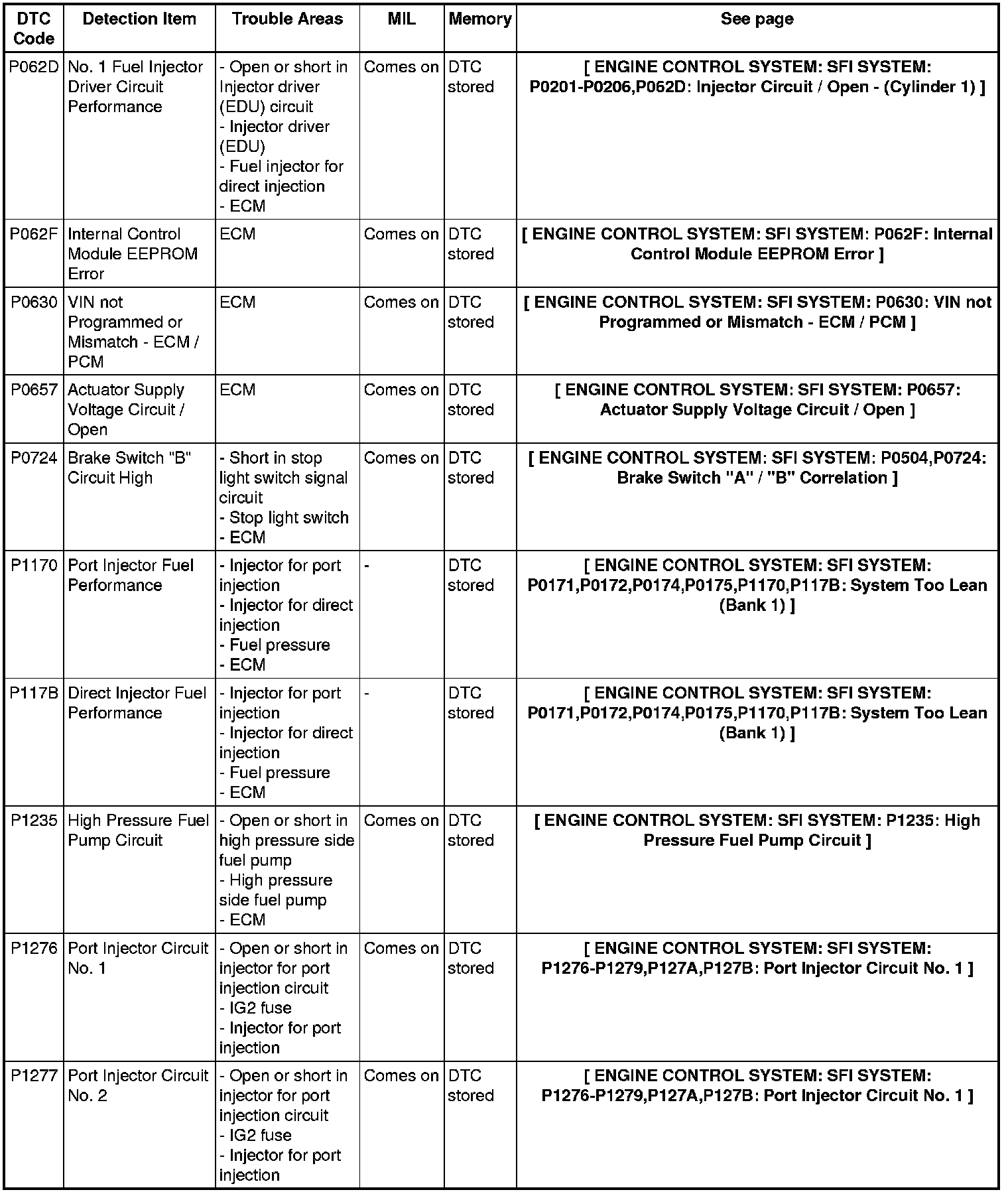

P062D - P1277:

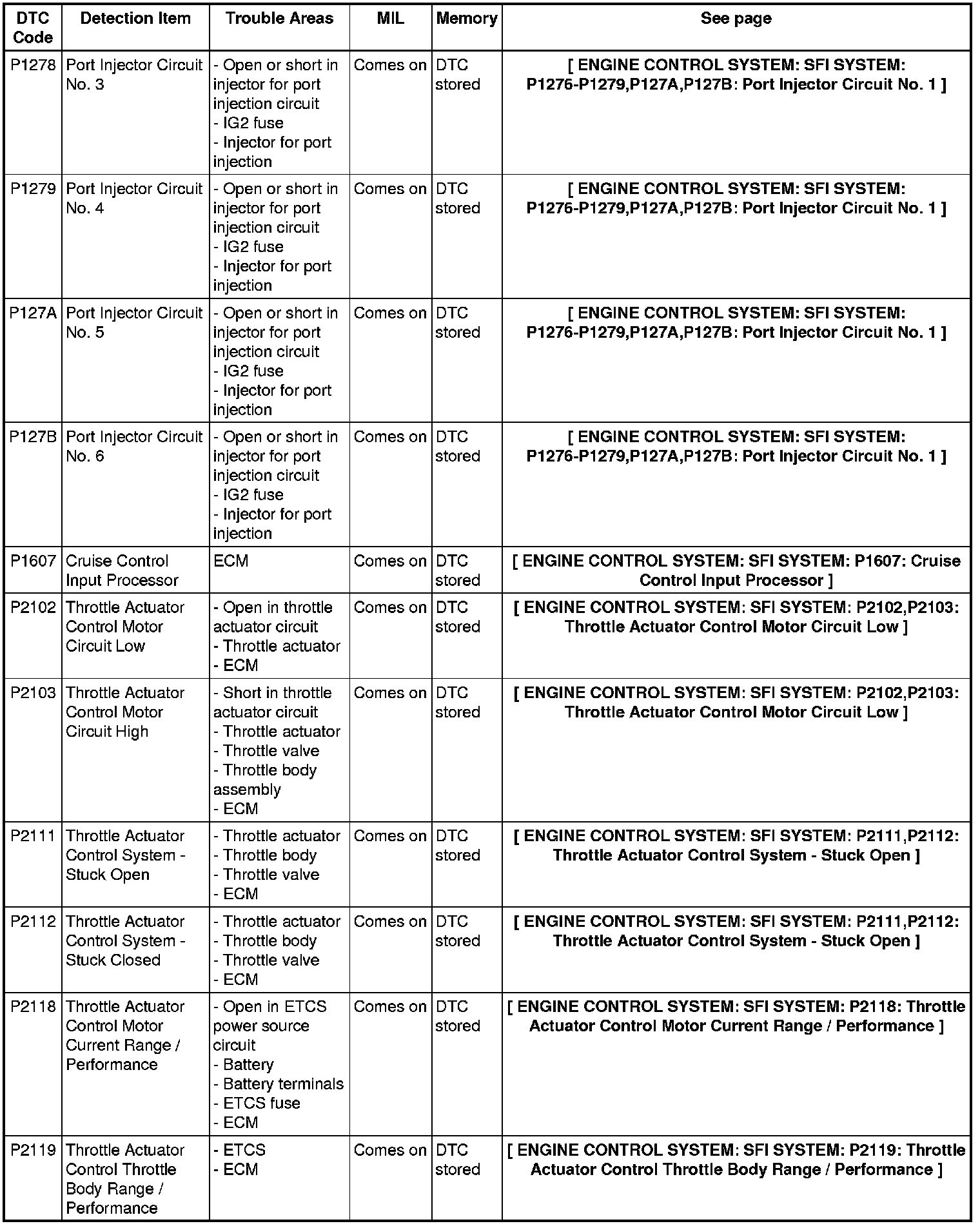

P1278 - P2119:

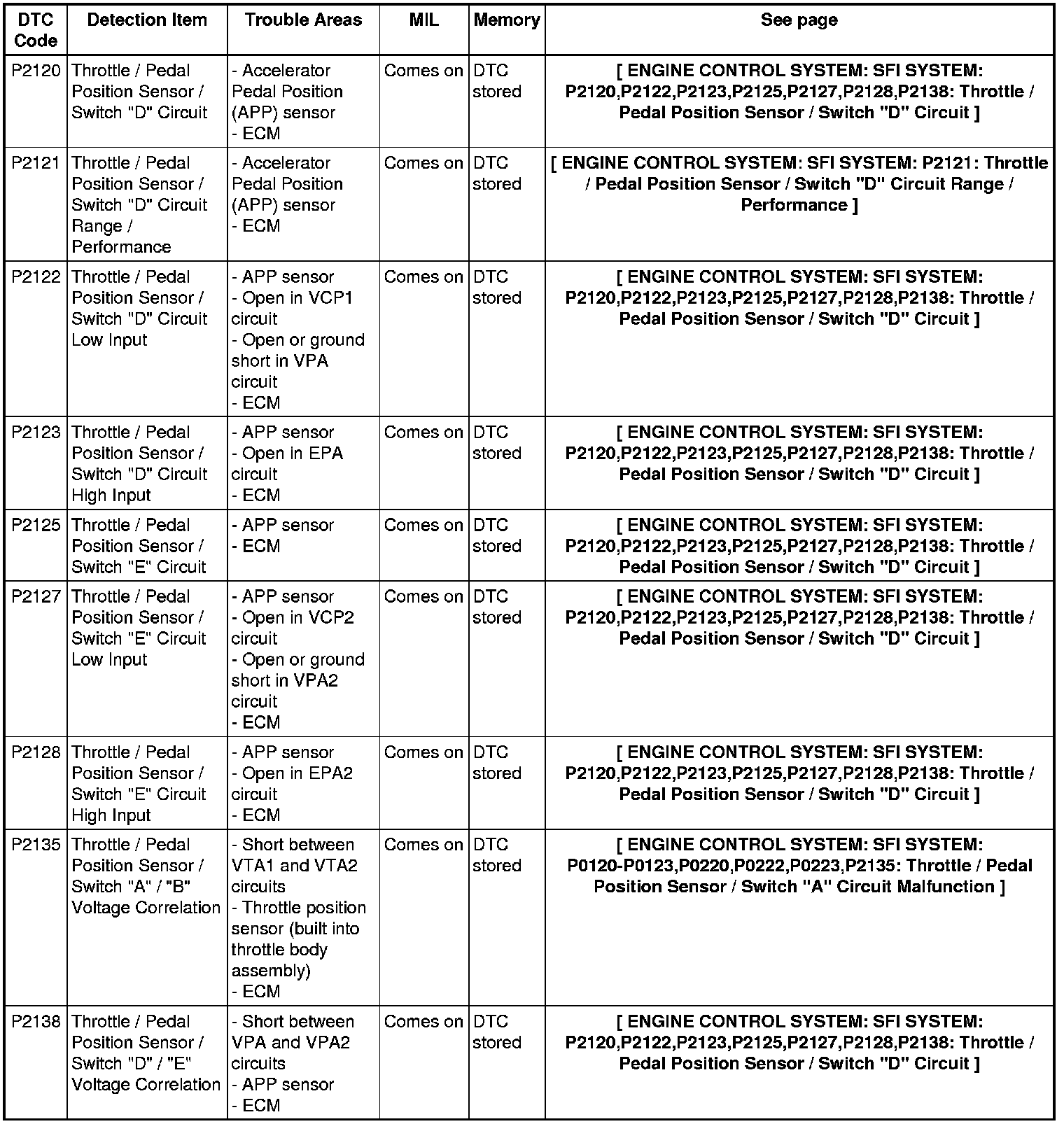

P2120 - P2138:

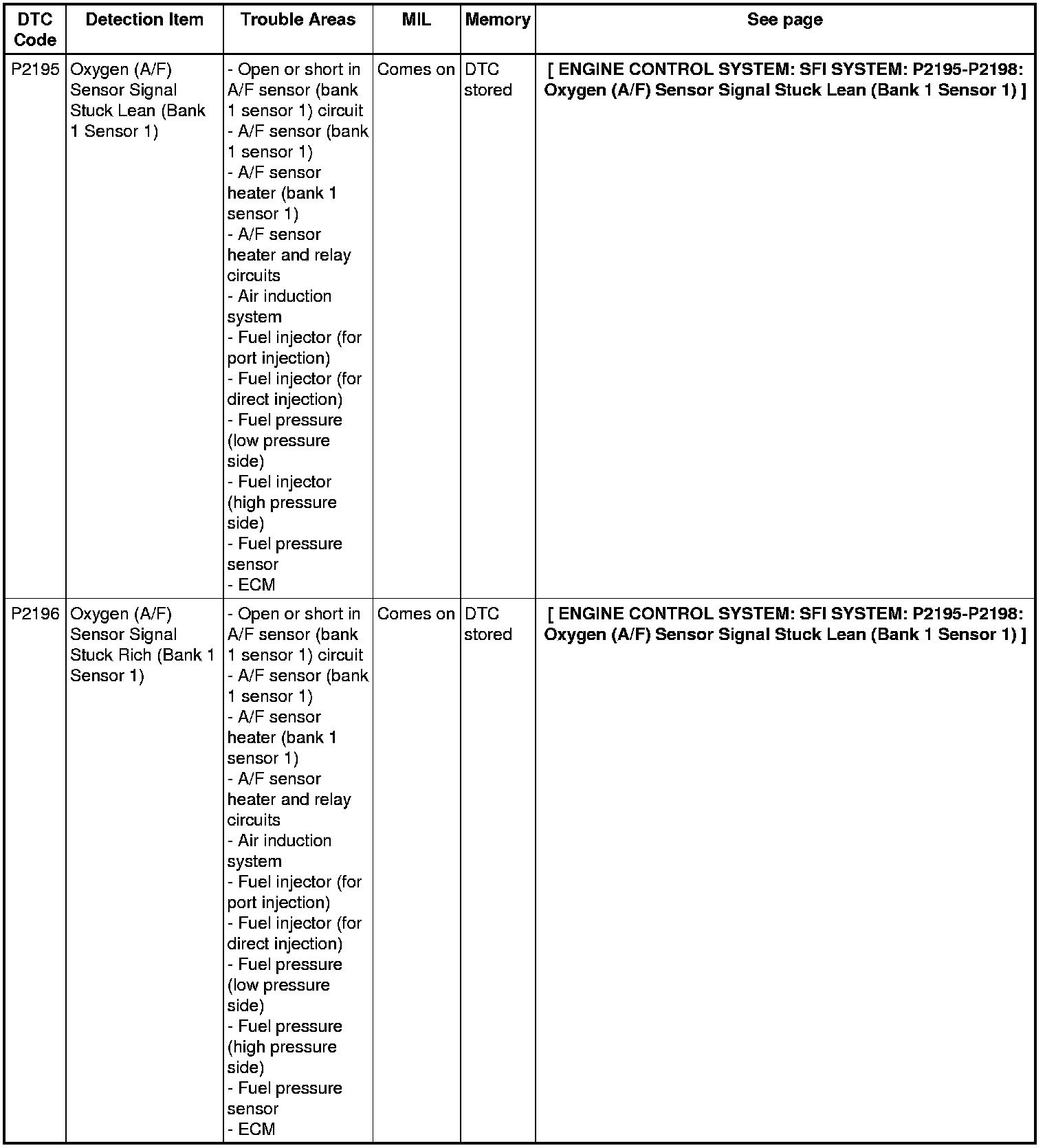

P2195 - P2196:

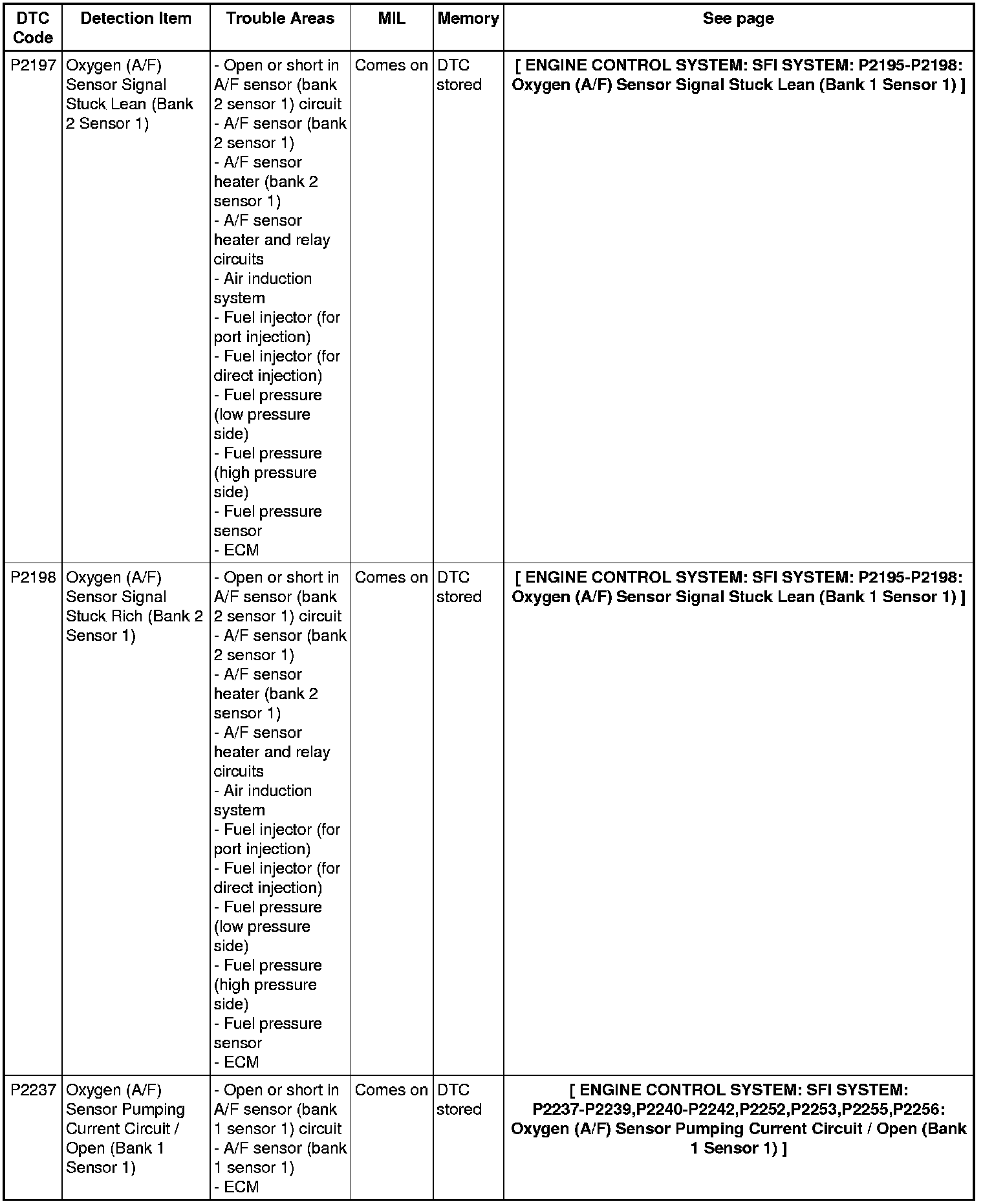

P2197 - P2237:

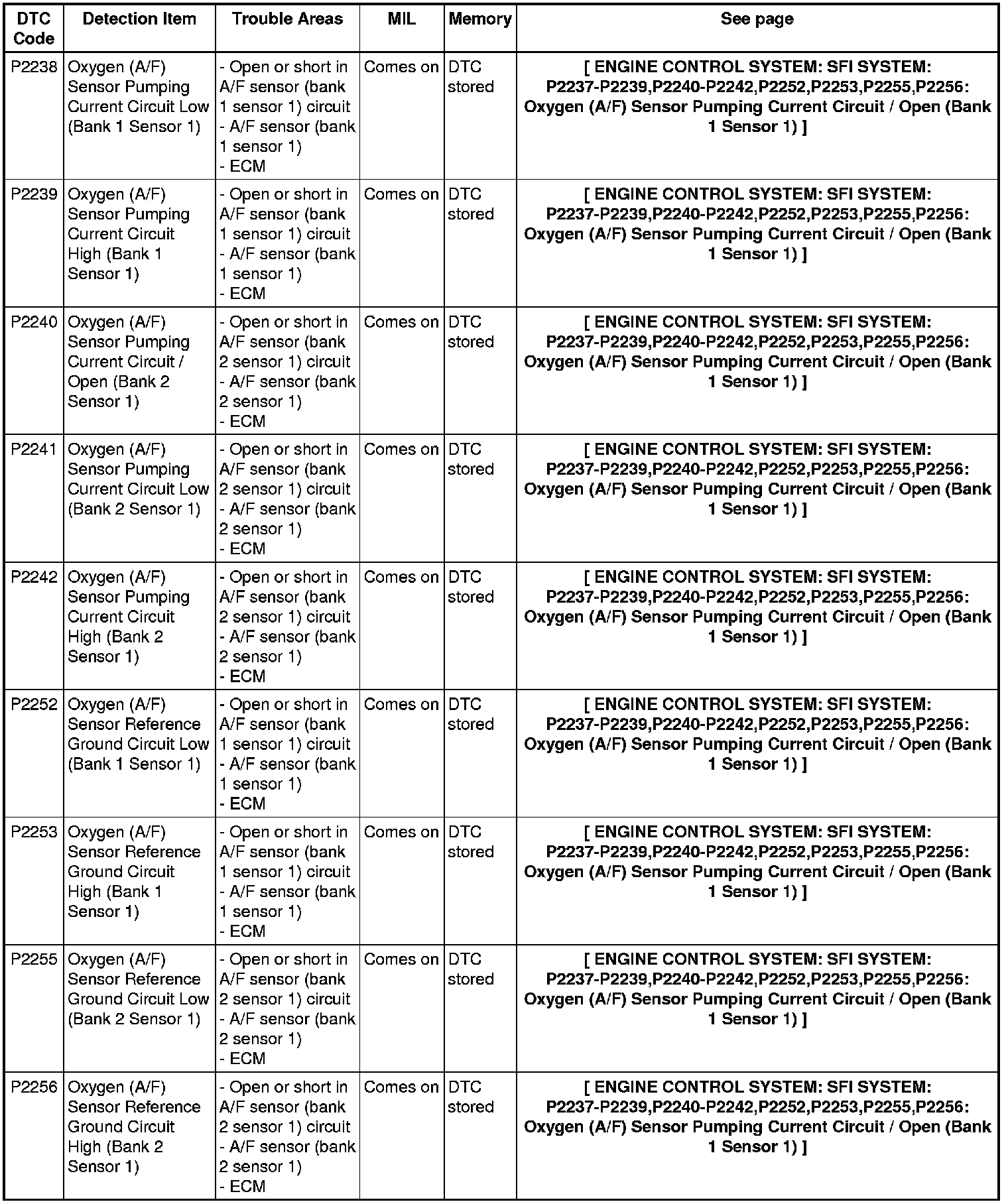

P2238 - P2256:

P2401 - P2610 / U0101:
