Hazard Warning Switch: Testing and Inspection

LIGHTING (EXT): HAZARD WARNING SWITCH: INSPECTION

1. INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (W/O Navigation System)

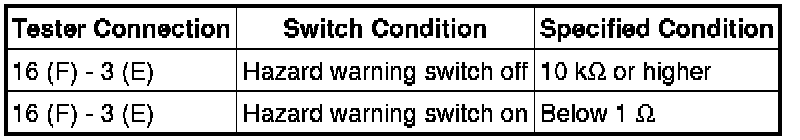

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(b) If the result is not as specified, replace the integration control and panel assembly.

2. INSPECT CLOCK ASSEMBLY (W/ Navigation System)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(b) If the result is not as specified, replace the clock assembly.
