Backup Lamp Switch: Testing and Inspection

RA62 MANUAL TRANSMISSION / TRANSAXLE: BACK-UP LIGHT SWITCH: INSPECTION

1. INSPECT BACK-UP LIGHT SWITCH ASSEMBLY

(a) Measure the resistance of the switch.

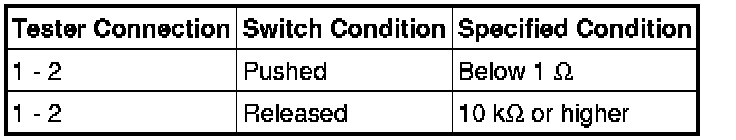

Standard Resistance:





(b) If the result is not as specified, replace the back-up light switch assembly.
