Parking Brake Switch (for Manual Transmission)

PARKING BRAKE: PARKING BRAKE SWITCH (for Manual Transmission): INSPECTION

1. INSPECT PARKING BRAKE SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

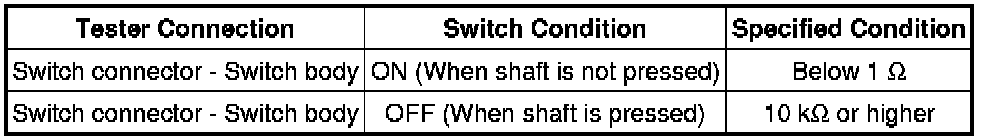

Standard Resistance





(b) If the value is not as specified, replace the parking brake switch assembly.
