Installation

LIGHTING (EXT): HEADLIGHT ASSEMBLY: INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY

(a) Engage the headlight bracket pin.





(b) Install the headlight assembly with the 3 bolts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

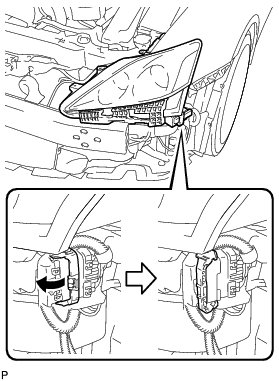

(c) Connect the connector as shown in the illustration.





2. INSTALL FRONT UPPER FENDER PROTECTOR LH (for LH Side) Installation

3. INSTALL ENGINE ROOM SIDE COVER LH (for LH Side) Installation

4. INSTALL FRONT UPPER FENDER PROTECTOR RH (for RH Side) Installation

5. INSTALL ENGINE ROOM SIDE COVER RH (for RH Side) Installation

6. INSTALL FRONT BUMPER ASSEMBLY Installation

7. INSTALL RADIATOR GRILLE PROTECTOR Installation

8. INSTALL COOL AIR INTAKE DUCT SEAL Installation

9. ADD WASHER FLUID Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
Some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT Adjustments

12. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments

13. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments

14. INSPECT HEADLIGHT AIMING Adjustments

15. ADJUST HEADLIGHT AIMING Adjustments

16. VEHICLE PREPARATION FOR FOG LIGHT AIMING Adjustments

17. PREPARATION FOR FOG LIGHT AIMING Adjustments

18. INSPECT FOG LIGHT AIMING Adjustments

19. ADJUST FOG LIGHT AIMING Adjustments
