Pinout Values and Diagnostic Parameters

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: TERMINALS OF ECU

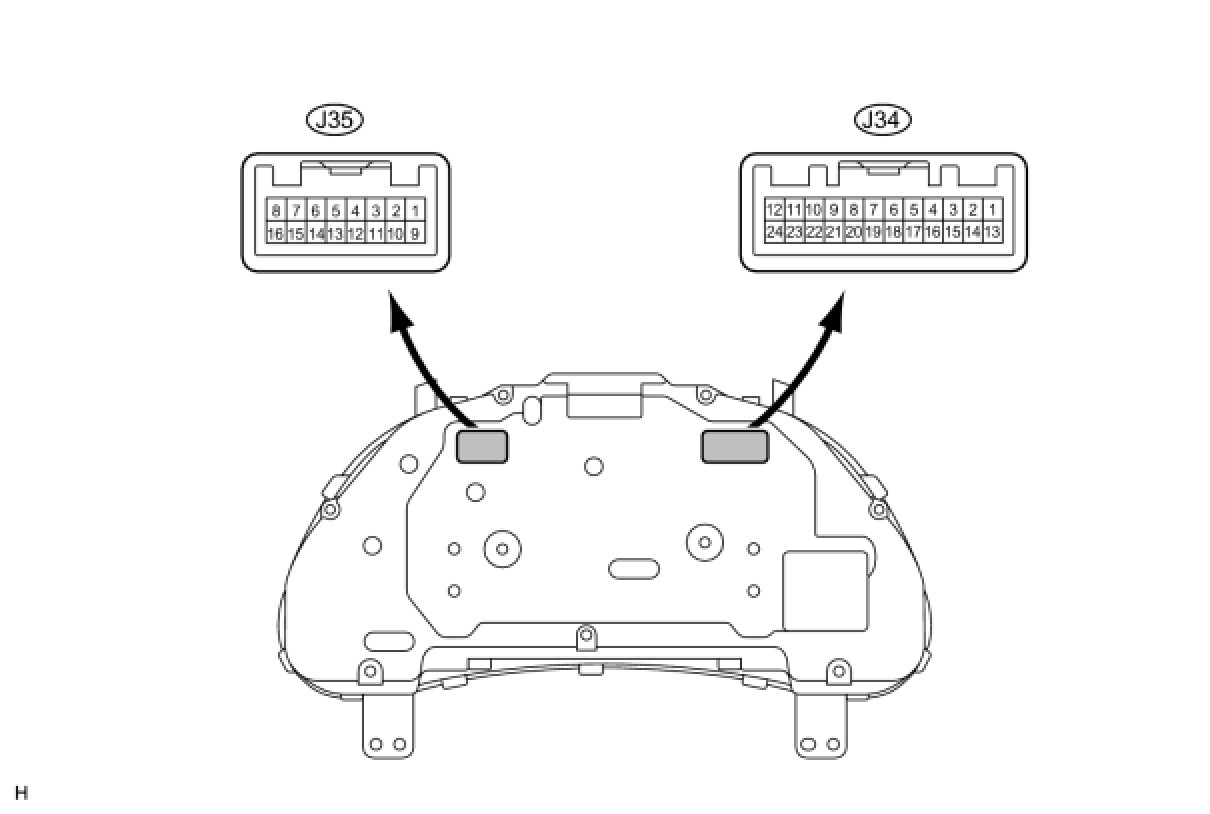

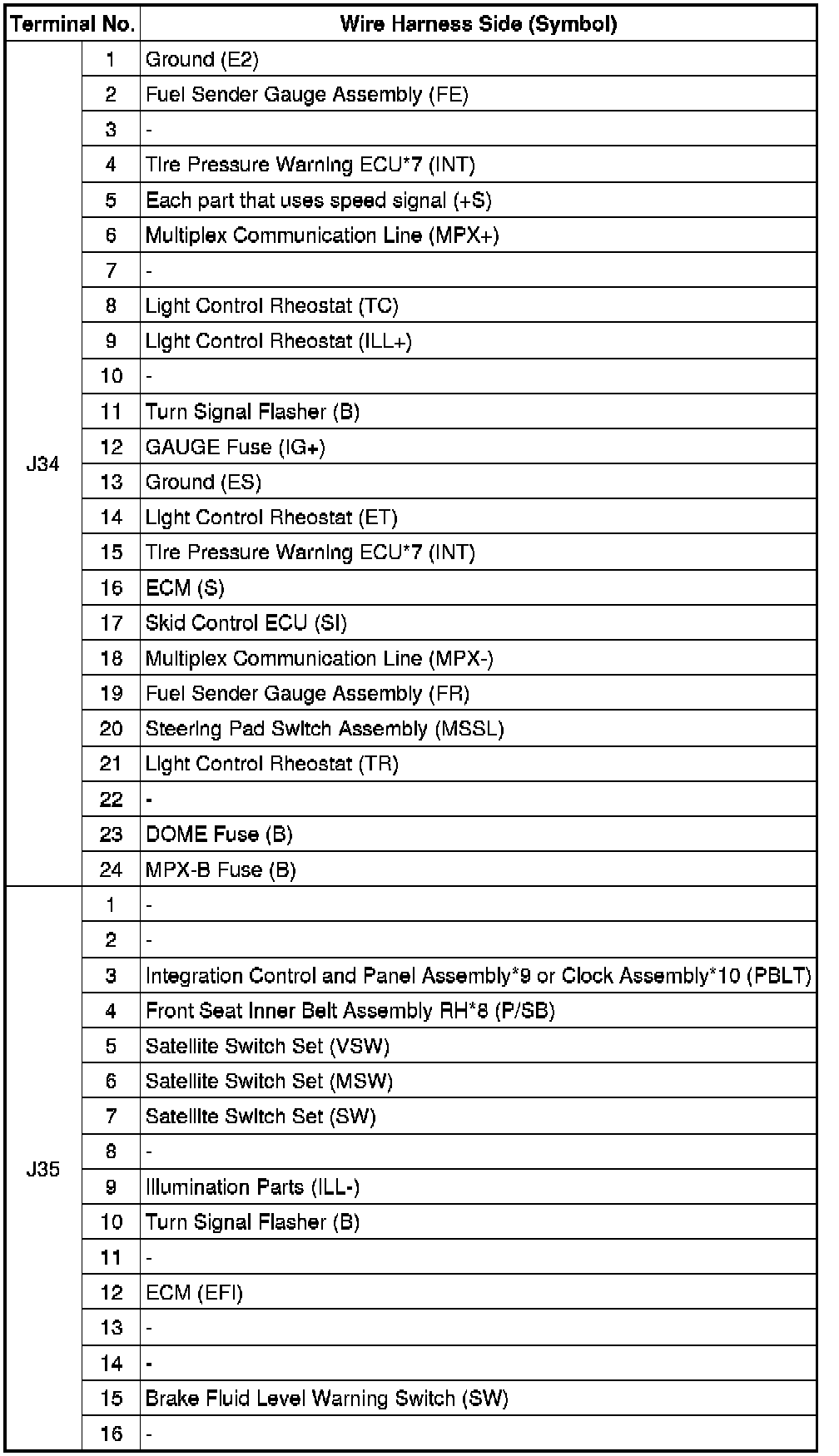

1. COMBINATION METER ASSEMBLY

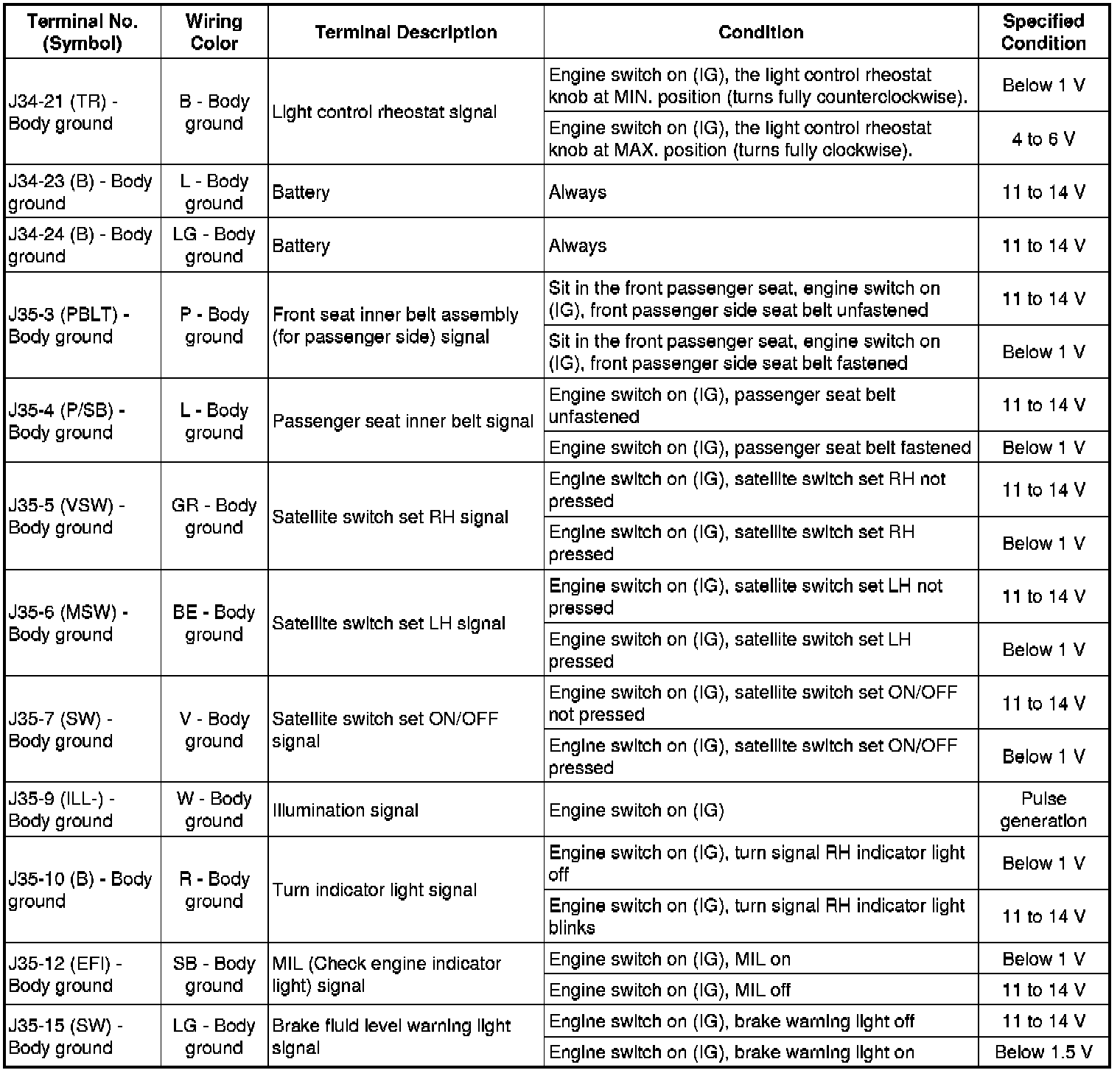

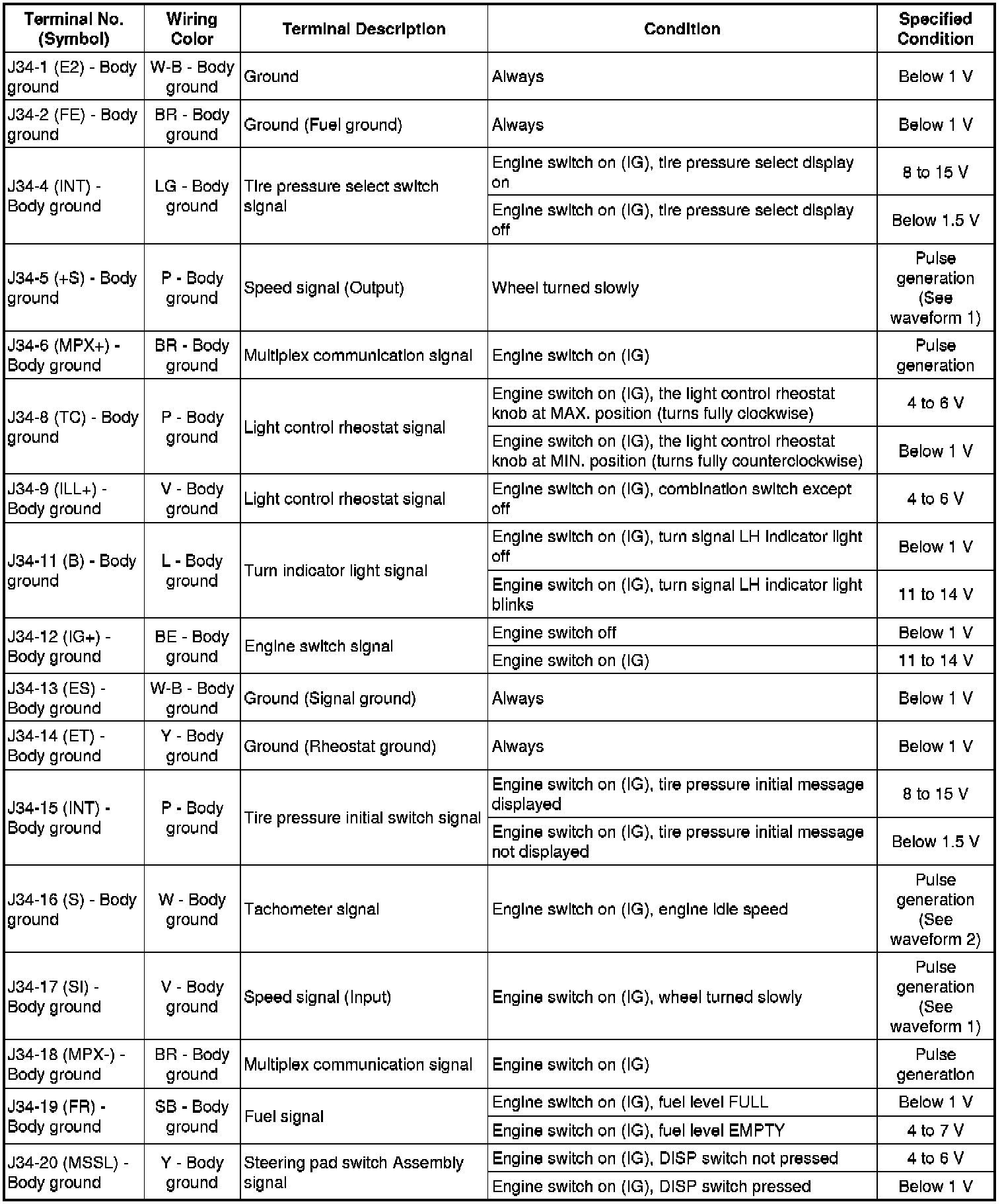

(a) Measure the voltage according to the value(s) in the table below.

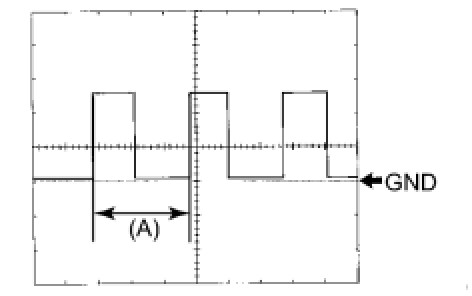

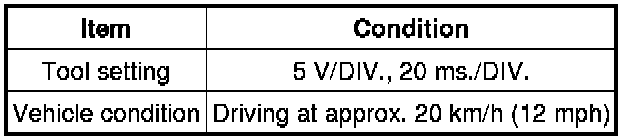

(b) Waveform 1 (Reference) : Using an oscilloscope:





OK:





HINT
When the system is functioning normally, one drive wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

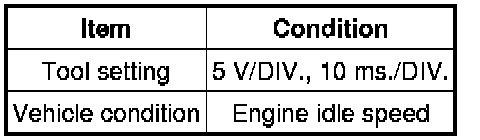

(c) Waveform 2 (Reference) : Using an oscilloscope:





OK:





2. INTEGRATION CONTROL AND PANEL ASSEMBLY (W/O Navigation System)

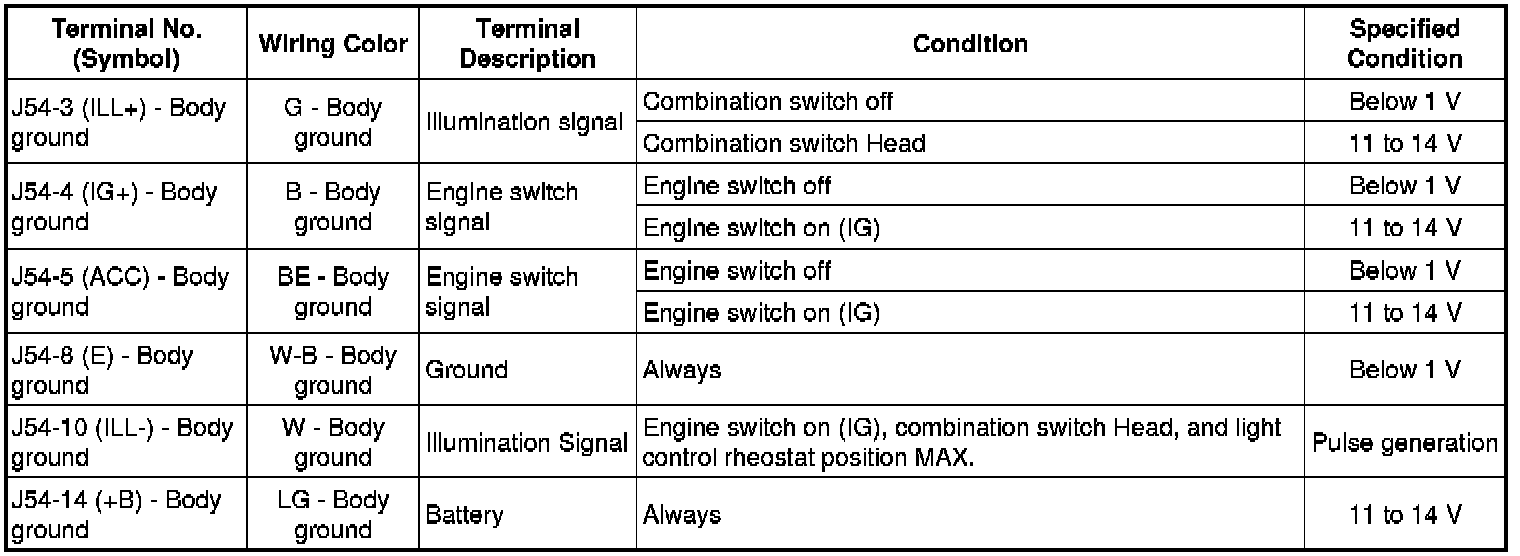

(a) Measure the voltage according to the value(s) in the table below.

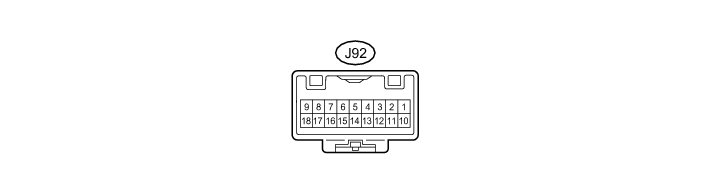

3. CLOCK ASSEMBLY (W/ Navigation System)

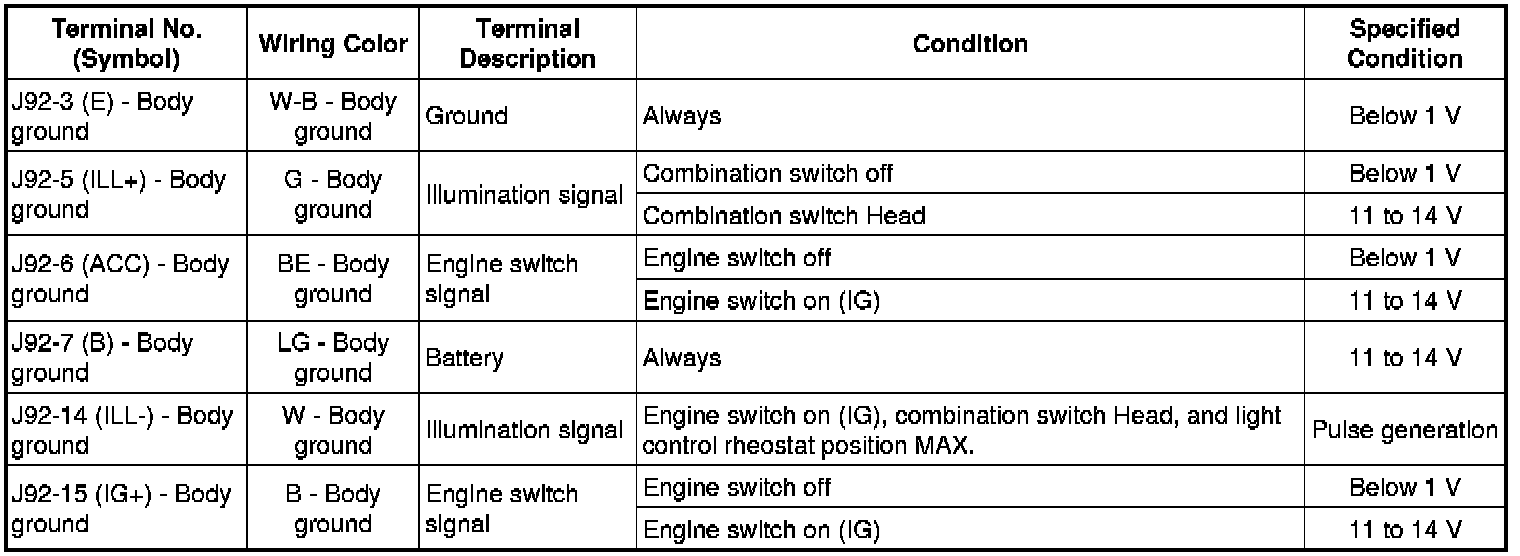

(a) Measure the voltage according to the value(s) in the table below.

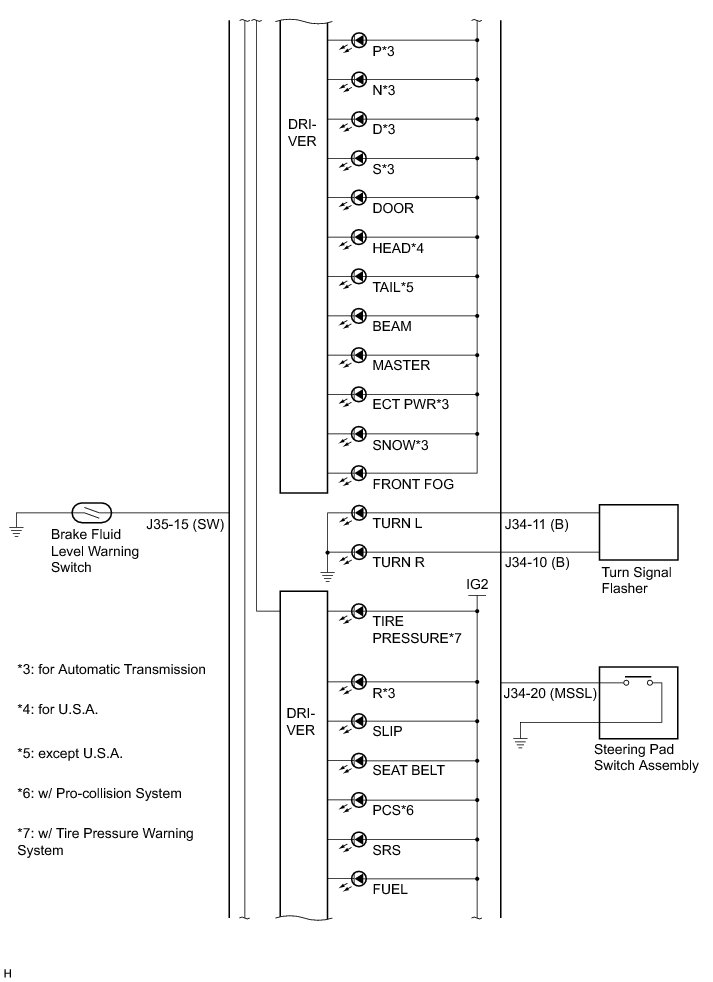

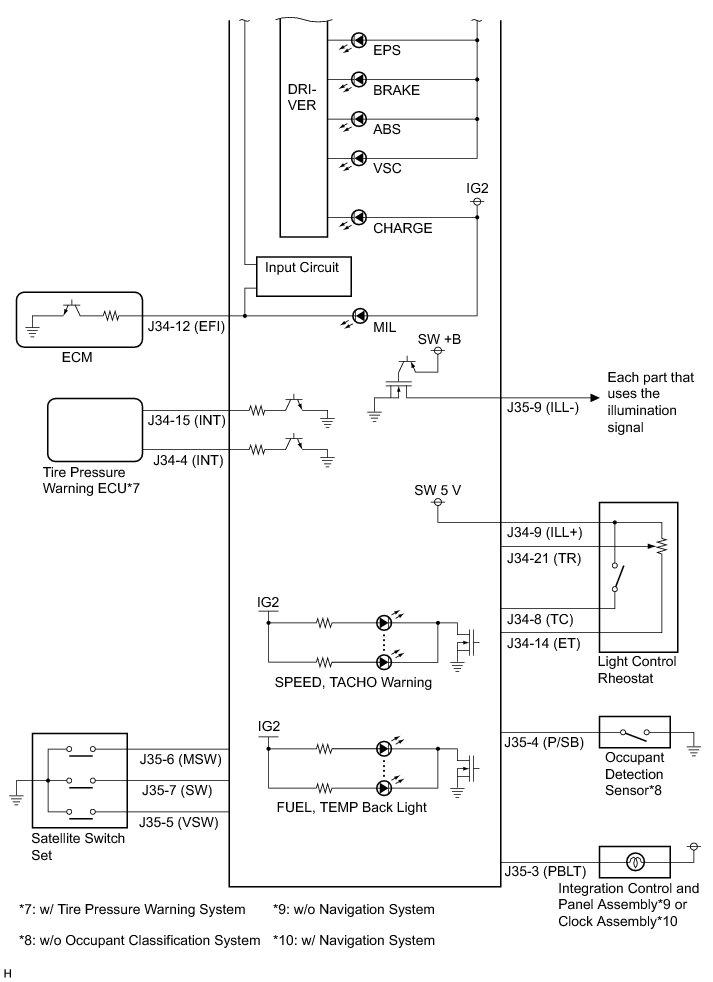

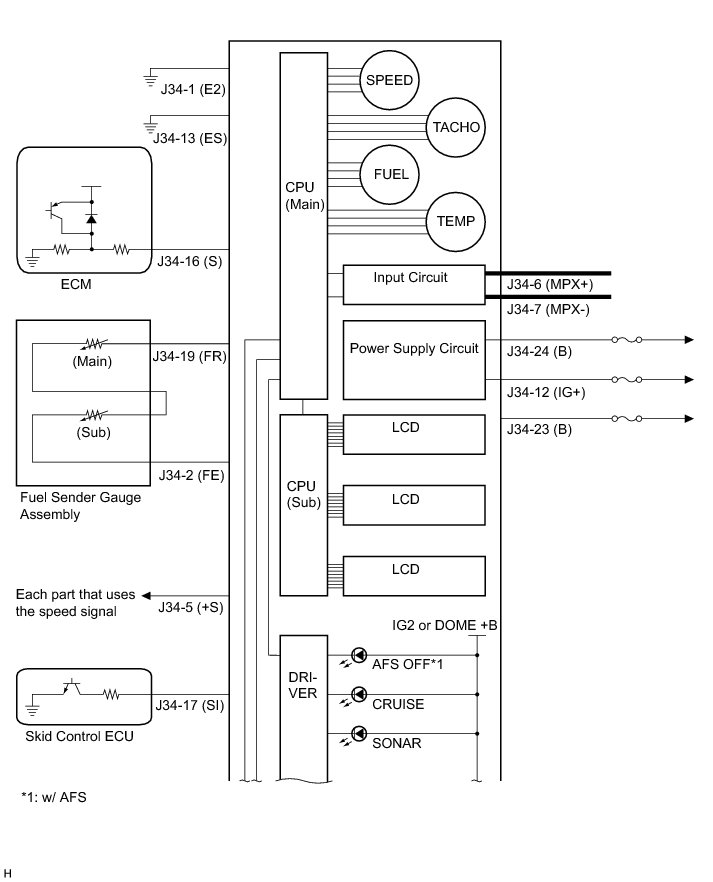

4. COMBINATION METER ASSEMBLY INNER CIRCUIT

(a) Combination Meter Assembly Inner Circuit

















* *7: W/ Tire Pressure Warning System

* *8: W/O Occupant Classification System

* *9: W/O Navigation System

* *10: W/ Navigation System
