Front Power Seat Control System (W/O Memory)
Front Power Seat Control System (W/O Memory)

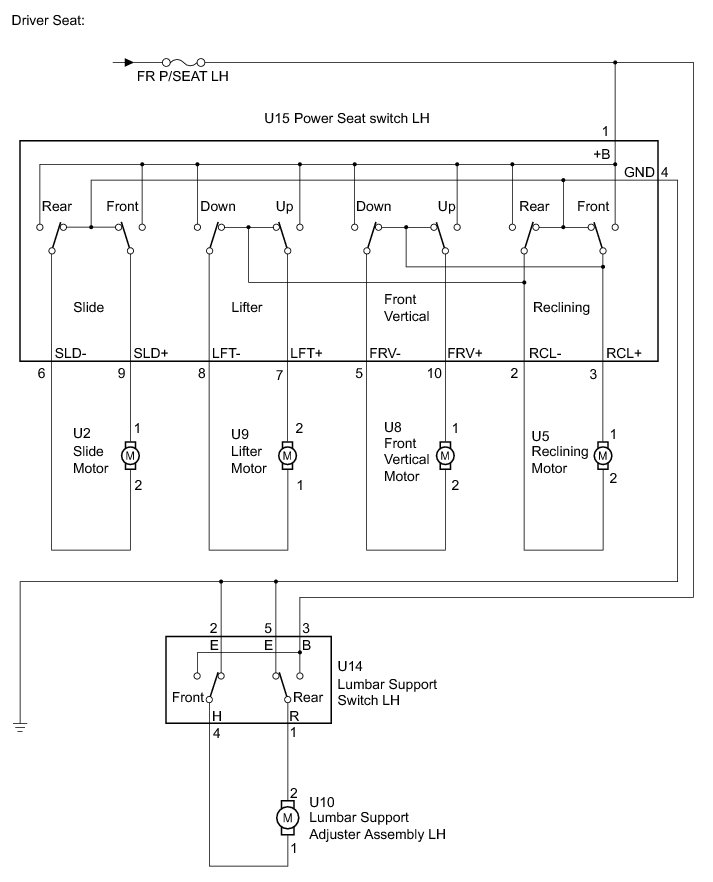

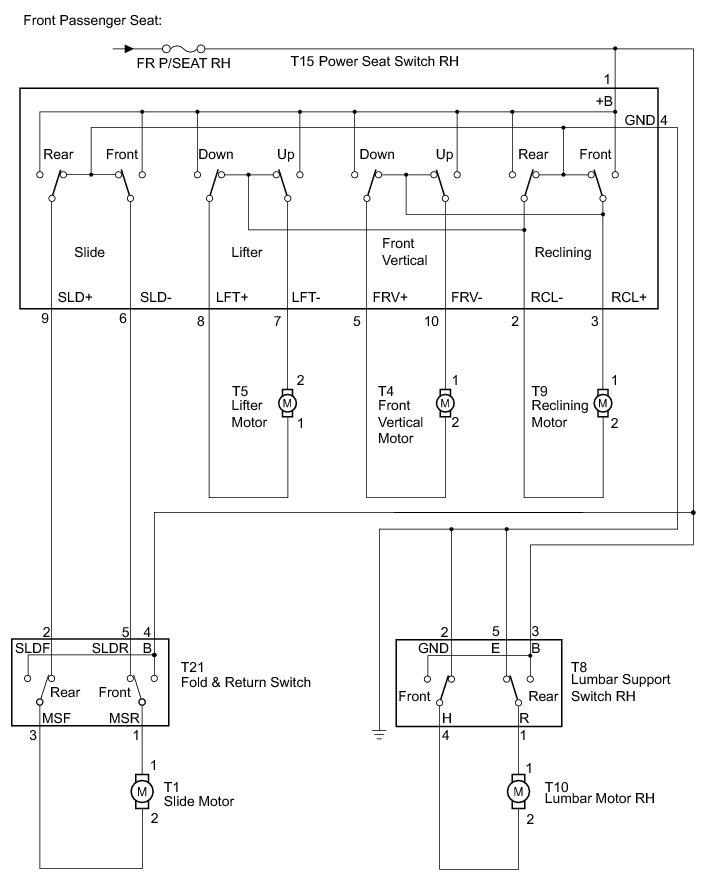

SEAT: FRONT POWER SEAT CONTROL SYSTEM (W/O Memory): SYSTEM DIAGRAM
