Repair Procedure C

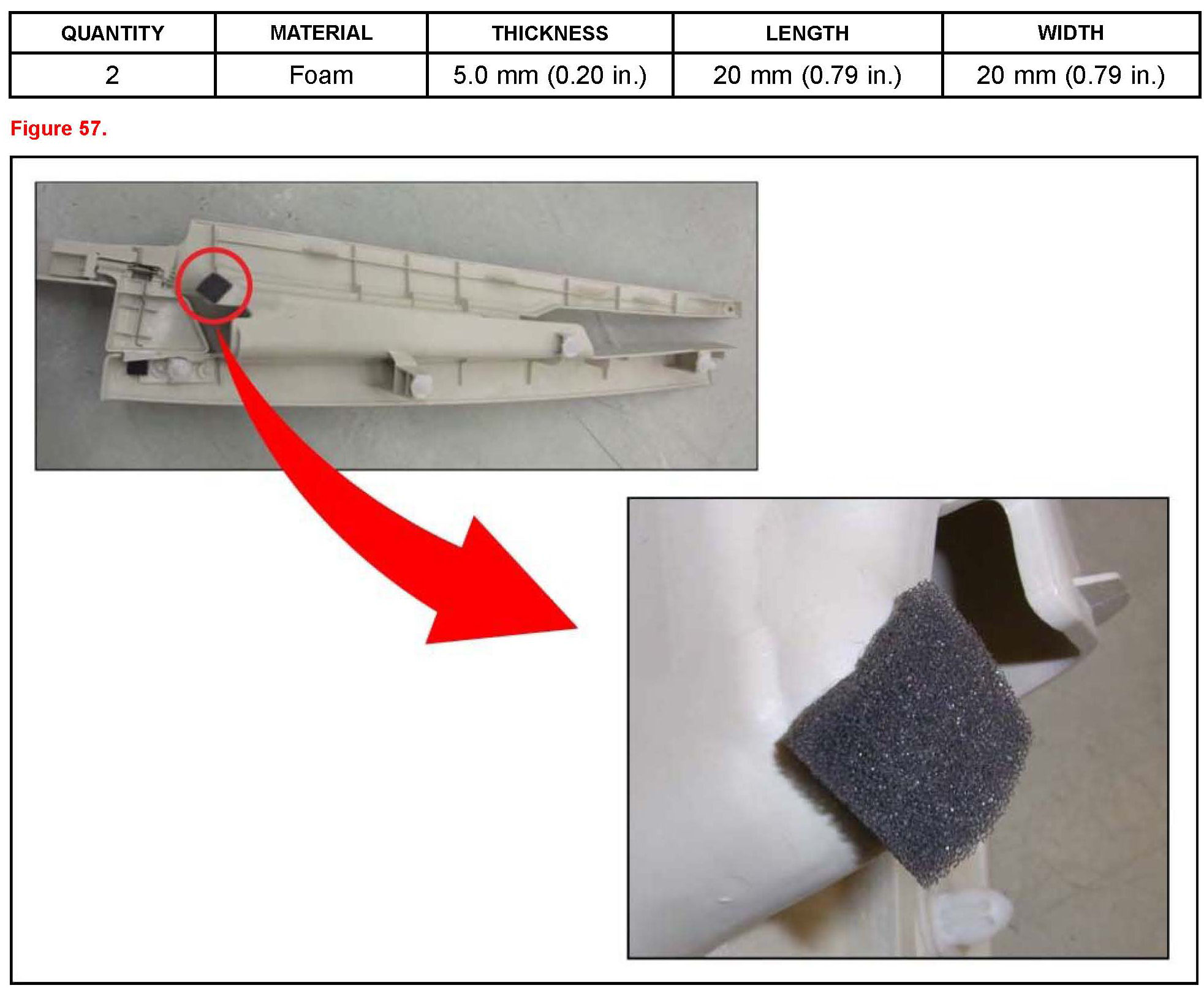

1. Attach gray foam (5.0 mm thick) to the roof side rail garnish No. 3 RH and LH (P/N 62441-53010 & 62442-53010).

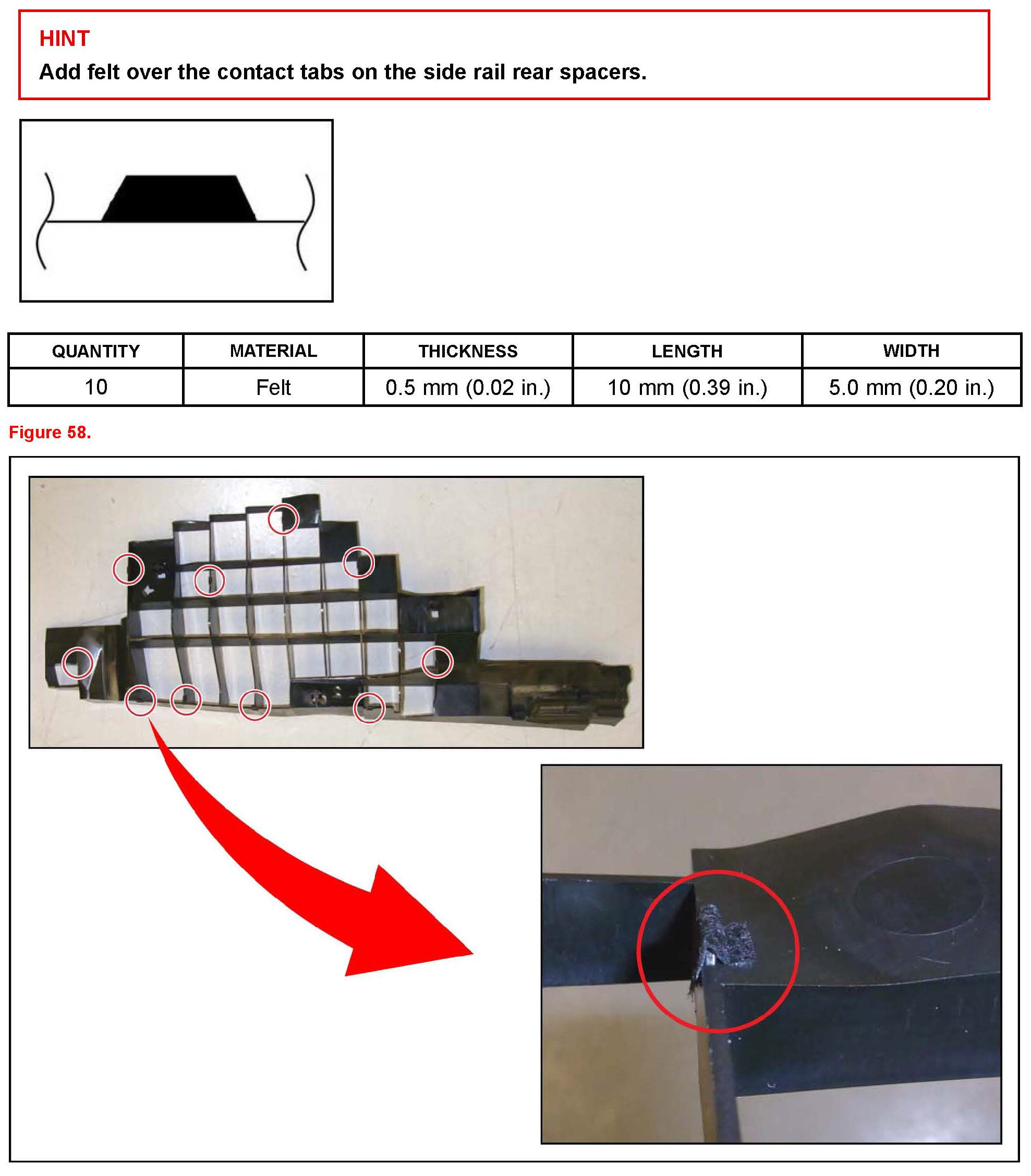

2. Attach felt (0.5 mm thick) in 10 places on each of the side rail rear spacers.

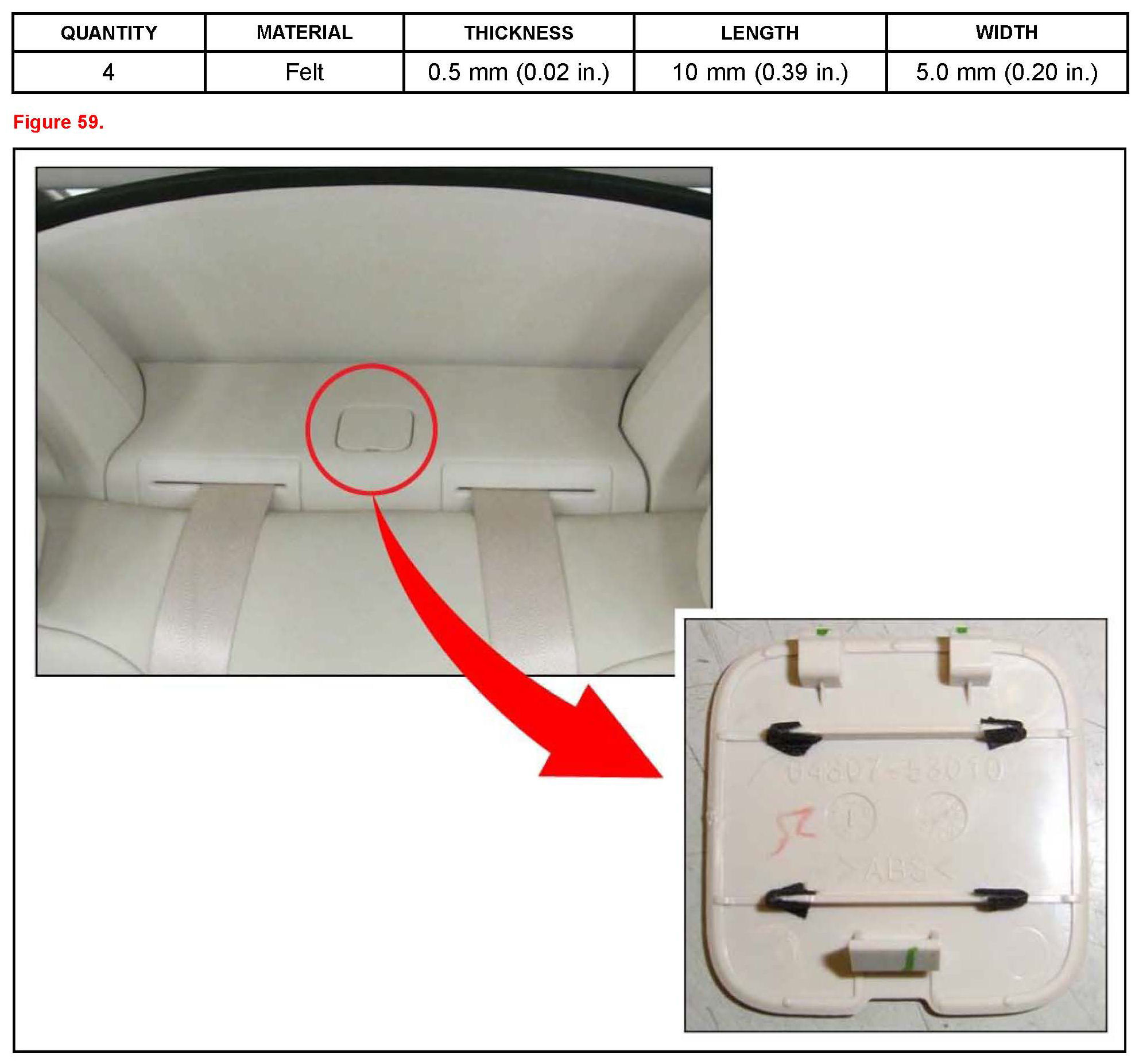

3. Attach felt (0.5 mm thick) in 4 places on the package tray trim pocket lid (64307-53010).

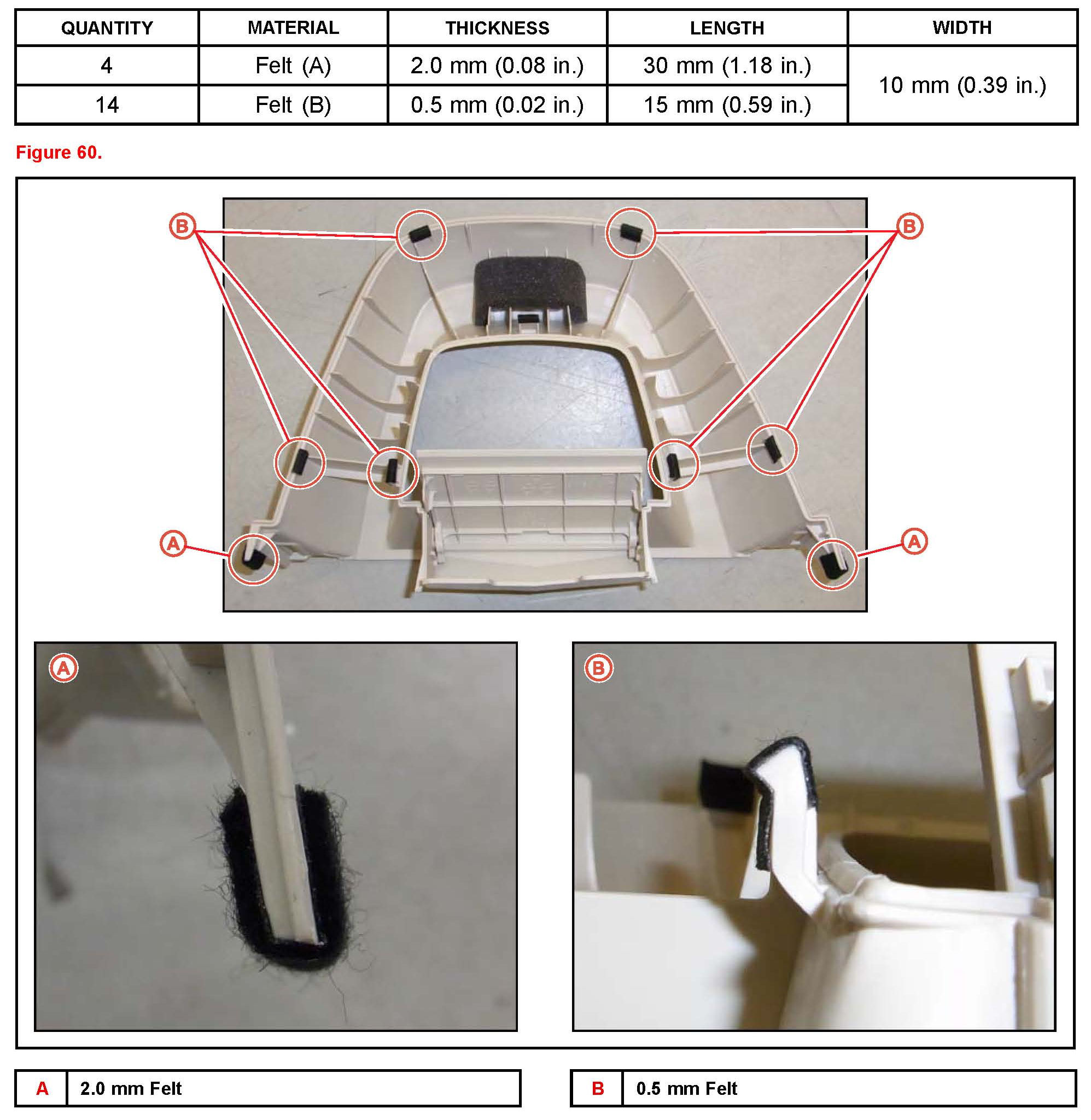

4. Attach felt (0.5 mm & 2.0 mm thick) to the roll over garnishes (P/N 62417-53040 & 62418-53040).

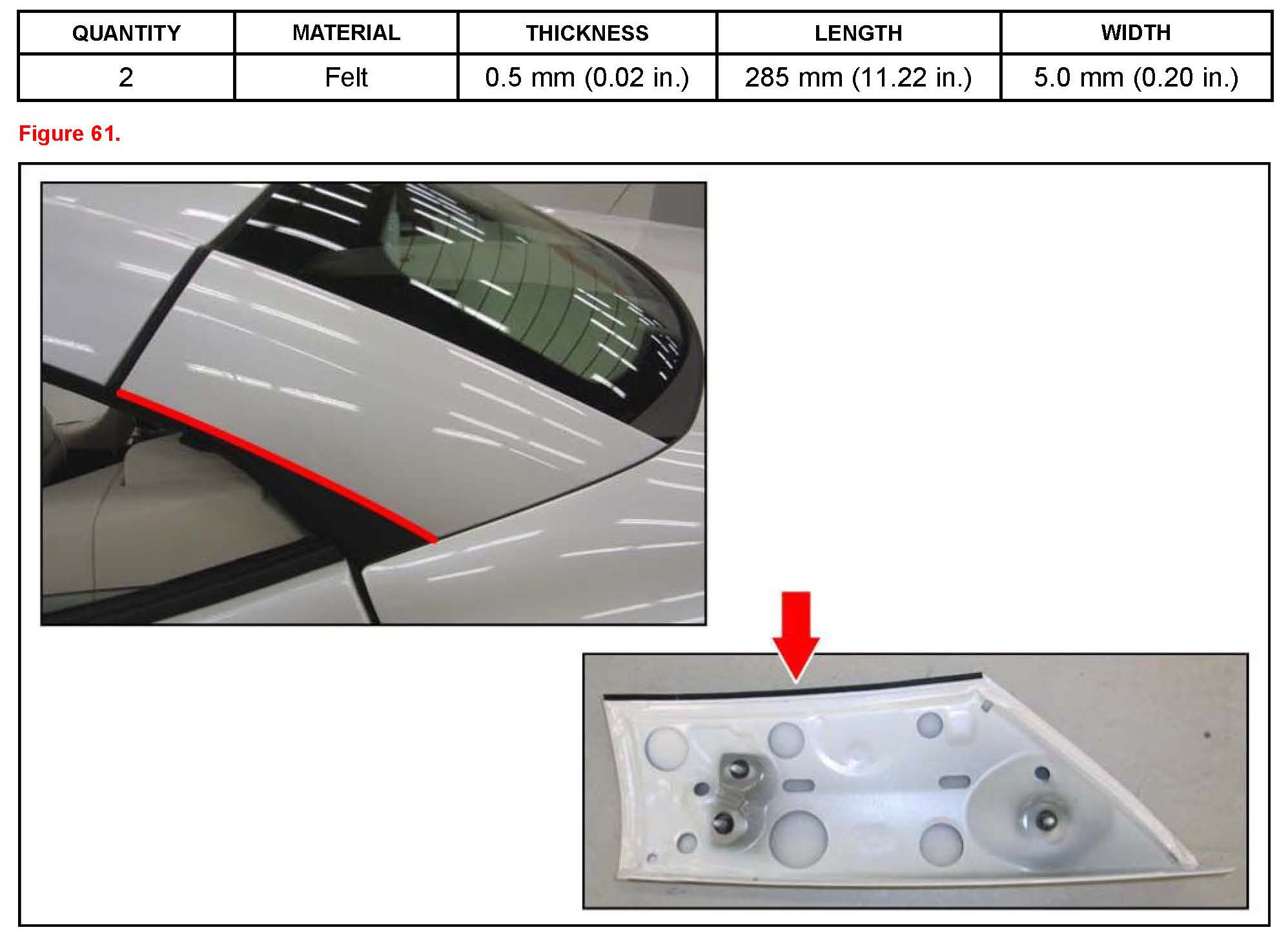

5. Attach felt (0.5 mm thick) to the edge of the quarter pillar garnishes.

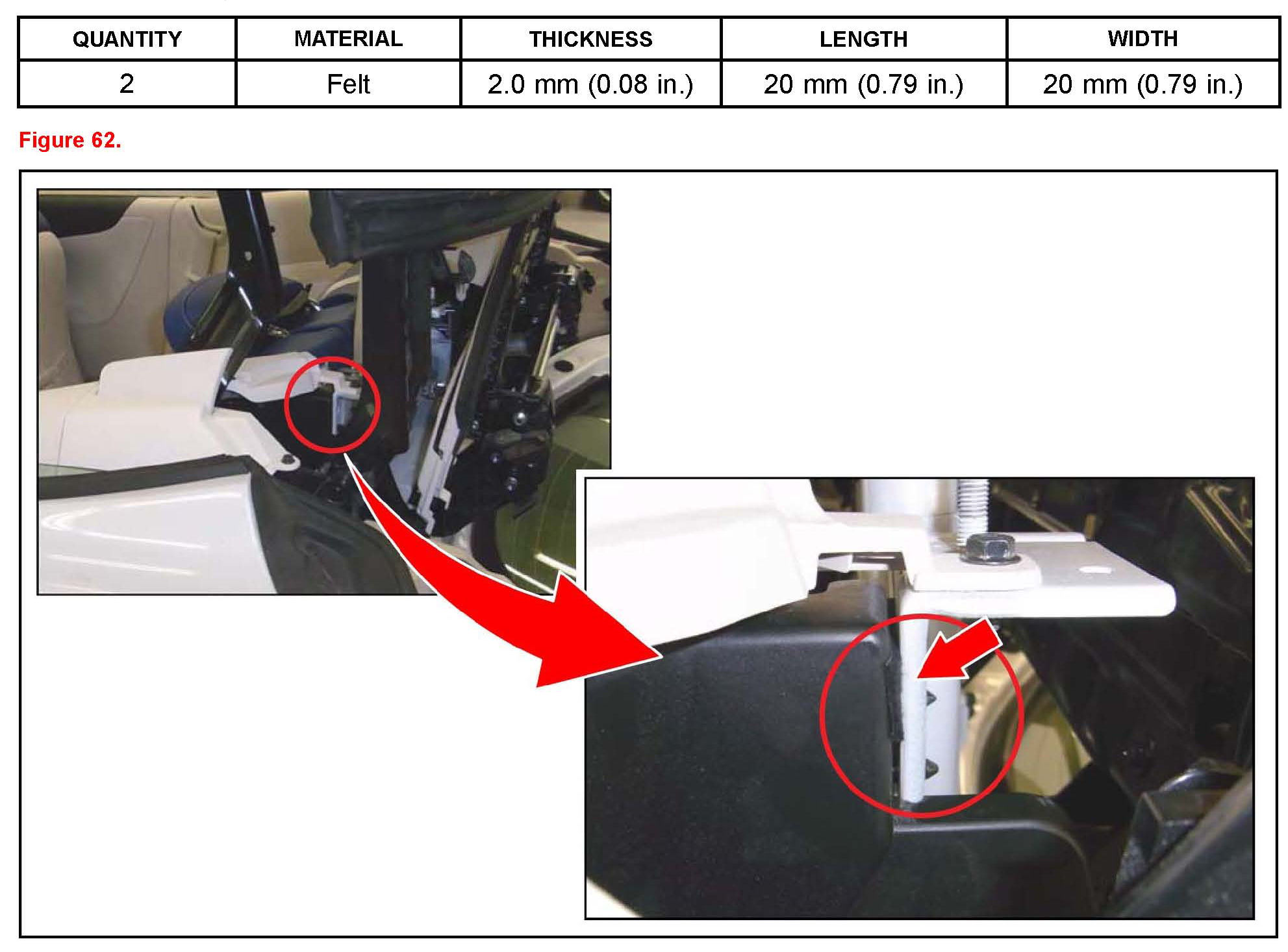

6. Attach felt (2.0 mm thick) between the cover luggage compartment trim inner (P/N 64721-53030 & 64722-53060) and the rear bulkhead.

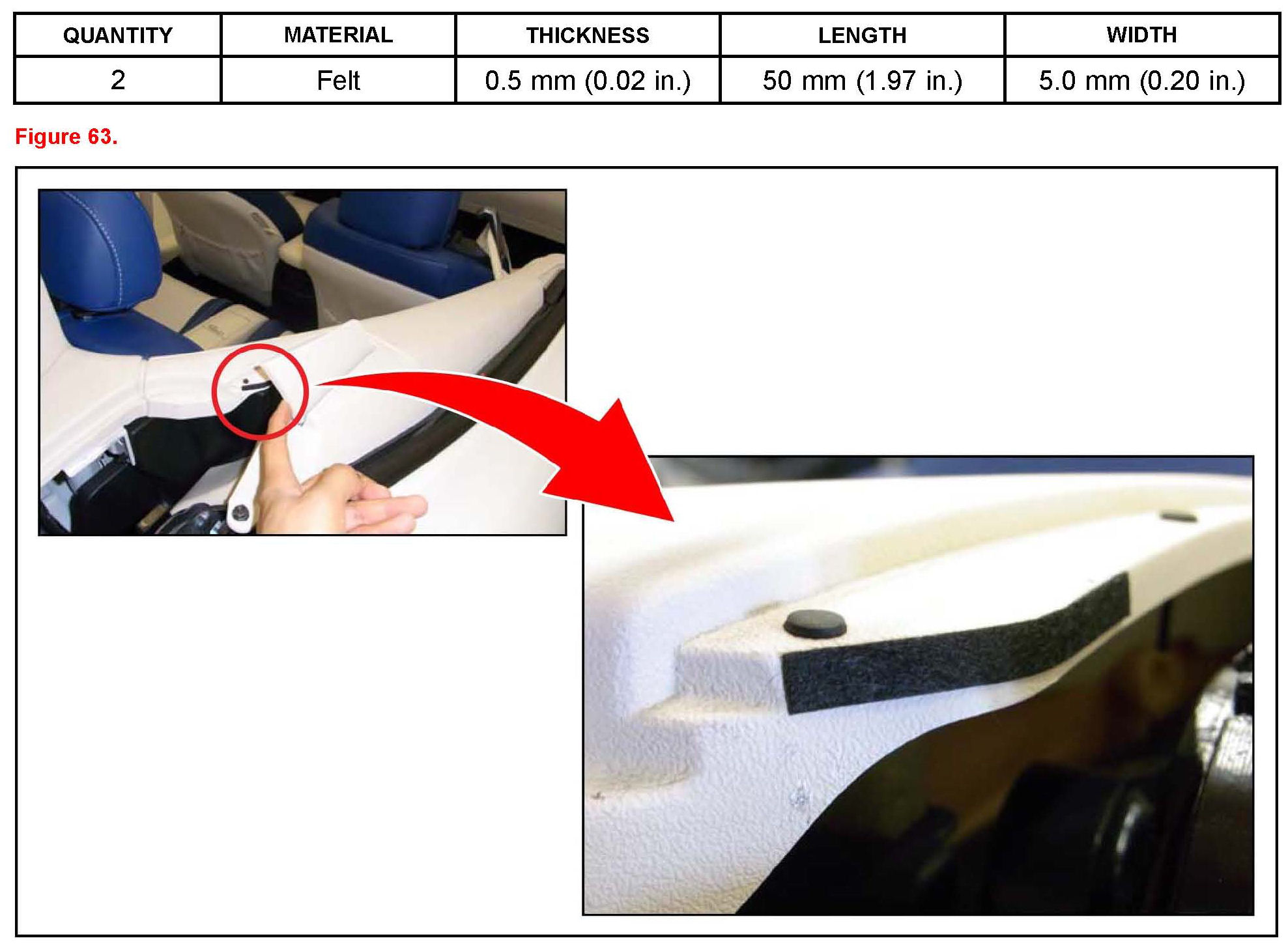

7. Attach a piece of felt to the front quarter trim panel (62510-53010 & 62520-53020) on both right and left sides.

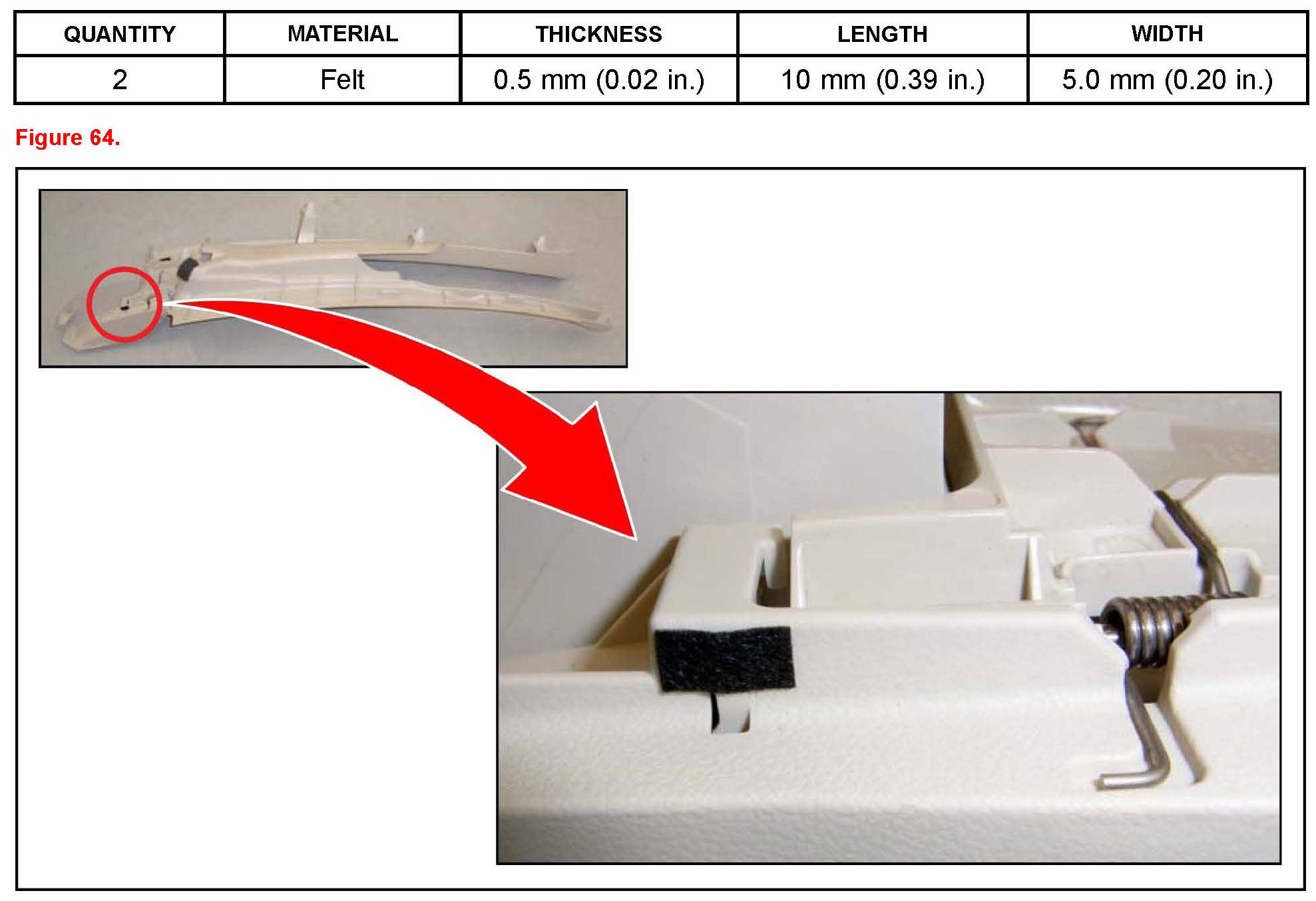

8. Attach a piece of felt to the roof side rail garnish No. 3 on both right and left sides.
