Power Mirror Control System (W/O Memory)
Power Mirror Control System (W/O Memory)

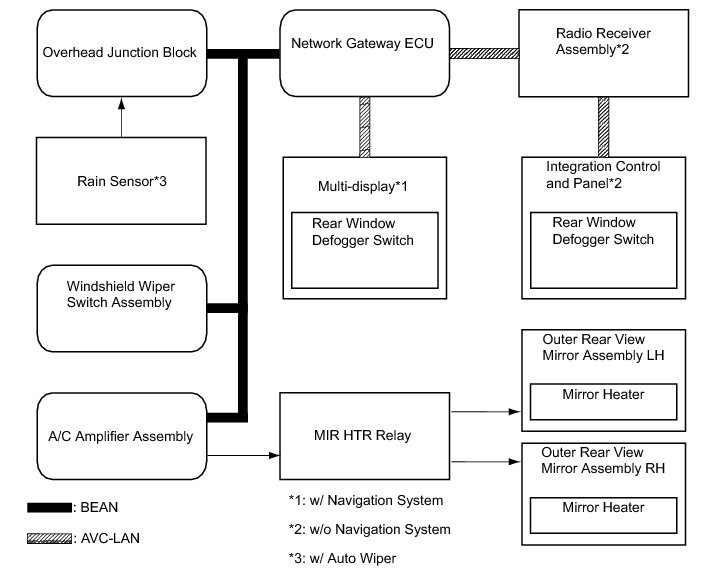

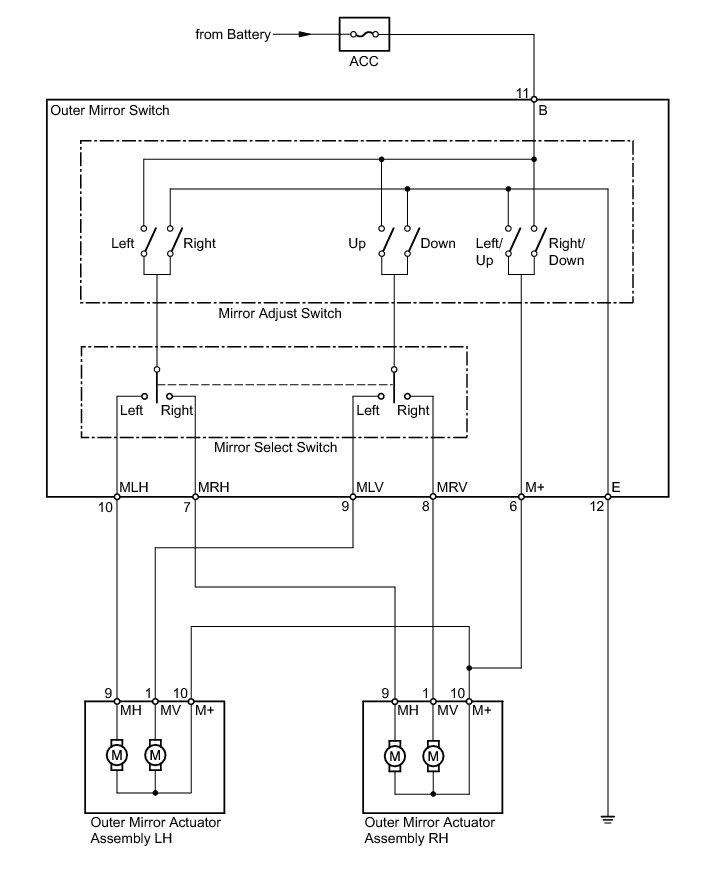

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM (W/O Memory): SYSTEM DIAGRAM
