Reassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING (for Rear Side): REASSEMBLY

1. INSTALL NO. 3 ROOF SILENCER PAD

(a) Peel off the release paper from a new No. 3 roof silencer pad. Be careful not to touch the adhesive surface.

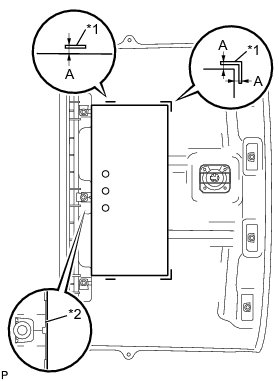

(b) Align the markings on the roof headlining assembly with a new No. 2 roof silencer pad and install the silencer pad as shown in the illustration.





Standard Measurement





Text in Illustration





NOTICE:
* Make sure that the pad is installed according to the marking lines.
* Make sure the silencer pad does not contact the retainer.
