Reassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING (for Front Side): REASSEMBLY

1. INSTALL NO. 1 ROOF WIRE

(a) Apply double-sided tape as shown in the illustration.

(b) Peel off the release paper from the double-sided tape.





(c) Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.





Text in Illustration

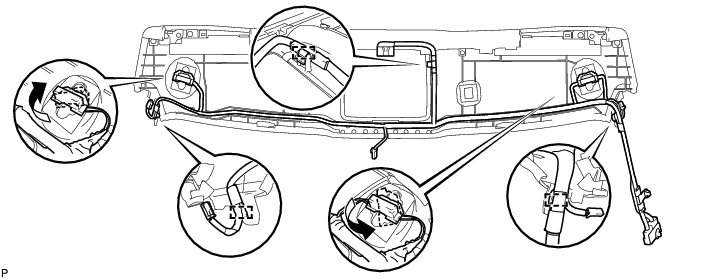

(d) Install the No. 1 roof wire to the roof headlining assembly.

(e) Turn the visor connectors approximately 45° to install each clamp and the connectors to the roof headlining.
