Reassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING (for Center): REASSEMBLY

1. INSTALL NO. 2 ROOF SILENCER PAD

(a) Peel off the release paper from a new No. 2 roof silencer pad. Be careful not to touch the adhesive surface.

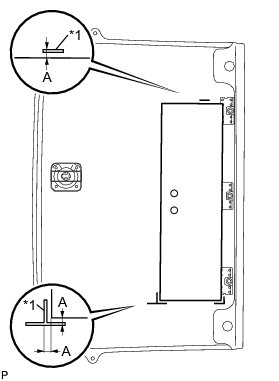

(b) Align the markings on the roof headlining assembly with a new No. 2 roof silencer pad and install the silencer pad as shown in the illustration.





Standard Measurement





Text in Illustration





NOTICE:
Make sure that the pad is installed according to the marking lines.

2. INSTALL NO. 1 ROOF SILENCER PAD

(a) Peel off the release paper from a new No. 1 roof silencer pad. Be careful not to touch the adhesive surface.

(b) Align the markings on the roof headlining assembly with the 2 new No. 2 roof silencer pads and install the silencer pad as shown in the illustration.





Standard Measurement





Text in Illustration





NOTICE:
Make sure that the pads are installed according to the marking lines.
