Audio and Visual System (W/ Navigation System)

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (W/ Navigation System): TERMINALS OF ECU

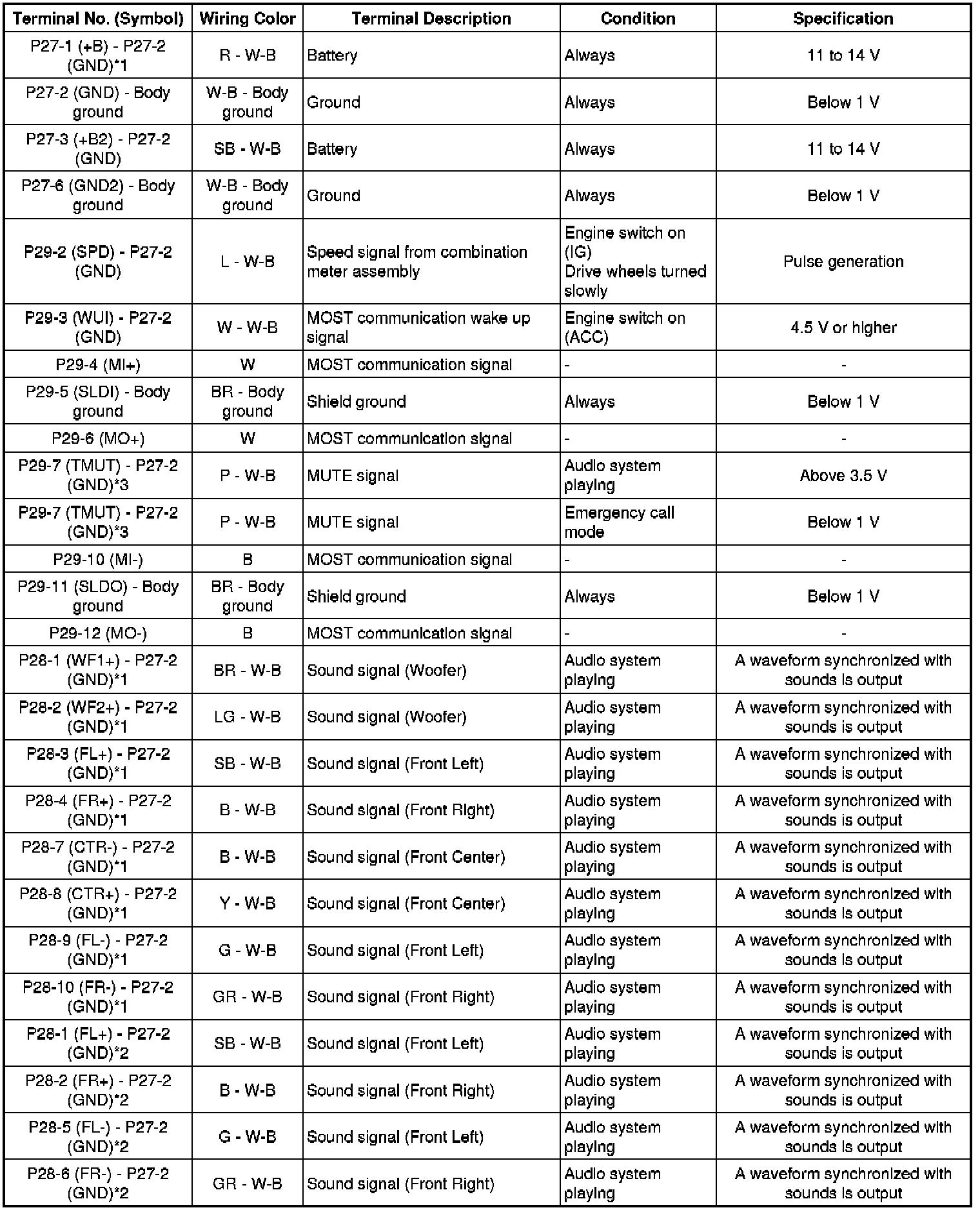

1. RADIO RECEIVER ASSEMBLY









* *1: W/ Front Center Speaker

* *2: W/ USB Audio System

* *3: W/O USB Audio System

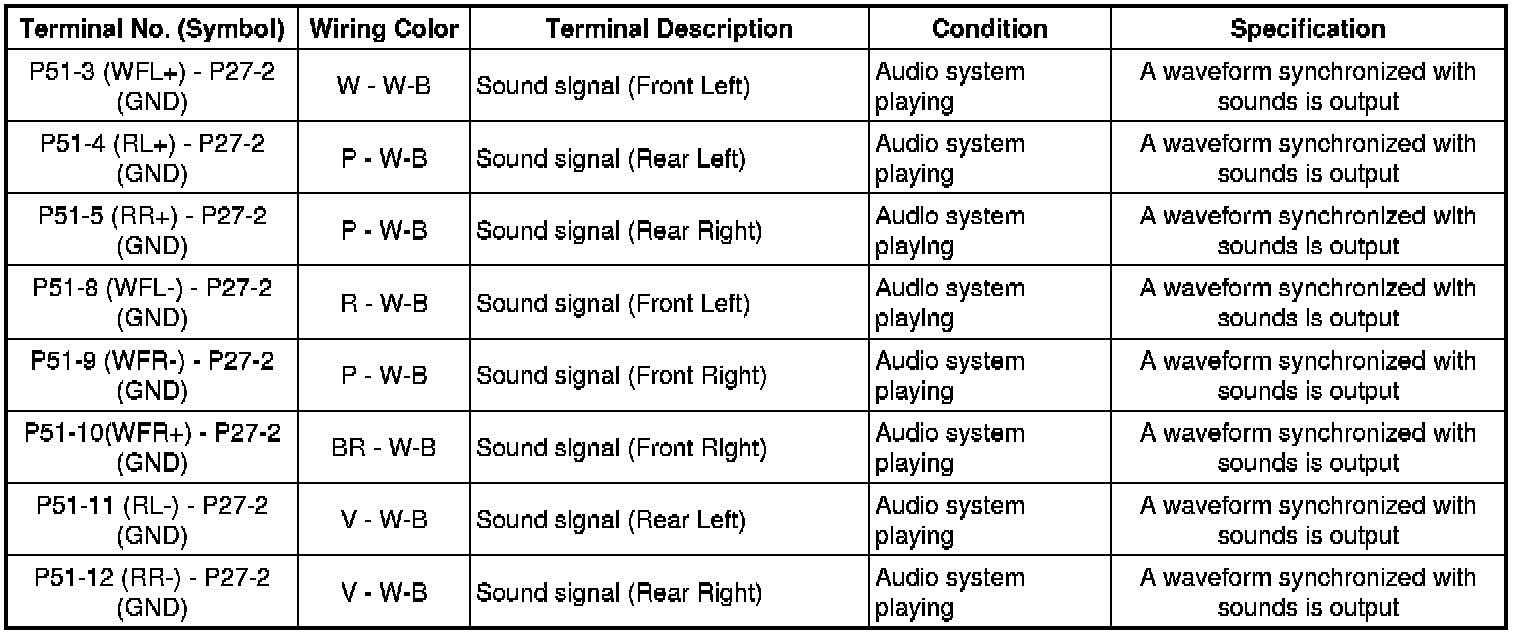

2. STEREO COMPONENT AMPLIFIER ASSEMBLY













* *1: W/ Front Center Speaker

* *2: W/O Front Center Speaker

* *3: W/ Manual (SOS) Switch

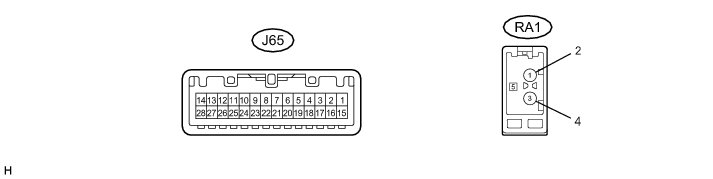

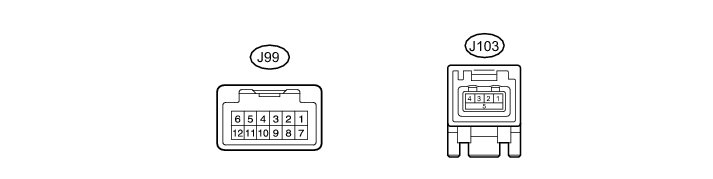

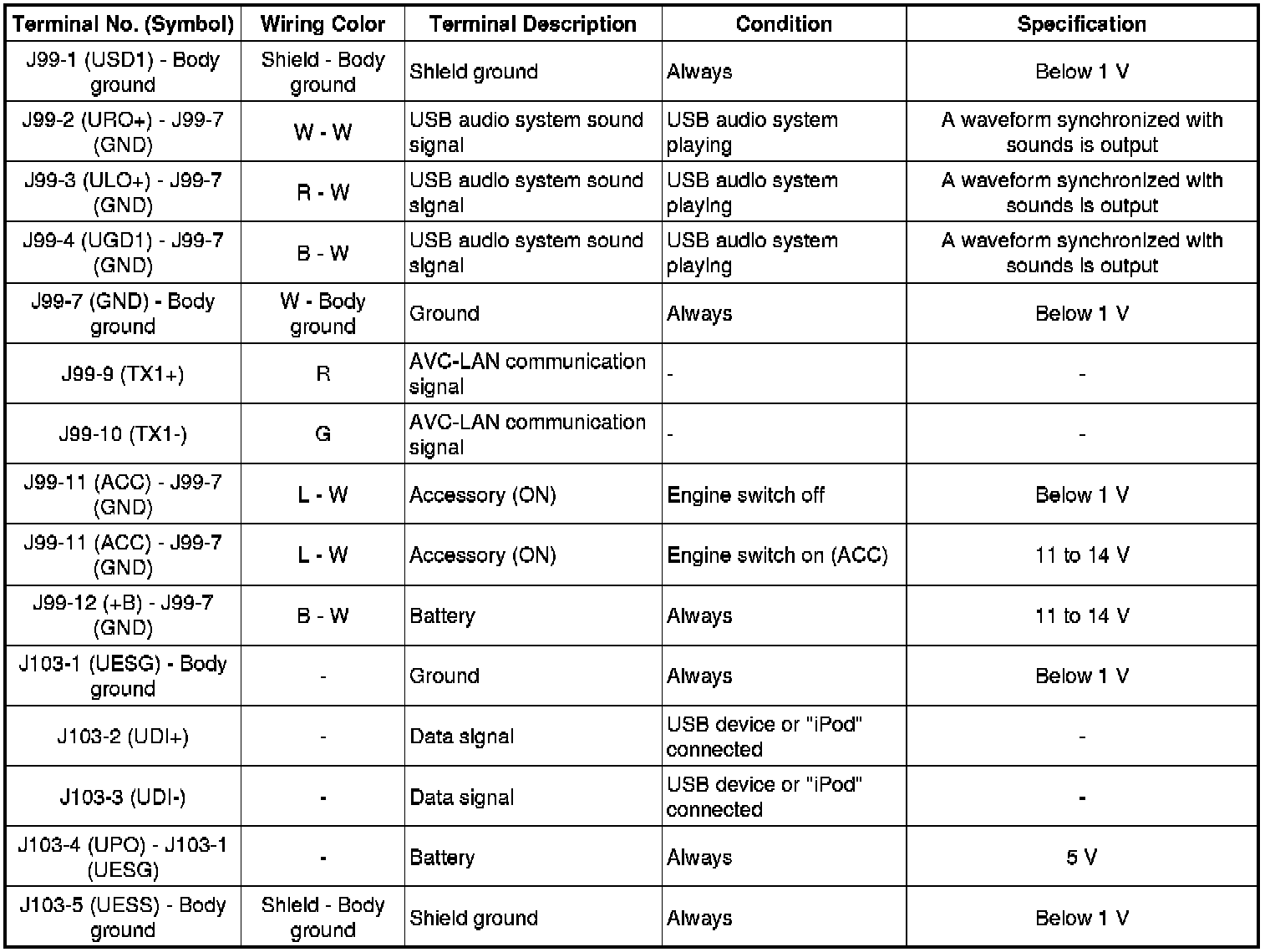

3. MULTI-MEDIA INTERFACE ECU (W/ USB Audio System)
