P0505

4GR-FSE ENGINE CONTROL: SFI SYSTEM: P0505: Idle Control System Malfunction

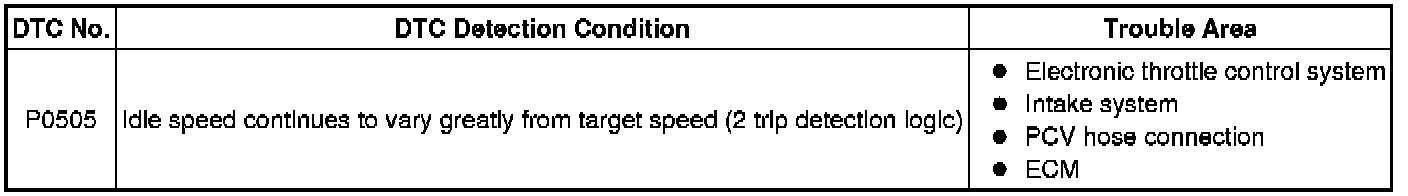

P0505 - Idle Control System Malfunction

DESCRIPTION

The idle speed is controlled by the electronic throttle control system. The electronic throttle control system is comprised of: 1) one valve type throttle body assembly; 2) the throttle actuator, which operates the throttle valve; 3) the throttle position sensor, which detects the opening angle of the throttle valve; 4) the accelerator pedal position sensor, which detects the accelerator pedal position; 5) the ECM, which controls the electronic throttle control system. Based on the target idle speed, the ECM controls the throttle actuator to provide the proper throttle valve opening angle.





MONITOR DESCRIPTION

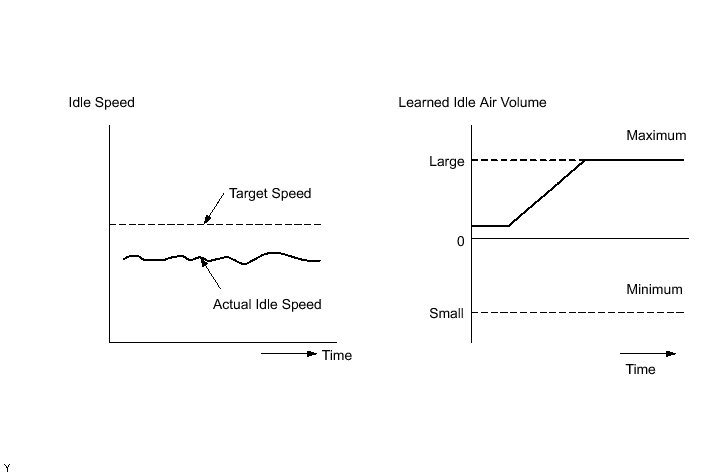

The ECM monitors the idle speed and idle air flow volume to conduct idle speed control. The ECM determines that the idle speed control system is malfunctioning if the following conditions are met:

- The learned idle air flow volume remains at the maximum or minimum volume for 5 seconds or more during a driving cycle.

- After driving at a vehicle speed of 6.2 mph (10 km/h) or more, the actual engine idle speed varies from the target idle speed by more than -100 rpm or 200 rpm or more, 5 times or more during a driving cycle, the ECM illuminates the MIL and sets the DTC.

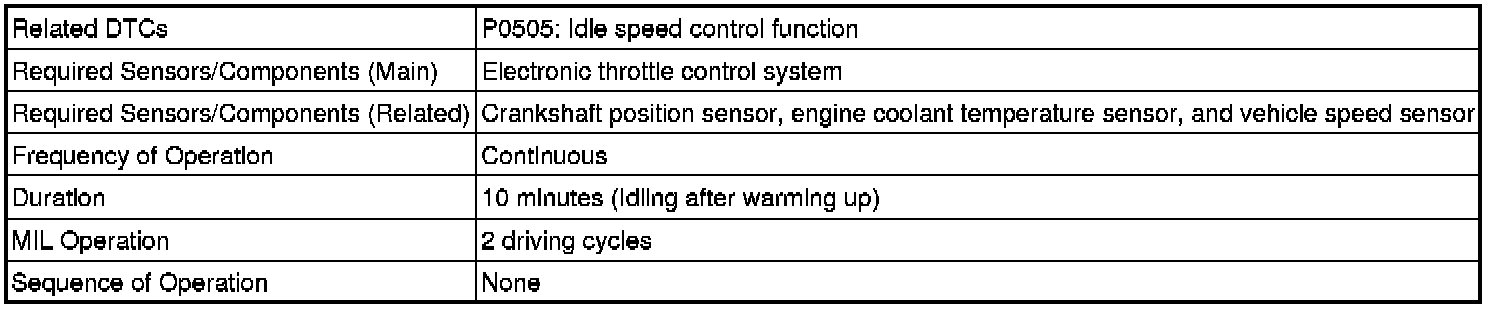

MONITOR STRATEGY

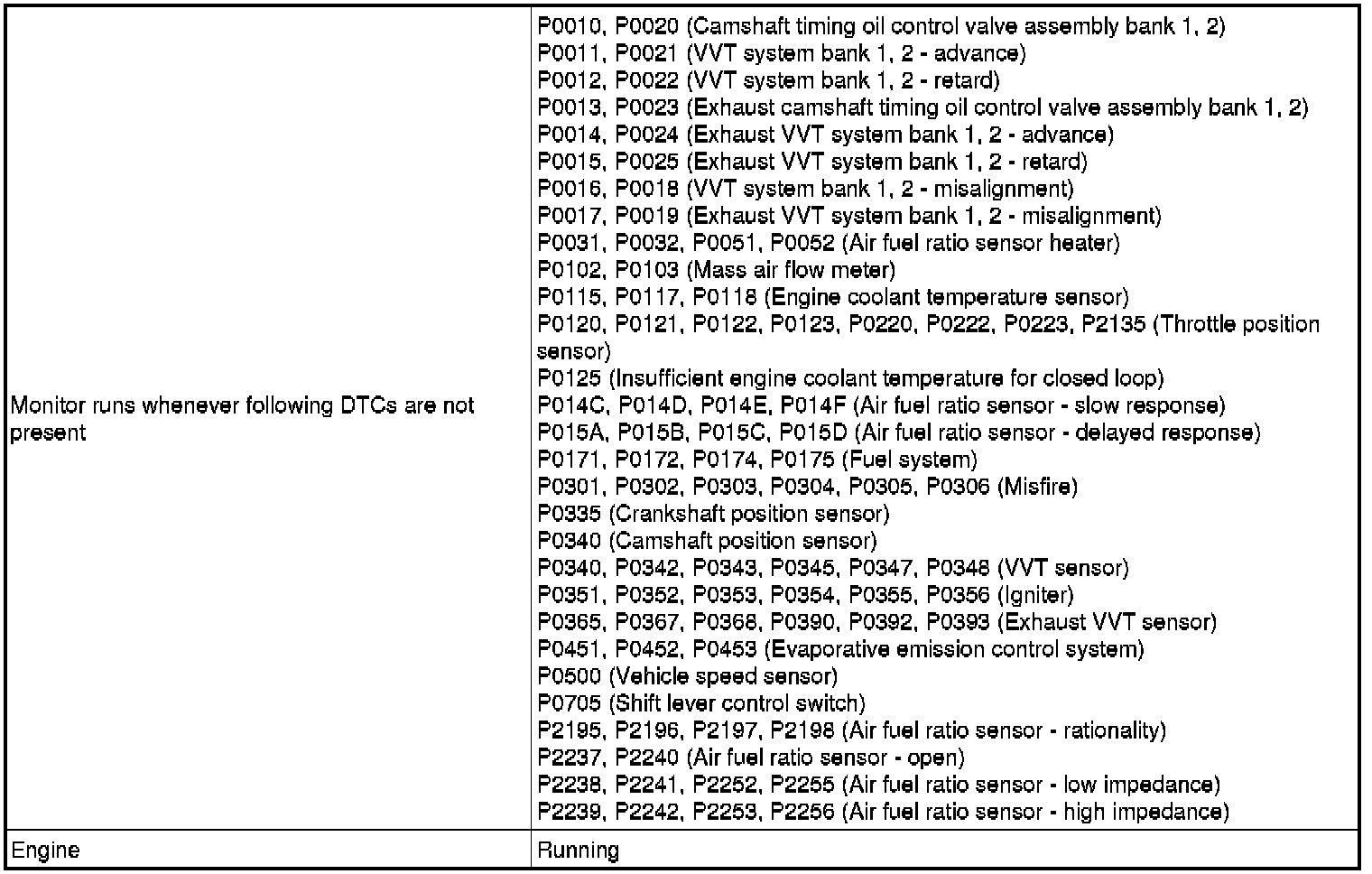

TYPICAL ENABLING CONDITIONS

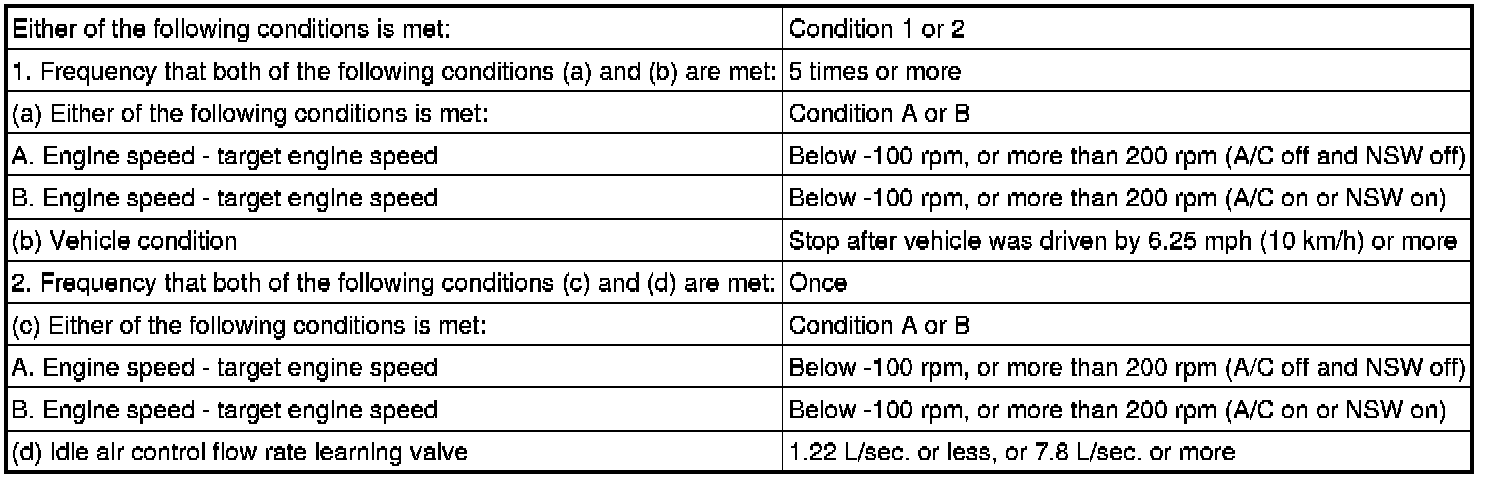

TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





- Connect the Techstream to the DLC3.

- Turn the engine switch on (IG) and turn the Techstream on.

- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) DTC Check / Clear.

- Turn the engine switch off.

- Turn the engine switch on (IG) and turn the Techstream on [A].

- Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or more) with all the accessories switched off [B].

- Idle the engine for 10 minute or more [C].

- Accelerate the vehicle to 6.2 mph (10 km/h) or more, and then idle the engine [D].

- Enter the following menus: Powertrain / Engine / Utility / All Readiness.

- Input the DTC: P0505.

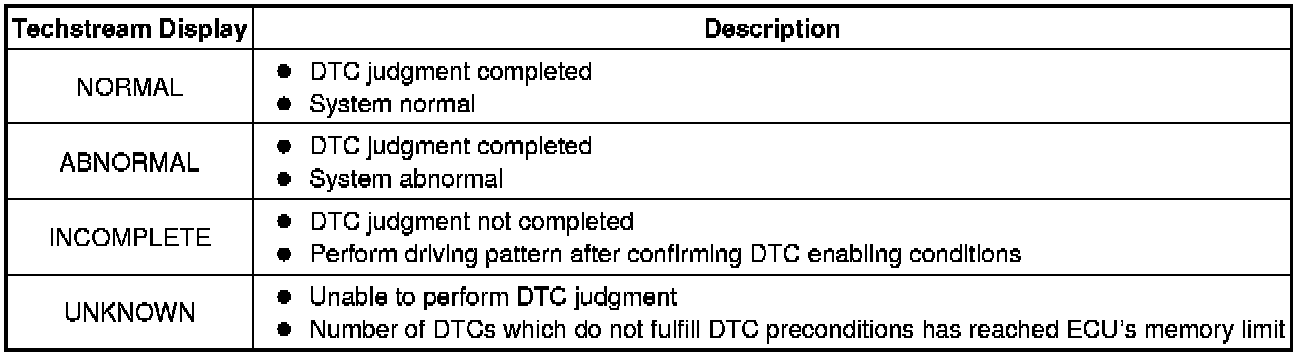

- Check the DTC judgment result [E].





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, repeat step [D] 4 times, allowing 20 seconds or more between each repetition, and then check the DTC judgment result [F].
- If the test result is UNKNOWN, enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

- Read Pending DTCs.

HINT
If a pending DTC is output, the system is malfunctioning.

- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE

HINT
- The following conditions may also cause DTC P0505 to be set:
* The floor carpet overlapping onto the accelerator pedal, causing the accelerator pedal to be slightly depressed and therefore the throttle valve position to be slightly open.
* The accelerator pedal being not fully released.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0505)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

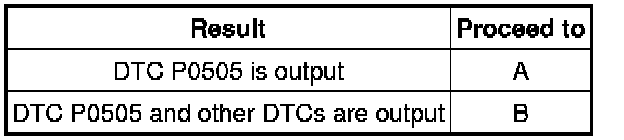

Result:





HINT
If any DTCs other than P0505 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART SFI System
A -- Continue to next step.

2. CHECK PCV HOSE (HOSE CONNECTIONS)

(a) Check the PCV hose connections Testing and Inspection.

OK:

PCV hose is connected correctly and is not damaged.

NG -- REPAIR OR REPLACE PCV HOSE
OK -- Continue to next step.

3. CHECK INTAKE SYSTEM

(a) Check the intake system for vacuum leaks Testing and Inspection.

OK:

No leaks in the intake system.

NG -- REPAIR OR REPLACE INTAKE SYSTEM
OK -- Continue to next step.

4. CHECK THROTTLE BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)

(a) Check for contamination between the throttle valve and the housing. And check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign objects and moves smoothly.

NG -- REPLACE THROTTLE BODY ASSEMBLY Removal

OK -- REPLACE ECM Removal
